AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

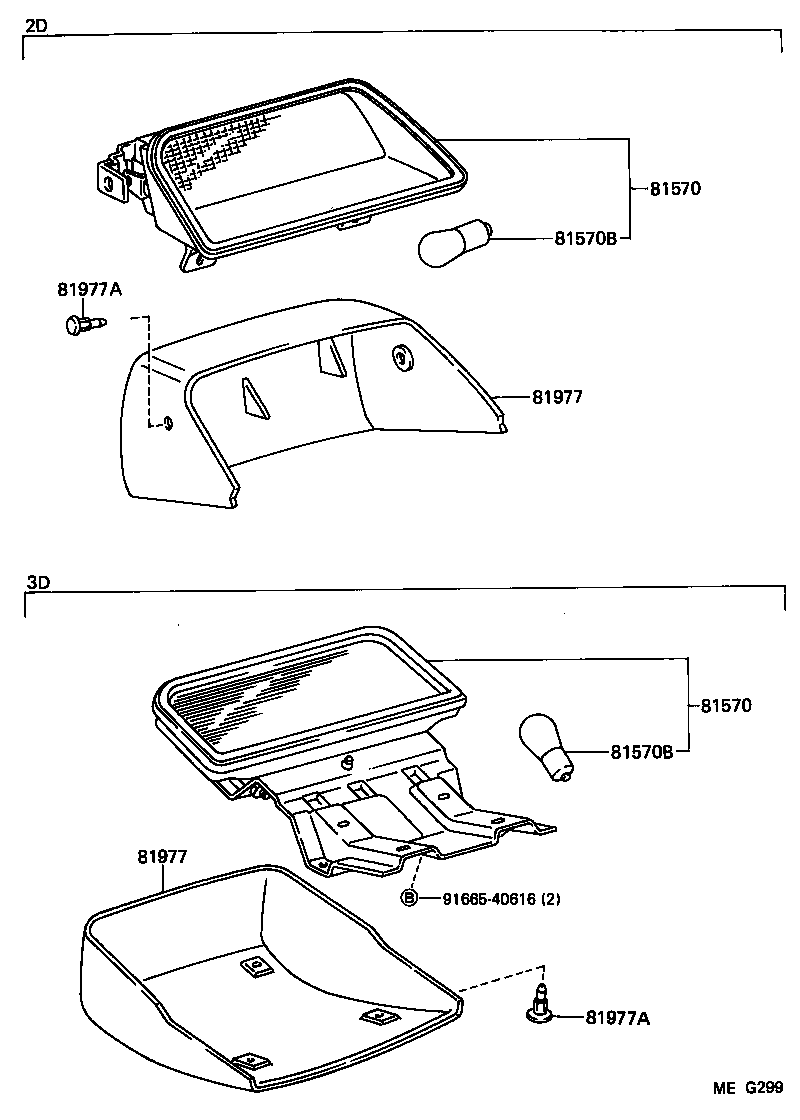

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81570 - LAMP ASSY, CENTER STOP | ||||
| 81570-12030 |
AE86..3D |
1 | ||
| 81570 - LAMP ASSY, CENTER STOP | ||||
| 81570-12030 |
AE86..3D |
1 | ||
| 81570B - BULB (FOR CENTER STOP LAMP) | ||||
| 99132-11270 |
AE86 12V 27W,12V 27W |
1 | ||
| 81570B - BULB (FOR CENTER STOP LAMP) | ||||
| 99132-11270 |
AE86 12V 27W,12V 27W |
1 | ||
| 81977 - COVER, CENTER STOP LAMP | ||||
| 81977-1203002 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 81977-1203001 |
AE86..3D BLACK,BLACK |
1 | ||
| 81977-1203004 |
AE86..3D BLUE,BLUE |
1 | ||
| 81977 - COVER, CENTER STOP LAMP | ||||
| 81977-1203002 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 81977-1203001 |
AE86..3D BLACK,BLACK |
1 | ||
| 81977-1203004 |
AE86..3D BLUE,BLUE |
1 | ||
| 81977A - CLIP (FOR CENTER STOP LAMP) | ||||
| 90467-0704104 |
AE86 BLUE,BLUE |
1 | ||
| 90467-0704112 |
AE86..DX,SR5 MAROON,MAROON |
1 | ||
| 90467-0704101 |
AE86 BLACK,BLACK |
1 | ||
| 81977A - CLIP (FOR CENTER STOP LAMP) | ||||
| 90467-0704104 |
AE86 BLUE,BLUE |
1 | ||
| 90467-0704112 |
AE86..DX,SR5 MAROON,MAROON |
1 | ||
| 90467-0704101 |
AE86 BLACK,BLACK |
1 | ||
| Common parts | ||||
| 91665-40616 | ||||
