AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

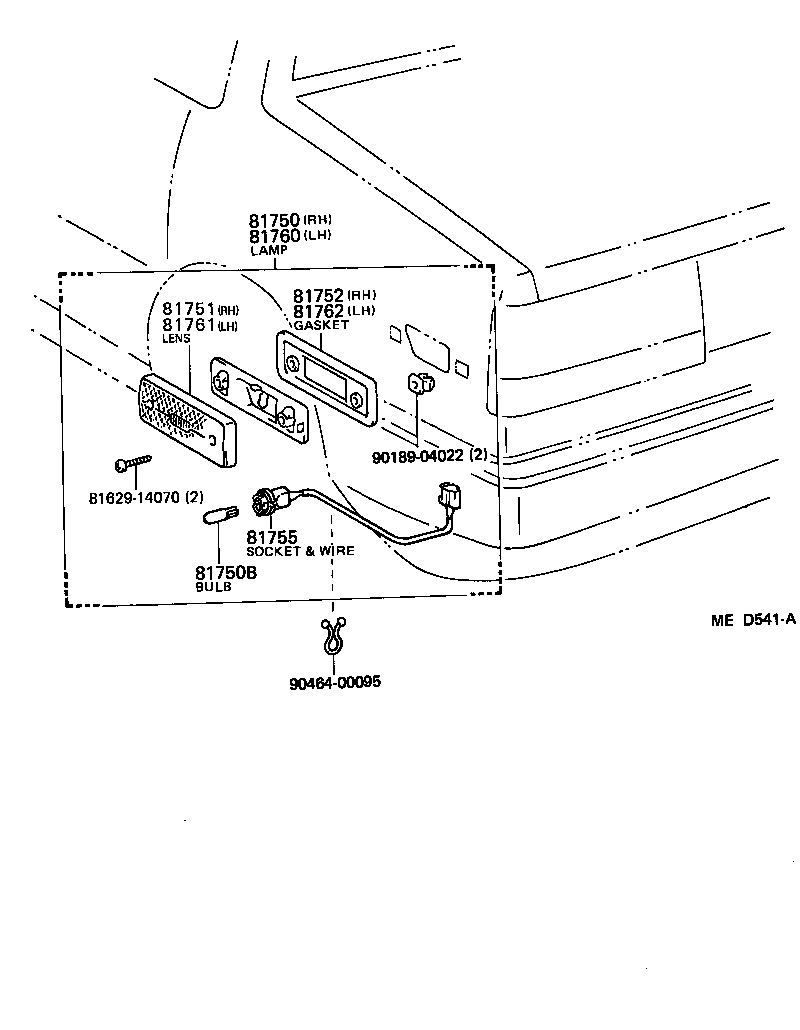

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81750 - LAMP ASSY, REAR SIDE MARKER, RH | ||||
| 81750-19215 |
AE86 |
1 | ||
| 81750B - BULB, REAR SIDE MARKER LAMP | ||||
| 90981-11020 |
AE86 12V 3.8W,12V 3.8W |
2 | ||
| 81751 - LENS, REAR SIDE MARKER LAMP, RH | ||||
| 81751-12110 |
AE86 |
1 | ||
| 81752 - GASKET, REAR SIDE MARKER LAMP LENS | ||||
| 81752-12110 |
AE86 |
1 | ||
| 81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP | ||||
| 81755-12120 |
AE86 |
2 | ||
| 81760 - LAMP ASSY, REAR SIDE MARKER, LH | ||||
| 81760-19165 |
AE86 |
1 | ||
| 81761 - LENS, REAR SIDE MARKER LAMP, LH | ||||
| 81761-12110 |
AE86 |
1 | ||
| 81762 - GASKET, REAR SIDE MARKER LAMP | ||||
| 81752-12110 |
AE86 |
1 | ||
| Common parts | ||||
| 81629-14070 | ||||
| 90189-04022 | ||||
| 90464-00095 | ||||
