AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

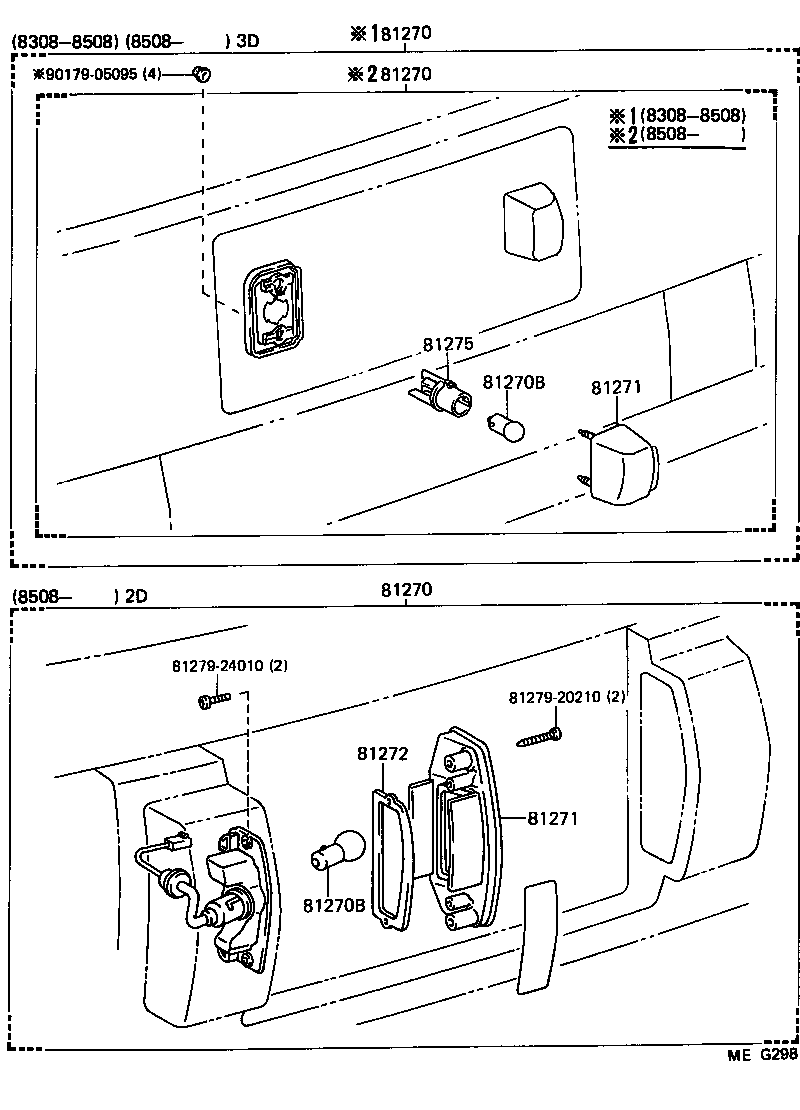

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-12320 |
AE86..3D |
2 | ||
| 81270-80009 |
AE86 |
2 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-12320 |
AE86..3D |
2 | ||
| 81270-80009 |
AE86 |
2 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-12320 |
AE86..3D |
2 | ||
| 81270-80009 |
AE86 |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11075 |
AE86 12V 7.5W,12V 7.5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11075 |
AE86 12V 7.5W,12V 7.5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-12230 |
AE86 |
2 | ||
| 81271-17010 |
AE86..3D |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-12230 |
AE86 |
2 | ||
| 81271-17010 |
AE86..3D |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 81275-12230 |
AE86..3D |
2 | ||
| 81275-12230 |
AE86 |
2 | ||
| Common parts | ||||
| 81279-20210 | ||||
| 81279-24010 | ||||
| 90179-05095 | ||||
