AE86L-ECMXCA (1983)
Toyota Corolla Cp

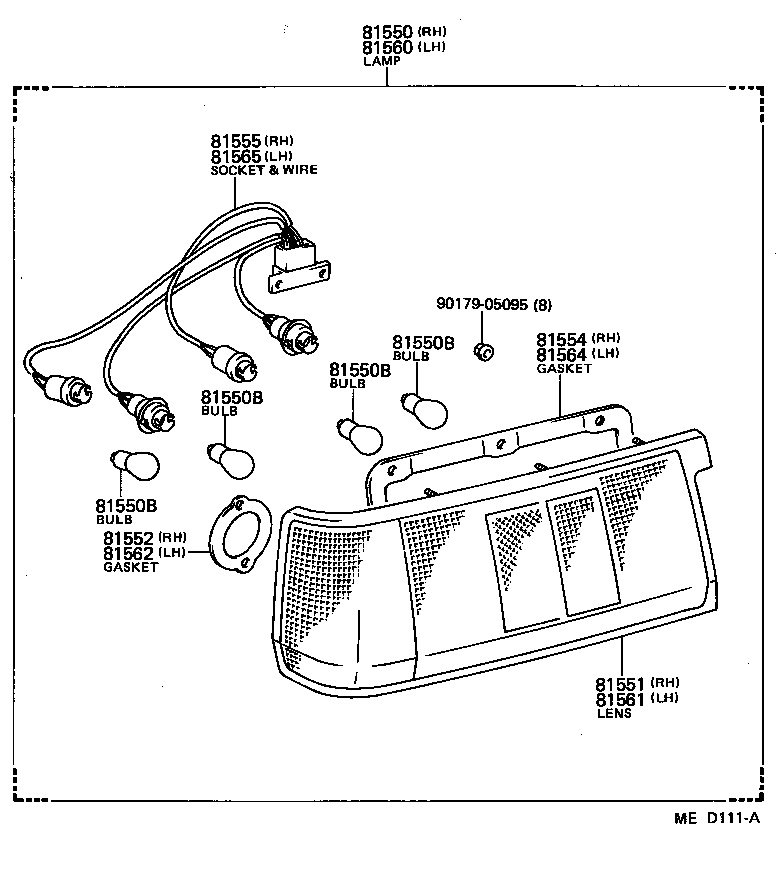

(8308-8508)3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-1A241 |
AE86..3D |
1 | ||
| 81550-80162 |
AE86..3D |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
AE86 12V 27/8W,12V 27/8W(STOP & TAIL) |
4 | ||
| 99132-11270 |
AE86 12V 27W,12V 27W(TURN OR BACK) |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
AE86 12V 27/8W,12V 27/8W(STOP & TAIL) |
4 | ||
| 99132-11270 |
AE86 12V 27W,12V 27W(TURN OR BACK) |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
AE86 12V 27/8W,12V 27/8W(STOP & TAIL) |
4 | ||
| 99132-11270 |
AE86 12V 27W,12V 27W(TURN OR BACK) |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
AE86 12V 27/8W,12V 27/8W(STOP & TAIL) |
4 | ||
| 99132-11270 |
AE86 12V 27W,12V 27W(TURN OR BACK) |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1A240 |
AE86..3D |
1 | ||
| 81551-1A241 |
AE86..3D |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81556-1A230 |
AE86..3D |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-1A230 |
AE86..3D |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-1A240 |
AE86..3D |
1 | ||
| 81555-1A241 |
AE86..3D |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-80167 |
AE86..3D |
1 | ||
| 81560-1A241 |
AE86..3D |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1A240 |
AE86..3D |
1 | ||
| 81561-1A241 |
AE86..3D |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81556-1A230 |
AE86..3D |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-1A230 |
AE86..3D |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-1A241 |
AE86..3D |
1 | ||
| 81555-1A240 |
AE86..3D |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||

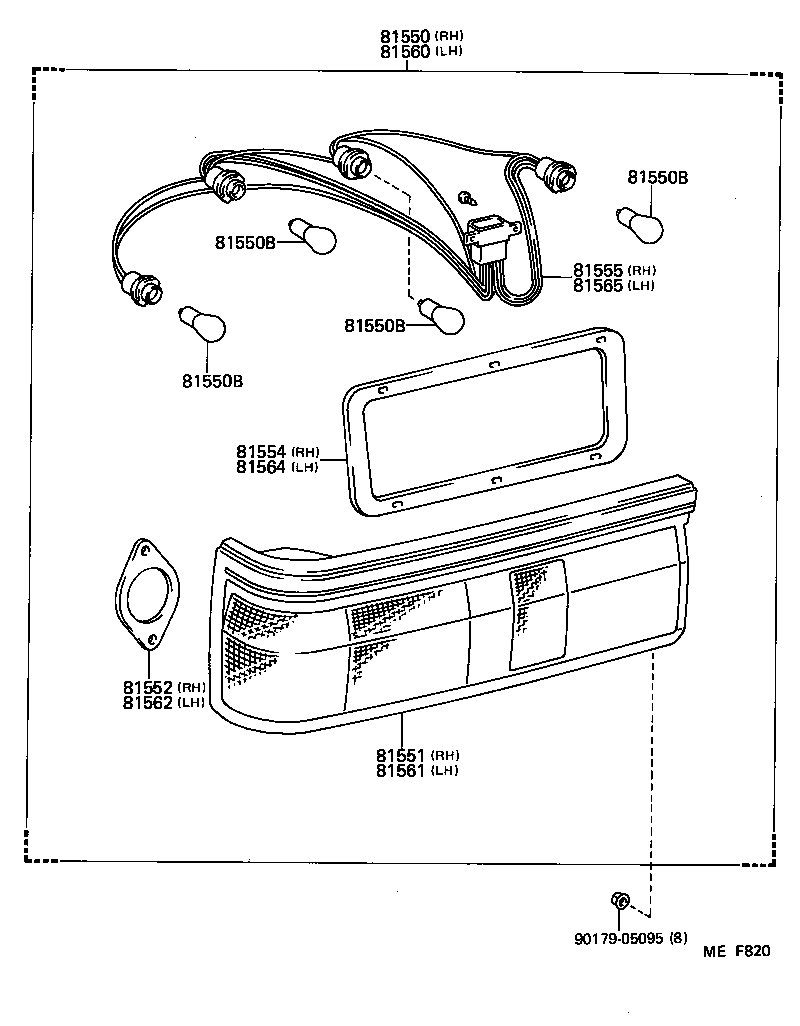

(8508- )3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-1A241 |
AE86..3D |
1 | ||
| 81550-80162 |
AE86..3D |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
AE86 12V 27/8W,12V 27/8W(STOP & TAIL) |
4 | ||
| 99132-11270 |
AE86 12V 27W,12V 27W(TURN OR BACK) |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
AE86 12V 27/8W,12V 27/8W(STOP & TAIL) |
4 | ||
| 99132-11270 |
AE86 12V 27W,12V 27W(TURN OR BACK) |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
AE86 12V 27/8W,12V 27/8W(STOP & TAIL) |
4 | ||
| 99132-11270 |
AE86 12V 27W,12V 27W(TURN OR BACK) |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
AE86 12V 27/8W,12V 27/8W(STOP & TAIL) |
4 | ||
| 99132-11270 |
AE86 12V 27W,12V 27W(TURN OR BACK) |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1A240 |
AE86..3D |
1 | ||
| 81551-1A241 |
AE86..3D |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81556-1A230 |
AE86..3D |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-1A230 |
AE86..3D |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-1A240 |
AE86..3D |
1 | ||
| 81555-1A241 |
AE86..3D |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-80167 |
AE86..3D |
1 | ||
| 81560-1A241 |
AE86..3D |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1A240 |
AE86..3D |
1 | ||
| 81561-1A241 |
AE86..3D |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81556-1A230 |
AE86..3D |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-1A230 |
AE86..3D |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-1A241 |
AE86..3D |
1 | ||
| 81555-1A240 |
AE86..3D |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
