AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

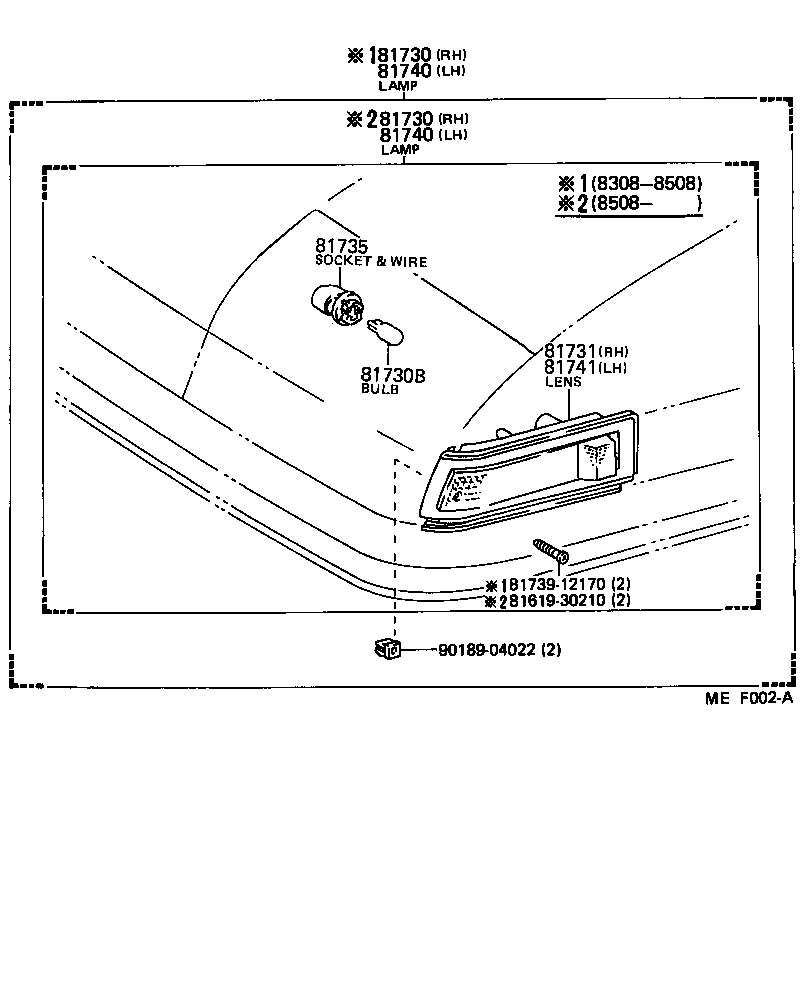

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-19405 |
AE86 |
1 | ||
| 81730-12182 |
AE86 |
1 | ||
| 81730-19406 |
AE86 |
1 | ||
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-19405 |
AE86 |
1 | ||
| 81730-12182 |
AE86 |
1 | ||
| 81730-19406 |
AE86 |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 90981-11020 |
AE86 12V 3.8W,12V 3.8W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-12182 |
AE86 |
1 | ||
| 81731-12180 |
AE86 |
1 | ||
| 81731-12181 |
AE86 |
1 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 81735-12180 |
AE86 |
2 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81740-19345 |
AE86 |
1 | ||
| 81740-19346 |
AE86 |
1 | ||
| 81740-12172 |
AE86 |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81740-19345 |
AE86 |
1 | ||
| 81740-19346 |
AE86 |
1 | ||
| 81740-12172 |
AE86 |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81741-12171 |
AE86 |
1 | ||
| 81741-12172 |
AE86 |
1 | ||
| 81741-12170 |
AE86 |
1 | ||
| Common parts | ||||
| 81619-30210 | ||||
| 81739-12170 | ||||
| 90189-04022 | ||||
