AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

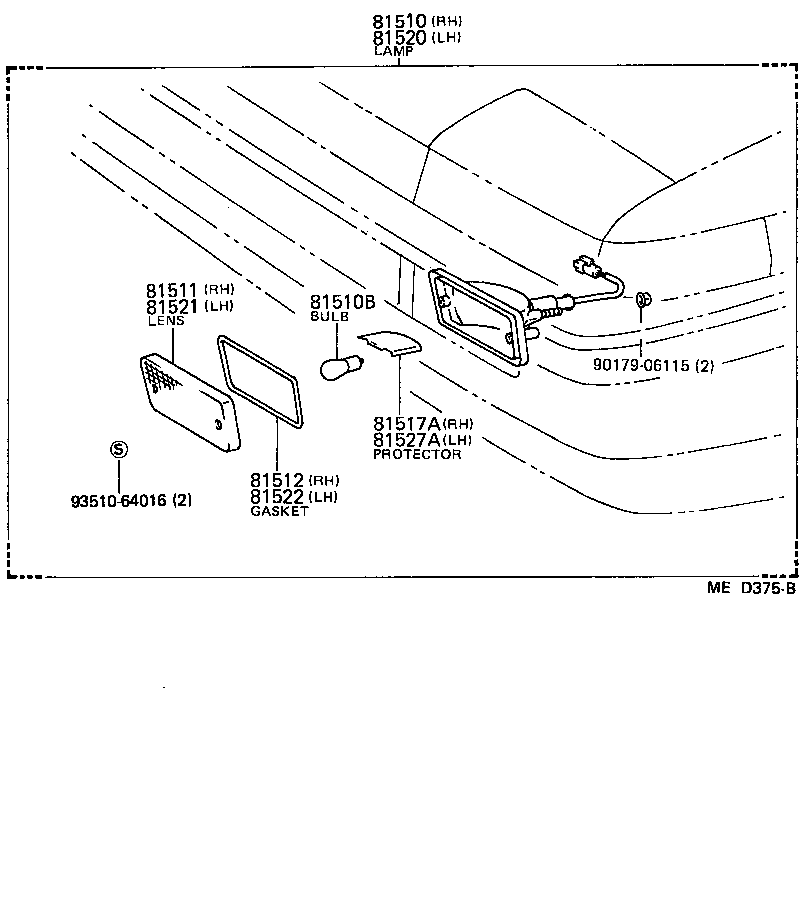

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80006 |
AE86 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-21270 |
AE86 12V 27/8W,12V 27/8W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-14170 |
AE86 |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-14150 |
AE86 |
1 | ||
| 81517A - PROTECTOR, FRONT TURN SIGNAL LAMP, RH | ||||
| 81517-14170 |
AE86 |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80006 |
AE86 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-14170 |
AE86 |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-14150 |
AE86 |
1 | ||
| 81527A - PROTECTOR, FRONT TURN SIGNAL LAMP, LH | ||||
| 81517-14170 |
AE86 |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 93510-64016 | ||||
