AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

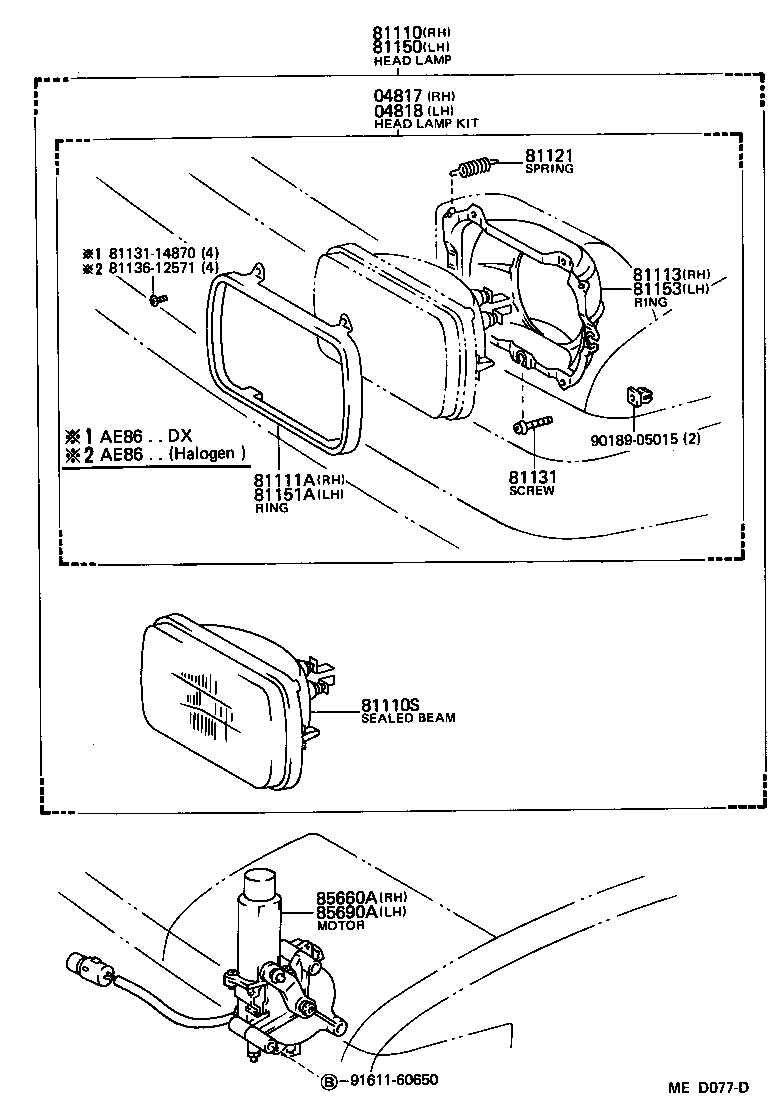

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04817 - HEADLAMP KIT, W/O SEALED BEAM, RH | ||||
| 04817-12070 |
AE86 HALOGEN |
1 | ||
| 04818 - HEADLAMP KIT, W/O SEALED BEAM, LH | ||||
| 04818-12070 |
AE86 HALOGEN |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80327 |
AE86 HALOGEN |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04020 |
AE86 12V 65/35W,*HAL,*WB,HALOGEN,12V 65/55W |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-16020 |
AE86 HALOGEN |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81153-14670 |
AE86 HALOGEN |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-14670 |
AE86 HALOGEN |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81119-1A270 |
AE86 HALOGEN |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80324 |
AE86 HALOGEN |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-16020 |
AE86 HALOGEN |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81113-14670 |
AE86 HALOGEN |
1 | ||
| 85660A - MOTOR ASSY, LIGHT RETRACTOR, RH | ||||
| 85660-12010 |
AE86 |
1 | ||
| 85690A - MOTOR ASSY, LIGHT RETRACTOR, LH | ||||
| 85690-12010 |
AE86 |
1 | ||
| Common parts | ||||
| 81131-14870 | ||||
| 81136-12571 | ||||
| 90189-05015 | ||||
| 91611-60650 | ||||
