Toyota Corolla cp AE86 ARMREST & VISOR

AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987

Engine 4AC

Transmission 3D MTM

Displacement 2500cc

Power 168 HP (125 kW)

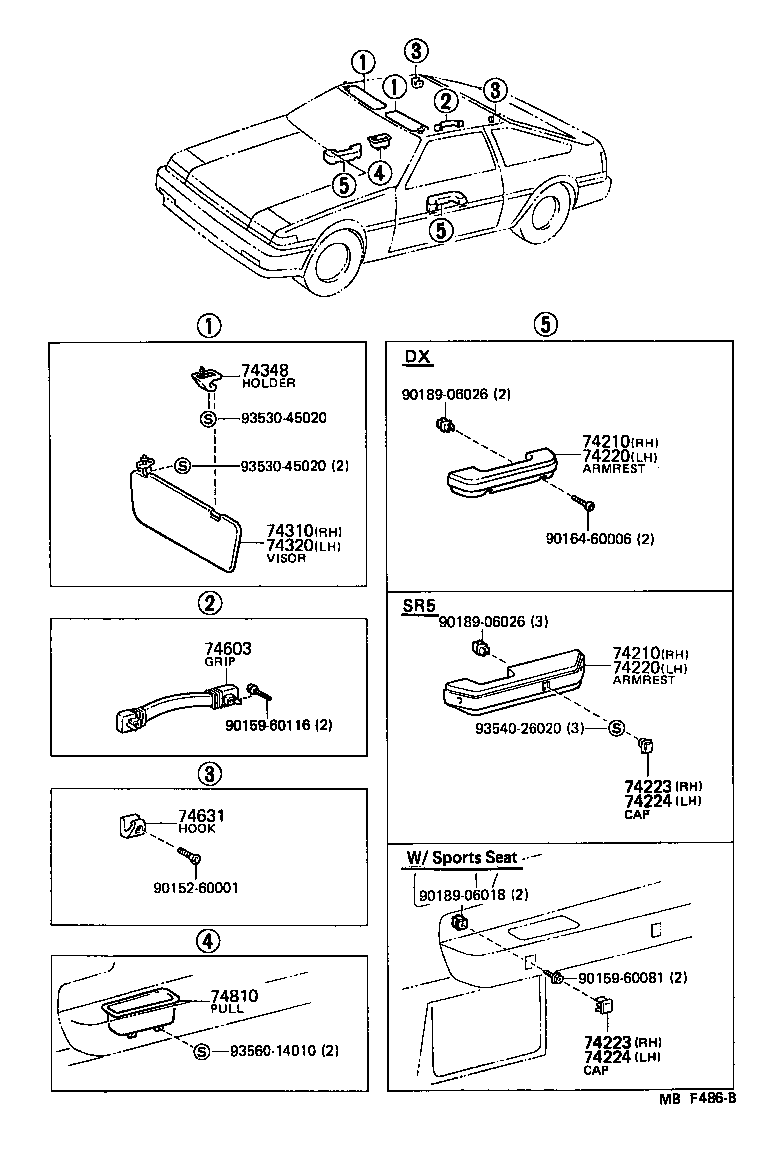

(8308-8508)

Click highlighted areas on diagram

Part #	Description	Period	Qty
74210 - ARMREST ASSY, FRONT, RH
74210-1207004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74210-1207002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74210-1207004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74210-1207003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74210-1207001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74210-1207012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74210 - ARMREST ASSY, FRONT, RH
74210-1207004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74210-1207002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74210-1207004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74210-1207003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74210-1207001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74210-1207012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74220 - ARMREST ASSY, FRONT, LH
74220-1203004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74220-1203003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74220-1203002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74220-1203004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74220-1203012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74220-1203001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74220 - ARMREST ASSY, FRONT, LH
74220-1203004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74220-1203003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74220-1203002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74220-1203004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74220-1203012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74220-1203001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74223 - CAP, DOOR ARMREST, RH
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223 - CAP, DOOR ARMREST, RH
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74224 - CAP, DOOR ARMREST, LH
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74224 - CAP, DOOR ARMREST, LH
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74310 - VISOR ASSY, RH
74310-12330	AE86..GTS,SR5 IVORY	08/1983 - 05/1985	1
74310-1264018	AE86..GTS,SR5 IVORY,IVORY	05/1985 - 05/1986	1
74310-1264008	AE86..GTS,SR5 IVORY,IVORY	05/1986 - 07/1987	1
74320 - VISOR ASSY, LH
74320-1248018	AE86 IVORY,IVORY	05/1985 - 05/1986	1
74320-1248008	AE86 IVORY,IVORY	05/1986 - 07/1987	1
74320-12260	AE86 IVORY	08/1983 - 05/1985	1
74348 - HOLDER, VISOR
74348-3201001	AE86 BLACK,BLACK	08/1983 - 07/1987	2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1403014	AE86..DX,SR5 BLUE,BLUE	08/1983 - 08/1985	1
74610-1403002	AE86 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74610-1403014	AE86 BLUE,BLUE	08/1985 - 07/1987	1
74610-1403001	AE86 BLACK,BLACK	08/1985 - 07/1987	1
74610-1403023	AE86..GTS,SR5 GRAY,GRAY	08/1984 - 08/1985	1
74610-1403012	AE86..DX,SR5 MAROON,MAROON	08/1985 - 07/1987	1
74631 - HOOK, COAT, A
74631-1207004	AE86..DX,SR5 BLUE,BLUE	08/1983 - 08/1985	2
74631-1207003	AE86..GTS,SR5 GRAY,GRAY	08/1984 - 08/1985	2
74631-1207012	AE86..DX,SR5 MAROON,MAROON	08/1985 - 07/1987	2
74631-1207002	AE86 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74631-1207004	AE86 BLUE,BLUE	08/1985 - 07/1987	2
74631-1207001	AE86 BLACK,BLACK	08/1985 - 07/1987	2
74810 - PULL ASSY, DOOR, INSIDE
74267-1201004	AE86..SR5 LH,BLUE,BLUE	08/1983 - 08/1984	1
74266-1201005	AE86..SR5 RH,BEIGE,BEIGE	08/1983 - 08/1984	1
74267-1201005	AE86..SR5 LH,BEIGE,BEIGE	08/1983 - 08/1984	1
74266-1201014	AE86..SR5 RH,BLUE,BLUE	08/1985 - 08/1986	1
74266-1201012	AE86..SR5 RH,MAROON,MAROON	08/1985 - 08/1986	1
74267-1201001	AE86..SR5 LH,BLACK,BLACK	08/1985 - 08/1986	1
74267-1201012	AE86..SR5 LH,MAROON,MAROON	08/1985 - 08/1986	1
74267-1201014	AE86..SR5 LH,BLUE,BLUE	08/1985 - 08/1986	1
74266-1201004	AE86..SR5 RH,BLUE,BLUE	08/1983 - 08/1984	1
74266-1201001	AE86..SR5 RH,BLACK,BLACK	08/1985 - 08/1986	1
Common parts
90152-60001
90159-60081
90159-60116
90164-60006
90189-06018
90189-06026
93530-45020
93540-26020
93560-14010

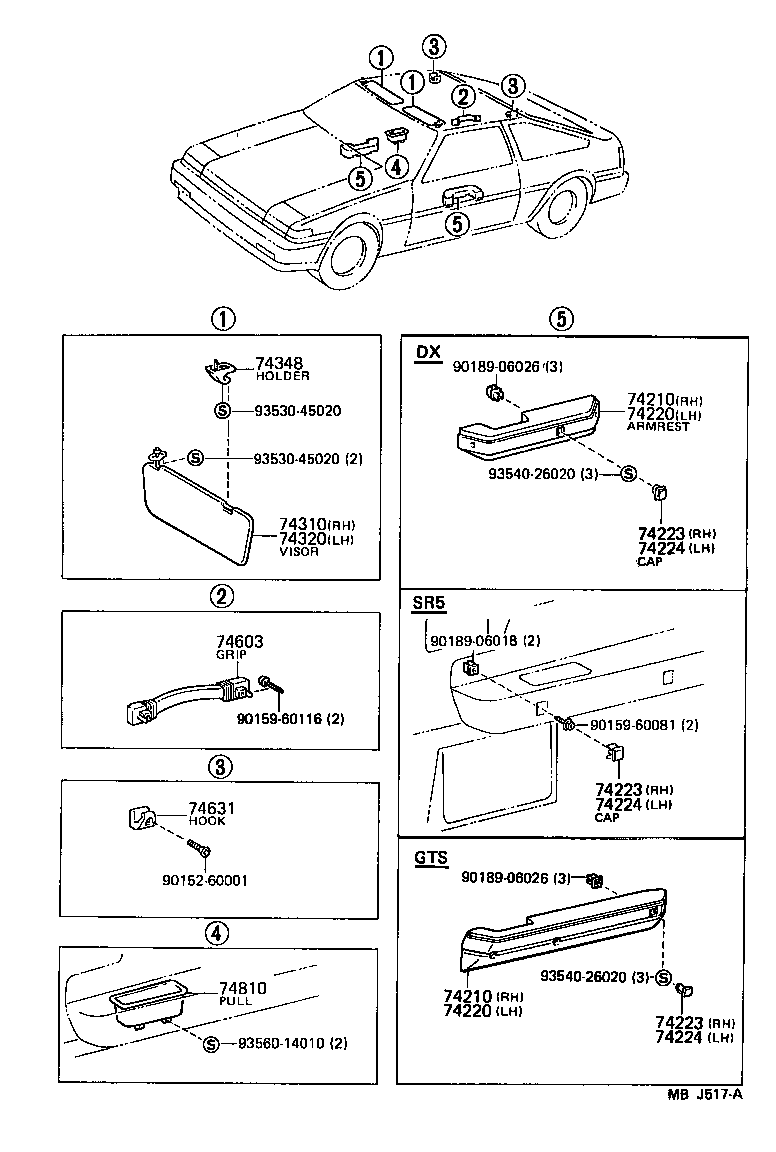

(8508-8608)

Click highlighted areas on diagram

Part #	Description	Period	Qty
74210 - ARMREST ASSY, FRONT, RH
74210-1207004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74210-1207002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74210-1207004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74210-1207003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74210-1207001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74210-1207012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74210 - ARMREST ASSY, FRONT, RH
74210-1207004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74210-1207002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74210-1207004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74210-1207003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74210-1207001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74210-1207012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74220 - ARMREST ASSY, FRONT, LH
74220-1203001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74220-1203004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74220-1203003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74220-1203002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74220-1203004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74220-1203012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74220 - ARMREST ASSY, FRONT, LH
74220-1203001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74220-1203004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74220-1203003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74220-1203002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74220-1203004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74220-1203012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74223 - CAP, DOOR ARMREST, RH
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223 - CAP, DOOR ARMREST, RH
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223 - CAP, DOOR ARMREST, RH
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74224 - CAP, DOOR ARMREST, LH
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74224 - CAP, DOOR ARMREST, LH
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74224 - CAP, DOOR ARMREST, LH
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74310 - VISOR ASSY, RH
74310-12330	AE86..GTS,SR5 IVORY	08/1983 - 05/1985	1
74310-1264018	AE86..GTS,SR5 IVORY,IVORY	05/1985 - 05/1986	1
74310-1264008	AE86..GTS,SR5 IVORY,IVORY	05/1986 - 07/1987	1
74320 - VISOR ASSY, LH
74320-1248018	AE86 IVORY,IVORY	05/1985 - 05/1986	1
74320-1248008	AE86 IVORY,IVORY	05/1986 - 07/1987	1
74320-12260	AE86 IVORY	08/1983 - 05/1985	1
74348 - HOLDER, VISOR
74348-3201001	AE86 BLACK,BLACK	08/1983 - 07/1987	2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1403014	AE86..DX,SR5 BLUE,BLUE	08/1983 - 08/1985	1
74610-1403002	AE86 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74610-1403014	AE86 BLUE,BLUE	08/1985 - 07/1987	1
74610-1403001	AE86 BLACK,BLACK	08/1985 - 07/1987	1
74610-1403023	AE86..GTS,SR5 GRAY,GRAY	08/1984 - 08/1985	1
74610-1403012	AE86..DX,SR5 MAROON,MAROON	08/1985 - 07/1987	1
74631 - HOOK, COAT, A
74631-1207004	AE86..DX,SR5 BLUE,BLUE	08/1983 - 08/1985	2
74631-1207003	AE86..GTS,SR5 GRAY,GRAY	08/1984 - 08/1985	2
74631-1207012	AE86..DX,SR5 MAROON,MAROON	08/1985 - 07/1987	2
74631-1207002	AE86 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74631-1207004	AE86 BLUE,BLUE	08/1985 - 07/1987	2
74631-1207001	AE86 BLACK,BLACK	08/1985 - 07/1987	2
74810 - PULL ASSY, DOOR, INSIDE
74267-1201004	AE86..SR5 LH,BLUE,BLUE	08/1983 - 08/1984	1
74266-1201005	AE86..SR5 RH,BEIGE,BEIGE	08/1983 - 08/1984	1
74267-1201005	AE86..SR5 LH,BEIGE,BEIGE	08/1983 - 08/1984	1
74266-1201014	AE86..SR5 RH,BLUE,BLUE	08/1985 - 08/1986	1
74266-1201012	AE86..SR5 RH,MAROON,MAROON	08/1985 - 08/1986	1
74267-1201001	AE86..SR5 LH,BLACK,BLACK	08/1985 - 08/1986	1
74267-1201012	AE86..SR5 LH,MAROON,MAROON	08/1985 - 08/1986	1
74267-1201014	AE86..SR5 LH,BLUE,BLUE	08/1985 - 08/1986	1
74266-1201004	AE86..SR5 RH,BLUE,BLUE	08/1983 - 08/1984	1
74266-1201001	AE86..SR5 RH,BLACK,BLACK	08/1985 - 08/1986	1
Common parts
90152-60001
90159-60081
90159-60116
90189-06018
90189-06026
93530-45020
93540-26020
93560-14010

(8608- )

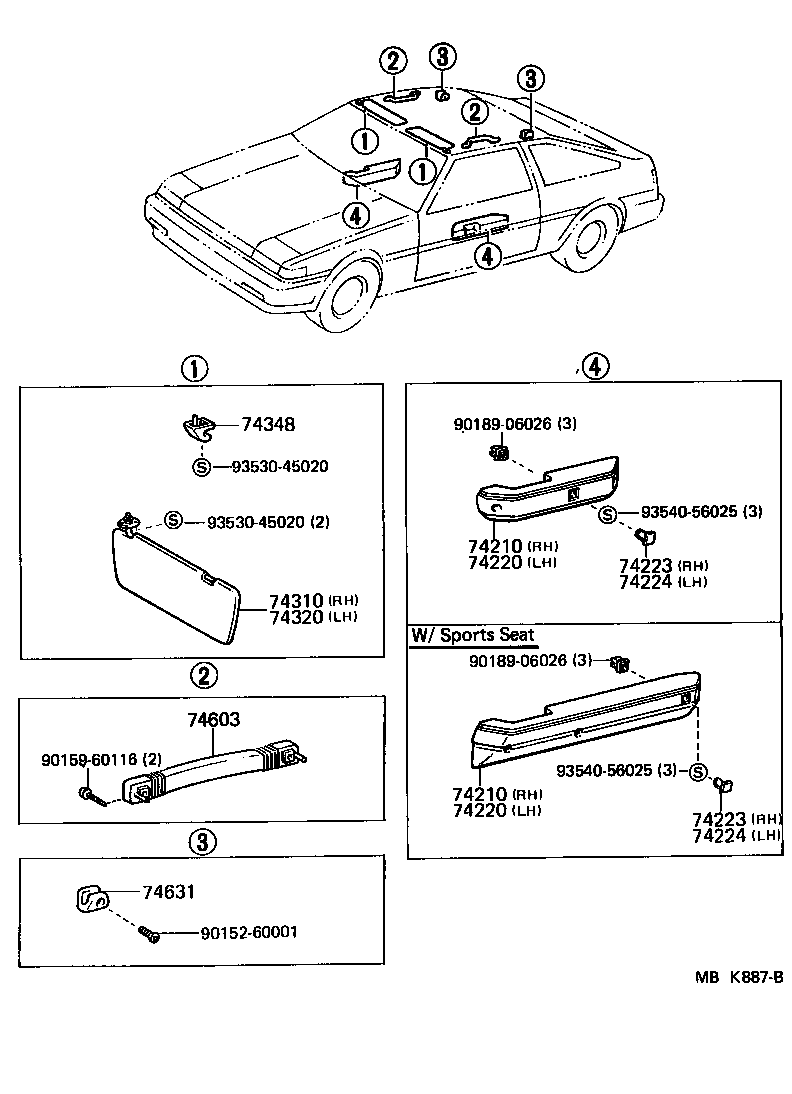

Click highlighted areas on diagram

Part #	Description	Period	Qty
74210 - ARMREST ASSY, FRONT, RH
74210-1207004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74210-1207002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74210-1207004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74210-1207003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74210-1207001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74210-1207012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74210 - ARMREST ASSY, FRONT, RH
74210-1207004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74210-1207002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74210-1207004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74210-1207003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74210-1207001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74210-1207012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74220 - ARMREST ASSY, FRONT, LH
74220-1203004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74220-1203003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74220-1203002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74220-1203004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74220-1203012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74220-1203001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74220 - ARMREST ASSY, FRONT, LH
74220-1203004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	1
74220-1203003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	1
74220-1203002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74220-1203004	AE86 BLUE,BLUE	08/1986 - 07/1987	1
74220-1203012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	1
74220-1203001	AE86 BLACK,BLACK	08/1986 - 07/1987	1
74223 - CAP, DOOR ARMREST, RH
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223 - CAP, DOOR ARMREST, RH
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74224 - CAP, DOOR ARMREST, LH
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74224 - CAP, DOOR ARMREST, LH
74223-1205003	AE86..SR5 GRAY,GRAY	08/1984 - 08/1985	2
74223-1204002	AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON	08/1983 - 08/1984	2
74223-1205004	AE86..SR5 BLUE,BLUE	08/1983 - 08/1985	2
74223-1204012	AE86..SR5 MAROON,MAROON	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 BLUE,BLUE	08/1985 - 08/1986	2
74223-1204004	AE86..SR5 W/SPORTS SEAT,BLUE,BLUE	08/1983 - 08/1984	2
74223-1204001	AE86..SR5 BLACK,BLACK	08/1985 - 08/1986	2
74223-1205012	AE86..DX,SR5 MAROON,MAROON	08/1986 - 07/1987	2
74223-1205002	AE86..SR5 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74223-1205001	AE86 BLACK,BLACK	08/1986 - 07/1987	2
74223-1205004	AE86 BLUE,BLUE	08/1986 - 07/1987	2
74310 - VISOR ASSY, RH
74310-12330	AE86..GTS,SR5 IVORY	08/1983 - 05/1985	1
74310-1264018	AE86..GTS,SR5 IVORY,IVORY	05/1985 - 05/1986	1
74310-1264008	AE86..GTS,SR5 IVORY,IVORY	05/1986 - 07/1987	1
74320 - VISOR ASSY, LH
74320-1248018	AE86 IVORY,IVORY	05/1985 - 05/1986	1
74320-1248008	AE86 IVORY,IVORY	05/1986 - 07/1987	1
74320-12260	AE86 IVORY	08/1983 - 05/1985	1
74348 - HOLDER, VISOR
74348-3201001	AE86 BLACK,BLACK	08/1983 - 07/1987	2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1403014	AE86..DX,SR5 BLUE,BLUE	08/1983 - 08/1985	1
74610-1403002	AE86 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	1
74610-1403014	AE86 BLUE,BLUE	08/1985 - 07/1987	1
74610-1403001	AE86 BLACK,BLACK	08/1985 - 07/1987	1
74610-1403023	AE86..GTS,SR5 GRAY,GRAY	08/1984 - 08/1985	1
74610-1403012	AE86..DX,SR5 MAROON,MAROON	08/1985 - 07/1987	1
74631 - HOOK, COAT, A
74631-1207004	AE86..DX,SR5 BLUE,BLUE	08/1983 - 08/1985	2
74631-1207003	AE86..GTS,SR5 GRAY,GRAY	08/1984 - 08/1985	2
74631-1207012	AE86..DX,SR5 MAROON,MAROON	08/1985 - 07/1987	2
74631-1207002	AE86 DEEP MAROON,RED/MAROON	08/1983 - 08/1985	2
74631-1207004	AE86 BLUE,BLUE	08/1985 - 07/1987	2
74631-1207001	AE86 BLACK,BLACK	08/1985 - 07/1987	2
Common parts
90152-60001
90159-60116
90189-06026
93530-45020
93540-56025

AE86L-ECMXCA (1983)

(8308-8508)

(8508-8608)

(8608- )

Part Price Details
