AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

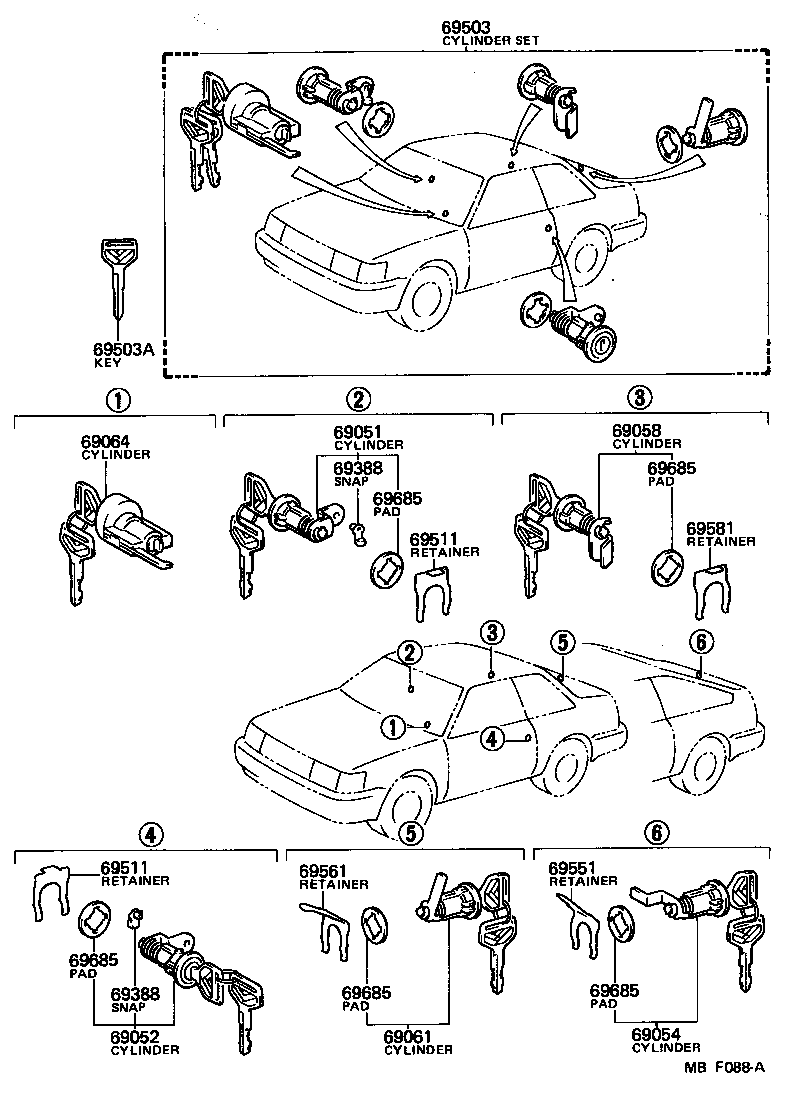

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-12190 |
AE86 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-12190 |
AE86 |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-12300 |
AE86..3D |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-16061 |
AE86 |
1 | ||
| 69057-12130 |
AE86 |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-20090 |
AE86 RH |
1 | ||
| 69759-20080 |
AE86 LH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-20090 |
AE86 RH |
1 | ||
| 69759-20080 |
AE86 LH |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-12420 |
AE86..3D |
1 | ||
| 69005-1A060 |
AE86..3D |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00106 |
AE86 MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR |
1 | ||
| 90999-00085 |
AE86 MASTER KEY,MASTER KEY |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32010 |
AE86 |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32010 |
AE86 |
2 | ||
| 69551 - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-12130 |
AE86..3D |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
AE86 FR DOOR,FUEL |
3 | ||
| 69563-32010 |
AE86 BACK DOOR OR LUGGAGE DOOR |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
AE86 FR DOOR,FUEL |
3 | ||
| 69563-32010 |
AE86 BACK DOOR OR LUGGAGE DOOR |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
AE86 FR DOOR,FUEL |
3 | ||
| 69563-32010 |
AE86 BACK DOOR OR LUGGAGE DOOR |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
AE86 FR DOOR,FUEL |
3 | ||
| 69563-32010 |
AE86 BACK DOOR OR LUGGAGE DOOR |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
AE86 FR DOOR,FUEL |
3 | ||
| 69563-32010 |
AE86 BACK DOOR OR LUGGAGE DOOR |
1 | ||
