AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )3D

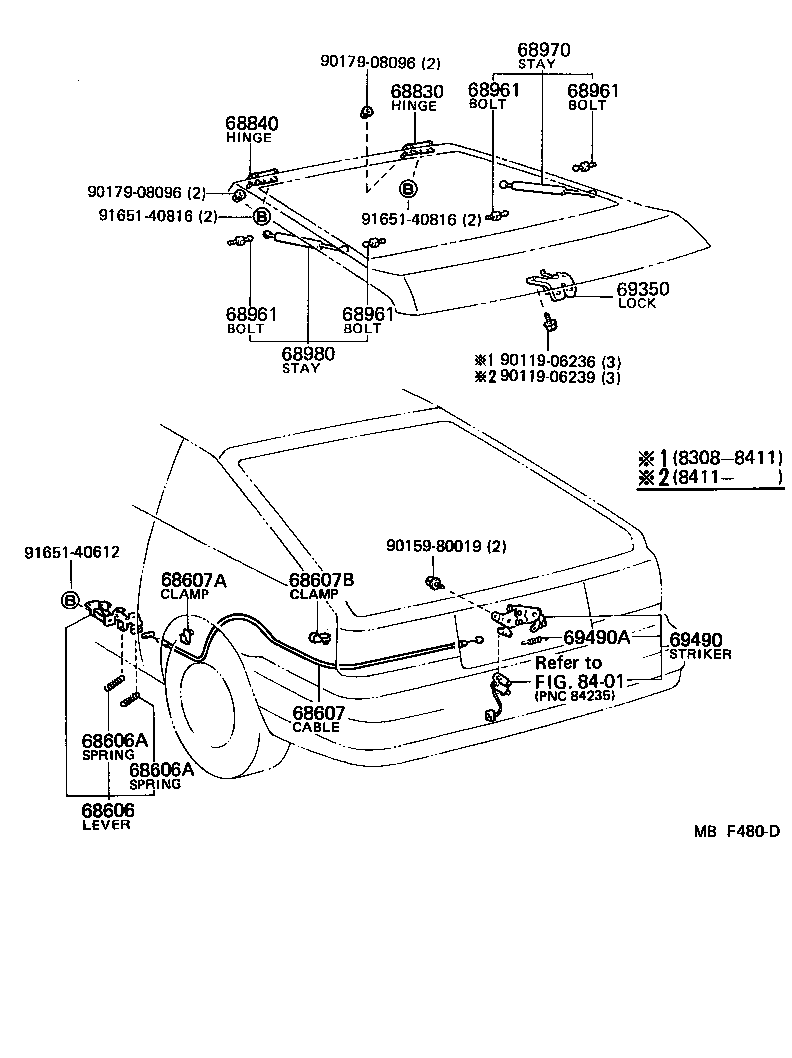

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-12070 |
AE86..3D |
1 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AE86..3D |
2 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AE86..3D |
2 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-12240 |
AE86..3D |
1 | ||
| 68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE) | ||||
| 90467-12009 |
AE86..3D |
1 | ||
| 68607B - CLAMP, NO.2(FOR BACK DOOR LOCK CONTROL CABLE) | ||||
| 90463-10338 |
AE86..3D |
2 | ||
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68801-20020 |
AE86..3D |
1 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68801-20020 |
AE86..3D |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-20051 |
AE86..3D |
4 | ||
| 68961-16010 |
AE86..3D |
4 | ||
| 68961-14020 |
AE86..3D |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-20051 |
AE86..3D |
4 | ||
| 68961-16010 |
AE86..3D |
4 | ||
| 68961-14020 |
AE86..3D |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-20051 |
AE86..3D |
4 | ||
| 68961-16010 |
AE86..3D |
4 | ||
| 68961-14020 |
AE86..3D |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-20051 |
AE86..3D |
4 | ||
| 68961-16010 |
AE86..3D |
4 | ||
| 68961-14020 |
AE86..3D |
4 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19445 |
AE86..3D..SR5 W/RR WIPER |
1 | ||
| 68950-19445 |
AE86..3D |
1 | ||
| 68950-19455 |
AE86..3D W/RR WIPER |
1 | ||
| 68950-19435 |
AE86..3D..SR5 |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68950-19445 |
AE86..3D..SR5 W/RR WIPER |
1 | ||
| 68950-19455 |
AE86..3D W/RR WIPER |
1 | ||
| 68950-19435 |
AE86..3D..SR5 |
1 | ||
| 68950-19445 |
AE86..3D |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-12060 |
AE86..3D |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-12190 |
AE86..3D |
1 | ||
| 69430-12191 |
AE86..3D |
1 | ||
| 69490A - SPRING(FOR BACK DOOR LOCK STRIKER) | ||||
| 90506-18052 |
AE86..3D |
1 | ||
| Common parts | ||||
| 90119-06236 | ||||
| 90119-06239 | ||||
| 90159-80019 | ||||
| 90179-08096 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
