AE86L-ECMXCA (1983)
Toyota Corolla Cp
(8308- )

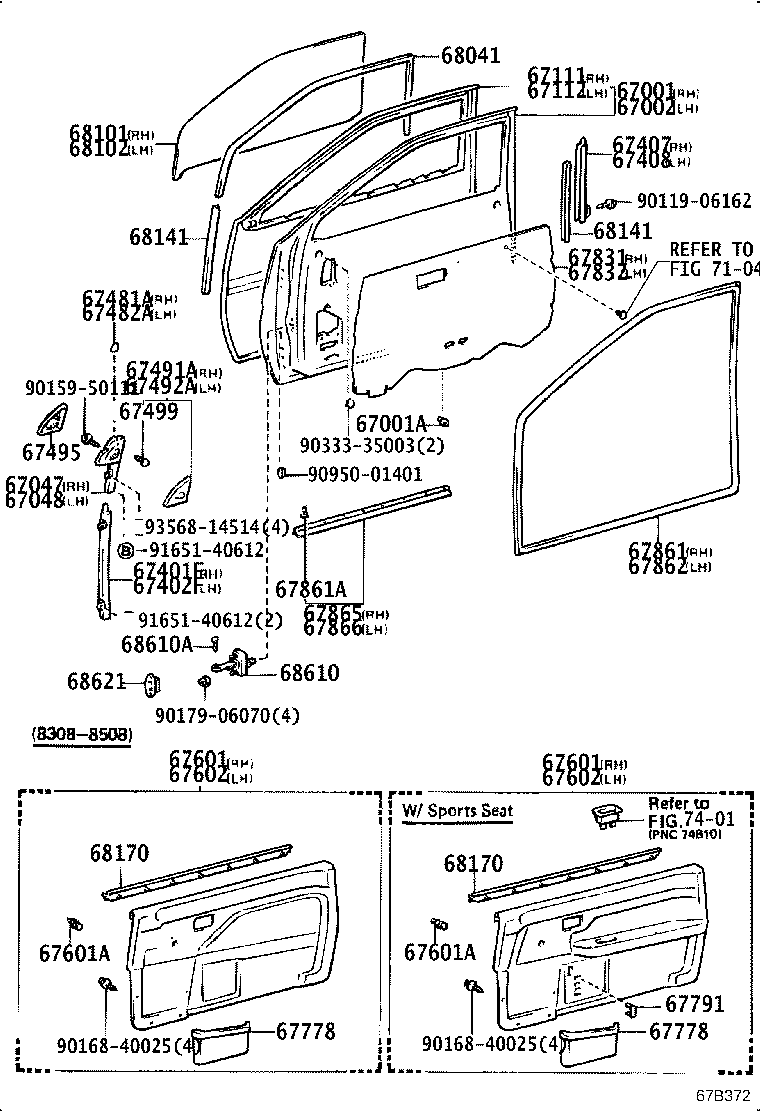

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-12720 |
AE86 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
AE86 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-12700 |
AE86 |
1 | ||
| 67047 - BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, RH | ||||
| 67047-12010 |
AE86 |
1 | ||
| 67047-12020 |
AE86 |
1 | ||
| 67048 - BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, LH | ||||
| 67048-12020 |
AE86 |
1 | ||
| 67048-12010 |
AE86 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12370 |
AE86 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12360 |
AE86 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12181 |
AE86 |
1 | ||
| 67401-12180 |
AE86 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12170 |
AE86 |
1 | ||
| 67402-12171 |
AE86 |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12071 |
AE86 |
1 | ||
| 67403-12040 |
AE86 |
1 | ||
| 67403-12070 |
AE86 |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12040 |
AE86 |
1 | ||
| 67404-12070 |
AE86 |
1 | ||
| 67404-12071 |
AE86 |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-12170 |
AE86 |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67481-12170 |
AE86 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12080 |
AE86 W/HOLE |
1 | ||
| 67491-12070 |
AE86 W/O HOLE |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12080 |
AE86 W/HOLE |
1 | ||
| 67492-12070 |
AE86 W/O HOLE |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30010 |
AE86 |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1216004 |
AE86..SR5 W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 67650-1256002 |
AE86..SR5..USA SR-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67650-1277002 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67650-1277003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67650-1213002 |
AE86..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 67610-1A54002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67650-1216012 |
AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 67650-1277004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A54004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67650-1214102 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67650-1213004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67650-1214104 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A54001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67610-1A76004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A76001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67610-1A76002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1216004 |
AE86..SR5 W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 67650-1256002 |
AE86..SR5..USA SR-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67650-1277002 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67650-1277003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67650-1213002 |
AE86..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 67610-1A54002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67650-1216012 |
AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 67650-1277004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A54004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67650-1214102 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67650-1213004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67650-1214104 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A54001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67610-1A76004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A76001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67610-1A76002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AE86 |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AE86 |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A35002 |
AE86..SR5..USA SR-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1286004 |
AE86..SR5 W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 67620-1A06002 |
AE86..SR5 SE-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1A54004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1286012 |
AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1A06004 |
AE86..SR5 SE-TYPE,BLUE,BLUE |
1 | ||
| 67620-1A54003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67620-1A54002 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67620-1E05004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1E05001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67620-1E05002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67620-1E22004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1E22002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67620-1E22001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A35002 |
AE86..SR5..USA SR-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1286004 |
AE86..SR5 W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 67620-1A06002 |
AE86..SR5 SE-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1A54004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1286012 |
AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1A06004 |
AE86..SR5 SE-TYPE,BLUE,BLUE |
1 | ||
| 67620-1A54003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67620-1A54002 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67620-1E05004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1E05001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67620-1E05002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67620-1E22004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1E22002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67620-1E22001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-1201004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67778-1201002 |
AE86..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 67780-1201001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67780-1201002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67780-1201004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67778-1201004 |
AE86..GTS,SR5 BLUE,BLUE |
1 | ||
| 67778-1201001 |
AE86..GTS,SR5 BLACK,BLACK |
1 | ||
| 67778-1201012 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67778-1201003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-1201004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67778-1201002 |
AE86..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 67780-1201001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67780-1201002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67780-1201004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67778-1201004 |
AE86..GTS,SR5 BLUE,BLUE |
1 | ||
| 67778-1201001 |
AE86..GTS,SR5 BLACK,BLACK |
1 | ||
| 67778-1201012 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67778-1201003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67791 - RETAINER, FRONT DOOR POCKET | ||||
| 67791-12010 |
AE86..SR5 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12260 |
AE86 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12130 |
AE86 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12470 |
AE86 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AE86 |
16 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67861-12470 |
AE86 |
1 | ||
| 67865 - WEATHERSTRIP, FRONT DOOR, LOWER RH | ||||
| 67853-12010 |
AE86 |
1 | ||
| 67866 - WEATHERSTRIP, FRONT DOOR LOWER, LH | ||||
| 67853-12010 |
AE86 |
1 | ||
| 68041 - RUN SUB-ASSY, FRONT DOOR GLASS | ||||
| 68141-12170 |
AE86 RH |
1 | ||
| 68151-12020 |
AE86 LH |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-12440 |
AE86 *TT,T=4.0,*TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-12440 |
AE86 *TT,T=4.0,*TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-12060 |
AE86 RR |
2 | ||
| 68143-12061 |
AE86 RR |
2 | ||
| 68143-12070 |
AE86 FR |
2 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-12060 |
AE86 RR |
2 | ||
| 68143-12061 |
AE86 RR |
2 | ||
| 68143-12070 |
AE86 FR |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-12160 |
AE86 LH |
1 | ||
| 68170-12230 |
AE86 RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-12160 |
AE86 LH |
1 | ||
| 68170-12230 |
AE86 RH |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12040 |
AE86 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-30010 |
AE86 |
2 | ||
| 68617-90A00 |
AE86 |
2 | ||
| 68621 - SEAL, DOOR CHECK | ||||
| 68621-12010 |
AE86 |
2 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90159-50111 | ||||
| 90168-40025 | ||||
| 90179-06070 | ||||
| 90333-35003 | ||||
| 90950-01401 | ||||
| 91651-40612 | ||||
| 93568-14514 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7401 | ||||

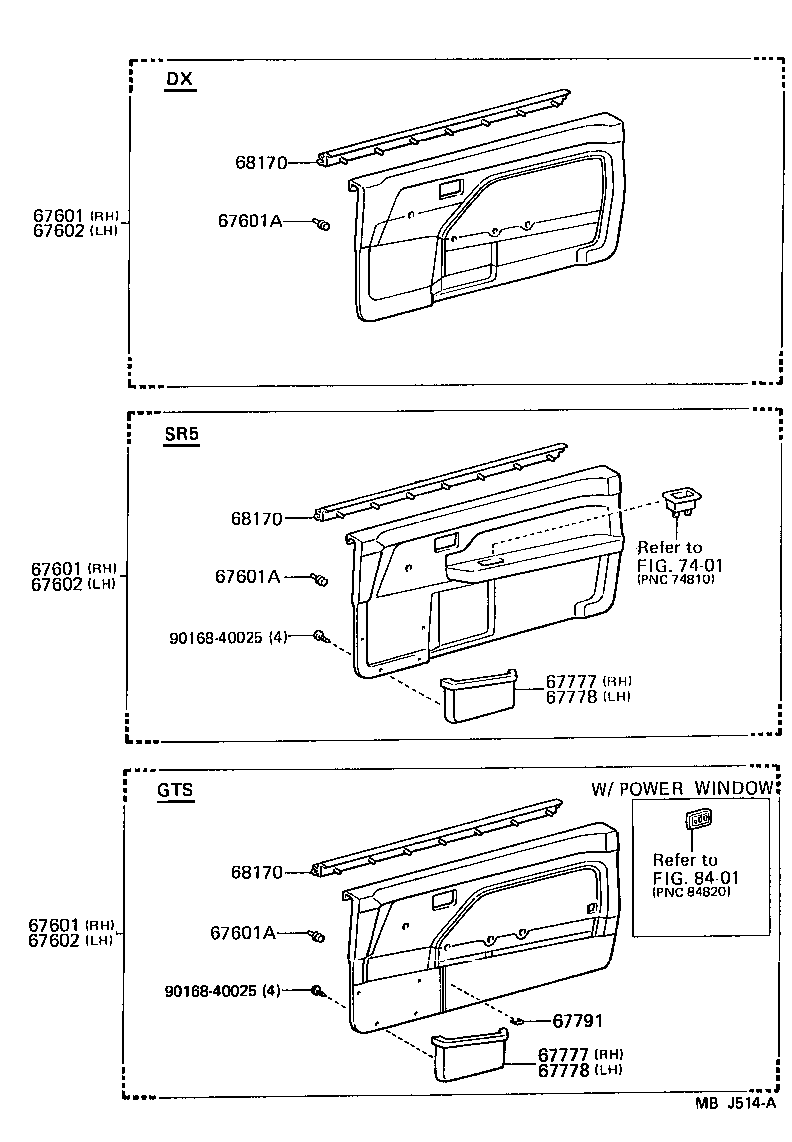

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1216004 |
AE86..SR5 W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 67650-1256002 |
AE86..SR5..USA SR-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67650-1277002 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67650-1277003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67650-1213002 |
AE86..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 67610-1A54002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67650-1216012 |
AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 67650-1277004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A54004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67650-1214102 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67650-1213004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67650-1214104 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A54001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67610-1A76004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A76001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67610-1A76002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1216004 |
AE86..SR5 W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 67650-1256002 |
AE86..SR5..USA SR-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67650-1277002 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67650-1277003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67650-1213002 |
AE86..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 67610-1A54002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67650-1216012 |
AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 67650-1277004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A54004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67650-1214102 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67650-1213004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67650-1214104 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A54001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67610-1A76004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A76001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67610-1A76002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1216004 |
AE86..SR5 W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 67650-1256002 |
AE86..SR5..USA SR-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67650-1277002 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67650-1277003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67650-1213002 |
AE86..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 67610-1A54002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67650-1216012 |
AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 67650-1277004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A54004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67650-1214102 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67650-1213004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67650-1214104 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A54001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67610-1A76004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67610-1A76001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67610-1A76002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AE86 |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AE86 |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AE86 |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A35002 |
AE86..SR5..USA SR-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1286004 |
AE86..SR5 W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 67620-1A06002 |
AE86..SR5 SE-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1A54004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1286012 |
AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1A06004 |
AE86..SR5 SE-TYPE,BLUE,BLUE |
1 | ||
| 67620-1A54003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67620-1A54002 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67620-1E05004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1E05001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67620-1E05002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67620-1E22004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1E22002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67620-1E22001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A35002 |
AE86..SR5..USA SR-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1286004 |
AE86..SR5 W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 67620-1A06002 |
AE86..SR5 SE-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1A54004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1286012 |
AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1A06004 |
AE86..SR5 SE-TYPE,BLUE,BLUE |
1 | ||
| 67620-1A54003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67620-1A54002 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67620-1E05004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1E05001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67620-1E05002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67620-1E22004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1E22002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67620-1E22001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A35002 |
AE86..SR5..USA SR-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1286004 |
AE86..SR5 W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 67620-1A06002 |
AE86..SR5 SE-TYPE,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1A54004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1286012 |
AE86..SR5 W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 67620-1A06004 |
AE86..SR5 SE-TYPE,BLUE,BLUE |
1 | ||
| 67620-1A54003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67620-1A54002 |
AE86..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 67620-1E05004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1E05001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67620-1E05002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67620-1E22004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67620-1E22002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67620-1E22001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1201001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67770-1201002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67777-1201001 |
AE86..GTS,SR5 BLACK,BLACK |
1 | ||
| 67777-1201004 |
AE86..GTS,SR5 BLUE,BLUE |
1 | ||
| 67777-1201012 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67770-1201004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1201001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67770-1201002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67777-1201001 |
AE86..GTS,SR5 BLACK,BLACK |
1 | ||
| 67777-1201004 |
AE86..GTS,SR5 BLUE,BLUE |
1 | ||
| 67777-1201012 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67770-1201004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-1201004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67778-1201002 |
AE86..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 67780-1201001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67780-1201002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67780-1201004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67778-1201004 |
AE86..GTS,SR5 BLUE,BLUE |
1 | ||
| 67778-1201001 |
AE86..GTS,SR5 BLACK,BLACK |
1 | ||
| 67778-1201012 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67778-1201003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-1201004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67778-1201002 |
AE86..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 67780-1201001 |
AE86..SR5 BLACK,BLACK |
1 | ||
| 67780-1201002 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67780-1201004 |
AE86..SR5 BLUE,BLUE |
1 | ||
| 67778-1201004 |
AE86..GTS,SR5 BLUE,BLUE |
1 | ||
| 67778-1201001 |
AE86..GTS,SR5 BLACK,BLACK |
1 | ||
| 67778-1201012 |
AE86..SR5 MAROON,MAROON |
1 | ||
| 67778-1201003 |
AE86..SR5 GRAY,GRAY |
1 | ||
| 67791 - RETAINER, FRONT DOOR POCKET | ||||
| 67791-12010 |
AE86..SR5 |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-12160 |
AE86 LH |
1 | ||
| 68170-12230 |
AE86 RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-12160 |
AE86 LH |
1 | ||
| 68170-12230 |
AE86 RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-12160 |
AE86 LH |
1 | ||
| 68170-12230 |
AE86 RH |
1 | ||
| Common parts | ||||
| 90168-40025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
