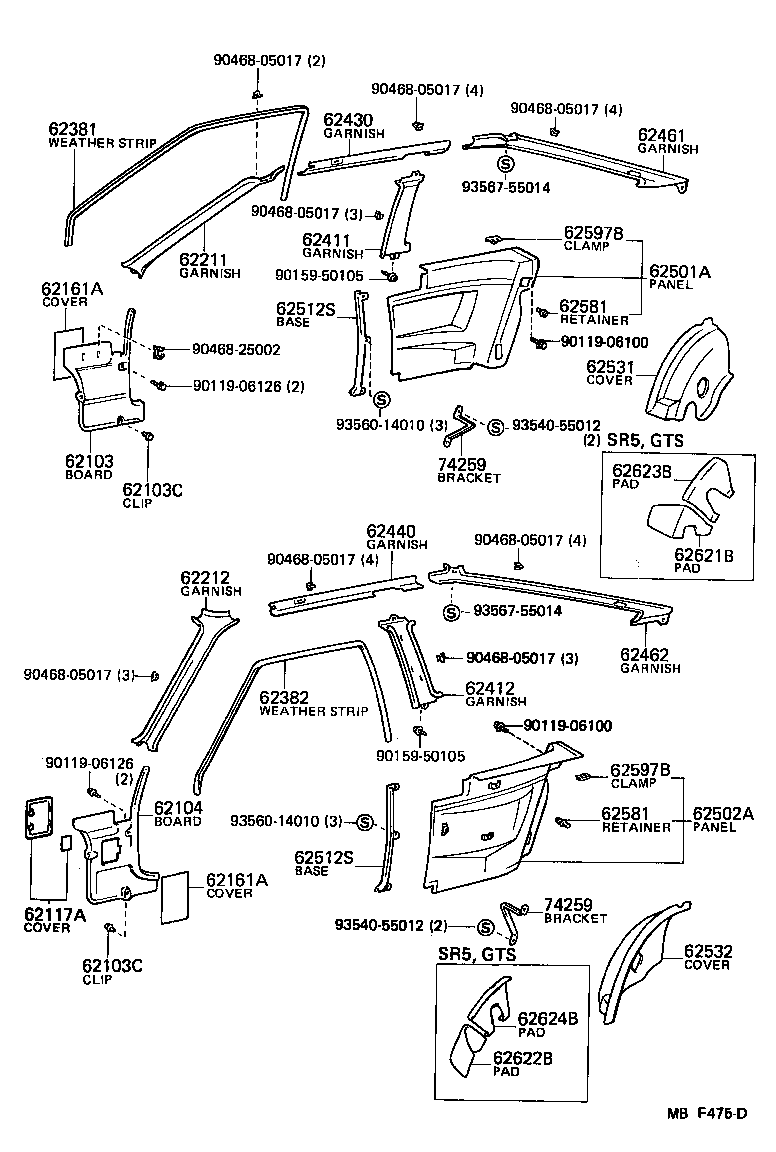

AE86L-ECMXCA (1983)
Toyota Corolla Cp
(8308- )3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH | ||||
| 62101-1211004 |
AE86 BLUE,BLUE |
1 | ||
| 62101-1211003 |
AE86..GTS,SR5 GRAY,GRAY |
1 | ||
| 62101-1211002 |
AE86 DEEP MAROON,RED/MAROON |
1 | ||
| 62101-1211004 |
AE86..DX,SR5 BLUE,BLUE |
1 | ||
| 62101-1211012 |
AE86..DX,SR5 MAROON,MAROON |
1 | ||
| 62101-1211001 |
AE86 BLACK,BLACK |
1 | ||
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-0704102 |
AE86 DEEP MAROON,RED/MAROON |
2 | ||
| 90467-0704103 |
AE86..GTS,SR5 GRAY,GRAY |
2 | ||
| 90467-0704101 |
AE86 BLACK,BLACK |
2 | ||
| 90467-0704104 |
AE86..DX,SR5 BLUE,BLUE |
2 | ||
| 90467-0704112 |
AE86..DX,SR5 MAROON,MAROON |
2 | ||
| 90467-0704104 |
AE86 BLUE,BLUE |
2 | ||
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-0704102 |
AE86 DEEP MAROON,RED/MAROON |
2 | ||
| 90467-0704103 |
AE86..GTS,SR5 GRAY,GRAY |
2 | ||
| 90467-0704101 |
AE86 BLACK,BLACK |
2 | ||
| 90467-0704104 |
AE86..DX,SR5 BLUE,BLUE |
2 | ||
| 90467-0704112 |
AE86..DX,SR5 MAROON,MAROON |
2 | ||
| 90467-0704104 |
AE86 BLUE,BLUE |
2 | ||
| 62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH | ||||
| 62102-1211002 |
AE86 DEEP MAROON,RED/MAROON |
1 | ||
| 62102-1211001 |
AE86 BLACK,BLACK |
1 | ||
| 62102-1211004 |
AE86 BLUE,BLUE |
1 | ||
| 62102-1211004 |
AE86..DX,SR5 BLUE,BLUE |
1 | ||
| 62102-1211012 |
AE86..DX,SR5 MAROON,MAROON |
1 | ||
| 62102-1211003 |
AE86..GTS,SR5 GRAY,GRAY |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-1207002 |
AE86..DX,SR5 MAROON,DEEP MAROON |
1 | ||
| 62117-1205004 |
AE86..DX,SR5 BLUE,BLUE |
1 | ||
| 62117-1205002 |
AE86 DEEP MAROON,RED/MAROON |
1 | ||
| 62117-1207004 |
AE86 BLUE,BLUE |
1 | ||
| 62117-1205003 |
AE86..GTS,SR5 GRAY,GRAY |
1 | ||
| 62117-1207001 |
AE86 BLACK,BLACK |
1 | ||
| 62161A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62161-12050 |
AE86 |
2 | ||
| 62161A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62161-12050 |
AE86 |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-1214002 |
AE86 DEEP MAROON,RED/MAROON |
1 | ||
| 62211-1214012 |
AE86..DX,SR5 MAROON,MAROON |
1 | ||
| 62211-1214004 |
AE86..DX,SR5 BLUE,BLUE |
1 | ||
| 62211-1214001 |
AE86 BLACK,BLACK |
1 | ||
| 62211-1214004 |
AE86 BLUE,BLUE |
1 | ||
| 62211-1214003 |
AE86..GTS,SR5 GRAY,GRAY |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1215002 |
AE86 DEEP MAROON,RED/MAROON |
1 | ||
| 62212-1215012 |
AE86..DX,SR5 MAROON,MAROON |
1 | ||
| 62212-1215003 |
AE86..GTS,SR5 GRAY,GRAY |
1 | ||
| 62212-1215004 |
AE86..DX,SR5 BLUE,BLUE |
1 | ||
| 62212-1215004 |
AE86 BLUE,BLUE |
1 | ||
| 62212-1215001 |
AE86 BLACK,BLACK |
1 | ||
| 62381 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH | ||||
| 62381-12160 |
AE86 |
1 | ||
| 62382 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH | ||||
| 62382-12170 |
AE86 |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-1232002 |
AE86..3D DEEP MAROON,RED/MAROON |
1 | ||
| 62411-1232004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62411-1225002 |
AE86..3D DEEP MAROON,RED/MAROON |
1 | ||
| 62411-1225004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62411-1232012 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62411-1232001 |
AE86..3D BLACK,BLACK |
1 | ||
| 62411-1232004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62411-1232003 |
AE86..3D GRAY,GRAY |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-1225004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62412-1232002 |
AE86..3D DEEP MAROON,RED/MAROON |
1 | ||
| 62412-1225002 |
AE86..3D DEEP MAROON,RED/MAROON |
1 | ||
| 62412-1232003 |
AE86..3D GRAY,GRAY |
1 | ||
| 62412-1232004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62412-1232001 |
AE86..3D BLACK,BLACK |
1 | ||
| 62412-1232004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62412-1232012 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62430 - GARNISH ASSY, ROOF SIDE RAIL, RH | ||||
| 62431-1204002 |
AE86..3D DEEP MAROON,RED/MAROON |
1 | ||
| 62431-1204003 |
AE86..3D GRAY,GRAY |
1 | ||
| 62431-1204001 |
AE86..3D BLACK,BLACK |
1 | ||
| 62431-1204004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62431-1204004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62431-1204012 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62440 - GARNISH ASSY, ROOF SIDE RAIL, LH | ||||
| 62432-1203002 |
AE86..3D DEEP MAROON,RED/MAROON |
1 | ||
| 62432-1203012 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62432-1203004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62432-1203003 |
AE86..3D GRAY,GRAY |
1 | ||
| 62432-1203004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62432-1203001 |
AE86..3D BLACK,BLACK |
1 | ||
| 62461 - GARNISH, ROOF SIDE TRIM, RH | ||||
| 62471-1214001 |
AE86..3D BLACK,BLACK |
1 | ||
| 62471-1214002 |
AE86..3D DEEP MAROON,RED/MAROON |
1 | ||
| 62471-1214012 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62471-1214004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62471-1214004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62471-1214003 |
AE86..3D GRAY,GRAY |
1 | ||
| 62462 - GARNISH, ROOF SIDE TRIM, LH | ||||
| 62472-1214003 |
AE86..3D GRAY,GRAY |
1 | ||
| 62472-1214002 |
AE86..3D DEEP MAROON,RED/MAROON |
1 | ||
| 62472-1214012 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62472-1214004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62472-1214004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62472-1214001 |
AE86..3D BLACK,BLACK |
1 | ||
| 62501A - PANEL ASSY, QUARTER TRIM, RH | ||||
| 62510-1268012 |
AE86..3D W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 62510-1275002 |
AE86..3D..USA W/VL COVER,DEEP MAROON,RED/MAROON |
1 | ||
| 62510-1268004 |
AE86..3D W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 62510-1287002 |
AE86..3D..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 62510-1275004 |
AE86..3D..USA W/VL COVER,BLUE,BLUE |
1 | ||
| 62510-1287004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62510-1277004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62510-1277002 |
AE86..3D DEEP MAROON,RED/MAROON |
1 | ||
| 62510-1287003 |
AE86..3D..SR5 GRAY,GRAY |
1 | ||
| 62510-1A10101 |
AE86..3D..SR5 BLACK,BLACK |
1 | ||
| 62510-1A10004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62510-1A10002 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62510-1A10102 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62510-1A10104 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62510-1A10001 |
AE86..3D..SR5 BLACK,BLACK |
1 | ||
| 62502A - PANEL ASSY, QUARTER TRIM, LH | ||||
| 62520-1266012 |
AE86..3D W/SPORTS SEAT,DEEP MAROON,RED/MAROON |
1 | ||
| 62520-1266004 |
AE86..3D W/SPORTS SEAT,BLUE,BLUE |
1 | ||
| 62520-1273004 |
AE86..3D..USA W/VL COVER,DEEP MAROON,BLUE |
1 | ||
| 62520-1275004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62520-1275002 |
AE86..3D DEEP MAROON,RED/MAROON |
1 | ||
| 62520-1273002 |
AE86..3D..USA W/VL COVER,DEEP MAROON,RED/MAROON |
1 | ||
| 62520-1285002 |
AE86..3D..SR5 DEEP MAROON,DEEP MAROON |
1 | ||
| 62520-1285004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62520-1A08001 |
AE86..3D..SR5 BLACK,BLACK |
1 | ||
| 62520-1285003 |
AE86..3D..SR5 GRAY,GRAY |
1 | ||
| 62520-1A08004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62520-1A08102 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62520-1A08101 |
AE86..3D..SR5 BLACK,BLACK |
1 | ||
| 62520-1A08104 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62520-1A08002 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62512S - BASE, QUARTER TRIM, FRONT | ||||
| 62517-1212004 |
AE86..DX,SR5 RH,BLUE,BLUE |
1 | ||
| 62518-1206002 |
AE86 LH,DEEP MAROON,RED/MAROON |
1 | ||
| 62517-1212003 |
AE86..GTS,SR5 RH,GRAY,GRAY |
1 | ||
| 62518-1206004 |
AE86..DX,SR5 LH,BLUE,BLUE |
1 | ||
| 62518-1206003 |
AE86..GTS,SR5 LH,GRAY,GRAY |
1 | ||
| 62517-1212002 |
AE86 RH,DEEP MAROON,RED/MAROON |
1 | ||
| 62518-1206004 |
AE86 LH,BLUE,BLUE |
1 | ||
| 62517-1212012 |
AE86..DX,SR5 RH,MAROON,MAROON |
1 | ||
| 62518-1206001 |
AE86 LH,BLACK,BLACK |
1 | ||
| 62517-1212004 |
AE86 RH,BLUE,BLUE |
1 | ||
| 62517-1212001 |
AE86 RH,BLACK,BLACK |
1 | ||
| 62518-1206012 |
AE86..DX,SR5 LH,MAROON,MAROON |
1 | ||
| 62512S - BASE, QUARTER TRIM, FRONT | ||||
| 62517-1212004 |
AE86..DX,SR5 RH,BLUE,BLUE |
1 | ||
| 62518-1206002 |
AE86 LH,DEEP MAROON,RED/MAROON |
1 | ||
| 62517-1212003 |
AE86..GTS,SR5 RH,GRAY,GRAY |
1 | ||
| 62518-1206004 |
AE86..DX,SR5 LH,BLUE,BLUE |
1 | ||
| 62518-1206003 |
AE86..GTS,SR5 LH,GRAY,GRAY |
1 | ||
| 62517-1212002 |
AE86 RH,DEEP MAROON,RED/MAROON |
1 | ||
| 62518-1206004 |
AE86 LH,BLUE,BLUE |
1 | ||
| 62517-1212012 |
AE86..DX,SR5 RH,MAROON,MAROON |
1 | ||
| 62518-1206001 |
AE86 LH,BLACK,BLACK |
1 | ||
| 62517-1212004 |
AE86 RH,BLUE,BLUE |
1 | ||
| 62517-1212001 |
AE86 RH,BLACK,BLACK |
1 | ||
| 62518-1206012 |
AE86..DX,SR5 LH,MAROON,MAROON |
1 | ||
| 62531 - COVER, WHEEL HOUSE TRIM, RH | ||||
| 62610-1207002 |
AE86..3D..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 62610-1207003 |
AE86..3D..SR5 GRAY,GRAY |
1 | ||
| 62610-1207004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62610-1207001 |
AE86..3D..SR5 BLACK,BLACK |
1 | ||
| 62610-1207012 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62610-1207004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62610-1207001 |
AE86..3D BLACK,BLACK |
1 | ||
| 62532 - COVER, WHEEL HOUSE TRIM, LH | ||||
| 62620-1206003 |
AE86..3D..SR5 GRAY,GRAY |
1 | ||
| 62620-1206004 |
AE86..3D..SR5 BLUE,BLUE |
1 | ||
| 62620-1206001 |
AE86..3D..SR5 BLACK,BLACK |
1 | ||
| 62620-1206001 |
AE86..3D BLACK,BLACK |
1 | ||
| 62620-1206004 |
AE86..3D BLUE,BLUE |
1 | ||
| 62620-1206012 |
AE86..3D..SR5 MAROON,MAROON |
1 | ||
| 62620-1206002 |
AE86..3D..SR5 DEEP MAROON,RED/MAROON |
1 | ||
| 62581 - RETAINER, QUARTER TRIM | ||||
| 67771-16020 |
AE86..DX,SR5 |
10 | ||
| 67771-16020 |
AE86..DX,SR5 |
8 | ||
| 67771-12020 |
AE86..SR5 W/SPORTS SEAT |
8 | ||
| 62581 - RETAINER, QUARTER TRIM | ||||
| 67771-16020 |
AE86..DX,SR5 |
10 | ||
| 67771-16020 |
AE86..DX,SR5 |
8 | ||
| 67771-12020 |
AE86..SR5 W/SPORTS SEAT |
8 | ||
| 62597B - CLAMP, QUARTER TRIM | ||||
| 62597-12030 |
AE86..GTS,SR5 |
6 | ||
| 62597-12030 |
AE86 |
6 | ||
| 62597B - CLAMP, QUARTER TRIM | ||||
| 62597-12030 |
AE86..GTS,SR5 |
6 | ||
| 62597-12030 |
AE86 |
6 | ||
| 62621B - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-12040 |
AE86..GTS,SR5 |
1 | ||
| 62622B - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH | ||||
| 62622-12010 |
AE86..GTS,SR5 |
1 | ||
| 62623B - PAD, QUARTER WHEEL HOUSE, INNER REAR RH | ||||
| 62623-12010 |
AE86..3D |
1 | ||
| 62624B - PAD, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 62624-12010 |
AE86..3D |
1 | ||
| 74259 - BRACKET, REAR SIDE ARMREST SUPPORT | ||||
| 74259-12010 |
AE86..SR5 |
2 | ||
| 74259 - BRACKET, REAR SIDE ARMREST SUPPORT | ||||
| 74259-12010 |
AE86..SR5 |
2 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-06126 | ||||
| 90159-50105 | ||||
| 90468-05017 | ||||
| 90468-25002 | ||||
| 93540-55012 | ||||
| 93560-14010 | ||||
| 93567-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
