AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987

Engine 4AC

Transmission 3D MTM

Displacement 2500cc

Power 168 HP (125 kW)

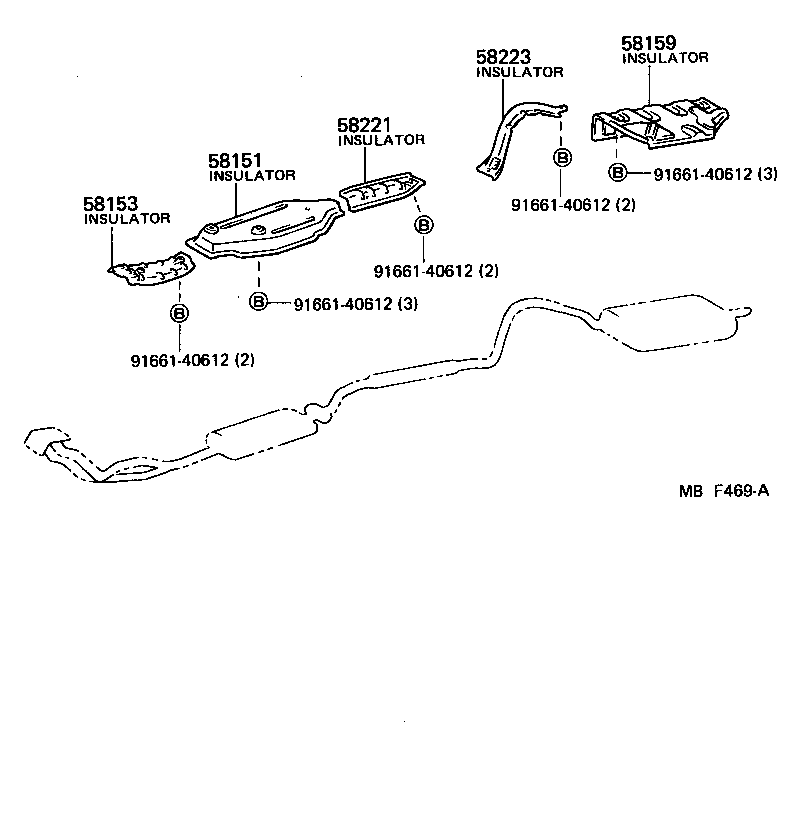

Click highlighted areas on diagram

Part #	Description	Period	Qty
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-12110	AE86	08/1983 - 07/1987	1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-12070	AE86..DX,SR5	08/1983 - 07/1987	1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-12050	AE86	08/1983 - 07/1987	1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-12070	AE86	08/1983 - 07/1987	1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-12040	AE86	08/1983 - 07/1987	1
Common parts
91661-40612
