AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )3D

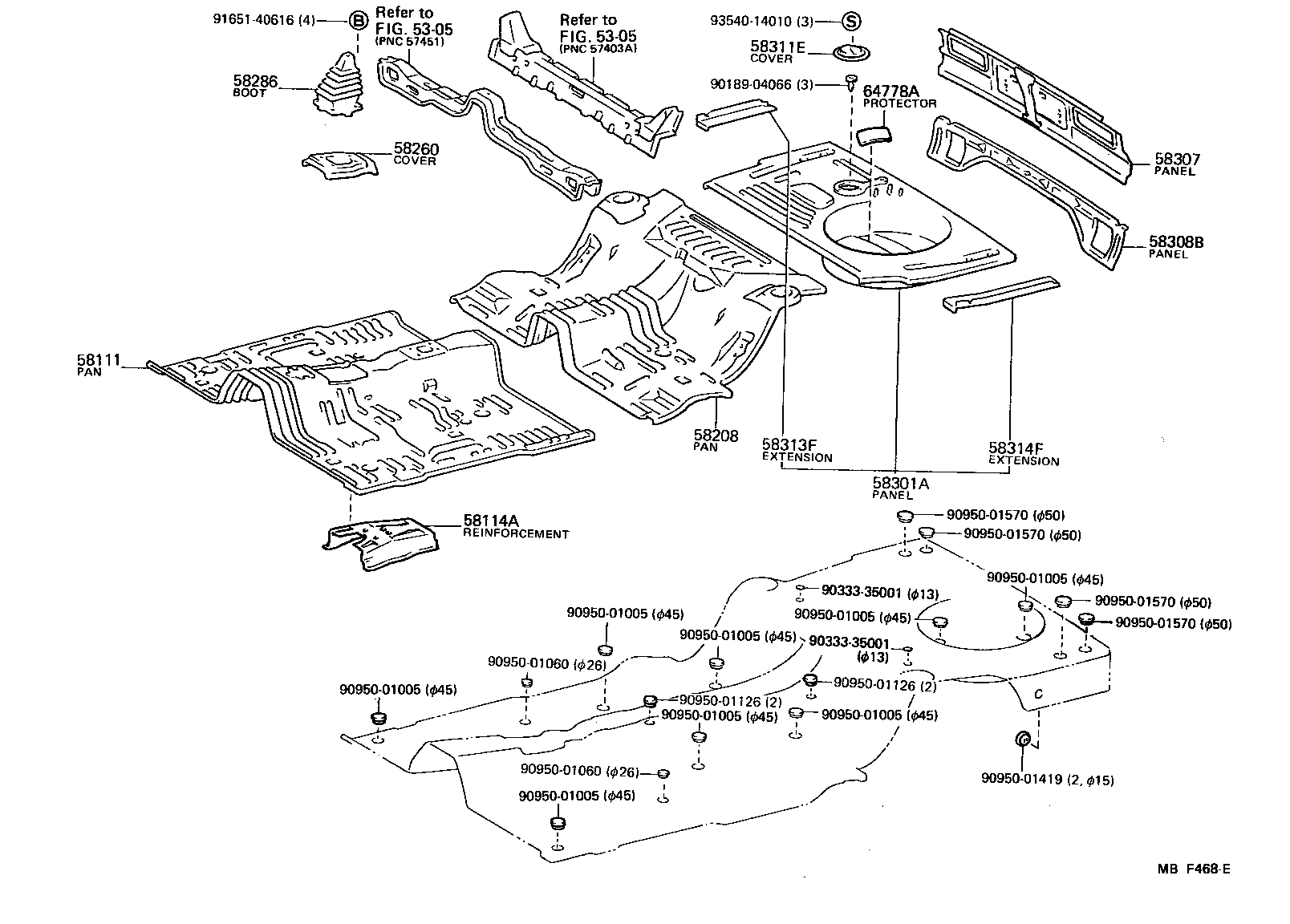

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-12160 |
AE86 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-12010 |
AE86 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-12160 |
AE86 |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58281-12030 |
AE86..5F |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-12120 |
AE86..5F |
1 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-12170 |
AE86..3D |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-12740 |
AE86..3D |
1 | ||
| 58307-12741 |
AE86..3D |
1 | ||
| 58308B - PANEL SUB-ASSY, REAR VALANCE | ||||
| 58308-12110 |
AE86 |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-16030 |
AE86 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-12140 |
AE86..3D |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-12140 |
AE86..3D |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12020 |
AE86 |
2 | ||
| Common parts | ||||
| 90189-04066 | ||||
| 90333-35001 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||
| 90950-01126 | ||||
| 90950-01419 | ||||
| 90950-01570 | ||||
| 91651-40616 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5305 | ||||
