AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

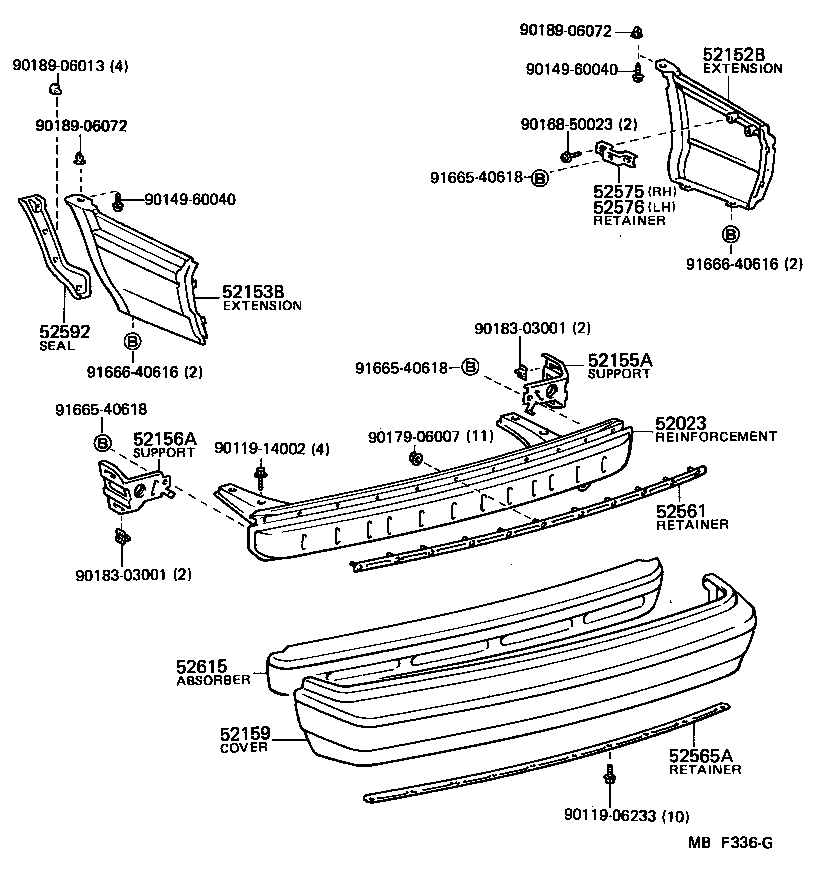

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-12060 |
AE86 |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-12141 |
AE86..DX,SR5 |
1 | ||
| 52152-12140 |
AE86 |
1 | ||
| 52152-12141 |
AE86 |
1 | ||
| 52152-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52153-12151 |
AE86 |
1 | ||
| 52153-12150 |
AE86 |
1 | ||
| 52153-12151 |
AE86..DX,SR5 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-12110 |
AE86 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-12090 |
AE86 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-12100 |
AE86..DX,SR5 |
1 | ||
| 52159-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52159-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-12040 |
AE86 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12020 |
AE86 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-12020 |
AE86 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-12020 |
AE86 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52591-12010 |
AE86 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-12050 |
AE86 |
1 | ||
| Common parts | ||||
| 90119-06233 | ||||
| 90119-14002 | ||||
| 90149-60040 | ||||
| 90168-50023 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90189-06013 | ||||
| 90189-06072 | ||||
| 91665-40618 | ||||
| 91666-40616 | ||||
