AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

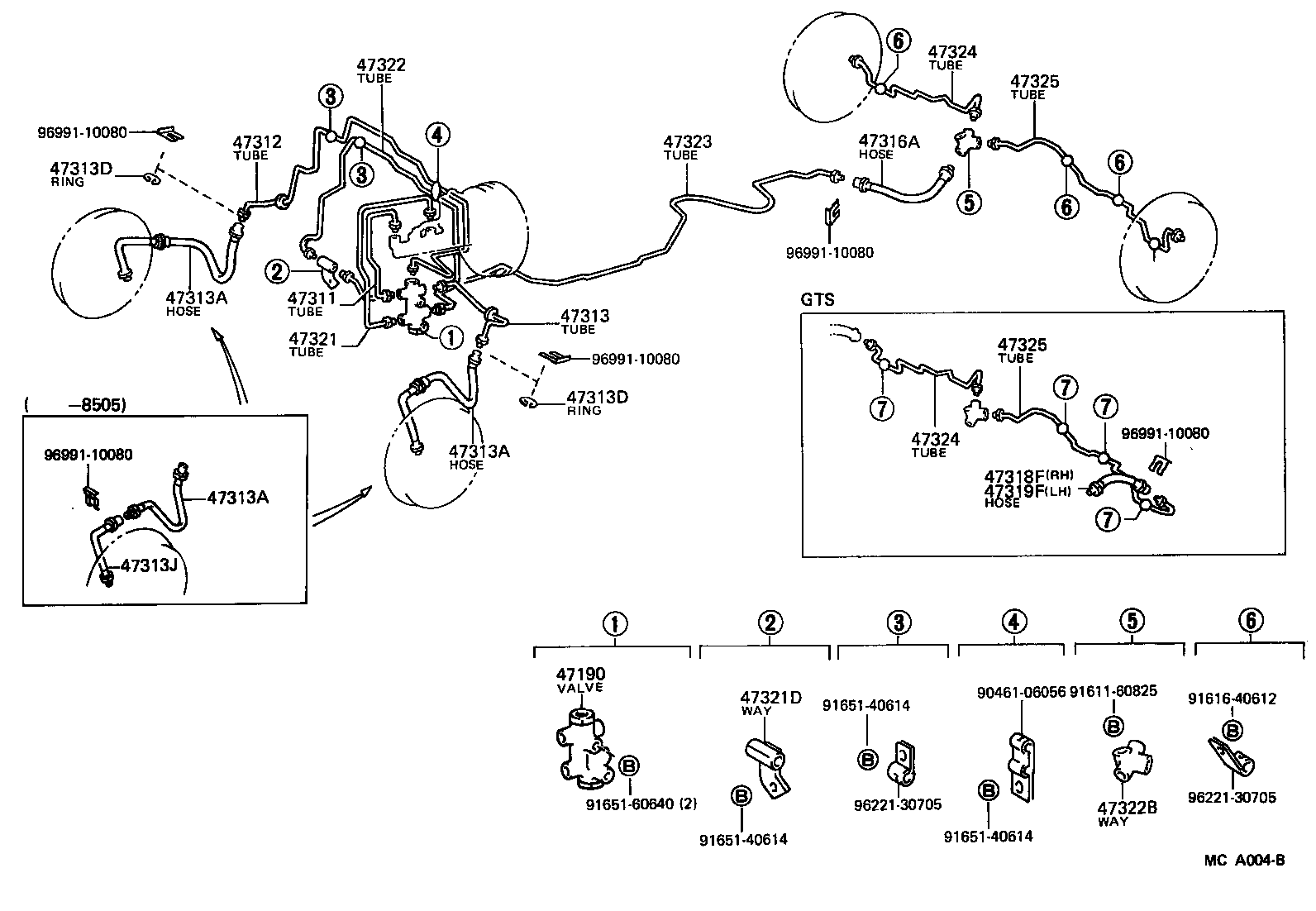

Click highlighted areas on diagram

diagram 47190 47311 47312 47313 47313A 47313A 47313A 47313D 47313D 47313J 47316A 47318F 47319F 47321 47321D 47322 47322B 47323 47324 47324 47325 47325 9046106056 9161160825 9161640612 9165140614 9165140614 9165140614 9165160640 9622130705 9622130705 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22040

AE86..DX,SR5

 1
47311 - TUBE, FRONT BRAKE, NO.1
47312-12170

AE86

 1
47312 - TUBE, FRONT BRAKE, NO.2
47314-12220

AE86..DX,SR5

 1
47313 - TUBE, FRONT BRAKE, NO.3
47315-12370

AE86

 1
47315-12371

AE86

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02403

AE86

 2
90947-02476

AE86

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02403

AE86

 2
90947-02476

AE86

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02403

AE86

 2
90947-02476

AE86

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

AE86

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

AE86

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32105

AE86

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32805

AE86

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-12150

AE86

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10056

AE86

 1
47322 - TUBE, REAR BRAKE, NO.2
47326-12030

AE86..DX,SR5

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

AE86

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-12150

AE86

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-12130

AE86..DX,SR5

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-12130

AE86..DX,SR5

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-12130

AE86..DX,SR5

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-12130

AE86..DX,SR5

 1
Common parts
90461-06056
91611-60825
91616-40612
91651-40614
91651-60640
96221-30705
96991-10080
