AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

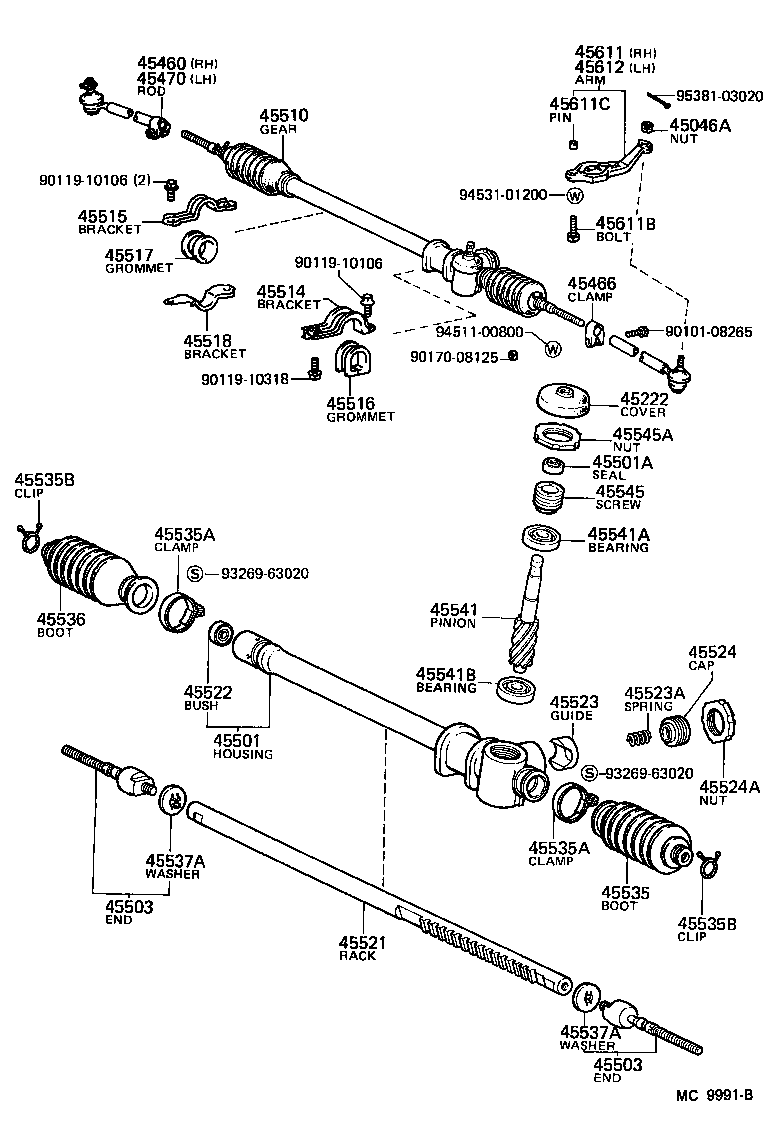

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE86 |
2 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-10030 |
AE86 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19125 |
AE86 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AE86 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19125 |
AE86 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-12041 |
AE86 |
1 | ||
| 45501-12080 |
AE86 |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
AE86 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19015 |
AE86 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19015 |
AE86 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12030 |
AE86 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12030 |
AE86 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12090 |
AE86 W/POWER STEERING |
1 | ||
| 45515-12050 |
AE86 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12040 |
AE86 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12090 |
AE86 W/POWER STEERING |
1 | ||
| 45517-12080 |
AE86 |
1 | ||
| 45517-12100 |
AE86 W/POWER STEERING |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-12020 |
AE86 |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-12060 |
AE86 |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10030 |
AE86 |
1 | ||
| 45522-10021 |
AE86 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-10010 |
AE86 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AE86 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AE86 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36001 |
AE86 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE86 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE86 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE86 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE86 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE86 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-12011 |
AE86 |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AE86 |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AE86 |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-12021 |
AE86 |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
AE86 |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
AE86 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AE86 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AE86 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-12917 |
AE86 W/POWER STEERING |
1 | ||
| 45611-12913 |
AE86 |
1 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12295 |
AE86 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AE86 |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-12917 |
AE86 W/POWER STEERING |
1 | ||
| 45612-12913 |
AE86 |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-10106 | ||||
| 90119-10318 | ||||
| 90170-08125 | ||||
| 93269-63020 | ||||
| 94511-00800 | ||||
| 94531-01200 | ||||
| 95381-03020 | ||||
(8308-8508)

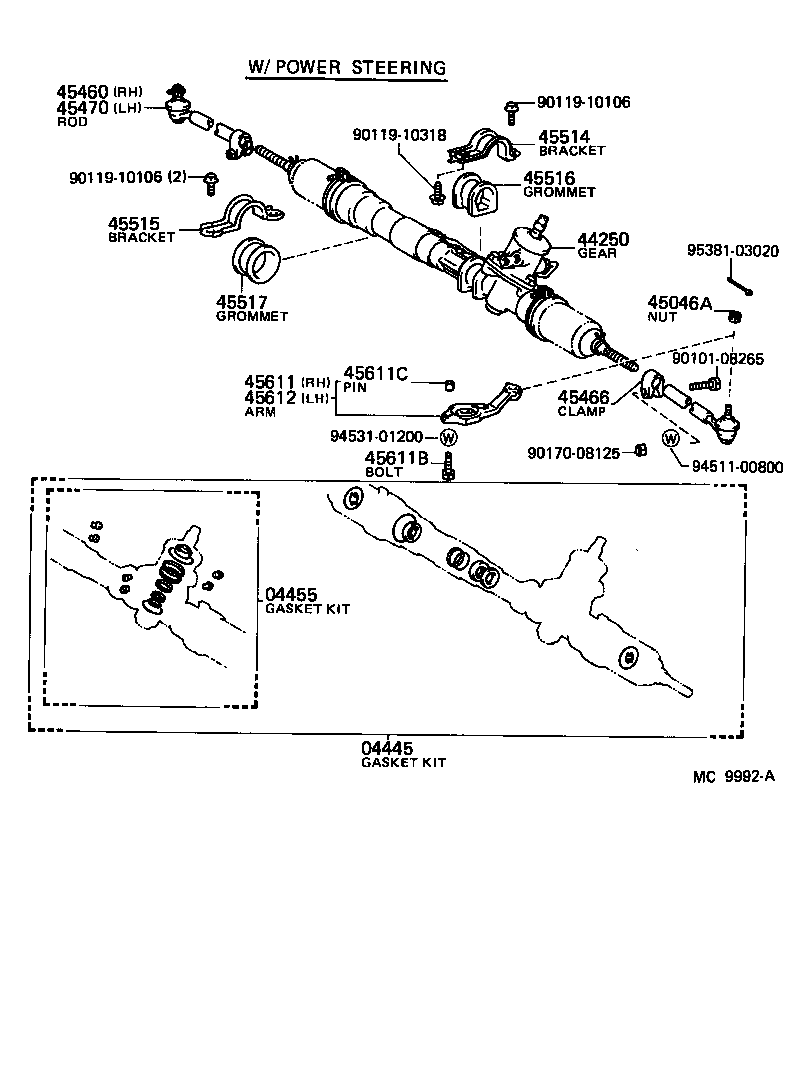

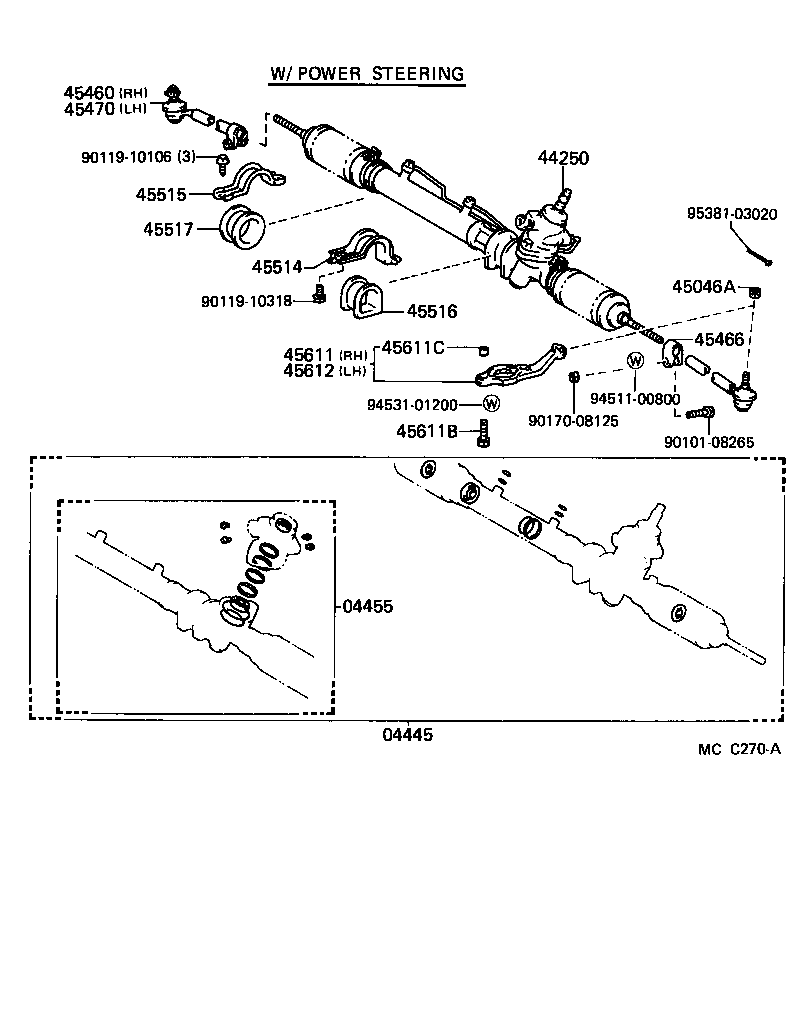

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-12010 |
AE86 |
1 | ||
| 04445-12040 |
AE86 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12020 |
AE86 |
1 | ||
| 04455-20010 |
AE86 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12070 |
AE86 |
1 | ||
| 44250-12160 |
AE86 |
1 | ||
| 44250-12071 |
AE86 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE86 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19125 |
AE86 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AE86 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19125 |
AE86 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12030 |
AE86 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12090 |
AE86 W/POWER STEERING |
1 | ||
| 45515-12050 |
AE86 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12040 |
AE86 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12090 |
AE86 W/POWER STEERING |
1 | ||
| 45517-12080 |
AE86 |
1 | ||
| 45517-12100 |
AE86 W/POWER STEERING |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-12917 |
AE86 W/POWER STEERING |
1 | ||
| 45611-12913 |
AE86 |
1 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12295 |
AE86 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AE86 |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-12917 |
AE86 W/POWER STEERING |
1 | ||
| 45612-12913 |
AE86 |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-10106 | ||||
| 90119-10318 | ||||
| 90170-08125 | ||||
| 94511-00800 | ||||
| 94531-01200 | ||||
| 95381-03020 | ||||
(8308-8508)

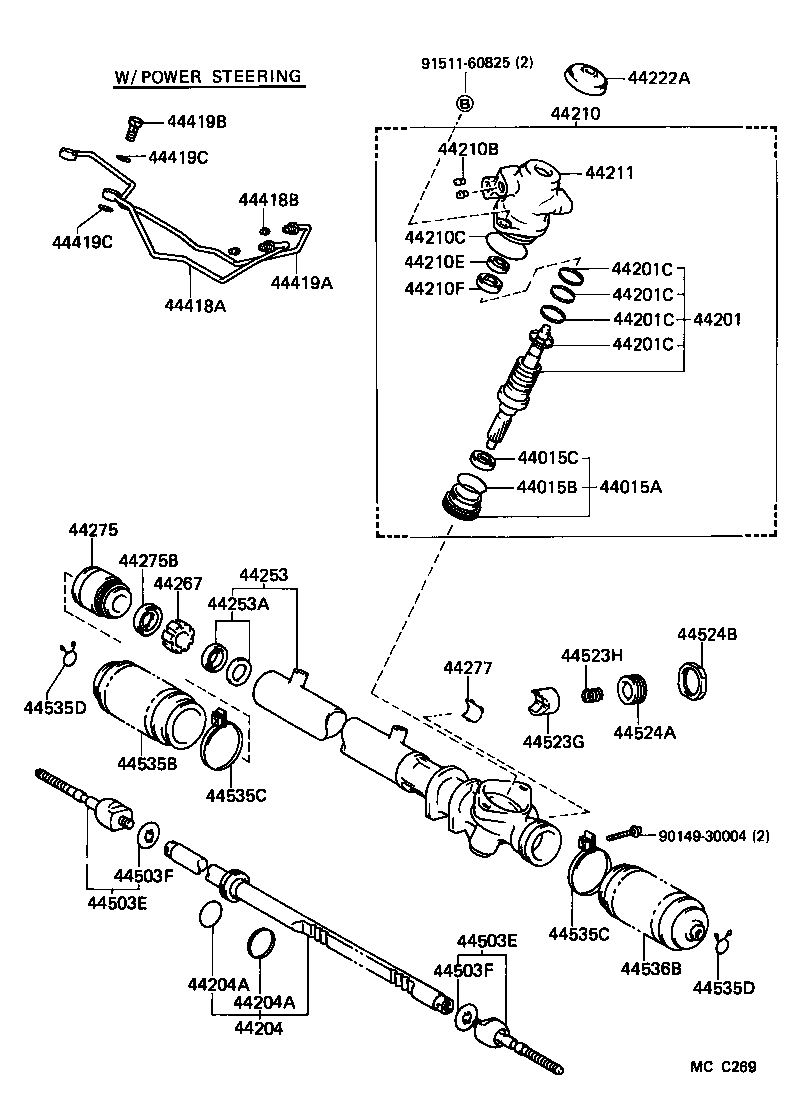

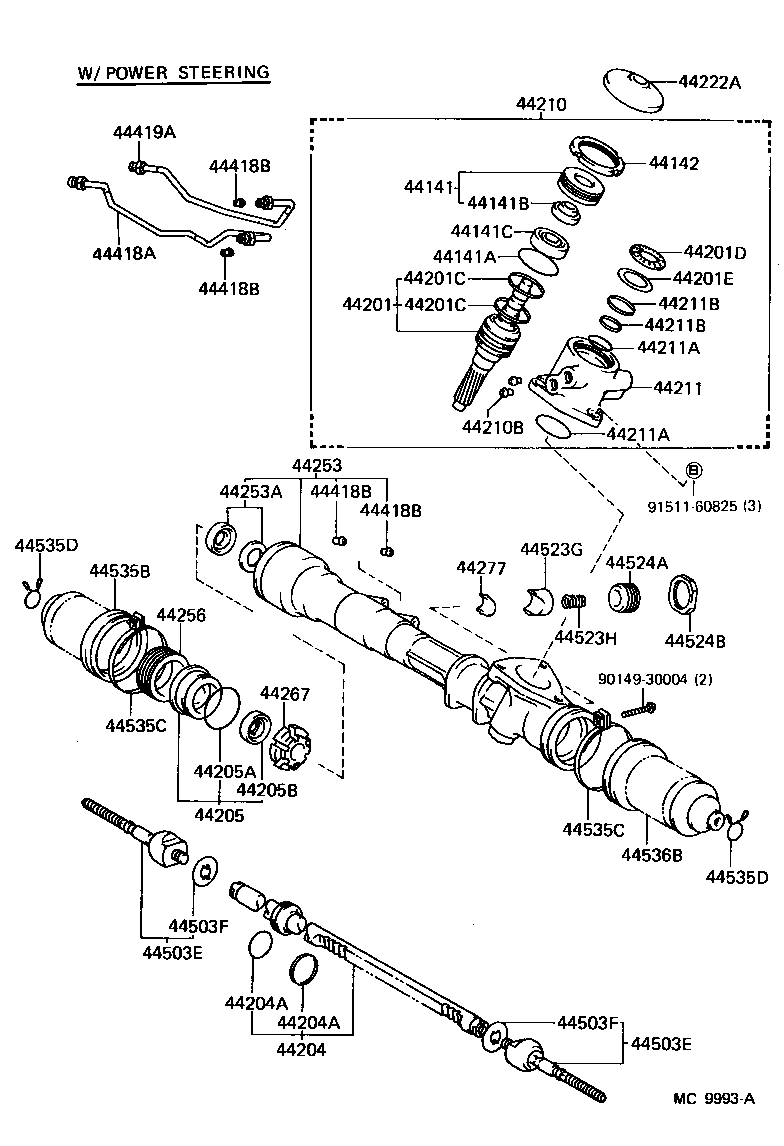

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
AE86 |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
AE86 |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
AE86 |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22004 |
AE86 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
AE86 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12110 |
AE86 |
1 | ||
| 44201-12061 |
AE86 |
1 | ||
| 44201-12060 |
AE86 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
AE86 |
2 | ||
| 90562-32003 |
AE86 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
AE86 |
2 | ||
| 90562-32003 |
AE86 |
2 | ||
| 44201D - BEARING, THRUST NEEDLE ROLLER(FOR CONTROL VALVE) | ||||
| 90374-30003 |
AE86 |
1 | ||
| 44201E - WASHER, PLATE(FOR POWER STEERING CONTROL VALVE) | ||||
| 90201-30003 |
AE86 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12050 |
AE86 |
1 | ||
| 44204-12090 |
AE86 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-30002 |
AE86 INNER |
1 | ||
| 90562-34001 |
AE86 OUTER |
1 | ||
| 90562-38002 |
AE86 OUTER |
1 | ||
| 90301-34003 |
AE86 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-30002 |
AE86 INNER |
1 | ||
| 90562-34001 |
AE86 OUTER |
1 | ||
| 90562-38002 |
AE86 OUTER |
1 | ||
| 90301-34003 |
AE86 INNER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-12030 |
AE86 |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-46001 |
AE86 |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-24002 |
AE86 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-12041 |
AE86 |
1 | ||
| 44210-12110 |
AE86 |
1 | ||
| 44210-12040 |
AE86 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
AE86 |
2 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-12100 |
AE86 |
1 | ||
| 44211-12030 |
AE86 |
1 | ||
| 44211A - RING, O(FOR CONTROL VALVE HOUSING) | ||||
| 90301-38002 |
AE86 ID=38.8,OUTER |
1 | ||
| 90301-26001 |
AE86 ID=27.7,INNER |
1 | ||
| 44211A - RING, O(FOR CONTROL VALVE HOUSING) | ||||
| 90301-38002 |
AE86 ID=38.8,OUTER |
1 | ||
| 90301-26001 |
AE86 ID=27.7,INNER |
1 | ||
| 44211B - RING(FOR CONTROL VALVE HOUSING) | ||||
| 90562-24002 |
AE86 ID=24.4,LWR |
1 | ||
| 90562-29002 |
AE86 ID=29.9,UPR |
1 | ||
| 44211B - RING(FOR CONTROL VALVE HOUSING) | ||||
| 90562-24002 |
AE86 ID=24.4,LWR |
1 | ||
| 90562-29002 |
AE86 ID=29.9,UPR |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12010 |
AE86 |
1 | ||
| 45222-32010 |
AE86 |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-12070 |
AE86 |
1 | ||
| 44203-12130 |
AE86 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99119 |
AE86 |
1 | ||
| 90999-99130 |
AE86 |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-12010 |
AE86 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-12010 |
AE86 |
1 | ||
| 44267-12020 |
AE86 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12010 |
AE86 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12051 |
AE86 |
1 | ||
| 44418-12050 |
AE86 |
1 | ||
| 44418-12100 |
AE86 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-02001 |
AE86 VALVE SIDE |
2 | ||
| 90410-04001 |
AE86 HOUSING SIDE |
2 | ||
| 90410-05005 |
AE86 HOUSING SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-02001 |
AE86 VALVE SIDE |
2 | ||
| 90410-04001 |
AE86 HOUSING SIDE |
2 | ||
| 90410-05005 |
AE86 HOUSING SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-02001 |
AE86 VALVE SIDE |
2 | ||
| 90410-04001 |
AE86 HOUSING SIDE |
2 | ||
| 90410-05005 |
AE86 HOUSING SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-02001 |
AE86 VALVE SIDE |
2 | ||
| 90410-04001 |
AE86 HOUSING SIDE |
2 | ||
| 90410-05005 |
AE86 HOUSING SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12100 |
AE86 |
1 | ||
| 44419-12050 |
AE86 |
1 | ||
| 44419-12051 |
AE86 |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19015 |
AE86 RH |
1 | ||
| 45503-19045 |
AE86 LH |
1 | ||
| 45503-19025 |
AE86 |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19015 |
AE86 RH |
1 | ||
| 45503-19045 |
AE86 LH |
1 | ||
| 45503-19025 |
AE86 |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AE86 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AE86 |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12010 |
AE86 |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-20041 |
AE86 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
AE86 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
AE86 |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-20040 |
AE86 |
1 | ||
| 45535-12030 |
AE86 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-53002 |
AE86 |
2 | ||
| 90461-10568 |
AE86 |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-53002 |
AE86 |
2 | ||
| 90461-10568 |
AE86 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AE86 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AE86 |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-20040 |
AE86 |
1 | ||
| 45535-12030 |
AE86 |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-20010 |
AE86 |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
AE86 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
AE86 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12110 |
AE86 |
1 | ||
| 44201-12061 |
AE86 |
1 | ||
| 44201-12060 |
AE86 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
AE86 |
2 | ||
| 90562-32003 |
AE86 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
AE86 |
2 | ||
| 90562-32003 |
AE86 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
AE86 |
2 | ||
| 90562-32003 |
AE86 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
AE86 |
2 | ||
| 90562-32003 |
AE86 |
2 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12050 |
AE86 |
1 | ||
| 44204-12090 |
AE86 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-30002 |
AE86 INNER |
1 | ||
| 90562-34001 |
AE86 OUTER |
1 | ||
| 90562-38002 |
AE86 OUTER |
1 | ||
| 90301-34003 |
AE86 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-30002 |
AE86 INNER |
1 | ||
| 90562-34001 |
AE86 OUTER |
1 | ||
| 90562-38002 |
AE86 OUTER |
1 | ||
| 90301-34003 |
AE86 INNER |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-12041 |
AE86 |
1 | ||
| 44210-12110 |
AE86 |
1 | ||
| 44210-12040 |
AE86 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
AE86 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
AE86 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
AE86 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
AE86 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-12100 |
AE86 |
1 | ||
| 44211-12030 |
AE86 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12010 |
AE86 |
1 | ||
| 45222-32010 |
AE86 |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-12070 |
AE86 |
1 | ||
| 44203-12130 |
AE86 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99119 |
AE86 |
1 | ||
| 90999-99130 |
AE86 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-12010 |
AE86 |
1 | ||
| 44267-12020 |
AE86 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12040 |
AE86 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-24006 |
AE86 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12010 |
AE86 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12051 |
AE86 |
1 | ||
| 44418-12050 |
AE86 |
1 | ||
| 44418-12100 |
AE86 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-02001 |
AE86 VALVE SIDE |
2 | ||
| 90410-04001 |
AE86 HOUSING SIDE |
2 | ||
| 90410-05005 |
AE86 HOUSING SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12100 |
AE86 |
1 | ||
| 44419-12050 |
AE86 |
1 | ||
| 44419-12051 |
AE86 |
1 | ||
| 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
AE86 |
1 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
AE86 |
1 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
AE86 |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19015 |
AE86 RH |
1 | ||
| 45503-19045 |
AE86 LH |
1 | ||
| 45503-19025 |
AE86 |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19015 |
AE86 RH |
1 | ||
| 45503-19045 |
AE86 LH |
1 | ||
| 45503-19025 |
AE86 |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AE86 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AE86 |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12010 |
AE86 |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-20041 |
AE86 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
AE86 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
AE86 |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-20040 |
AE86 |
1 | ||
| 45535-12030 |
AE86 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-53002 |
AE86 |
2 | ||
| 90461-10568 |
AE86 |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-53002 |
AE86 |
2 | ||
| 90461-10568 |
AE86 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AE86 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AE86 |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-20040 |
AE86 |
1 | ||
| 45535-12030 |
AE86 |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-12010 |
AE86 |
1 | ||
| 04445-12040 |
AE86 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12020 |
AE86 |
1 | ||
| 04455-20010 |
AE86 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12070 |
AE86 |
1 | ||
| 44250-12160 |
AE86 |
1 | ||
| 44250-12071 |
AE86 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE86 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19125 |
AE86 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AE86 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19125 |
AE86 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12030 |
AE86 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12090 |
AE86 W/POWER STEERING |
1 | ||
| 45515-12050 |
AE86 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12040 |
AE86 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12090 |
AE86 W/POWER STEERING |
1 | ||
| 45517-12080 |
AE86 |
1 | ||
| 45517-12100 |
AE86 W/POWER STEERING |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-12917 |
AE86 W/POWER STEERING |
1 | ||
| 45611-12913 |
AE86 |
1 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12295 |
AE86 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AE86 |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-12917 |
AE86 W/POWER STEERING |
1 | ||
| 45612-12913 |
AE86 |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-10106 | ||||
| 90119-10318 | ||||
| 90170-08125 | ||||
| 94511-00800 | ||||
| 94531-01200 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
