AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

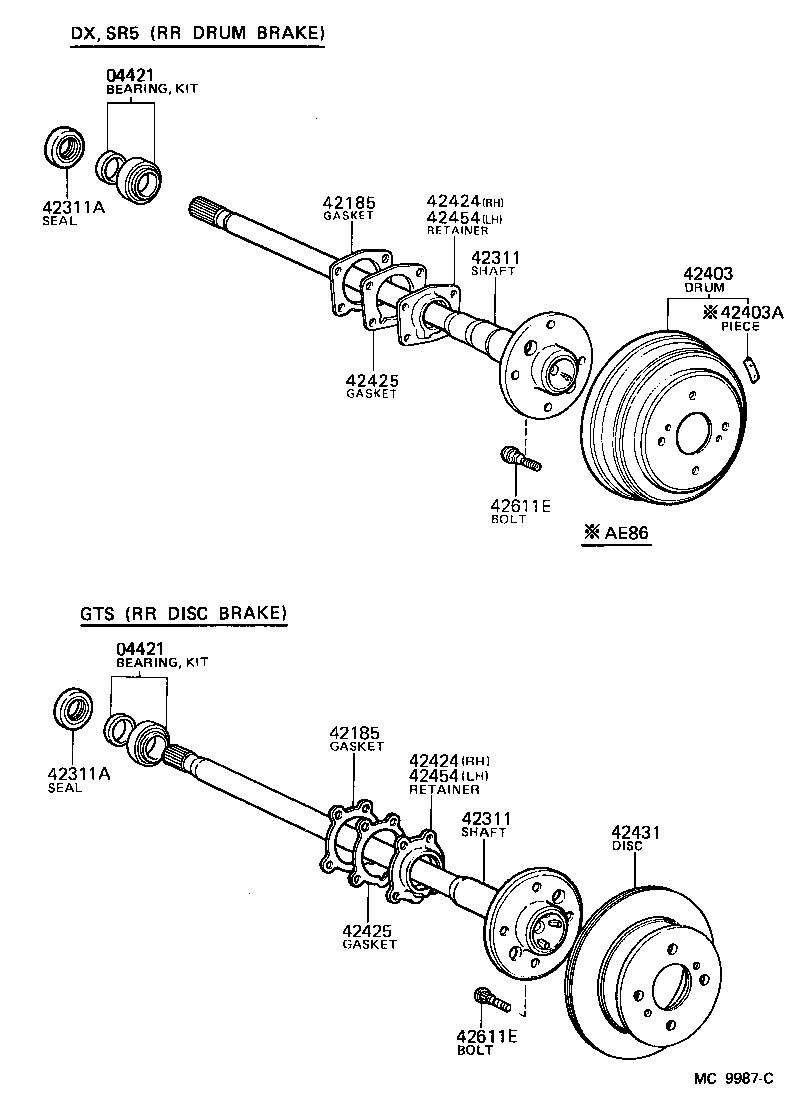

Click highlighted areas on diagram

diagram 04421 04421 42185 42185 42311 42311 42311A 42311A 42403 42403A 42424 42424 42425 42425 42431 42454 42454 42611E 42611E
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-12010

AE86..DX,SR5

 2
04421 - BEARING KIT, REAR AXLE SHAFT
04421-12010

AE86..DX,SR5

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-12010

AE86..DX,SR5

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-12010

AE86..DX,SR5

 2
42311 - SHAFT, REAR AXLE
42311-12080

AE86..DX,SR5

 2
42311 - SHAFT, REAR AXLE
42311-12080

AE86..DX,SR5

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-42055

AE86..DX,SR5

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-42055

AE86..DX,SR5

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-12081

AE86..DX,SR5

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01021

AE86..DX,SR5

40G,40G

 2
90937-01023

AE86..DX,SR5

10G,10G

 2
90937-01020

AE86..DX,SR5

20G,20G

 2
90937-01033

AE86..DX,SR5

50G,50G

 2
90937-01034

AE86..DX,SR5

60G,60G

 2
90937-01032

AE86..DX,SR5

30G,30G

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-20010

AE86..DX,SR5

 1
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-20010

AE86..DX,SR5

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-20010

AE86..DX,SR5

 2
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-20010

AE86..DX,SR5

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-20010

AE86..DX,SR5

 1
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-20010

AE86..DX,SR5

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

AE86

 8
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

AE86

 8
