AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

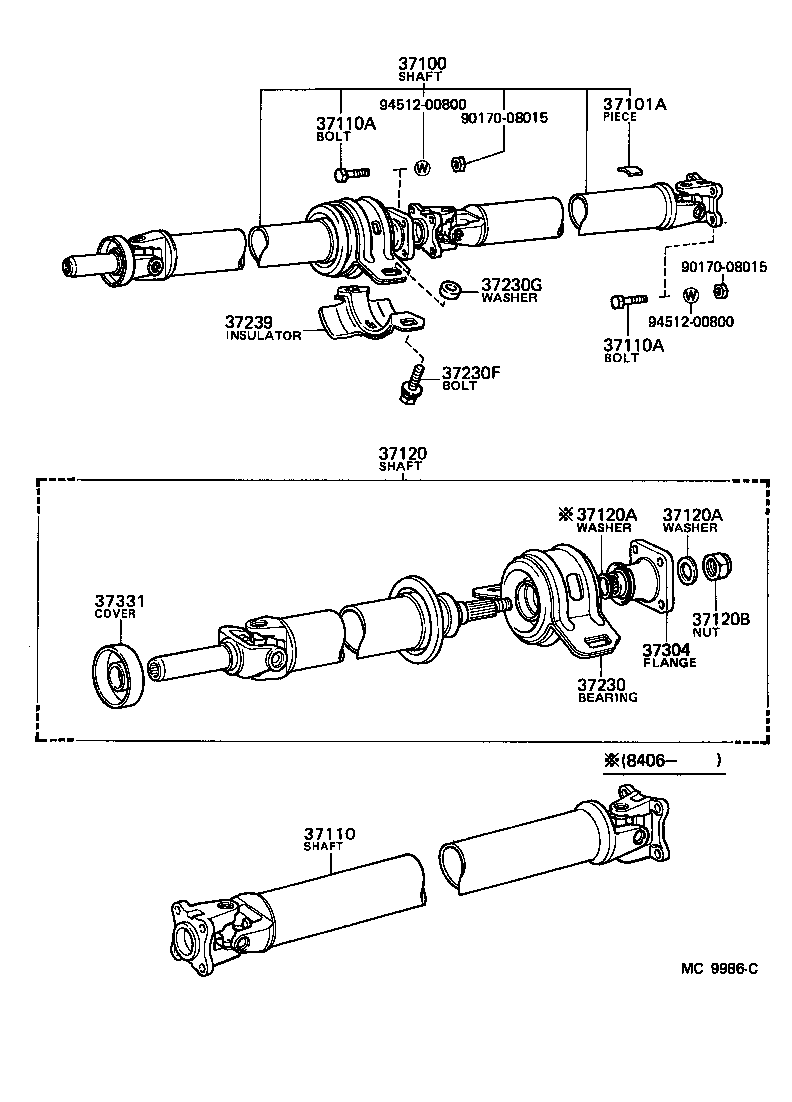

Click highlighted areas on diagram

diagram 37100 37101A 37110 37110A 37110A 37120 37120A 37120A 37120B 37230 37230F 37230G 37239 37304 37331 9017008015 9017008015 9451200800 9451200800
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-12420

AE86..3D..5F..SR5

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01155

AE86

22G,L=45.6,22G

 3
90937-01153

AE86

16G,L=33.2,16G

 3
90937-01147

AE86

2G,T=2.0,2G

 3
90937-01157

AE86

26G,L=53.9,26G

 3
90937-01151

AE86

12G,L=24.9,12G

 3
90937-01136

AE86

20G,L=41.4,20G

 3
90937-01150

AE86

8G,L=16.6,8G

 3
90937-01156

AE86

24G,L=49.7,24G

 3
90937-01132

AE86

10G,L=20.7,10G

 3
90937-01152

AE86

14G,L=29.0,14G

 3
90937-01158

AE86

28G,L=58.1,28G

 3
90937-01140

AE86

30G,L=62.2,30G

 3
90937-01148

AE86

4G,T=2.0,4G

 3
90937-01154

AE86

18G,L=37.3,18G

 3
90937-01149

AE86

6G,L=12.4,6G

 3
37110 - SHAFT ASSY, PROPELLER
37110-12410

AE86..3D..5F..SR5

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08090

AE86

17G

 2
90101-08088

AE86

15G

 2
90101-08091

AE86

19G

 2
90101-08082

AE86

*8-1.25PX25-12,13G

 8
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08090

AE86

17G

 2
90101-08088

AE86

15G

 2
90101-08091

AE86

19G

 2
90101-08082

AE86

*8-1.25PX25-12,13G

 8
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-12200

AE86..5F

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-26005

AE86

OD=36.6,T=0.8,T=0.8,OD=36.6

 1
90201-18182

AE86

OD=33.5,T=4.0,T=4,OD=33.5

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-26005

AE86

OD=36.6,T=0.8,T=0.8,OD=36.6

 1
90201-18182

AE86

OD=33.5,T=4.0,T=4,OD=33.5

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-18060

AE86

 1
90179-18009

AE86

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-12050

AE86

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10049

AE86

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10008

AE86

T=4.5

 2
37239 - INSULATOR, CENTER SUPPORT BEARING HEAT
37239-12040

AE86

 1
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-22013

AE86

 1
37304-22012

AE86

 1
37331 - COVER, SLIDING SHAFT DUST
37331-12010

AE86..5F

 1
Common parts
90170-08015
94512-00800
