AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )5F

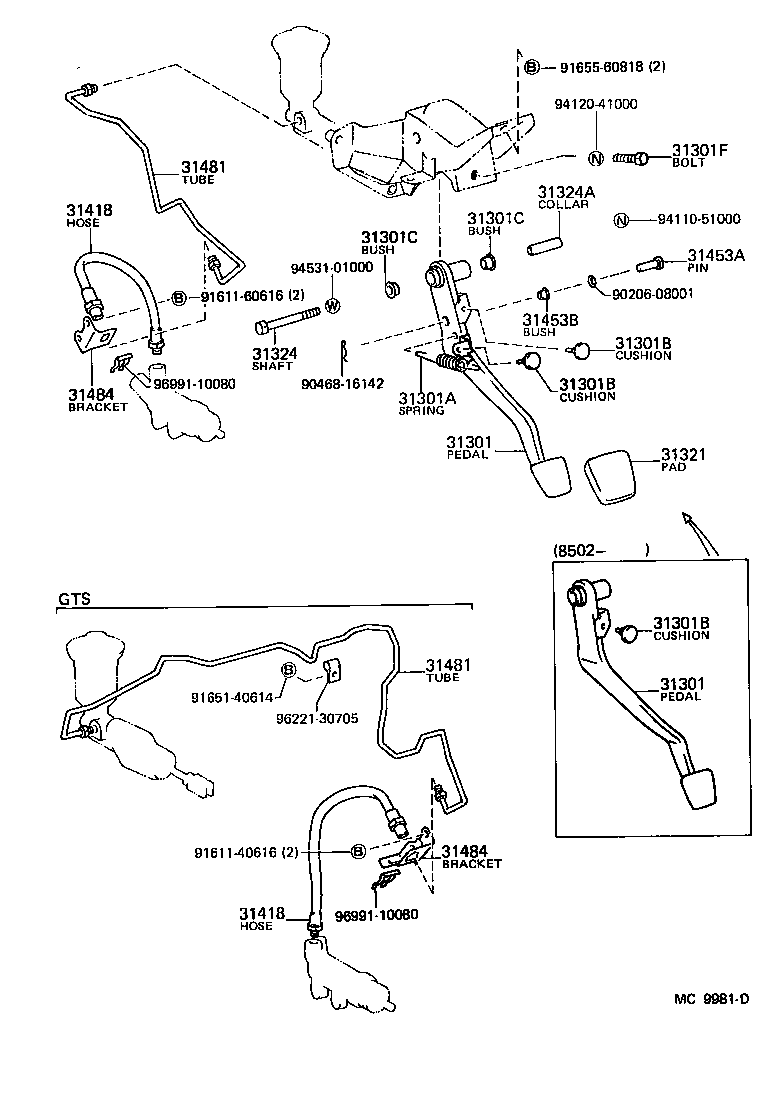

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12170 |
AE86..5F |
1 | ||
| 31301-12320 |
AE86..5F W/CLUTCH START SWITCH |
1 | ||
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12170 |
AE86..5F |
1 | ||
| 31301-12320 |
AE86..5F W/CLUTCH START SWITCH |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14003 |
AE86..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-07010 |
AE86..5F OD=20 |
1 | ||
| 90541-06008 |
AE86..5F OD=18 |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-07010 |
AE86..5F OD=20 |
1 | ||
| 90541-06008 |
AE86..5F OD=18 |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-07010 |
AE86..5F OD=20 |
1 | ||
| 90541-06008 |
AE86..5F OD=18 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
AE86..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
AE86..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AE86..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12030 |
AE86..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10015 |
AE86..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
AE86..5F |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 90947-02440 |
AE86..5F |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 90947-02440 |
AE86..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AE86..5F L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AE86..5F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12080 |
AE86..5F..(DX,SR5) |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12080 |
AE86..5F..(DX,SR5) |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-14050 |
AE86..5F..(DX,SR5) |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-14050 |
AE86..5F..(DX,SR5) |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91611-40616 | ||||
| 91611-60616 | ||||
| 91651-40614 | ||||
| 91655-60818 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| 96221-30705 | ||||
| 96991-10080 | ||||
