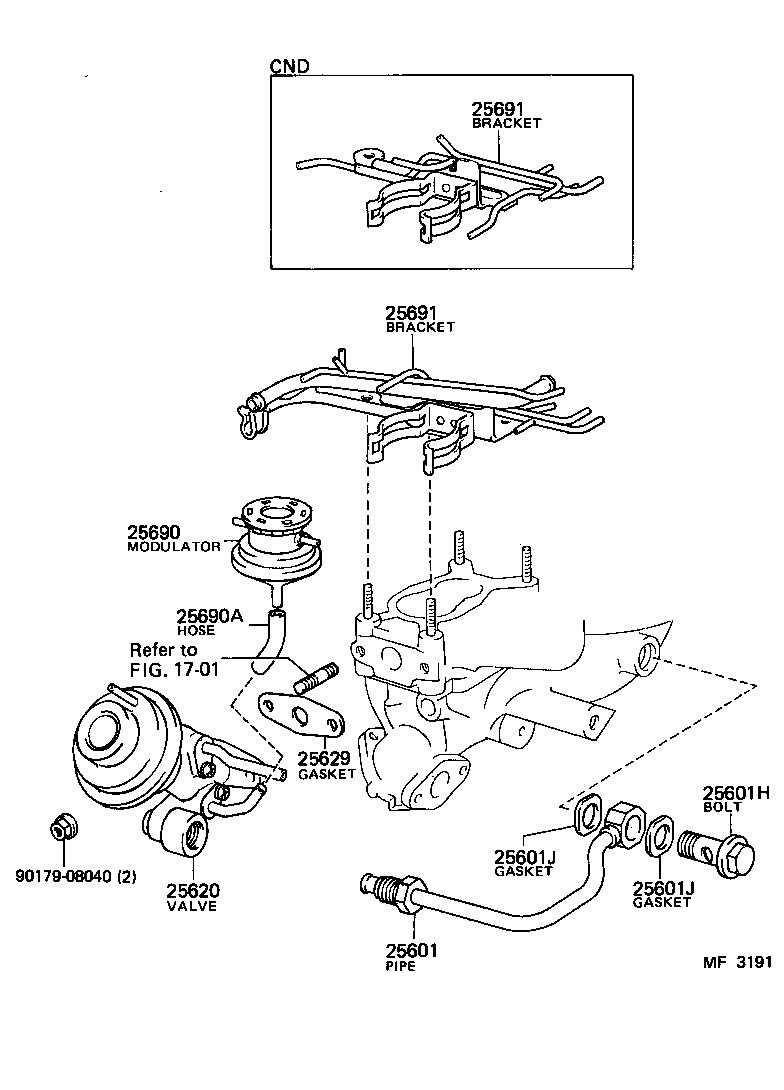

Toyota Corolla cp AE86 EXHAUST GAS RECIRCULATION SYSTEM

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-15020	4AC..AE86	08/1983 - 07/1987	1
25601H - BOLT, UNION(FOR EGR PIPE,NO.1)
90401-20003	4AC..AE86	08/1983 - 07/1987	1
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005	4AC..AE86	08/1983 - 07/1987	2
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005	4AC..AE86	08/1983 - 07/1987	2
25620 - VALVE ASSY, EGR
25620-15210	4AC..AE86..USA CALIFORNIA SPEC	08/1983 - 08/1985	1
25620-15040	4AC..AE86..USA	08/1983 - 08/1985	1
25620-15250	4AC..AE86..5F	08/1985 - 07/1987	1
25629 - GASKET, EGR VALVE ADAPTER
25629-15011	4AC..AE86	08/1983 - 07/1987	1
25690 - MODULATOR ASSY, EGR VACUUM
25690-15020	4AC..AE86..5F..USA CALIFORNIA SPEC	08/1983 - 08/1985	1
25870-15130	4AC..AE86..5F	08/1985 - 07/1987	1
25690-15030	4AC..AE86..5F..USA	08/1983 - 08/1985	1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11041	4AC..AE86	08/1983 - 07/1987	1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-16050	4AC..AE86..USA SANOU	08/1983 - 10/1983	1
25691-16100	4AC..AE86..USA SANOU	09/1984 - 08/1985	1
25691-16090	4AC..AE86..USA MARUYASU	09/1984 - 08/1985	1
25691-16040	4AC..AE86..USA MARUYASU	08/1983 - 09/1984	1
25691-16130	4AC..AE86..USA	08/1985 - 07/1987	1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-16050	4AC..AE86..USA SANOU	08/1983 - 10/1983	1
25691-16100	4AC..AE86..USA SANOU	09/1984 - 08/1985	1
25691-16090	4AC..AE86..USA MARUYASU	09/1984 - 08/1985	1
25691-16040	4AC..AE86..USA MARUYASU	08/1983 - 09/1984	1
25691-16130	4AC..AE86..USA	08/1985 - 07/1987	1
Common parts
90179-08040
Linked diagrams
1701

AE86L-ECMXCA (1983)
