AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4AC

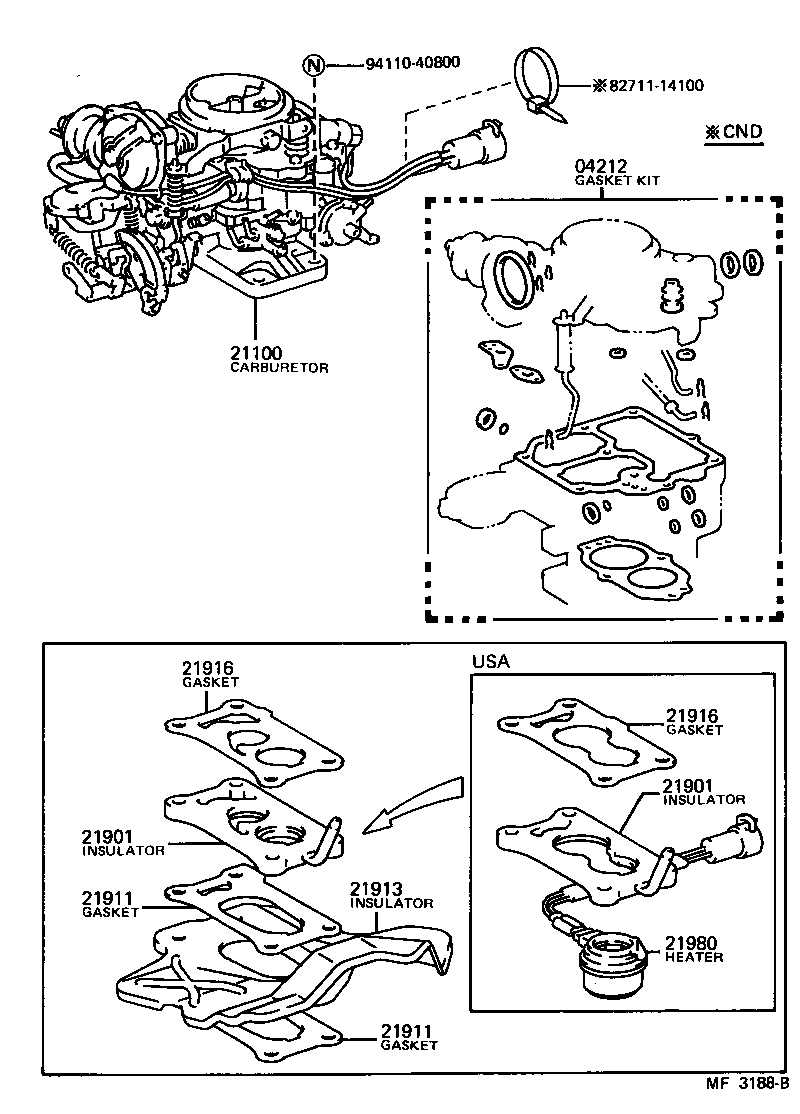

Click highlighted areas on diagram

diagram 04212 21100 21901 21901 21911 21911 21913 21916 21916 21980 8271114100 9411040800
Part # Description Qty Price
04212 - GASKET KIT, CARBURETOR
04212-15032

4AC..AE86..USA

 1
21100 - CARBURETOR ASSY
21100-16160

4AC..AE86..USA

 1
21100-16220

4AC..AE86..USA

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-15030

4AC..AE86..USA

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-15030

4AC..AE86..USA

 1
21911 - GASKET, CARBURETOR
21916-15030

4AC..AE86

 2
21911 - GASKET, CARBURETOR
21916-15030

4AC..AE86

 2
21913 - INSULATOR, CARBURETOR HEAT, NO.2
21913-15030

4AC..AE86

 1
21916 - GASKET, CARBURETOR, NO.2
21911-15030

4AC..AE86..USA

 1
21916 - GASKET, CARBURETOR, NO.2
21911-15030

4AC..AE86..USA

 1
21980 - HEATER ASSY, COLD MIXTURE
21980-15020

4AC..AE86..USA

 1
Common parts
82711-14100
94110-40800
