AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

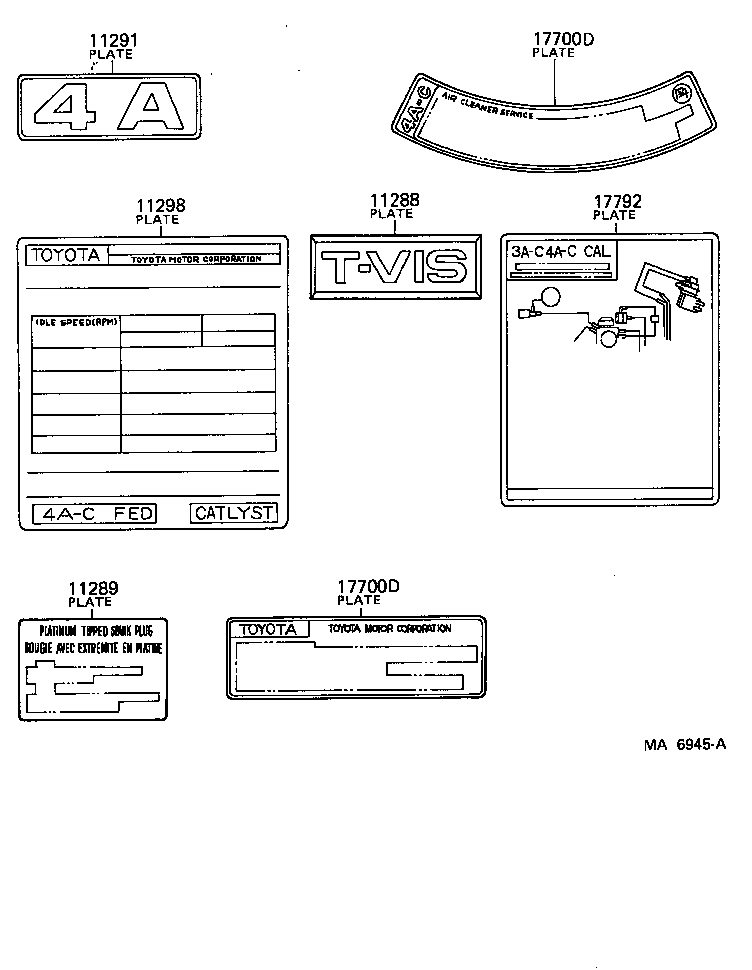

Click highlighted areas on diagram

diagram 11288 11289 11291 11298 17700D 17700D 17792
Part # Description Qty Price
11291 - PLATE, ENGINE NAME
11291-16020

4AC..AE86

4A

 1
11291-16021

4AC..AE86

4A

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-16032

4AC..AE86..USA

 1
11298-16021

4AC..AE86..USA

CALIFORNIA SPEC

 1
11298-16022

4AC..AE86..USA

CALIFORNIA SPEC

 1
11298-16031

4AC..AE86..USA

 1
11298-16290

4AC..AE86..USA

 1
11298-16301

4AC..AE86..SR5..USA

CALIFORNIA SPEC

 1
11298-16300

4AC..AE86..SR5..USA

CALIFORNIA SPEC

 1
11298-16291

4AC..AE86..USA

 1
17700D - PLATE, ENGINE CAUTION
11293-16010

4AC..AE86

 1
11293-16011

4AC..AE86

 1
17700D - PLATE, ENGINE CAUTION
11293-16010

4AC..AE86

 1
11293-16011

4AC..AE86

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
17792-15161

4AC..AE86..USA

CALIFORNIA SPEC

 1
17792-15171

4AC..AE86..USA

 1
17792-16150

4AC..AE86..SR5..USA

CALIFORNIA SPEC

 1
17792-16140

4AC..AE86..USA

 1
