AE86L-ECMXCA (1983)
Toyota Corolla Cp

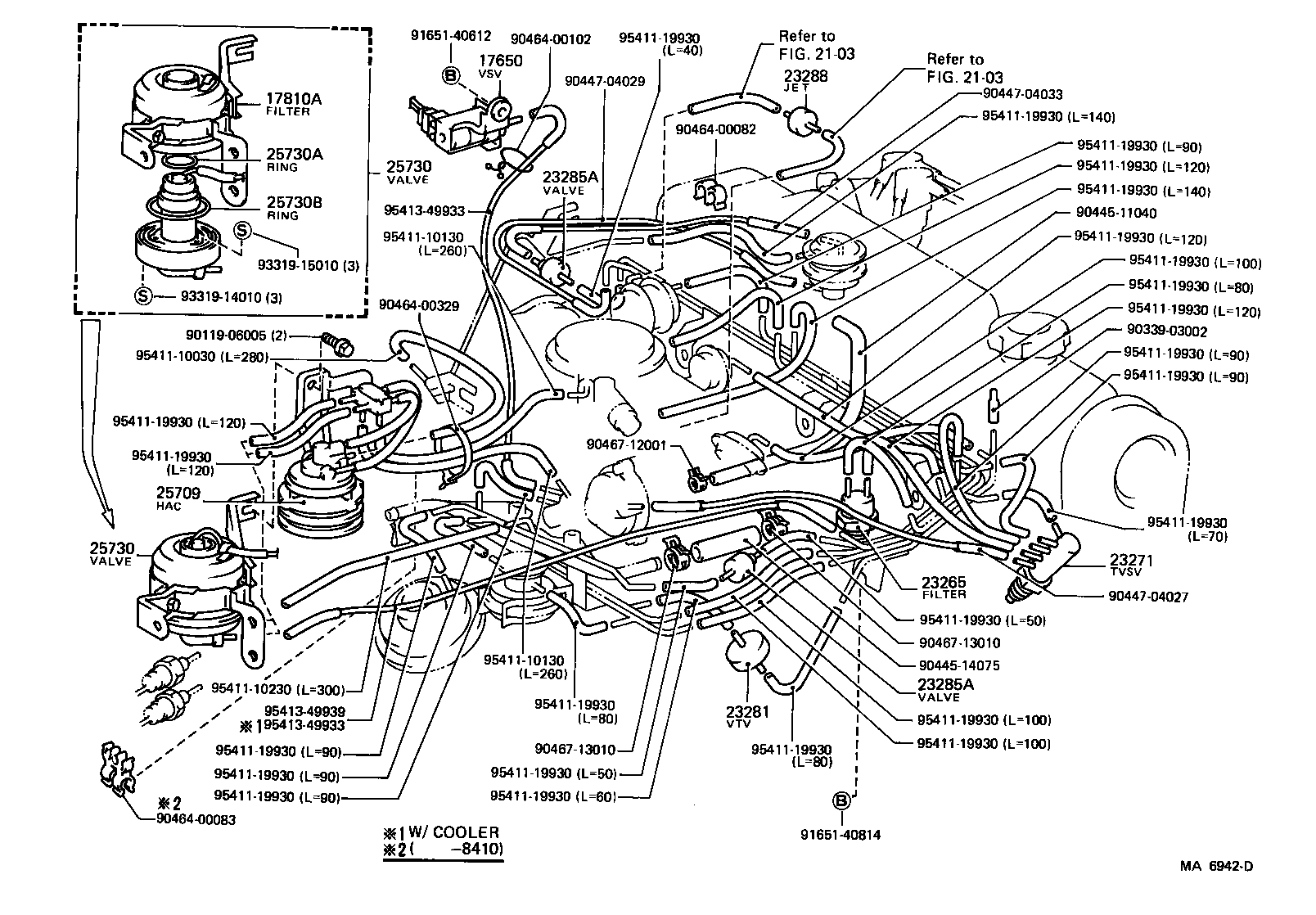

(8308-8508)4AC..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12210 |
4AC..AE86..USA |
1 | ||
| 89570-12301 |
4AC..AE86..USA |
1 | ||
| 89570-12350 |
4AC..AE86..USA |
1 | ||
| 89570-12300 |
4AC..AE86..USA |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 17810-15020 |
4AC..AE86..USA |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4AC..AE86..USA |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AC..AE86 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
4A#..AE86 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4A#..AE86 |
3 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4A#..AE86 |
3 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
4AC..AE86..USA |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25708-16050 |
4AC..AE86..USA |
1 | ||
| 25708-16030 |
4AC..AE86..USA |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-16020 |
4AC..AE86..USA |
1 | ||
| 25730-16030 |
4AC..AE86..USA |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-16020 |
4AC..AE86..USA |
1 | ||
| 25730-16030 |
4AC..AE86..USA |
1 | ||
| 25730A - RING, O, NO.1(FOR ELECTRIC BLEED AIR CONTROL VALVE) | ||||
| 90096-80002 |
4AC..AE86..USA |
1 | ||
| 25730B - RING, O, NO.2(FOR ELECTRIC BLEED AIR CONTROL VALVE) | ||||
| 90096-80003 |
4AC..AE86..USA |
1 | ||
| 90099-06032 |
4AC..AE86..USA |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90339-03002 | ||||
| 90445-11040 | ||||
| 90445-14075 | ||||
| 90447-04027 | ||||
| 90447-04029 | ||||
| 90447-04033 | ||||
| 90464-00082 | ||||
| 90464-00083 | ||||
| 90464-00102 | ||||
| 90464-00329 | ||||
| 90467-12001 | ||||
| 90467-13010 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 93319-14010 | ||||
| 93319-15010 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-19930 | ||||
| 95413-49933 | ||||
| 95413-49939 | ||||
| Linked diagrams | ||||
| 2103 | ||||

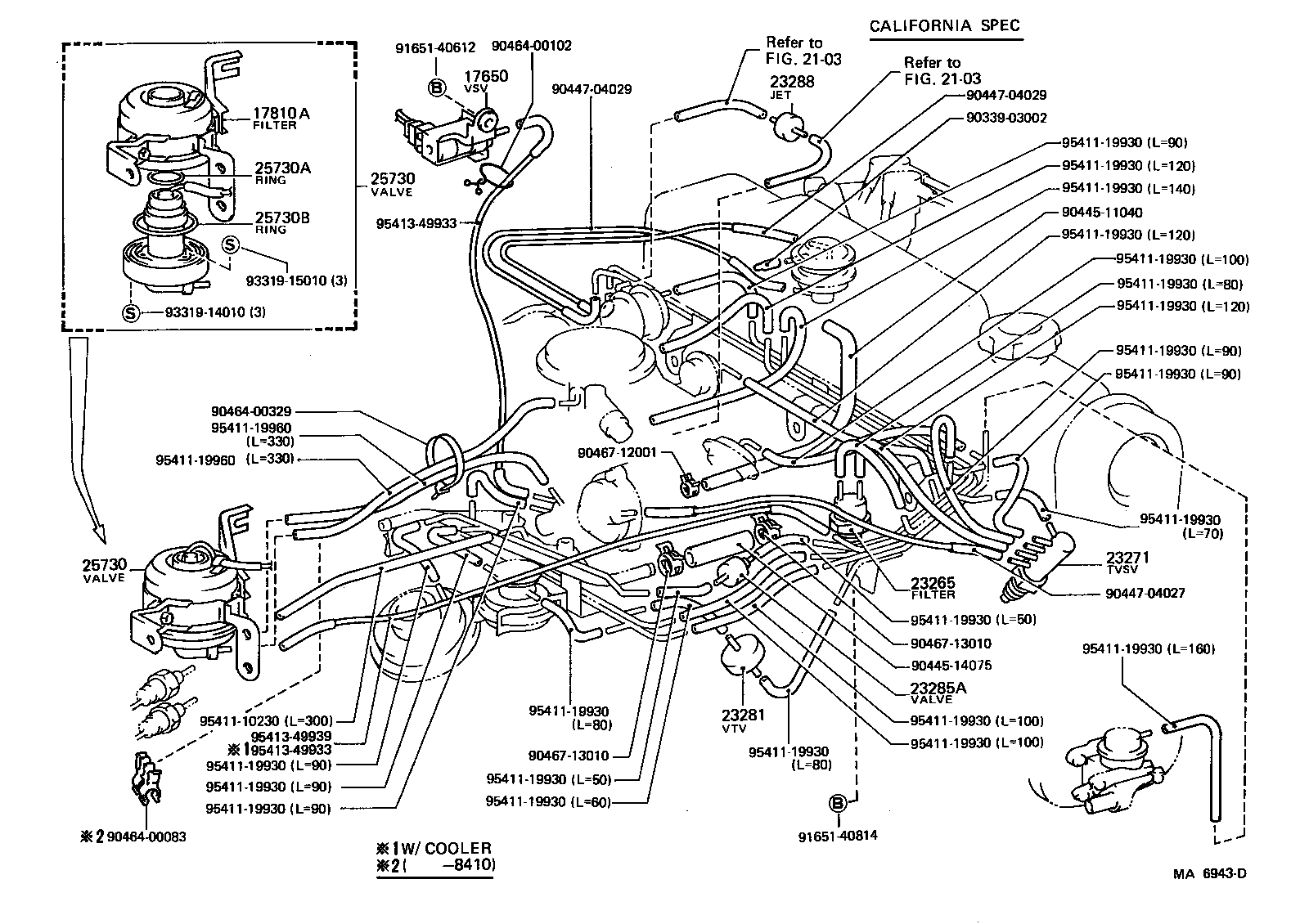

(8308-8508)4AC..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12210 |
4AC..AE86..USA |
1 | ||
| 89570-12301 |
4AC..AE86..USA |
1 | ||
| 89570-12350 |
4AC..AE86..USA |
1 | ||
| 89570-12300 |
4AC..AE86..USA |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 17810-15020 |
4AC..AE86..USA |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4AC..AE86..USA |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AC..AE86 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
4A#..AE86 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4A#..AE86 |
3 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
4AC..AE86..USA |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-16020 |
4AC..AE86..USA |
1 | ||
| 25730-16030 |
4AC..AE86..USA |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-16020 |
4AC..AE86..USA |
1 | ||
| 25730-16030 |
4AC..AE86..USA |
1 | ||
| 25730A - RING, O, NO.1(FOR ELECTRIC BLEED AIR CONTROL VALVE) | ||||
| 90096-80002 |
4AC..AE86..USA |
1 | ||
| 25730B - RING, O, NO.2(FOR ELECTRIC BLEED AIR CONTROL VALVE) | ||||
| 90096-80003 |
4AC..AE86..USA |
1 | ||
| 90099-06032 |
4AC..AE86..USA |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90445-11040 | ||||
| 90445-14075 | ||||
| 90447-04027 | ||||
| 90447-04029 | ||||
| 90464-00083 | ||||
| 90464-00102 | ||||
| 90464-00329 | ||||
| 90467-12001 | ||||
| 90467-13010 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 93319-14010 | ||||
| 93319-15010 | ||||
| 95411-10230 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95413-49933 | ||||
| 95413-49939 | ||||
| Linked diagrams | ||||
| 2103 | ||||

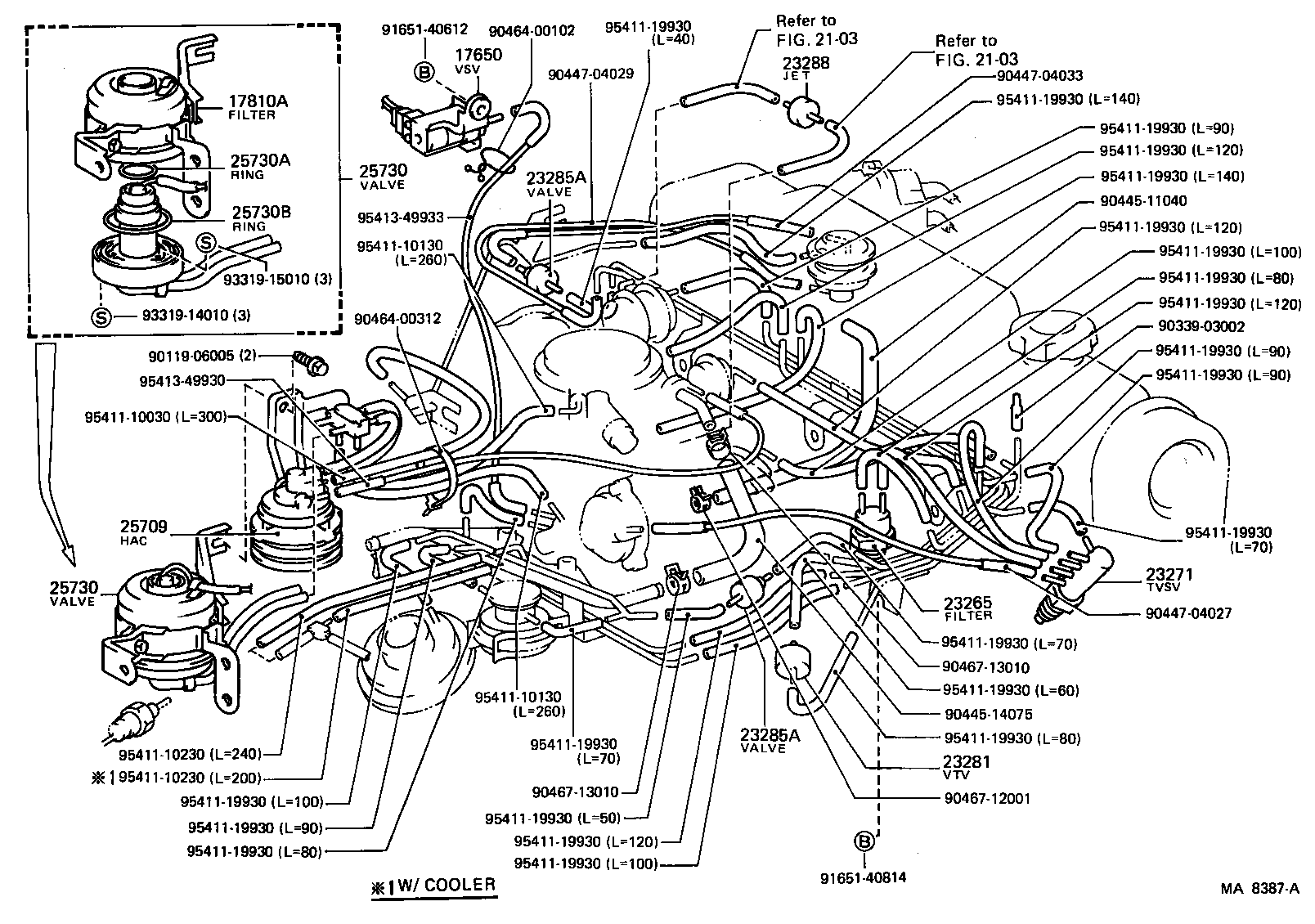

(8508- )4AC..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12210 |
4AC..AE86..USA |
1 | ||
| 89570-12301 |
4AC..AE86..USA |
1 | ||
| 89570-12350 |
4AC..AE86..USA |
1 | ||
| 89570-12300 |
4AC..AE86..USA |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 17810-15020 |
4AC..AE86..USA |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4AC..AE86..USA |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AC..AE86 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
4A#..AE86 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4A#..AE86 |
3 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4A#..AE86 |
3 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
4AC..AE86..USA |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25708-16050 |
4AC..AE86..USA |
1 | ||
| 25708-16030 |
4AC..AE86..USA |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-16020 |
4AC..AE86..USA |
1 | ||
| 25730-16030 |
4AC..AE86..USA |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-16020 |
4AC..AE86..USA |
1 | ||
| 25730-16030 |
4AC..AE86..USA |
1 | ||
| 25730A - RING, O, NO.1(FOR ELECTRIC BLEED AIR CONTROL VALVE) | ||||
| 90096-80002 |
4AC..AE86..USA |
1 | ||
| 25730B - RING, O, NO.2(FOR ELECTRIC BLEED AIR CONTROL VALVE) | ||||
| 90096-80003 |
4AC..AE86..USA |
1 | ||
| 90099-06032 |
4AC..AE86..USA |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90339-03002 | ||||
| 90445-11040 | ||||
| 90445-14075 | ||||
| 90447-04027 | ||||
| 90447-04029 | ||||
| 90447-04033 | ||||
| 90464-00102 | ||||
| 90464-00312 | ||||
| 90467-12001 | ||||
| 90467-13010 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 93319-14010 | ||||
| 93319-15010 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-19930 | ||||
| 95413-49930 | ||||
| 95413-49933 | ||||
| Linked diagrams | ||||
| 2103 | ||||

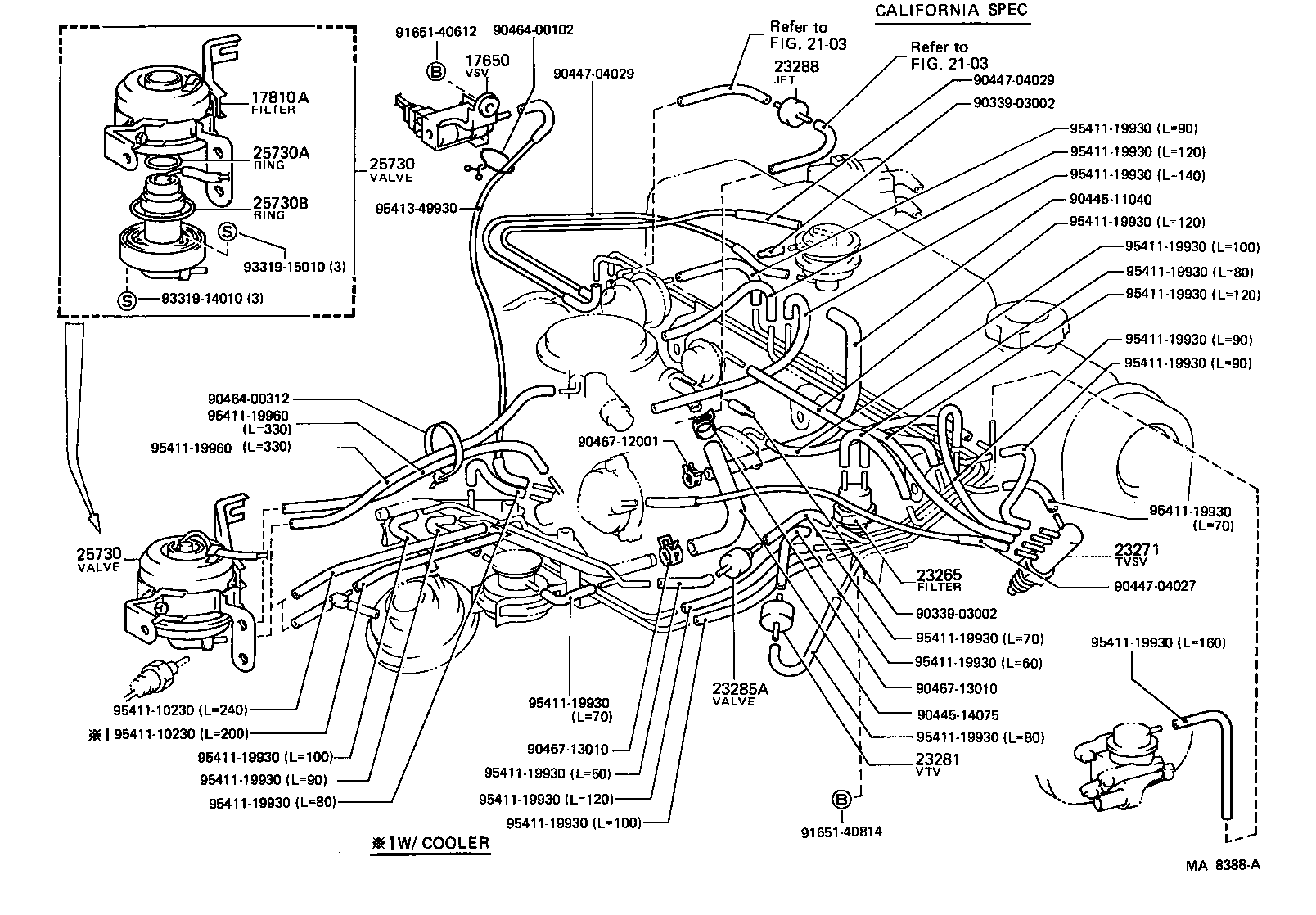

(8508- )4AC..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12210 |
4AC..AE86..USA |
1 | ||
| 89570-12301 |
4AC..AE86..USA |
1 | ||
| 89570-12350 |
4AC..AE86..USA |
1 | ||
| 89570-12300 |
4AC..AE86..USA |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 17810-15020 |
4AC..AE86..USA |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4AC..AE86..USA |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AC..AE86 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
4A#..AE86 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4A#..AE86 |
3 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
4AC..AE86..USA |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-16020 |
4AC..AE86..USA |
1 | ||
| 25730-16030 |
4AC..AE86..USA |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-16020 |
4AC..AE86..USA |
1 | ||
| 25730-16030 |
4AC..AE86..USA |
1 | ||
| 25730A - RING, O, NO.1(FOR ELECTRIC BLEED AIR CONTROL VALVE) | ||||
| 90096-80002 |
4AC..AE86..USA |
1 | ||
| 25730B - RING, O, NO.2(FOR ELECTRIC BLEED AIR CONTROL VALVE) | ||||
| 90096-80003 |
4AC..AE86..USA |
1 | ||
| 90099-06032 |
4AC..AE86..USA |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90445-11040 | ||||
| 90445-14075 | ||||
| 90447-04027 | ||||
| 90447-04029 | ||||
| 90464-00102 | ||||
| 90464-00312 | ||||
| 90467-12001 | ||||
| 90467-13010 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 93319-14010 | ||||
| 93319-15010 | ||||
| 95411-10230 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95413-49930 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
