AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4AC

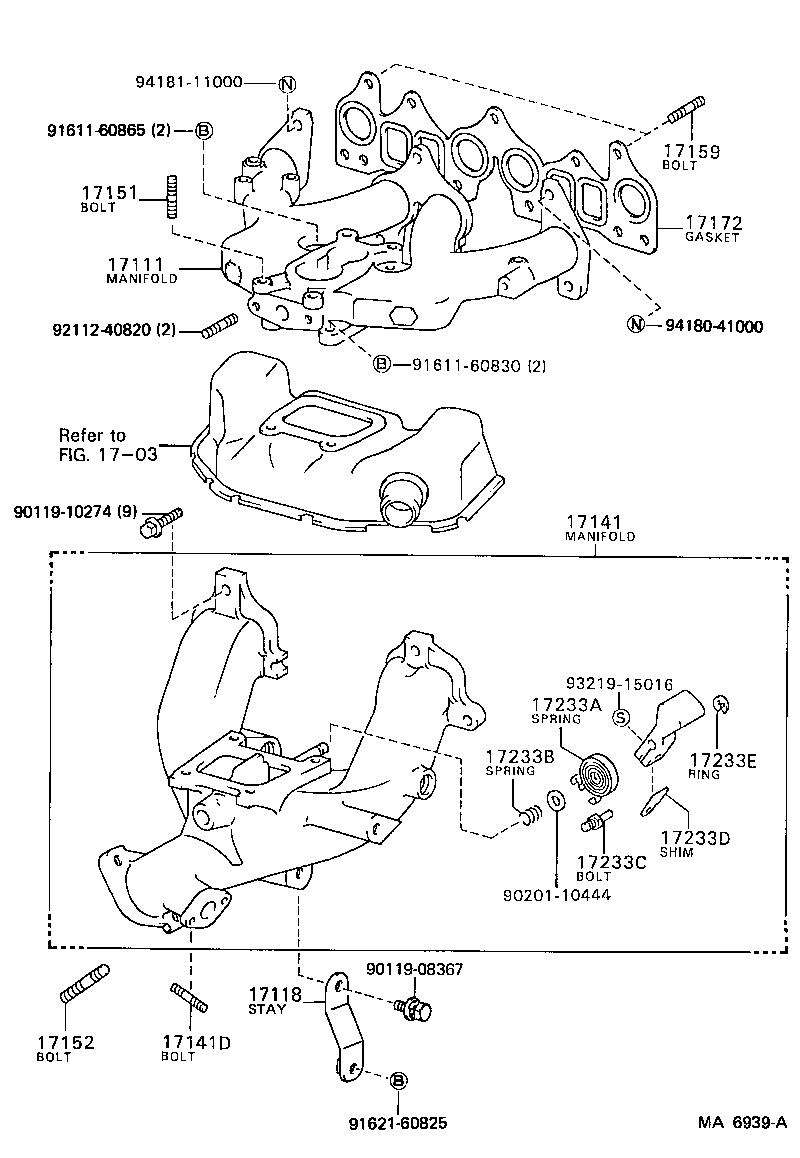

Click highlighted areas on diagram

diagram 1703 17111 17118 17141 17141D 17151 17152 17159 17172 17233A 17233B 17233C 17233D 17233E 9011908367 9011910274 9020110444 9161160830 9161160865 9162160825 9211240820 9321915016 9418041000 9418111000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-16010

4AC..AE86

 1
17118 - STAY, MANIFOLD
17118-16010

4AC..AE86

 1
17141 - MANIFOLD, EXHAUST
17140-15070

4AC..AE86..USA

CALIFORNIA SPEC

 1
17140-15080

4AC..AE86

 1
17140-15070

4AC..AE86..SR5..USA

CALIFORNIA SPEC

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

4AC..AE86

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92112-40832

4AC..AE86

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

4A#..AE86

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

4AC..AE86

L=44,S=12 & 20

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-15010

4AC..AE86

 1
17233A - SPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)
90510-06001

4AC..AE86

 1
17233B - SPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)
90501-08022

4AC..AE86

 1
17233C - BOLT(FOR COUNTER WEIGHT)
90109-10045

4AC..AE86

 1
17233D - SHIM(FOR COUNTER WEIGHT)
90910-10005

4AC..AE86

 1
17233E - RING, E(FOR COUNTER WEIGHT)
96160-00800

4AC..AE86

 1
Common parts
90119-08367
90119-10274
90201-10444
91611-60830
91611-60865
91621-60825
92112-40820
93219-15016
94180-41000
94181-11000
Linked diagrams
1703
