AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

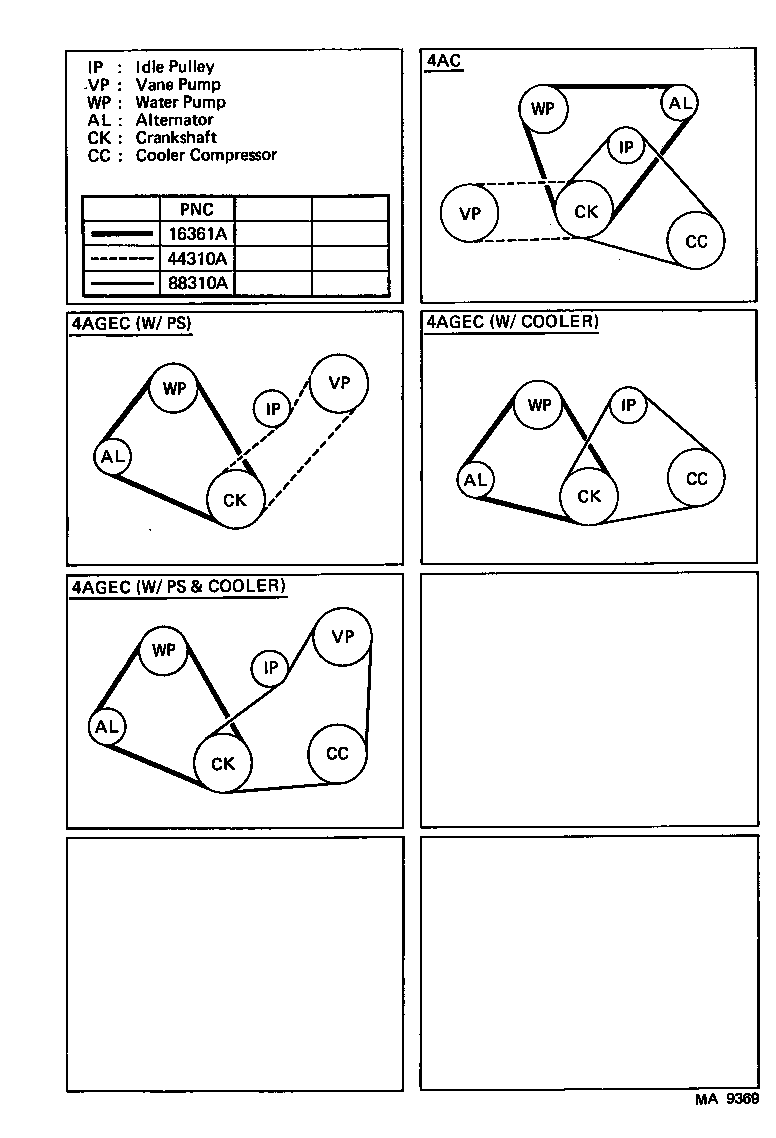

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02126

4AC..AE86

 1
90916-02117

4AC..AE86..USA

W/COOLER,BANDO

 1
90916-02128

4AC..AE86..USA

W/COOLER,MITSUBOSHI

 1
44310A - BELT, V(FOR VANE PUMP)
99332-00805

AE86..DX,SR5

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00860

AE86..DX,SR5

 1
