AE86L-ECMQFA (1984)

Toyota Corolla Cp

Production Aug 1984 - Jul 1987
Engine 4AGEC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )4AGEC

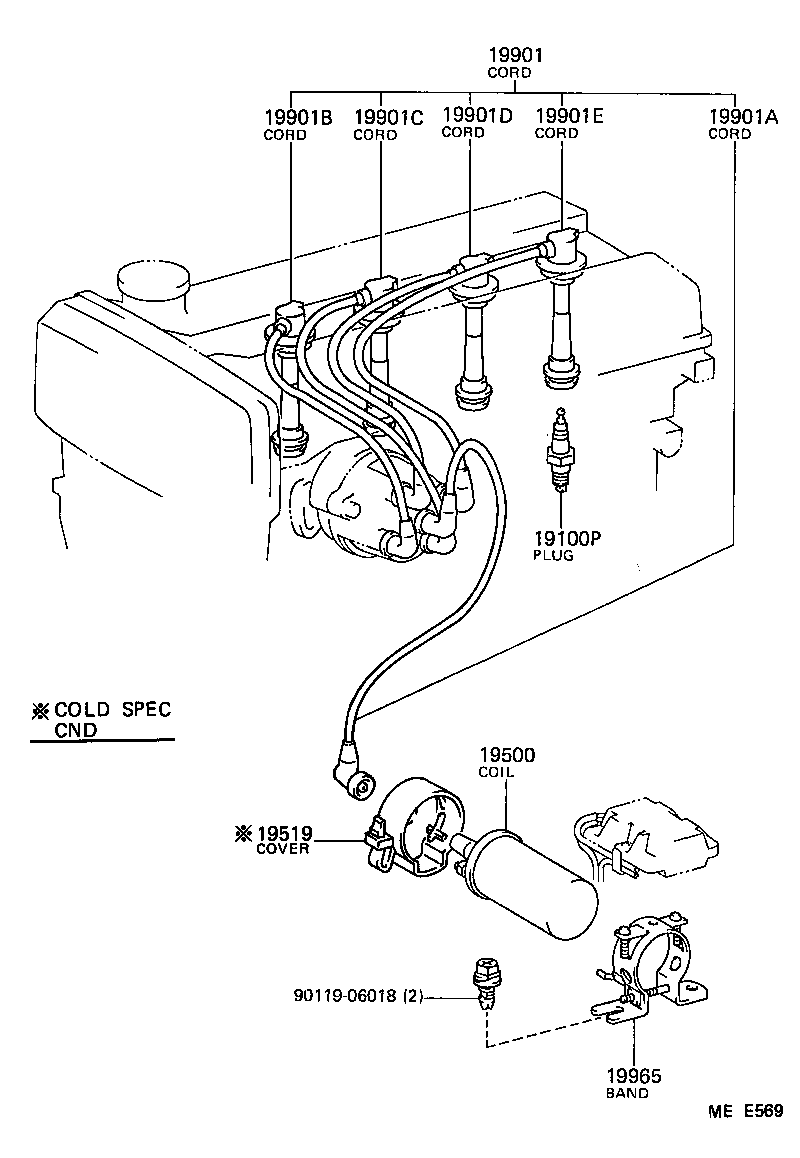

Click highlighted areas on diagram

diagram 19100P 19500 19519 19901 19901A 19901B 19901C 19901D 19901E 19965 9011906018
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01121

4AGEC..AE86

PQ16R,PQ16R

 4
19500 - COIL ASSY, IGNITION
90919-02113

4AGEC..AE86

 1
19519 - COVER, IGNITION COIL
19519-28020

4AGEC..AE86..USA

COLD SPEC

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21362

4AGEC..AE86

 1
19901A - CORD, COIL RESISTIVE
90919-13237

4AGEC..AE86

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12592

4AGEC..AE86

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12593

4AGEC..AE86

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12594

4AGEC..AE86

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12595

4AGEC..AE86

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03093

4AGEC..AE86

 1
Common parts
90119-06018
