Toyota Corolla (mexico) ZRE212 WIRING & CLAMP

ZRE212L-DEXLPJ (2020)

Toyota Corolla (Mexico)

Production Jul 2020 - Sep 9999

Engine 2ZRFAE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(1903- )ZRE212

Click highlighted areas on diagram

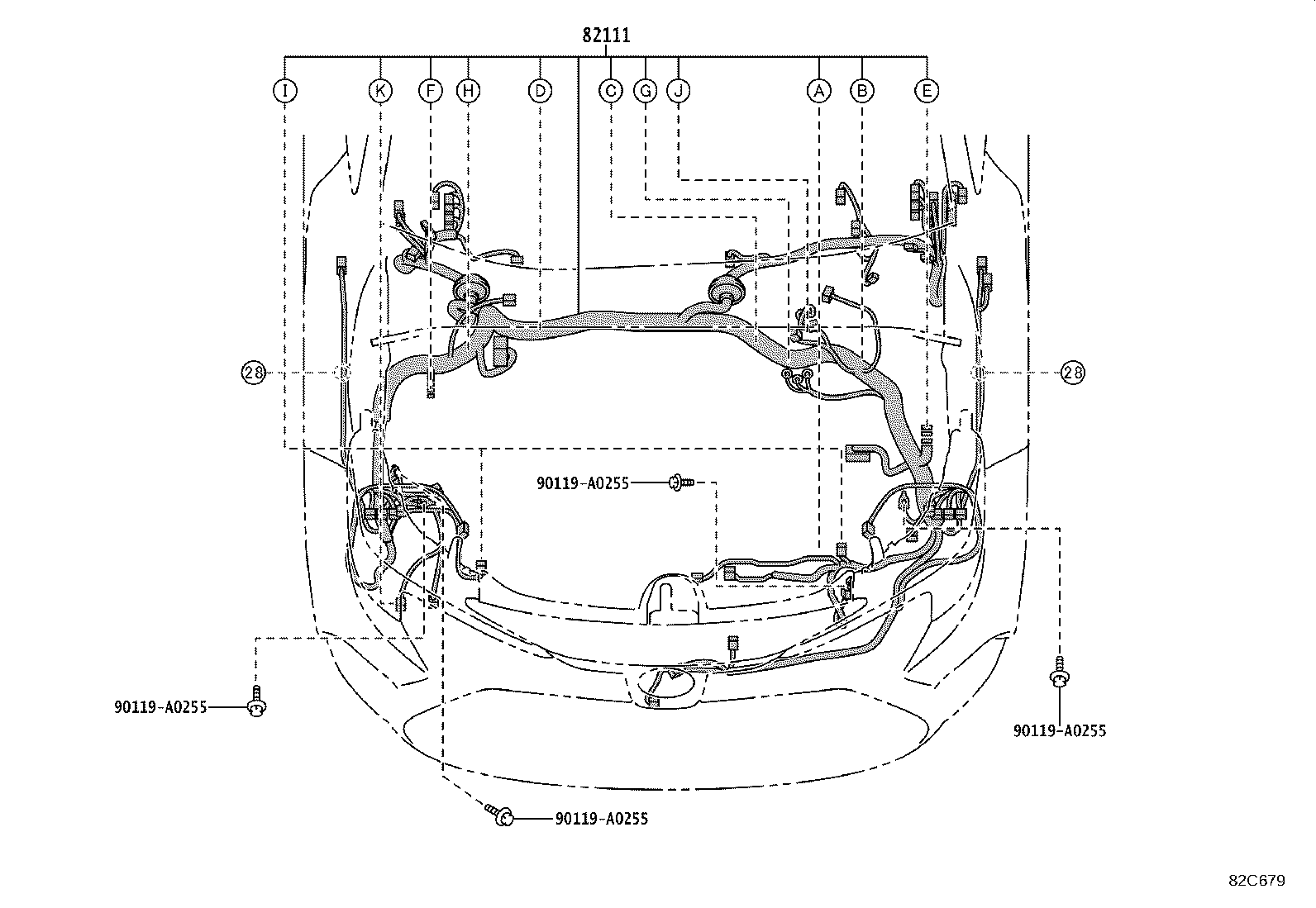

ENGINE ROOM 1/2

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-F2C51	ZRE212..CVT	07/2020 - 07/2021	1
Common parts
90119-A0255

ILLUST NO. 1 OF 8(1903- )ZRE212

Click highlighted areas on diagram

ENGINE ROOM 2/2

Part #	Description	Period	Qty
82815V - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-12L00	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82815W - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-12L10	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82815X - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-12L20	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-12L30	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82816N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-12L40	ZRE212	07/2020 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-12Y70	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-12Y80	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-12Y90	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-12Z00	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-12Z20	ZRE212	07/2020 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-12Z10	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-12Z50	ZRE212	07/2020 - 12/2999	1
82818G - PROTECTOR, WIRING HARNESS, NO.8
82817-12W30	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82821E - COVER, CONNECTOR
82821-30650	ZRE212;MZEA12..CVT	07/2020 - 12/2999	2
82821V - COVER, CONNECTOR
82821-35050	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
Common parts
90119-A0445
90119-A0507
90178-A0070
Linked diagrams
8401

ILLUST NO. 2 OF 8(1903- )ZRE212..CVT

Click highlighted areas on diagram

ENGINE 1/2

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-0ZE80	ZRE212..CVT	07/2020 - 12/2999	1
82124 - WIRE, ENGINE, NO.4
82124-02070	ZRE212	07/2020 - 12/2999	1
82286A - WIRE, EARTH, NO.2
82286-02080	ZRE212	07/2020 - 12/2999	1
82821N - COVER, CONNECTOR
82821-12B60	ZRE212	07/2020 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-12120	ZRE212	07/2020 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	ZRE212	07/2020 - 12/2999	1
Common parts
90119-A0160
90119-A0183
90119-A0255
90119-A0501

ILLUST NO. 2 OF 8(1903- )ZRE212..CVT

Click highlighted areas on diagram

ENGINE 2/2

Part #	Description	Period	Qty
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-12K70	ZRE212	07/2020 - 12/2999	1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-12K40	ZRE212	07/2020 - 12/2999	1
82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13
82815-12K50	ZRE212	07/2020 - 12/2999	1
82815R - COVER, WIRING HARNESS PROTECTOR, NO.14
82815-12K60	ZRE212	07/2020 - 12/2999	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-12V60	ZRE212	07/2020 - 12/2999	1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-12V90	ZRE212	07/2020 - 12/2999	1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-12V70	ZRE212	07/2020 - 12/2999	1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-12V80	ZRE212	07/2020 - 12/2999	1
82821H - COVER, CONNECTOR
82821-12C20	ZRE212	07/2020 - 12/2999	1
82821M - COVER, CONNECTOR
82821-60100	ZRE212	07/2020 - 12/2999	1
Common parts
90105-A0076
90119-A0120
90119-A0159
90178-A0023
Linked diagrams
8401

ILLUST NO. 3 OF 8(1903- )

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-F2651	MZEA12,ZRE212..CVT..(L,S) WIRELESS DOOR LOCK-WITH(SMART ENTRY)	07/2020 - 07/2021	1
82141-F2561	MZEA12,ZRE212..CVT	07/2020 - 07/2021	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-02K40	MZEA12,ZRE212..CVT..(L,S) LIGHT CONTROL SYSTEM-WITH(AUTO LIGHT CONTROL SYSTEM)	07/2020 - 12/2999	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-02530	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-12680	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-26180	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82666E - HOLDER, CONNECTOR NO.6
82666-12670	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
Common parts
90080-11699
90119-A0105
90159-70004
90159-A0055
Linked diagrams
8401

ILLUST NO. 4 OF 8(1903- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-0ZL50	MZEA12,ZRE212..CVT..(L,S) WIRELESS DOOR LOCK-WITH(SMART ENTRY)	07/2020 - 07/2021	1
82151-0ZW90	ZRE212;MZEA12..CVT	07/2020 - 07/2021	1
82152 - WIRE, FRONT DOOR, LH
82152-0ZK00	MZEA12,ZRE212..CVT..(L,S) WIRELESS DOOR LOCK-WITH(SMART ENTRY)	07/2020 - 07/2021	1
82152-0ZV70	ZRE212;MZEA12..CVT	07/2020 - 07/2021	1
82153 - WIRE, REAR DOOR, NO.1
82153-02E80	ZRE212;MZEA12..CVT	07/2020 - 07/2021	1
82154 - WIRE, REAR DOOR, NO.2
82154-02D00	ZRE212;MZEA12..CVT	07/2020 - 07/2021	1
Common parts
90080-11699

ILLUST NO. 6 OF 8(1903- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty	Price
82191 - WIRE, FRONT SEAT, RH
82191-02190	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1

Part #

Description

Qty

Price

82191 - WIRE, FRONT SEAT, RH

82191-02190

ZRE212;MZEA12..CVT

ILLUST NO. 7 OF 8(1903- )

Click highlighted areas on diagram

CLAMP & BRACKET 2/2

Part #	Description	Period	Qty	Price
Common parts
82711-06050
82715-06R30
82715-33L40
90119-A0416

ILLUST NO. 5 OF 8(1903- )ZRE212

Click highlighted areas on diagram

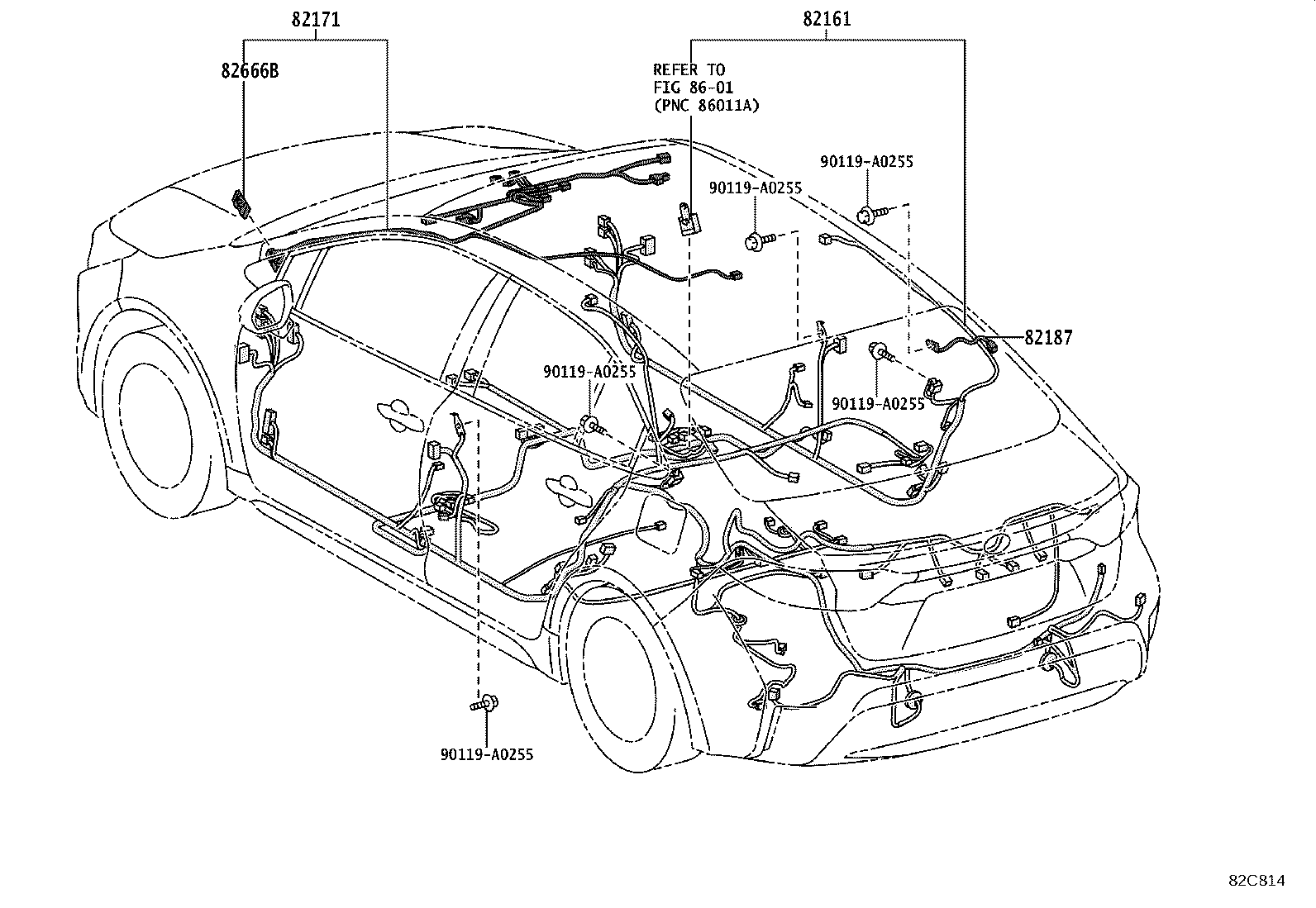

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82199-0ZV81	ZRE212 BACK MONITOR-CAMERA & WIRE HARNESS	07/2020 - 07/2021	1
82199-0Z671	ZRE212..L WIRELESS DOOR LOCK-WITH(SMART ENTRY)	07/2020 - 07/2021	1
82161-F2651	ZRE212..L WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-CAMERA & WIRE HARNESS	07/2020 - 07/2021	1
82199-0Z781	ZRE212	07/2020 - 07/2021	1
82171 - WIRE, ROOF, NO.1
82171-0ZQ70	MZEA12,ZRE212..CVT..(L,S) MOON ROOF-WITH	07/2020 - 07/2021	1
82171-0ZG50	MZEA12,ZRE212..CVT..(L,S) INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE	07/2020 - 07/2021	1
82171-0ZQ80	MZEA12,ZRE212..CVT..(L,S) MOON ROOF-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE	07/2020 - 07/2021	1
82171-0ZG40	ZRE212;MZEA12..CVT	07/2020 - 07/2021	1
82187 - WIRE, REAR WINDOW, NO.2
82187-02330	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-60220	ZRE212;MZEA12..CVT	07/2020 - 12/2999	1
Common parts
90119-A0255
Linked diagrams
8601

ILLUST NO. 7 OF 8(1903- )

Click highlighted areas on diagram

CLAMP & BRACKET 1/2

Part #	Description	Period	Qty	Price
Common parts
82715-02D40
82715-02D50
82715-02J50
82715-02L10
82715-02S40
82715-02S90
82715-02T00
82715-02T30
82715-02T40
82715-02T50
82715-02T80
82715-02V90
82715-02W00
82715-06Q90
82715-12S30
82715-12T70
82715-12T80
82715-12U00
82715-12U70
82715-12W10
82715-12W50
82715-28L90
82715-33L00
82715-5C050
82715-5C060
82715-6A460
82729-20150
90080-11699
90119-A0159
90119-A0160
90119-A0183
90119-A0260
90119-A0296
90119-A0416
91621-B0816

ILLUST NO. 8 OF 8(1903- )

Click highlighted areas on diagram

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10858
90980-10860
90980-10942
90980-11016
90980-11020
90980-11148
90980-11162
90980-11194
90980-11399
90980-12380
90980-12416
90980-12490
90980-12520
90980-12699
90980-12732
90980-12C54
90980-12C55
90980-12C56
90980-12D34

ILLUST NO. 8 OF 8(1903- )

Click highlighted areas on diagram

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts
90980-12790
90980-12C39
