ZRE212L-DEXLPJ (2020)
Toyota Corolla (Mexico)
ILLUST NO. 1 OF 2(1903- )
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-02080C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73023-02080C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-02080C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73024-02080C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0R010 |
ZRE212;MZEA12..CVT |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-06420C4 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73210-06420C4 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
ZRE212;MZEA12..CVT BLACK |
1 | ||
| 73219-02030 |
ZRE212;MZEA12..CVT BEIGE |
1 | ||
| 73219-02020 |
ZRE212;MZEA12..CVT GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-06390C3 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73220-06390C3 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02B60C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73230-02B60C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010C1 |
ZRE212..L BLACK,TRIM0#,1#,2# |
2 | ||
| 73233-0C010C1 |
ZRE212..D BLACK,TRIM1#,2# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-02B50C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73230-02B50C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 73214-0E010 | ||||
| 73214-75010 | ||||
| 90080-17195 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90105-A0082 | ||||
| 90105-A0163 | ||||
| 90105-A0186 | ||||
| 90109-11066 | ||||
| 90109-A0049 | ||||
| 90178-11002 | ||||
| 90178-A0081 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

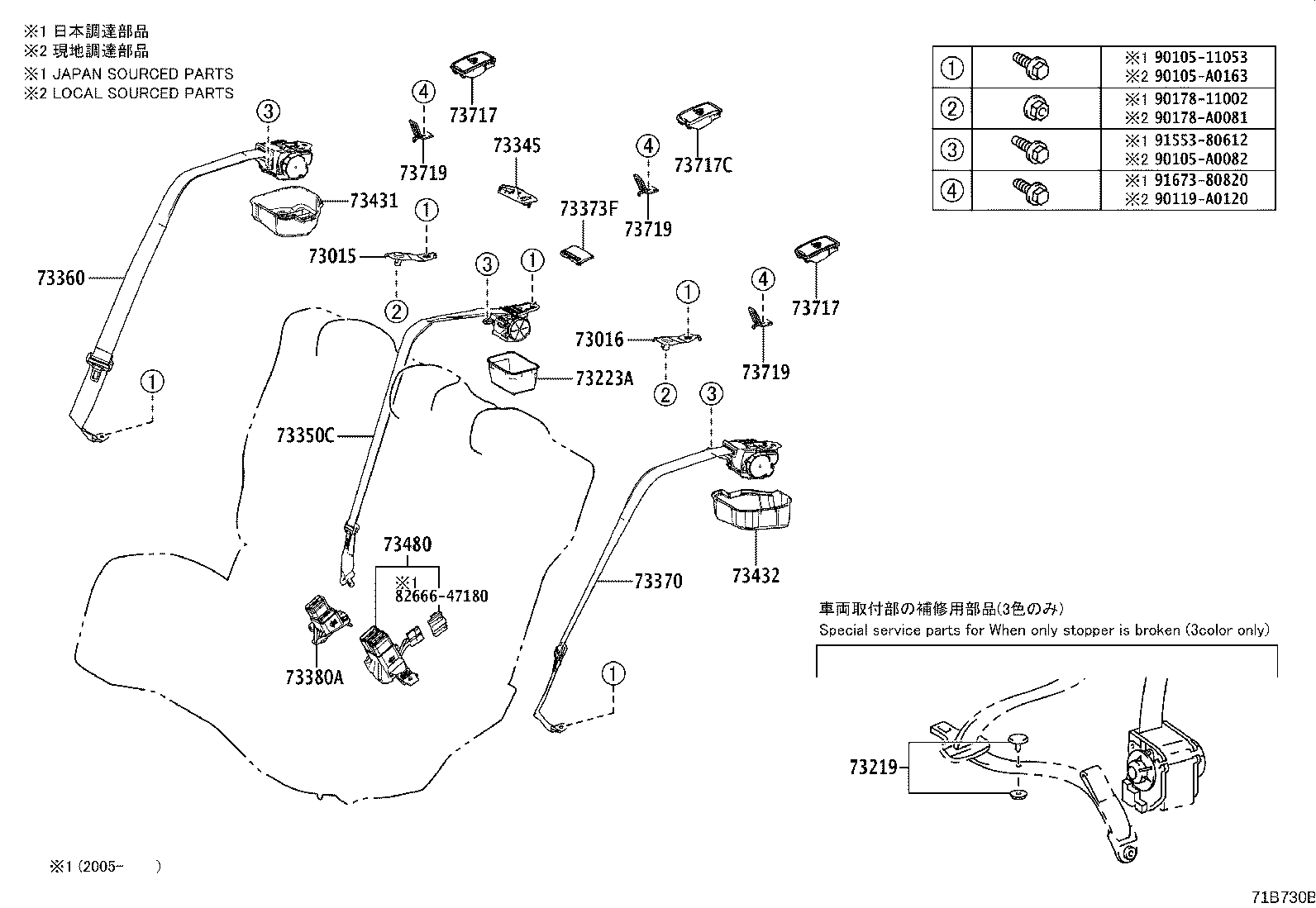

ILLUST NO. 2 OF 2(1903- )
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-02120 |
ZRE212;MZEA12..CVT |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-02120 |
ZRE212;MZEA12..CVT |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
ZRE212;MZEA12..CVT BLACK |
1 | ||
| 73219-02030 |
ZRE212;MZEA12..CVT BEIGE |
1 | ||
| 73219-02020 |
ZRE212;MZEA12..CVT GRAY |
1 | ||
| 73223A - COVER, SEAT BELT RETRACTOR | ||||
| 73223-02030 |
ZRE212;MZEA12..CVT |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73345-02060C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73345-02060C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-02110C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73350-02110C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-02640C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73360-02640C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-02190C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73370-02190C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-02080C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73373-02080C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-02070C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73380-02070C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73431 - COVER, REAR SEAT BELT RETRACTOR, RH | ||||
| 73431-02010 |
ZRE212;MZEA12..CVT |
1 | ||
| 73432 - COVER, REAR SEAT BELT RETRACTOR, LH | ||||
| 73432-02010 |
ZRE212;MZEA12..CVT |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-02830C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73480-02830C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-06090C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
2 | ||
| 73717-06090C0 |
ZRE212..D BLACK,TRIM1#,2# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-06090C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
2 | ||
| 73717-06090C0 |
ZRE212..D BLACK,TRIM1#,2# |
2 | ||
| 73717C - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR, CENTER | ||||
| 73717-02780C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73717-02780C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-02180 |
ZRE212;MZEA12..CVT |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-02180 |
ZRE212;MZEA12..CVT |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-02180 |
ZRE212;MZEA12..CVT |
3 | ||
| Common parts | ||||
| 82666-47180 | ||||
| 90105-11053 | ||||
| 90105-A0082 | ||||
| 90105-A0163 | ||||
| 90119-A0120 | ||||
| 90178-11002 | ||||
| 90178-A0081 | ||||
| 91553-80612 | ||||
| 91673-80820 | ||||
