ZRE212L-DEXLPJ (2020)
Toyota Corolla (Mexico)

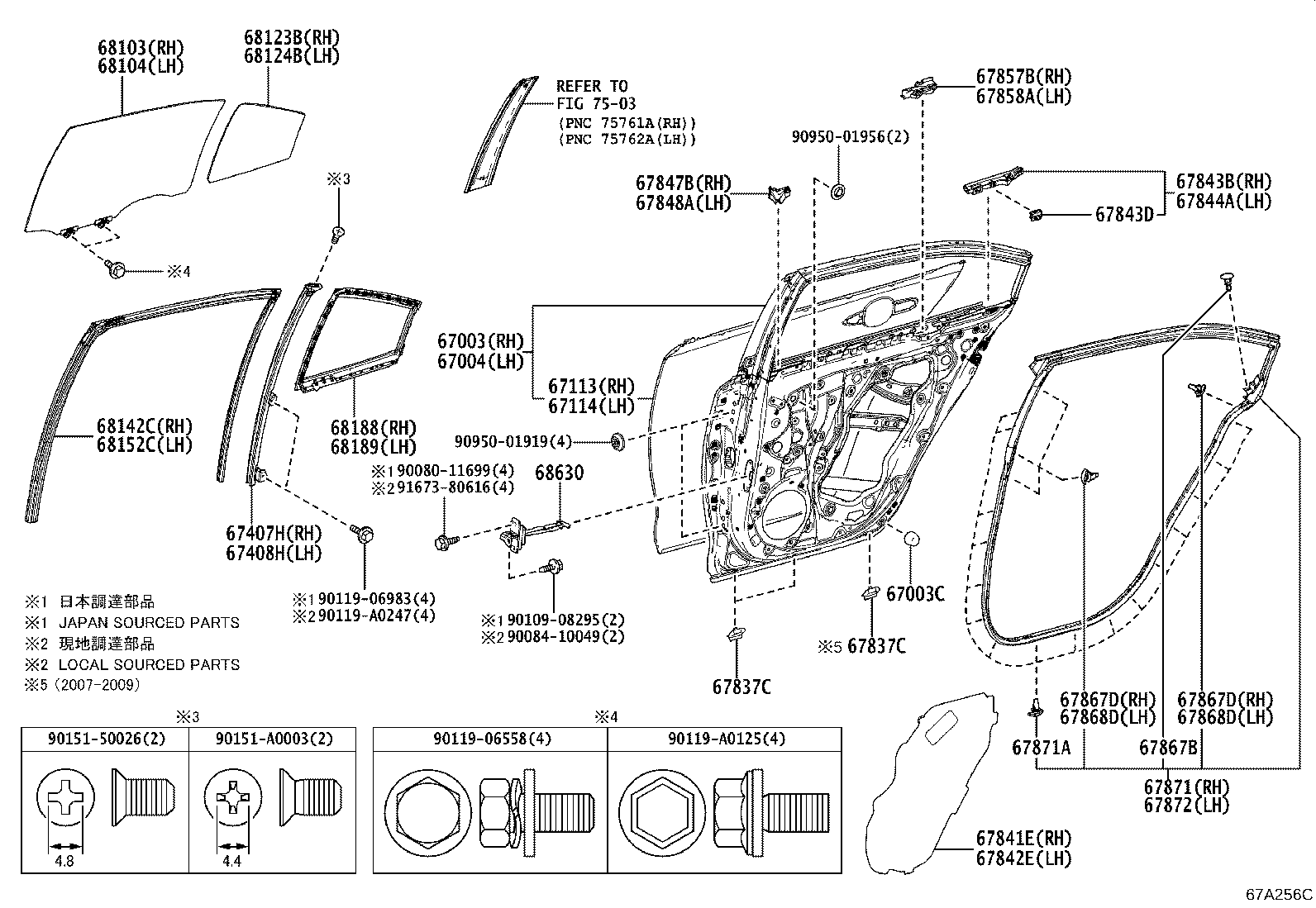

ILLUST NO. 1 OF 2(1903- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-02531 |
ZRE212;MZEA12..CVT |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
ZRE212;MZEA12..CVT |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-02531 |
ZRE212;MZEA12..CVT |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-02280 |
ZRE212;MZEA12..CVT |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-02280 |
ZRE212;MZEA12..CVT |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-02190 |
ZRE212;MZEA12..CVT |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-02190 |
ZRE212;MZEA12..CVT |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-47060 |
ZRE212;MZEA12..CVT |
4 | ||
| 67837-47060 |
MZEA12,ZRE212 |
6 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-47060 |
ZRE212;MZEA12..CVT |
4 | ||
| 67837-47060 |
MZEA12,ZRE212 |
6 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-02321 |
ZRE212;MZEA12..CVT |
2 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-02010 |
ZRE212;MZEA12..CVT |
1 | ||
| 67843D - CLIP, REAR DOOR SERVICE HOLE | ||||
| 67923-06300 |
ZRE212;MZEA12..CVT |
2 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-02010 |
ZRE212;MZEA12..CVT |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-02070 |
ZRE212;MZEA12..CVT |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-02030 |
ZRE212;MZEA12..CVT |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-02100 |
ZRE212;MZEA12..CVT |
1 | ||
| 67858A - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-02100 |
ZRE212;MZEA12..CVT |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
ZRE212;MZEA12..CVT |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZRE212;MZEA12..CVT |
4 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZRE212;MZEA12..CVT |
4 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZRE212;MZEA12..CVT |
4 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZRE212;MZEA12..CVT |
4 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-02310 |
ZRE212;MZEA12..CVT |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
ZRE212;MZEA12..CVT |
32 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-02310 |
ZRE212;MZEA12..CVT |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-02510 |
ZRE212;MZEA12..CVT |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-02470 |
ZRE212;MZEA12..CVT |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-02430 |
ZRE212;MZEA12..CVT |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-02430 |
ZRE212;MZEA12..CVT |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-02341 |
ZRE212;MZEA12..CVT |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-02341 |
ZRE212;MZEA12..CVT |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-02230 |
ZRE212;MZEA12..CVT |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-02230 |
ZRE212;MZEA12..CVT |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-02330 |
ZRE212;MZEA12..CVT |
2 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90084-10049 | ||||
| 90109-08295 | ||||
| 90119-06558 | ||||
| 90119-06983 | ||||
| 90119-A0125 | ||||
| 90119-A0247 | ||||
| 90151-50026 | ||||
| 90151-A0003 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7503 | ||||
ILLUST NO. 2 OF 2(1903- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-02W70C8 |
ZRE212 GRAY,TRIM1# |
1 | ||
| 67630-02W70C7 |
ZRE212..L ORCHID BROWN,TRIM0# |
1 | ||
| 67630-02W70C9 |
ZRE212 BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-A0005 |
ZRE212;MZEA12..CVT |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-02W80C9 |
ZRE212 BLACK,TRIM2# |
1 | ||
| 67640-02W80C7 |
ZRE212..L ORCHID BROWN,TRIM0# |
1 | ||
| 67640-02W80C8 |
ZRE212 GRAY,TRIM1# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-02010 |
ZRE212;MZEA12..CVT |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-02010 |
ZRE212;MZEA12..CVT |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-02380 |
ZRE212;MZEA12..CVT |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-02320 |
ZRE212;MZEA12..CVT |
1 | ||
| 69283E - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 74037-02010C0 |
ZRE212 BLACK,TRIM2# |
1 | ||
| 74037-02010B0 |
ZRE212 LT.GRAY,TRIM1# |
1 | ||
| 74037-02010A0 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 69284G - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 74038-02010A0 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 74038-02010B0 |
ZRE212 LT.GRAY,TRIM1# |
1 | ||
| 74038-02010C0 |
ZRE212 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-A0018 | ||||
| 90189-06240 | ||||
| 90467-A0005 | ||||
