ZRE212L-DEXLPJ (2020)

Toyota Corolla (Mexico)

Production Jul 2020 - Sep 9999
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

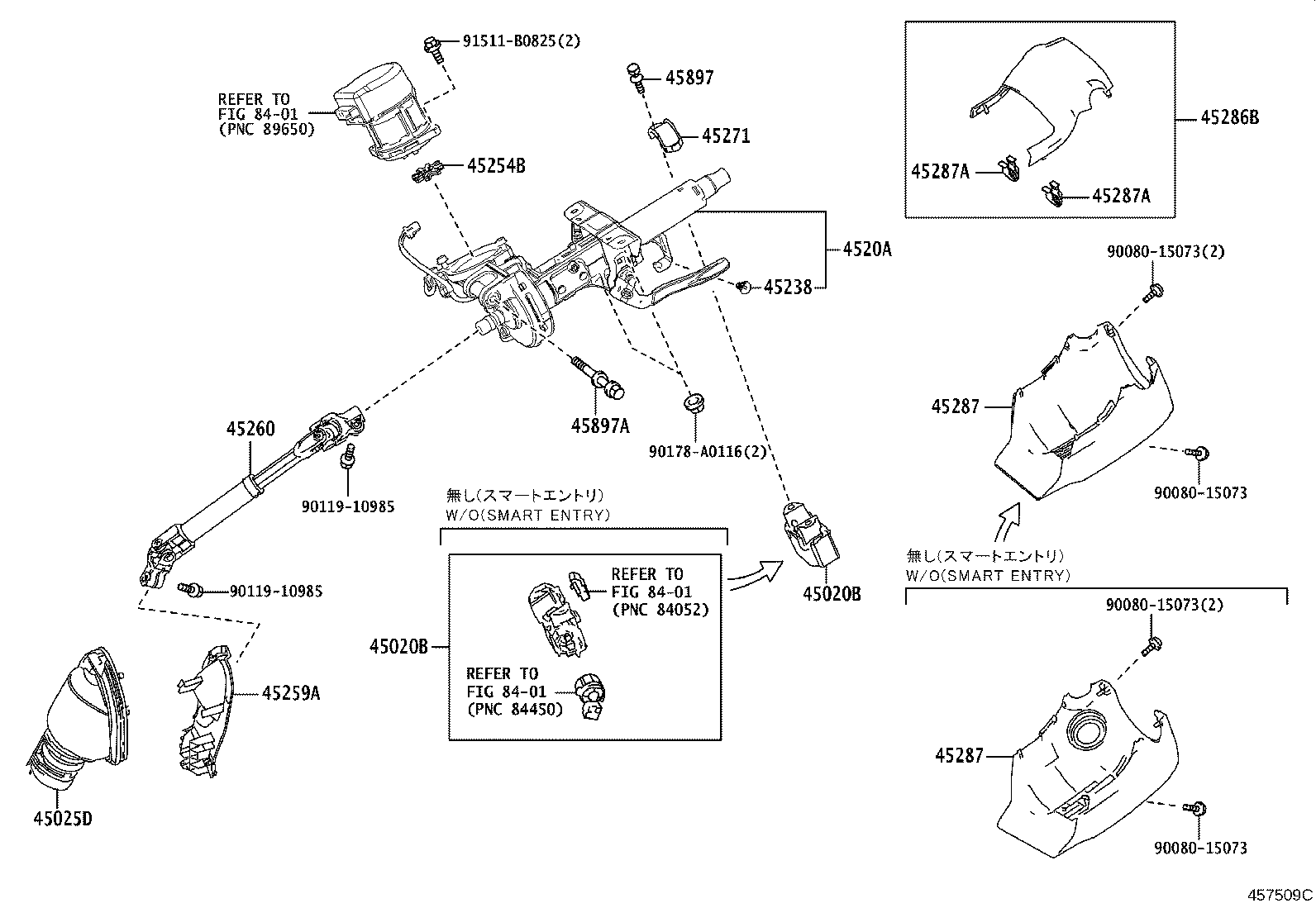

Click highlighted areas on diagram

diagram 45020B 45020B 45025D 4520A 45238 45254B 45259A 45260 45271 45286B 45287 45287 45287A 45287A 45897 45897A 8401 8401 8401 9008015073 9008015073 9008015073 9008015073 9011910985 9011910985 90178A0116 91511B0825
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-06220

MZEA12,ZRE212..CVT

 1
45020-02540

MZEA12,ZRE212..CVT..(L,S)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-06220

MZEA12,ZRE212..CVT

 1
45020-02540

MZEA12,ZRE212..CVT..(L,S)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02260

ZRE212;MZEA12..CVT

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02410

ZRE212;MZEA12..CVT

 1
4520A-02420

MZEA12,ZRE212..CVT..(L,S)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

ZRE212;MZEA12..CVT

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

ZRE212;MZEA12..CVT

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02240

ZRE212;MZEA12..CVT

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02190

ZRE212;MZEA12..CVT

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-08010

ZRE212;MZEA12..CVT

 1
45286B - COVER, STEERING COLUMN, UPR
45286-02600C0

ZRE212..L

BLACK,TRIM0#,1#,2#

 1
45286-02610C0

ZRE212..L

WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,1#,2#

 1
45286-02600C0

ZRE212..D

BLACK,TRIM1#,2#

 1
45287 - COVER, STEERING COLUMN, LWR
45024-02040C0

ZRE212..L

BLACK,TRIM0#,1#,2#

 1
45024-02050C0

ZRE212..L

WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,1#,2#

 1
45024-02040C0

ZRE212..D

BLACK,TRIM1#,2#

 1
45287 - COVER, STEERING COLUMN, LWR
45024-02040C0

ZRE212..L

BLACK,TRIM0#,1#,2#

 1
45024-02050C0

ZRE212..L

WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,1#,2#

 1
45024-02040C0

ZRE212..D

BLACK,TRIM1#,2#

 1
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171

ZRE212;MZEA12..CVT

 2
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171

ZRE212;MZEA12..CVT

 2
45897 - BOLT, STEERING LOCK SET
45897-08010

ZRE212;MZEA12..CVT

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-A0362

ZRE212;MZEA12..CVT

 1
Common parts
90080-15073
90119-10985
90178-A0116
91511-B0825
Linked diagrams
8401
