ZRE172L-DEXSKA (2013)

Toyota Corolla

Production Aug 2013 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

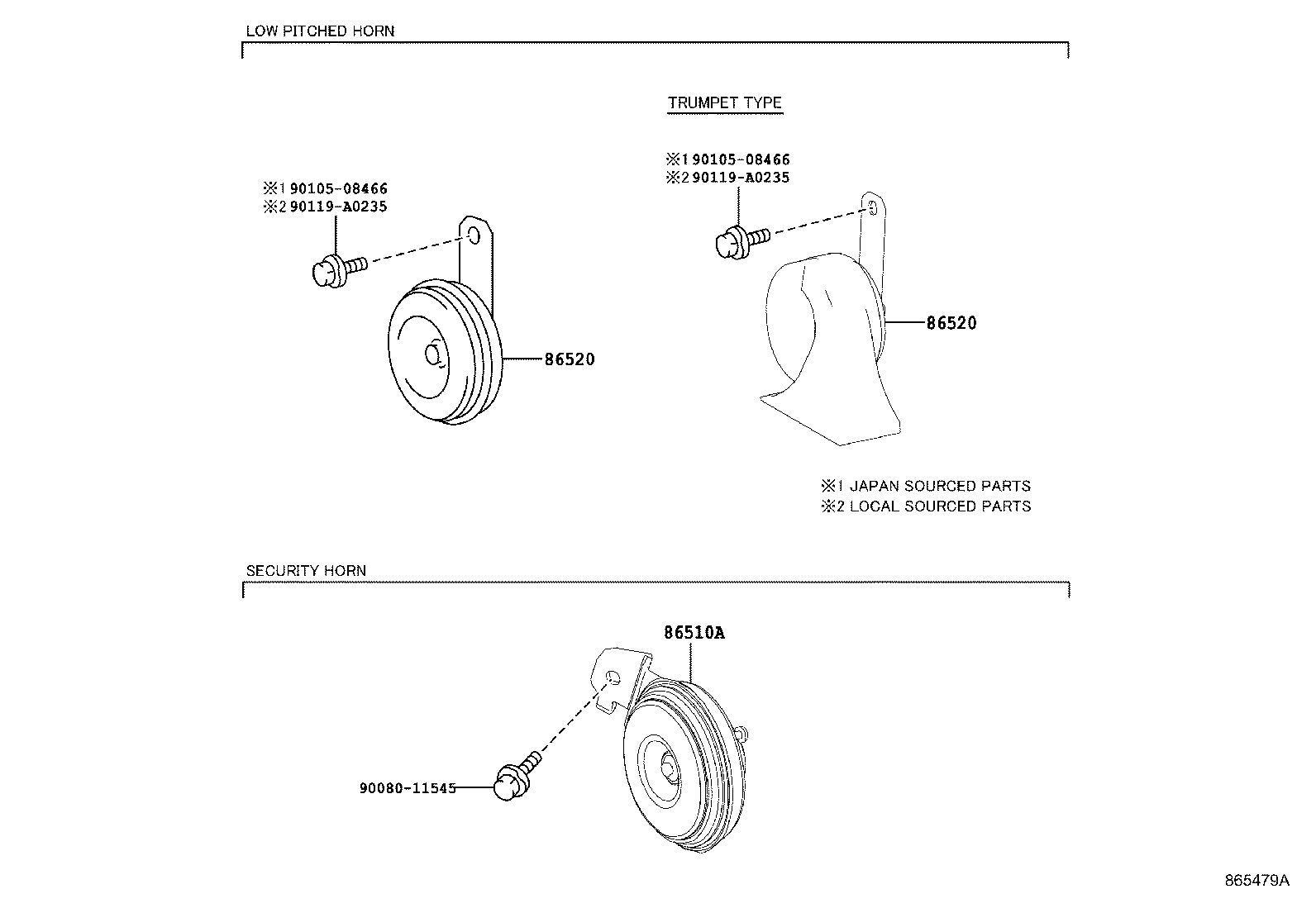

Click highlighted areas on diagram

diagram 86510 86510A 86520 9008011545 9010508466 9010508466 90119A0235 90119A0235
Part # Description Qty Price
Common parts
90080-11545
90105-08466
90119-A0235

(1308- )

Click highlighted areas on diagram

diagram 86510A 86520 86520 9008011545 9010508466 9010508466 90119A0235 90119A0235
Part # Description Qty Price
86510A - HORN ASSY, SECURITY
86560-02070

ZRE172..(LE,S)..USA

PUERTO RICO SPEC

 1
86520 - HORN ASSY, LOW PITCHED
86520-0R010

ZRE172

 1
86520-02250

ZRE172

 1
86520 - HORN ASSY, LOW PITCHED
86520-0R010

ZRE172

 1
86520-02250

ZRE172

 1
Common parts
90080-11545
90105-08466
90119-A0235
