ZRE172L-DEXSKA (2013)

Toyota Corolla

Production Aug 2013 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308-1608)

Click highlighted areas on diagram

diagram 28800A 28800D 28800J 8202 8202 90178A0112 90178A0112
Part # Description Qty Price
Common parts
90178-A0112
Linked diagrams
8202

(1308- )

Click highlighted areas on diagram

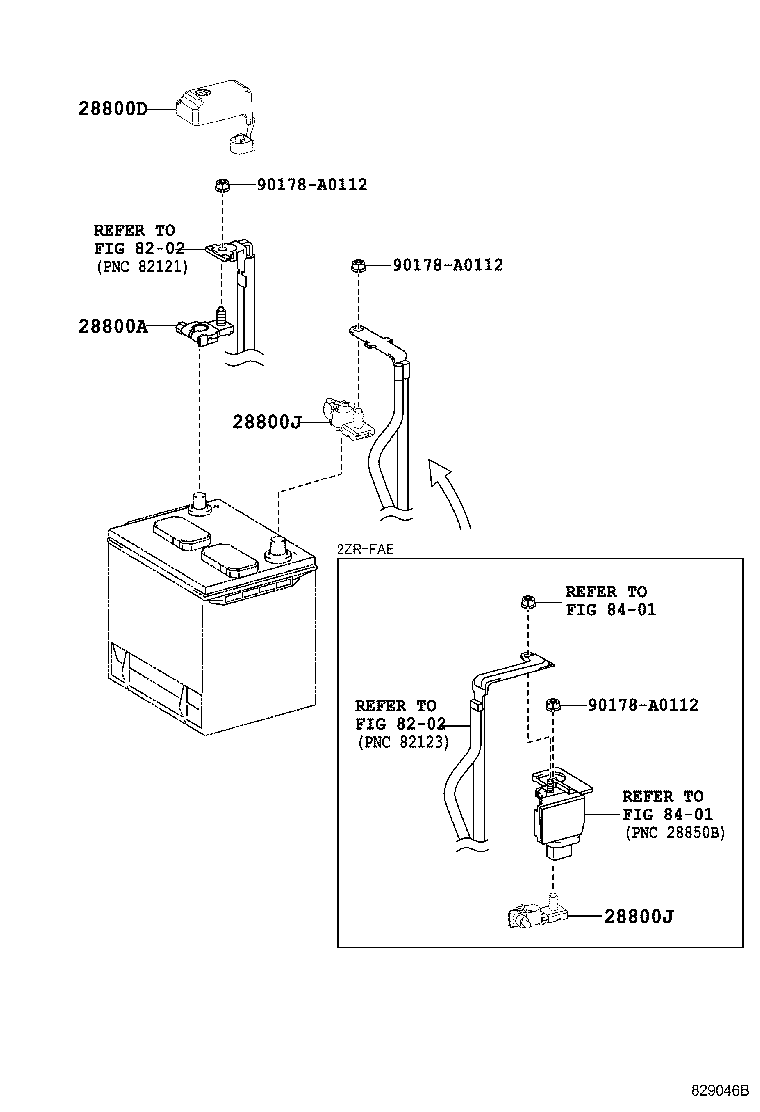

diagram 28800A 28800D 28800J 28800J 8202 8202 8401 8401 90178A0112 90178A0112 90178A0112
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

2ZR#..ZRE172

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-06040

2ZR#..ZRE172

 1
82821-12490

2ZR#..ZRE172

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

2ZRFE..ZRE172

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

2ZRFE..ZRE172

 1
Common parts
90178-A0112
Linked diagrams
8202
8401
