ZRE172L-DEXSKA (2013)
Toyota Corolla
ILLUST NO. 1 OF 2(1308- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-06070B1 |
ZRE172..S LT.GRAY,TRIM2#,4#,8# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-06070B1 |
ZRE172..S LT.GRAY,TRIM2#,4#,8# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-06040 |
ZRE172 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-06040 |
ZRE172 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02480C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73210-02480C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 73210-02481C0 |
ZRE172..S BLACK/LT.GRAY,TRIM2#,4#,8# |
1 | ||
| 73210-02481C0 |
ZRE172..ECO,ECOSW,LE,S SEAT COVER MATERIAL-LEATHER,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
ZRE172 BLACK |
1 | ||
| 73219-02020 |
ZRE172 GRAY |
1 | ||
| 73219-02030 |
ZRE172 BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02460C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73220-02461C0 |
ZRE172..S BLACK/LT.GRAY,TRIM2#,4#,8# |
1 | ||
| 73220-02460C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 73220-02461C0 |
ZRE172..ECO,ECOSW,LE,S SEAT COVER MATERIAL-LEATHER,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02750C0 |
ZRE172..S BLACK,TRIM2#,4#,8#,*213 |
1 | ||
| 73230-0R080C0 |
ZRE172..S BLACK,TRIM2#,4#,8#,*348 |
1 | ||
| 73230-0R080C0 |
ZRE172..ECO,ECOSW,LE,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348,(L) |
1 | ||
| 73230-02750C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213,(L) |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 73233-0C010C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 73233-0C010C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-02780C0 |
ZRE172..S BLACK,TRIM2#,4#,8#,*213 |
1 | ||
| 73230-02740C0 |
ZRE172..S BLACK,TRIM2#,4#,8#,*348 |
1 | ||
| 73230-02770C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348,(L) |
1 | ||
| 73230-02780C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213,(L) |
1 | ||
| Common parts | ||||
| 72151-06010 | ||||
| 73214-0E010 | ||||
| 73214-75010 | ||||
| 90080-11699 | ||||
| 90080-17195 | ||||
| 90105-A0163 | ||||
| 90105-A0186 | ||||
| 90109-A0049 | ||||
| 90178-A0081 | ||||
ILLUST NO. 2 OF 2(1308- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-16115 | ||||
| 90080-17195 | ||||
| 90105-A0163 | ||||
ILLUST NO. 1 OF 2(1308- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-06070B1 |
ZRE172..S LT.GRAY,TRIM2#,4#,8# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-06070B1 |
ZRE172..S LT.GRAY,TRIM2#,4#,8# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-06040 |
ZRE172 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-06040 |
ZRE172 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02480C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73210-02480C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 73210-02481C0 |
ZRE172..S BLACK/LT.GRAY,TRIM2#,4#,8# |
1 | ||
| 73210-02481C0 |
ZRE172..ECO,ECOSW,LE,S SEAT COVER MATERIAL-LEATHER,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
ZRE172 BLACK |
1 | ||
| 73219-02020 |
ZRE172 GRAY |
1 | ||
| 73219-02030 |
ZRE172 BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02460C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73220-02461C0 |
ZRE172..S BLACK/LT.GRAY,TRIM2#,4#,8# |
1 | ||
| 73220-02460C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 73220-02461C0 |
ZRE172..ECO,ECOSW,LE,S SEAT COVER MATERIAL-LEATHER,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02750C0 |
ZRE172..S BLACK,TRIM2#,4#,8#,*213 |
1 | ||
| 73230-0R080C0 |
ZRE172..S BLACK,TRIM2#,4#,8#,*348 |
1 | ||
| 73230-0R080C0 |
ZRE172..ECO,ECOSW,LE,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348,(L) |
1 | ||
| 73230-02750C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213,(L) |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 73233-0C010C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 73233-0C010C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-02780C0 |
ZRE172..S BLACK,TRIM2#,4#,8#,*213 |
1 | ||
| 73230-02740C0 |
ZRE172..S BLACK,TRIM2#,4#,8#,*348 |
1 | ||
| 73230-02770C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348,(L) |
1 | ||
| 73230-02780C0 |
ZRE172..ECO,ECOSW,S SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213,(L) |
1 | ||
| Common parts | ||||
| 72151-06010 | ||||
| 73214-0E010 | ||||
| 73214-75010 | ||||
| 90080-11699 | ||||
| 90080-17195 | ||||
| 90105-A0163 | ||||
| 90105-A0186 | ||||
| 90109-A0049 | ||||
| 90178-A0081 | ||||

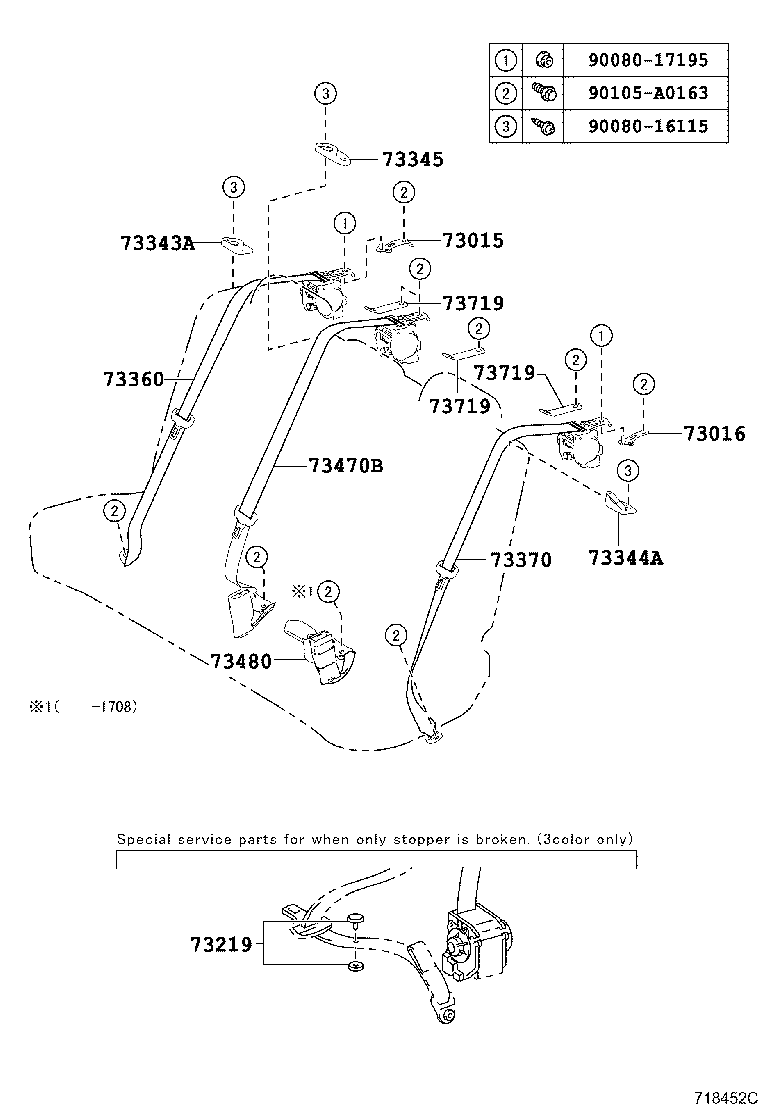

ILLUST NO. 2 OF 2(1308- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-02060 |
ZRE172 |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-02060 |
ZRE172 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
ZRE172 BLACK |
1 | ||
| 73219-02020 |
ZRE172 GRAY |
1 | ||
| 73219-02030 |
ZRE172 BEIGE |
1 | ||
| 73343A - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-02060C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73344A - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-02020C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73345-02010C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-02560C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73360-02560C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-02380C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-02550C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-02030 |
ZRE172 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-02030 |
ZRE172 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-02030 |
ZRE172 |
3 | ||
| Common parts | ||||
| 90080-16115 | ||||
| 90080-17195 | ||||
| 90105-A0163 | ||||
