ZRE172L-DEXQPA (2013)
Toyota Corolla
(1308- )
FLOOR UNDER COVER(REAR CENTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ZRE172 |
3 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-02070 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-11610 | ||||
| 90080-11710 | ||||
| 90119-A0127 | ||||
| 90119-A0229 | ||||
| 90297-03007 | ||||
| 91671-J0816 | ||||
| Linked diagrams | ||||
| 5701 | ||||

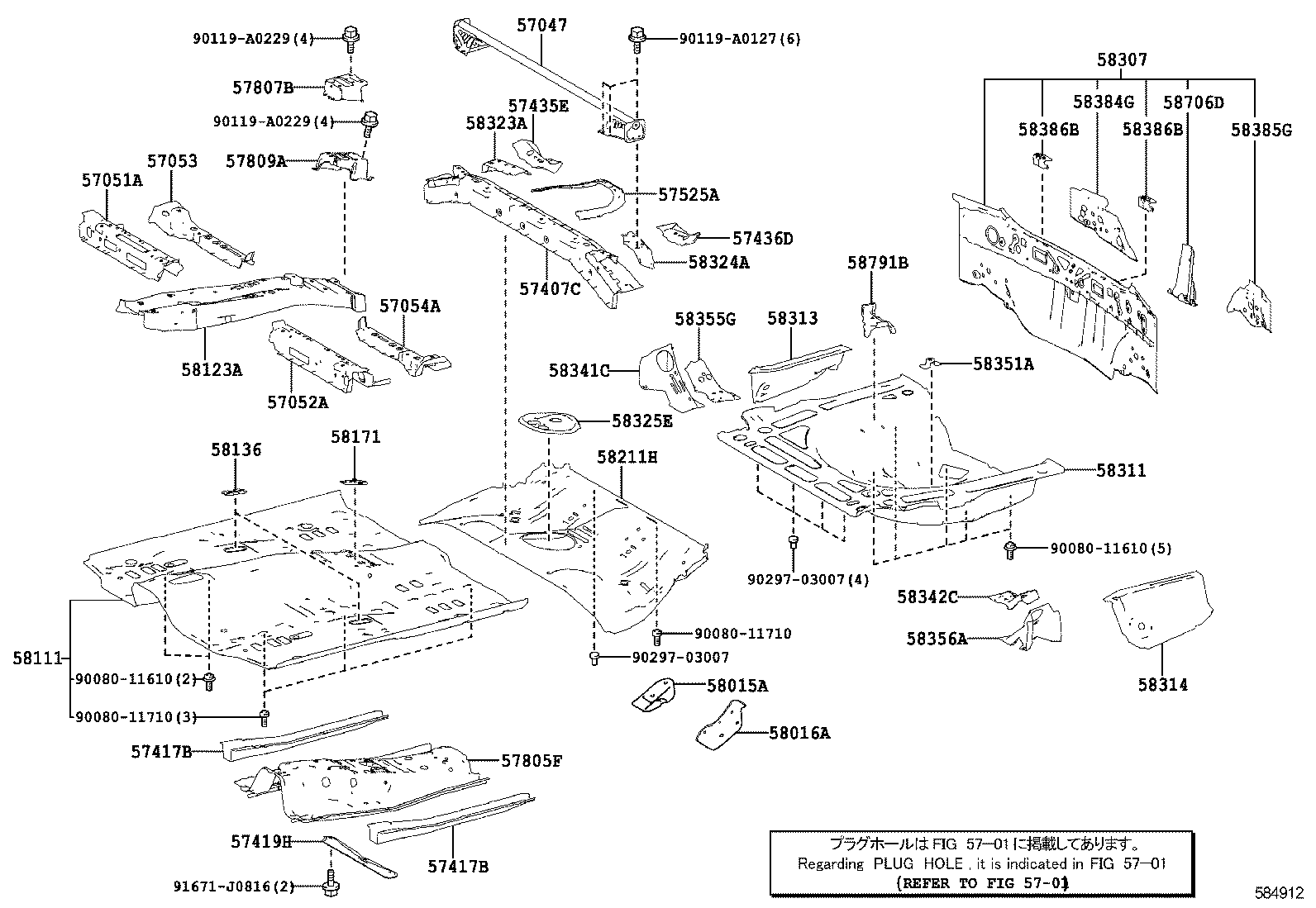

(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57047 - GUSSET SUB-ASSY, CENTER FLOOR CROSSMEMBER | ||||
| 57047-02060 |
ZRE172 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-02020 |
ZRE172 |
1 | ||
| 57051-02021 |
ZRE172 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-02021 |
ZRE172 |
1 | ||
| 57052-02020 |
ZRE172 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-02020 |
ZRE172 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-02020 |
ZRE172 |
1 | ||
| 57054-02021 |
ZRE172 |
1 | ||
| 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-02190 |
ZRE172 |
1 | ||
| 57417B - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-02150 |
ZRE172 |
2 | ||
| 57417B - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-02150 |
ZRE172 |
2 | ||
| 57419H - REINFORCEMENT, FRONT FLOOR UNDER, REAR | ||||
| 57419-02020 |
ZRE172 |
1 | ||
| 57435E - MEMBER, CENTER FLOOR SIDE, RH | ||||
| 57435-02030 |
ZRE172 |
1 | ||
| 57436D - MEMBER, CENTER FLOOR SIDE, LH | ||||
| 57436-02030 |
ZRE172 |
1 | ||
| 57525A - PLATE, CENTER FLOOR, NO.1 | ||||
| 57525-02010 |
ZRE172 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-02050 |
ZRE172 |
1 | ||
| 57807B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2 | ||||
| 57807-02020 |
ZRE172 |
1 | ||
| 57809A - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3 | ||||
| 57809-02010 |
ZRE172 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-02070 |
ZRE172 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-02070 |
ZRE172 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-02936 |
ZRE172 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-02110 |
ZRE172 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-33010 |
ZRE172 (J) |
2 | ||
| 58136-06050 |
ZRE172 (L) |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58176-02020 |
ZRE172 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-02270 |
ZRE172 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-02350 |
ZRE172 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-02904 |
ZRE172 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-02040 |
ZRE172 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-02040 |
ZRE172 |
1 | ||
| 58323A - BRACE, CENTER TO REAR MOUNTING, RH | ||||
| 58323-02030 |
ZRE172 |
1 | ||
| 58324A - BRACE, CENTER TO REAR MOUNTING, LH | ||||
| 58324-02030 |
ZRE172 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-02110 |
ZRE172 |
1 | ||
| 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH | ||||
| 58341-02030 |
ZRE172 |
2 | ||
| 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH | ||||
| 58342-02030 |
ZRE172 |
2 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-33010 |
ZRE172 |
1 | ||
| 58355G - REINFORCEMENT, FLOOR SIDE PLATE, RH | ||||
| 58355-02010 |
ZRE172 |
2 | ||
| 58356A - REINFORCEMENT, FLOOR SIDE PLATE, LH | ||||
| 58356-02010 |
ZRE172 |
2 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-02160 |
ZRE172 |
1 | ||
| 58385G - GUSSET, LOWER BACK, UPPER LH | ||||
| 58385-02130 |
ZRE172 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-02030 |
ZRE172 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-02030 |
ZRE172 |
2 | ||
| 58706D - BRACKET SUB-ASSY, JACK CARRIER, NO.1 | ||||
| 58706-02010 |
ZRE172 |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-02010 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90080-11610 | ||||
| 90080-11710 | ||||
| 90119-A0127 | ||||
| 90119-A0229 | ||||
| 90297-03007 | ||||
| 91671-J0816 | ||||
| Linked diagrams | ||||
| 5701 | ||||

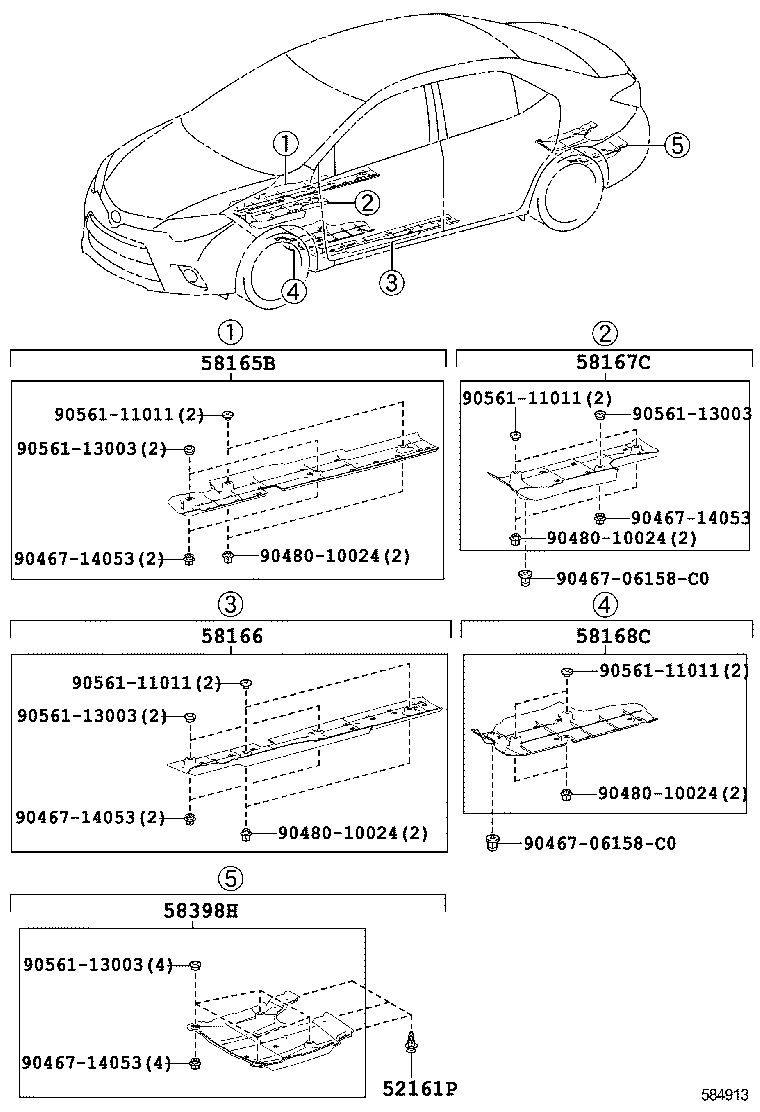

(1308- )ECO,ECOSW,S
FLOOR UNDER COVER(FRONT,REAR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ZRE172 |
3 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-02070 |
ZRE172..HTWVM |
1 | ||
| 58165-02070 |
ZRE172..CVT..S..USA TIRE & DISC WHEEL-P215/45R17 AL OS39 ILA |
1 | ||
| 58165-02070 |
ZRE172..S TIRE & DISC WHEEL-P215/45R17 ALUMI OS39 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-02050 |
ZRE172..S TIRE & DISC WHEEL-P215/45R17 ALUMI OS39 |
1 | ||
| 58166-02050 |
ZRE172..CVT..S..USA TIRE & DISC WHEEL-P215/45R17 AL OS39 ILA |
1 | ||
| 58166-02050 |
ZRE172..HTWVM |
1 | ||
| 58167C - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-02100 |
ZRE172..CVT..S..USA TIRE & DISC WHEEL-P215/45R17 AL OS39 ILA |
1 | ||
| 58167-02100 |
ZRE172..S TIRE & DISC WHEEL-P215/45R17 ALUMI OS39 |
1 | ||
| 58167-02100 |
ZRE172..HTWVM |
1 | ||
| 58168C - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-02090 |
ZRE172..HTWVM |
1 | ||
| 58168-02090 |
ZRE172..S TIRE & DISC WHEEL-P215/45R17 ALUMI OS39 |
1 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-02070 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90467-06158C0 | ||||
| 90467-14053 | ||||
| 90480-10024 | ||||
| 90561-11011 | ||||
| 90561-13003 | ||||
(1308- )
FLOOR UNDER COVER(REAR CENTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-02020 |
ZRE172 |
3 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-02070 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
