ZRE172L-DEXQPA (2013)
Toyota Corolla
Production
Aug 2013
-
Aug 2016
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1404- )2ZR#..CVT

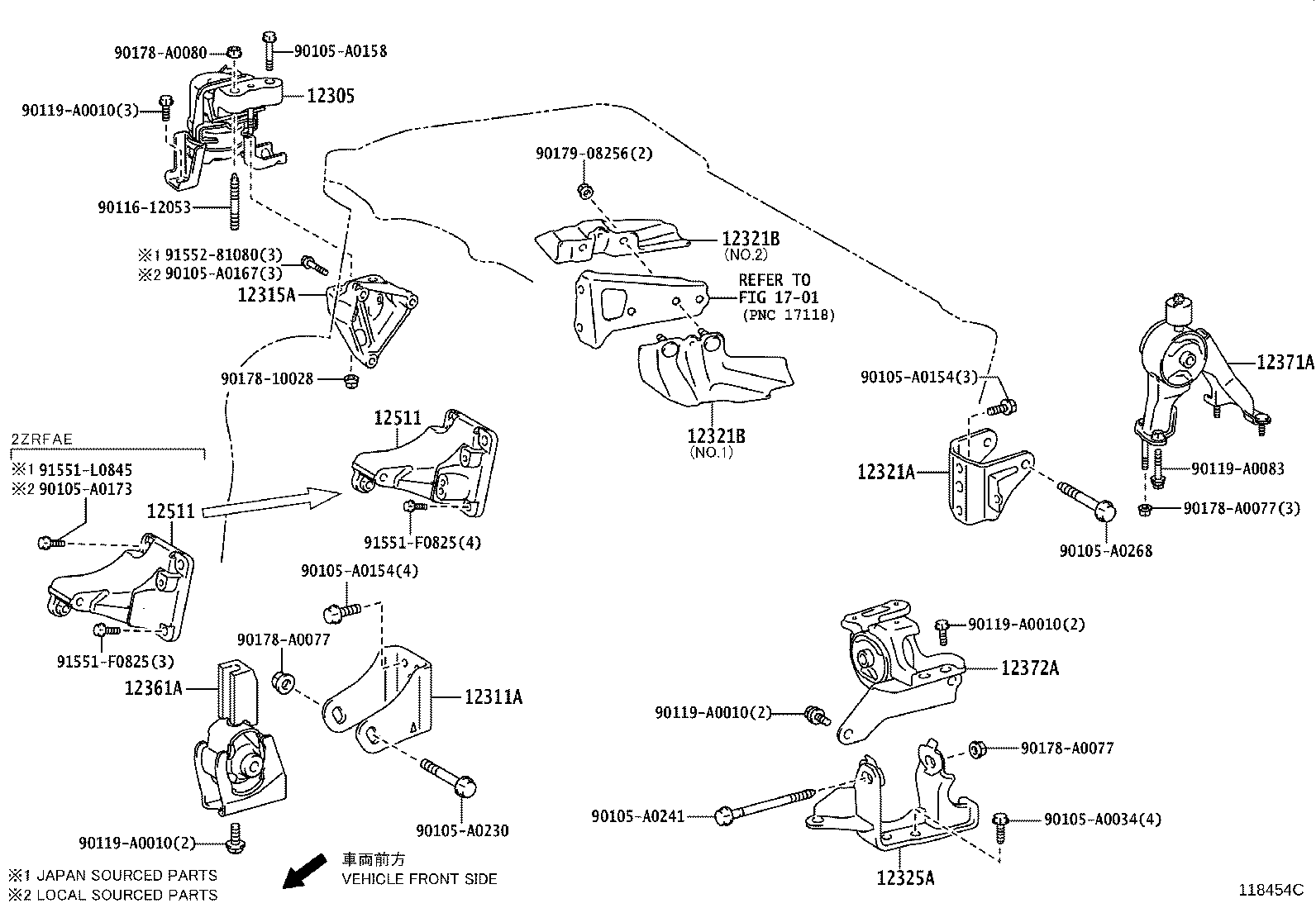

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-A0034 | ||||
| 90105-A0154 | ||||
| 90105-A0158 | ||||
| 90105-A0167 | ||||
| 90105-A0173 | ||||
| 90105-A0230 | ||||
| 90105-A0241 | ||||
| 90116-12053 | ||||
| 90119-A0010 | ||||
| 90119-A0083 | ||||
| 90178-10028 | ||||
| 90178-A0077 | ||||
| 90178-A0080 | ||||
| 90179-08256 | ||||
| 91551-F0825 | ||||
| 91551-L0845 | ||||
| 91552-81080 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(1308- )2ZR#..CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T171 |
2ZR#..ZRE172 |
1 | ||
| 12305-0T170 |
2ZR#..ZRE172 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0T360 |
2ZR#..ZRE172..CVT |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0T040 |
2ZR#..ZRE172 (L) |
1 | ||
| 12315-37030 |
2ZR#..ZRE172 |
1 | ||
| 12315-37030 |
2ZR#..ZRE172 (J) |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T410 |
2ZR#..ZRE172..CVT |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-02020 |
2ZR#..ZRE172 NO.2 |
1 | ||
| 43409-02010 |
2ZR#..ZRE172 NO.1 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-02020 |
2ZR#..ZRE172 NO.2 |
1 | ||
| 43409-02010 |
2ZR#..ZRE172 NO.1 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T360 |
2ZR#..ZRE172..CVT |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T210 |
2ZR#..ZRE172..CVT |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0T260 |
2ZR#..ZRE172..CVT |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T330 |
2ZR#..ZRE172..CVT |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-37010 |
2ZRFAE..ZRE172 (J) |
1 | ||
| 12501-0T040 |
2ZRFAE..ZRE172 (L) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-37010 |
2ZRFAE..ZRE172 (J) |
1 | ||
| 12501-0T040 |
2ZRFAE..ZRE172 (L) |
1 | ||
| Common parts | ||||
| 90105-A0034 | ||||
| 90105-A0154 | ||||
| 90105-A0158 | ||||
| 90105-A0167 | ||||
| 90105-A0173 | ||||
| 90105-A0230 | ||||
| 90105-A0241 | ||||
| 90105-A0268 | ||||
| 90116-12053 | ||||
| 90119-A0010 | ||||
| 90119-A0083 | ||||
| 90178-10028 | ||||
| 90178-A0077 | ||||
| 90178-A0080 | ||||
| 90179-08256 | ||||
| 91551-F0825 | ||||
| 91551-L0845 | ||||
| 91552-81080 | ||||
| Linked diagrams | ||||
| 1701 | ||||
