ZRE172L-DEXNK (2014)
Toyota Corolla
ILLUST NO. 1 OF 3(1308-1608)GEN ; (1308-1608)4FC,6F..MXC ; (1408-1608)CVT..MXC
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-02500 |
ZRE172..S..GEN |
1 | ||
| 55900-02500 |
ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-0R020 |
ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55901-0R020 |
ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD) |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-0R040 |
ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD) |
1 | ||
| 55902-0R040 |
ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-02270 |
ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD) |
1 | ||
| 55903-02270 |
ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2 | ||||
| 55906-0K010 |
ZRE172..LE,STD;ZRE172..S..MXC (L) |
1 | ||
| 55906-0K010 |
ZRE172..LE;ZRE172..S..MXC;ZRE172..STD..GEN AIR CONDITIONER-AUTO(SINGLE MODE),(L) |
1 | ||
| 55906-26060 |
ZRE172..LE,STD;ZRE172..S..MXC (J) |
1 | ||
| 55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-0K010 |
ZRE172..LE;ZRE172..S..MXC;ZRE172..STD..GEN AIR CONDITIONER-AUTO(SINGLE MODE),(L) |
1 | ||
| 55909-26080 |
ZRE172..LE,STD;ZRE172..S..MXC (J) |
1 | ||
| 55909-0K010 |
ZRE172..LE,STD;ZRE172..S..MXC (L) |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||

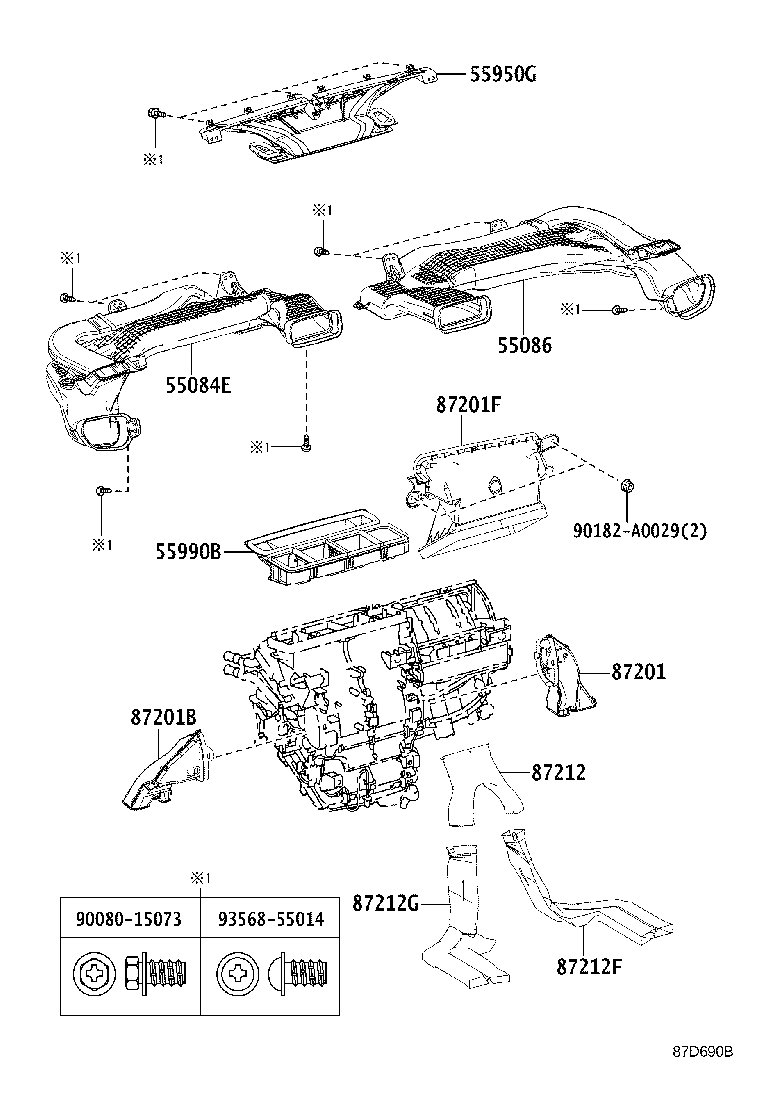

ILLUST NO. 2 OF 3(1308-1608)GEN ; (1308-1608)4FC,6F..MXC ; (1408-1608)CVT..MXC
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-02190 |
ZRE172..CVT,MTM *213 |
1 | ||
| 55084-02200 |
ZRE172..CVT,MTM *348 |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-02210 |
ZRE172..CVT,MTM *213 |
1 | ||
| 55086-02220 |
ZRE172..CVT,MTM *348 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-02290 |
ZRE172..CVT,MTM |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-02170 |
ZRE172..CVT,MTM |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-02330 |
ZRE172..CVT,MTM |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-02321 |
ZRE172..CVT,MTM |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87220-02200 |
ZRE172..CVT,MTM |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90182-A0029 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 3(1308-1608)
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-02500 |
ZRE172..S..GEN |
1 | ||
| 55900-02500 |
ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-0R020 |
ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55901-0R020 |
ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD) |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-0R040 |
ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD) |
1 | ||
| 55902-0R040 |
ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-02270 |
ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD) |
1 | ||
| 55903-02270 |
ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2 | ||||
| 55906-0K010 |
ZRE172..LE,STD;ZRE172..S..MXC (L) |
1 | ||
| 55906-0K010 |
ZRE172..LE;ZRE172..S..MXC;ZRE172..STD..GEN AIR CONDITIONER-AUTO(SINGLE MODE),(L) |
1 | ||
| 55906-26060 |
ZRE172..LE,STD;ZRE172..S..MXC (J) |
1 | ||
| 55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-0K010 |
ZRE172..LE;ZRE172..S..MXC;ZRE172..STD..GEN AIR CONDITIONER-AUTO(SINGLE MODE),(L) |
1 | ||
| 55909-26080 |
ZRE172..LE,STD;ZRE172..S..MXC (J) |
1 | ||
| 55909-0K010 |
ZRE172..LE,STD;ZRE172..S..MXC (L) |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 2 OF 3(1308-1608)
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-15073 | ||||
| 90182-A0029 | ||||
| 93568-55014 | ||||
