ZRE172L-DEXNK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 9(1308-1608)

Click highlighted areas on diagram

FLOOR & ROOF

diagram 82161 82171 82666G 82666L 82817L 82817P 9008011545 9008011545 9008011545 9098012373 9098012373
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-0ZX40

ZRE172..(LE,S)..GEN

*213

 1
82199-02890

ZRE172..CVT..LE..GEN

SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P)

 1
82171 - WIRE, ROOF, NO.1
82171-02K30

ZRE172..CVT,MTM

 1
82171-0Z300

ZRE172..LE..GEN

MOON ROOF-WITH(TILT & SLIDE)&AUDIO-RADIO LESS & 6SPEAKER

 1
82171-0Z060

ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC

MOON ROOF-WITH(TILT & SLIDE)

 1
82171-0Z280

ZRE172..(LE,S)..GEN

AUDIO-RADIO LESS & 6SPEAKER

 1
82666G - HOLDER, CONNECTOR NO.8
82666-02490

ZRE172..CVT,MTM

 1
82666L - HOLDER, CONNECTOR NO.9
82666-02500

ZRE172..CVT,MTM

 1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-02C20

ZRE172..CVT,MTM

 1
Common parts
90080-11545
90980-12373

ILLUST NO. 7 OF 9(1308-1608)

Click highlighted areas on diagram

CLAMP & BRACET

diagram 827113F040 8271502620 8271502D40 8271502D50 8271502D60 8271502D70 8271502D80 8271502G50 8271502J50 8271502K10 8271512B20 8271512B50 827153V530 827155C050 827155C060 827156A460 8272920150 9011906995 90119A0120 90119A0120 90119A0160 90119A0183 90119A0260 90119A0260 91621B0816 91621B0816
Part # Description Qty Price
Common parts
82711-3F040
82715-02620
82715-02D40
82715-02D50
82715-02D60
82715-02D70
82715-02D80
82715-02G50
82715-02J50
82715-02K10
82715-12B20
82715-12B50
82715-3V530
82715-5C050
82715-5C060
82715-6A460
82729-20150
90119-06995
90119-A0120
90119-A0160
90119-A0183
90119-A0260
91621-B0816

ILLUST NO. 2 OF 9(1404-1608)CVT ; (1404-1608)6F..GEN

Click highlighted areas on diagram

EMGINE

diagram 82121 82123 82124 82661D 82662 82815J 82815K 82815P 82817E 82817F 82817G 82817J 82817T 82821E 82823S 82823T 9011906995 90119A0183 90119A0260 90119A0290 90178A0023 90178A0023
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0Z641

ZRE172..CVT..GEN

 1
82121-0Z640

ZRE172..CVT

 1
82123 - WIRE, ENGINE, NO.3
82123-02710

ZRE172..CVT

 1
82124 - WIRE, ENGINE, NO.4
82124-02070

ZRE172

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12300

ZRE172..CVT,MTM

 1
82662 - COVER, RELAY BLOCK, UPPER
82662-12260

ZRE172..CVT,MTM

 1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-12180

ZRE172..CVT,MTM

 1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-12230

ZRE172..CVT,MTM

 1
82815P - COVER, WIRING HARNESS PROTECTOR, NO.12
82815-12530

ZRE172..GEN

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-02D70

ZRE172..CVT,MTM

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-12860

ZRE172..CVT,MTM

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-12D30

ZRE172..CVT,MTM

 1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-12L00

ZRE172..GEN

 1
82821E - COVER, CONNECTOR
82821-20410

ZRE172..CVT,MTM

 1
82823S - CAP, STARTER TERMINAL
82823-12110

ZRE172..CVT,MTM

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

ZRE172..CVT,MTM

 1
Common parts
90119-06995
90119-A0183
90119-A0260
90119-A0290
90178-A0023

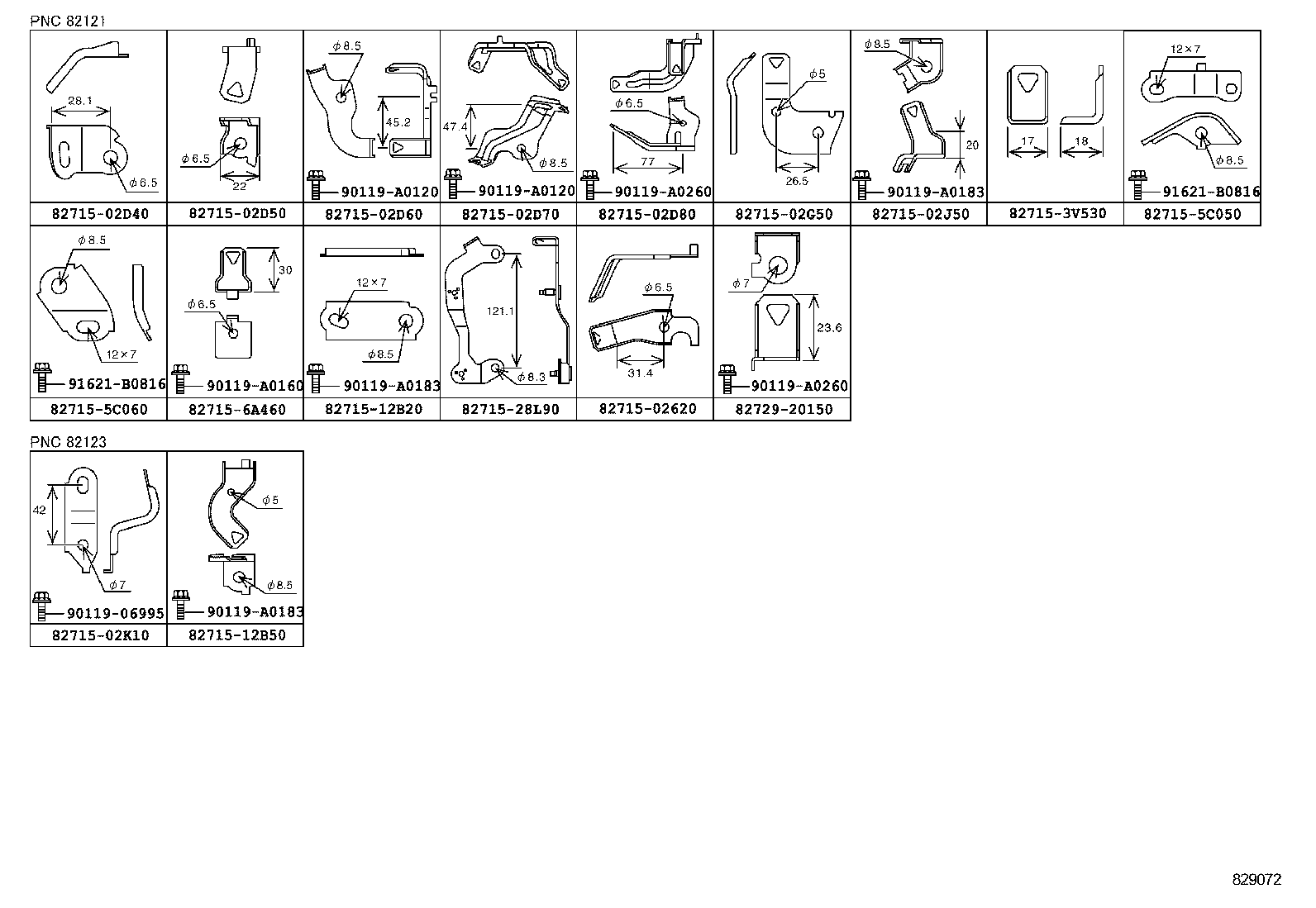

ILLUST NO. 7 OF 9(1308-1608)

Click highlighted areas on diagram

CLAMP & BRACET

diagram 8271502620 8271502D40 8271502D50 8271502D60 8271502D70 8271502D80 8271502G50 8271502J50 8271502K10 8271512B20 8271512B50 8271528L90 827153V530 827155C050 827155C060 827156A460 8272920150 9011906995 90119A0120 90119A0120 90119A0160 90119A0183 90119A0183 90119A0183 90119A0260 90119A0260 91621B0816 91621B0816
Part # Description Qty Price
Common parts
82715-02620
82715-02D40
82715-02D50
82715-02D60
82715-02D70
82715-02D80
82715-02G50
82715-02J50
82715-02K10
82715-12B20
82715-12B50
82715-28L90
82715-3V530
82715-5C050
82715-5C060
82715-6A460
82729-20150
90119-06995
90119-A0120
90119-A0160
90119-A0183
90119-A0260
91621-B0816

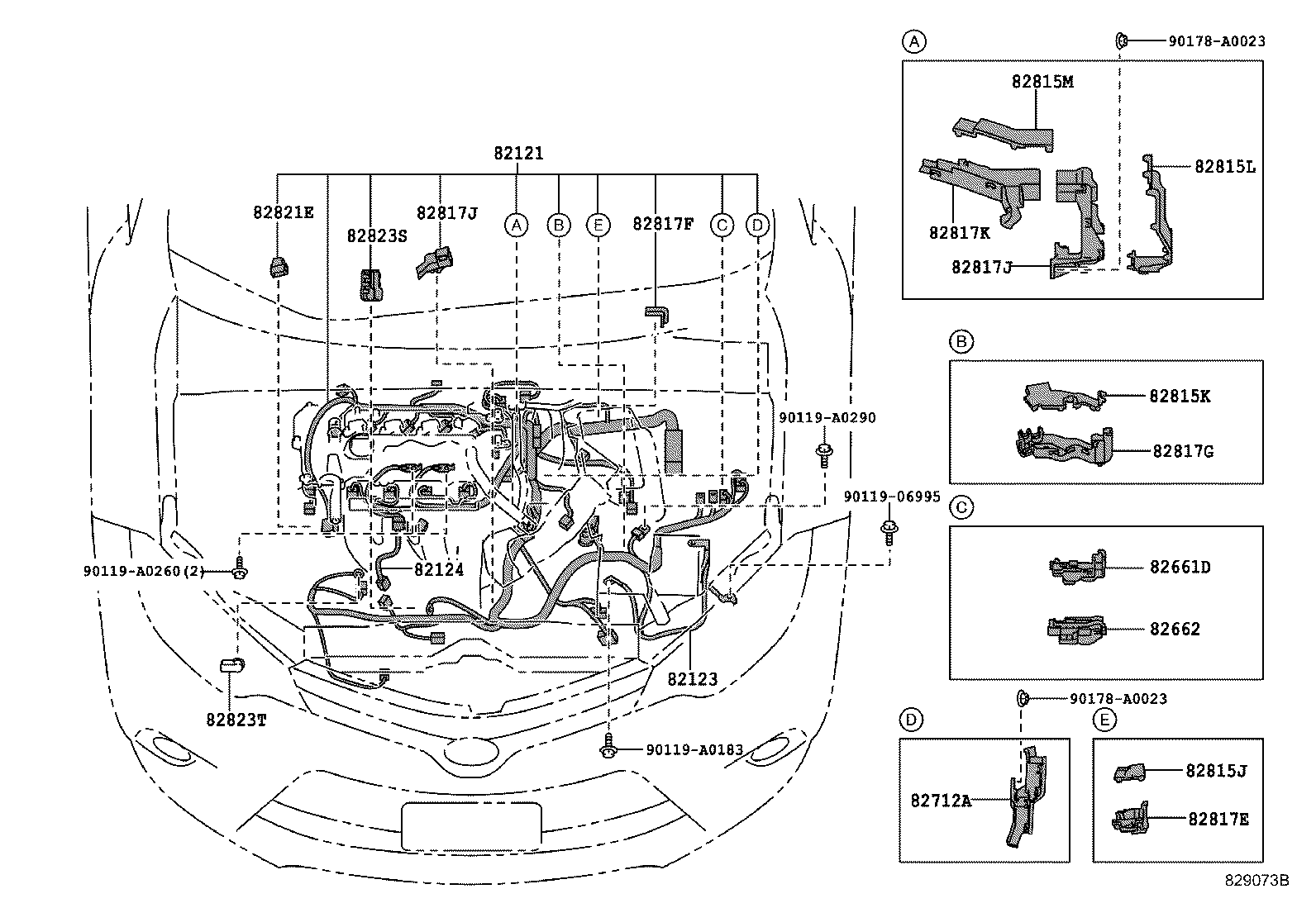

ILLUST NO. 2 OF 9(1308-1608)

Click highlighted areas on diagram

ENGINE

diagram 82121 82123 82124 82661D 82662 82712A 82815J 82815K 82815L 82815M 82817E 82817F 82817G 82817J 82817J 82817K 82821E 82823S 82823T 9011906995 90119A0183 90119A0260 90119A0290 90178A0023 90178A0023
Part # Description Qty Price
Common parts
90119-06995
90119-A0183
90119-A0260
90119-A0290
90178-A0023

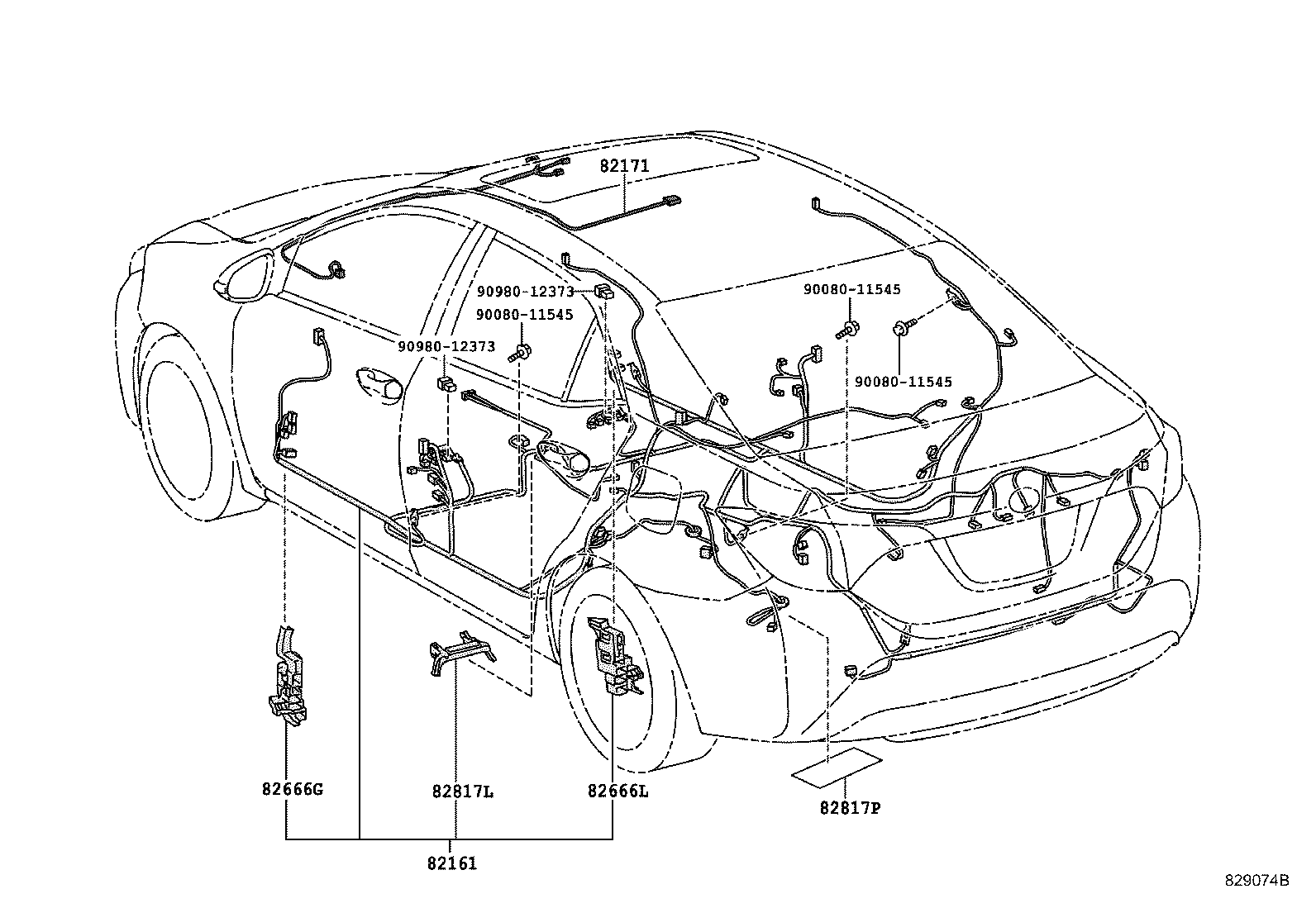

ILLUST NO. 5 OF 9(1308-1608)

Click highlighted areas on diagram

FLOOR & ROOF

diagram 82161 82171 82666G 82666L 82817L 82817P 9008011545 9008011545 9008011545 9098012373 9098012373
Part # Description Qty Price
Common parts
90080-11545
90980-12373
