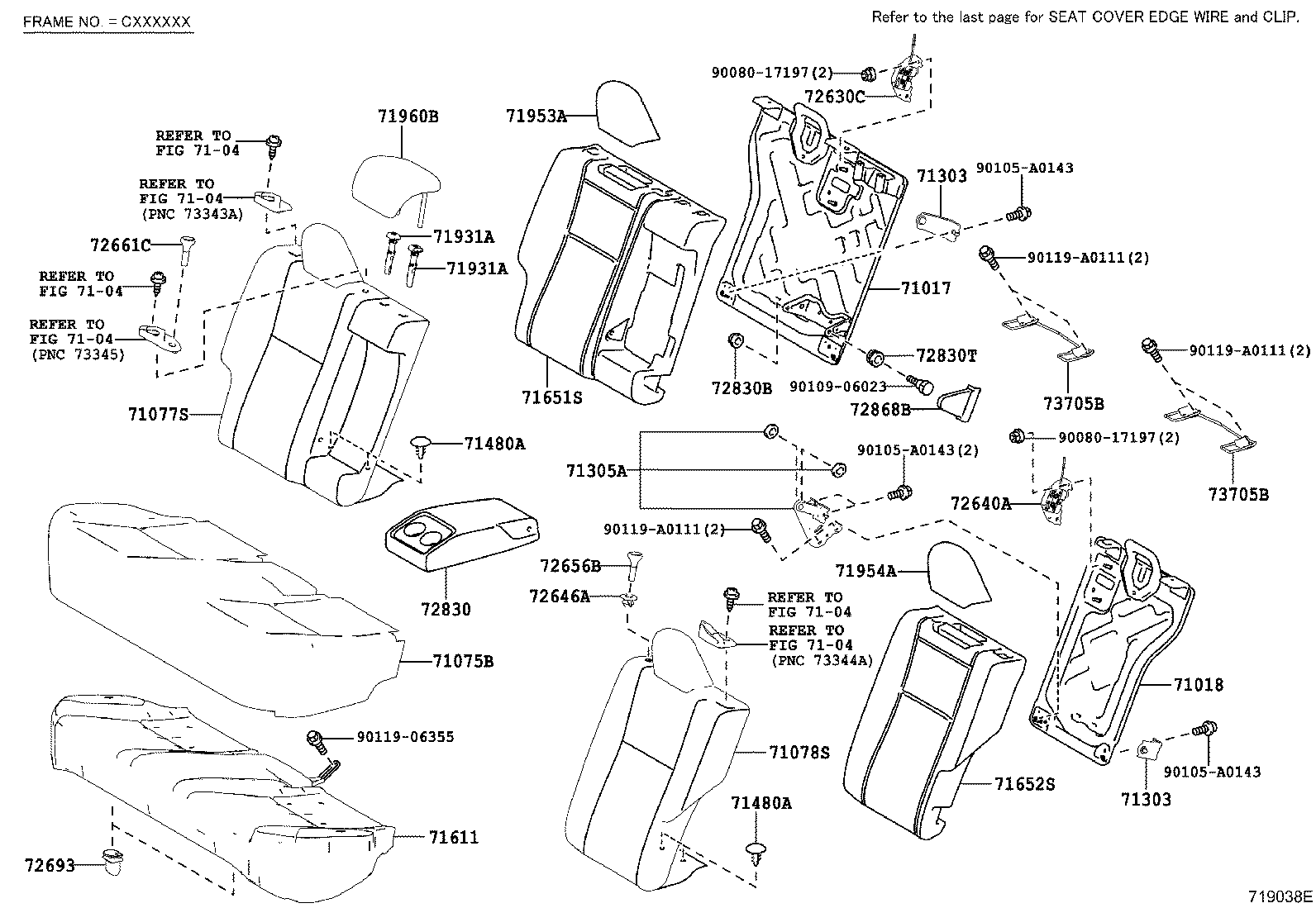

ZRE172L-DEXNK (2014)
Toyota Corolla
(1308-1408)4FC..STD ; (1308-1408)LE,S..MXC ; (1308- )LE,S..GEN ; (1308- )CVT,
*348,W/O(REAR ARMREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02A20 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71017-02A20 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71017-02580 |
ZRE172..GEN |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02330 |
ZRE172..GEN |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02X20B0 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71075-02X30E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71075-02X30C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71075-02X30J0 |
ZRE172..S..GEN STEEL BLUE,TRIM8# |
1 | ||
| 71075-02X20A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71075-02X20E0 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02W30J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71077-02W30C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71077-02W30E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71077-02V60E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z340B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V60C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V60J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z340A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z340E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z341B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V61C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V61E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z341E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z411E1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 71077-02V61J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z341A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z411B1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 71077-0Z421J1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z421E1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z411B1 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 71077-0Z411E1 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 71077-0Z411A1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 71077-0Z421C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/BLACK,TRIM2# |
1 | ||
| 71077-0Z411A1 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02U30B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02N00J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71078-02U30A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02N00E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71078-02N00C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71078-02V00E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71078-02U30E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V00C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02V00J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02V01C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02U31B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02V01J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V01E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02230 |
ZRE172..CVT,MTM *213,*348 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02460 |
ZRE172..GEN |
1 | ||
| 71503-02461 |
ZRE172..GEN |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02720 |
ZRE172..GEN |
1 | ||
| 71651-02790 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71651-02790 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02660 |
ZRE172..GEN |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02B60E2 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 71960-02B60A2 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71960-02B70C2 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 71960-02B60B2 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02120 |
ZRE172 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02120 |
ZRE172 |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72646-33010B8 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72646-33010A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72646-33010C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN REAR ARMREST-WITH,BLACK,TRIM4# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-06020A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| Common parts | ||||
| 90080-17197 | ||||
| 90105-A0143 | ||||
| 90119-06355 | ||||
| 90119-A0111 | ||||
| Linked diagrams | ||||
| 7104 | ||||

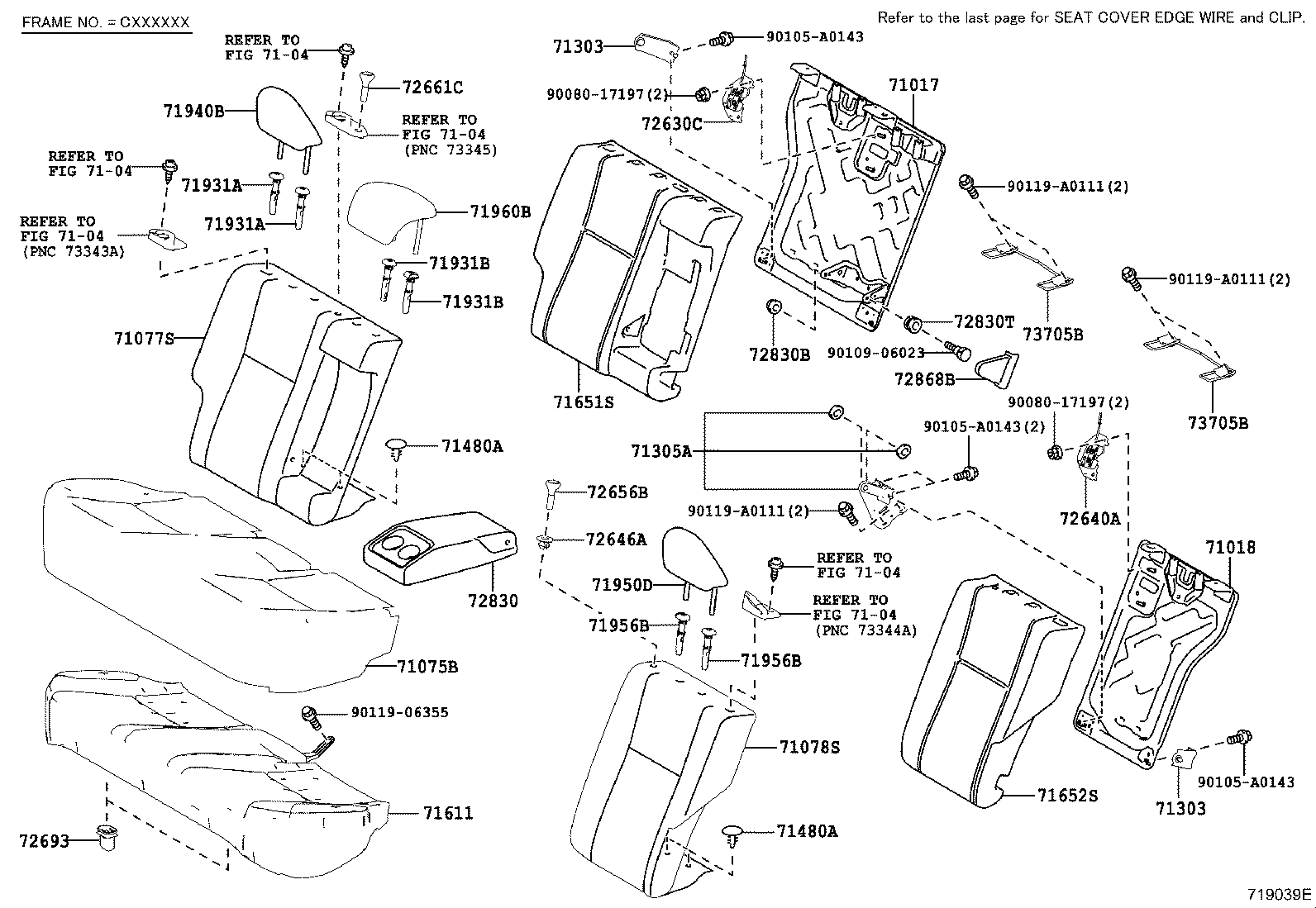

(1408- )STD..HTWVM ; (1408- )LE,S..HTWC
*348,W(REAR ARMREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02A20 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71017-02A20 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71017-02580 |
ZRE172..GEN |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02330 |
ZRE172..GEN |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02X20B0 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71075-02X30E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71075-02X30C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71075-02X30J0 |
ZRE172..S..GEN STEEL BLUE,TRIM8# |
1 | ||
| 71075-02X20A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71075-02X20E0 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02W30J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71077-02W30C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71077-02W30E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71077-02V60E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z340B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V60C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V60J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z340A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z340E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z341B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V61C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V61E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z341E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z411E1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 71077-02V61J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z341A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z411B1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 71077-0Z421J1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z421E1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z411B1 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 71077-0Z411E1 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 71077-0Z411A1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 71077-0Z421C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/BLACK,TRIM2# |
1 | ||
| 71077-0Z411A1 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02U30B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02N00J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71078-02U30A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02N00E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71078-02N00C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71078-02V00E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71078-02U30E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V00C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02V00J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02V01C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02U31B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02V01J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V01E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02230 |
ZRE172..CVT,MTM *213,*348 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02460 |
ZRE172..GEN |
1 | ||
| 71503-02461 |
ZRE172..GEN |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02720 |
ZRE172..GEN |
1 | ||
| 71651-02790 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71651-02790 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02660 |
ZRE172..GEN |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02B60E2 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 71960-02B60A2 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71960-02B70C2 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 71960-02B60B2 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02120 |
ZRE172 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02120 |
ZRE172 |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72646-33010B8 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72646-33010A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72646-33010C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN REAR ARMREST-WITH,BLACK,TRIM4# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-06020A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-02F90A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72830-02F90B0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72830-02F90E0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 72830-02F90B0 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72830-02G00C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK,TRIM2#,4#,8# |
1 | ||
| 72830-02F90A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72830-02F90E0 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 90386-08077 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| Common parts | ||||
| 90080-17197 | ||||
| 90105-A0143 | ||||
| 90109-06023 | ||||
| 90119-06355 | ||||
| 90119-A0111 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1308-1408)ECO,ECOSW,LE,S
*348,LEATHER SEAT,W/O(REAR ARMREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02A20 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71017-02A20 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71017-02580 |
ZRE172..GEN |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02330 |
ZRE172..GEN |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02X20B0 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71075-02X30E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71075-02X30C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71075-02X30J0 |
ZRE172..S..GEN STEEL BLUE,TRIM8# |
1 | ||
| 71075-02X20A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71075-02X20E0 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02W30J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71077-02W30C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71077-02W30E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71077-02V60E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z340B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V60C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V60J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z340A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z340E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z341B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V61C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V61E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z341E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z411E1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 71077-02V61J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z341A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z411B1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 71077-0Z421J1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z421E1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z411B1 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 71077-0Z411E1 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 71077-0Z411A1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 71077-0Z421C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/BLACK,TRIM2# |
1 | ||
| 71077-0Z411A1 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02U30B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02N00J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71078-02U30A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02N00E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71078-02N00C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71078-02V00E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71078-02U30E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V00C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02V00J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02V01C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02U31B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02V01J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V01E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02230 |
ZRE172..CVT,MTM *213,*348 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02460 |
ZRE172..GEN |
1 | ||
| 71503-02461 |
ZRE172..GEN |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02720 |
ZRE172..GEN |
1 | ||
| 71651-02790 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71651-02790 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02660 |
ZRE172..GEN |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02B60E2 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 71960-02B60A2 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71960-02B70C2 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 71960-02B60B2 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02120 |
ZRE172 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02120 |
ZRE172 |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72646-33010B8 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72646-33010A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72646-33010C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN REAR ARMREST-WITH,BLACK,TRIM4# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-06020A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| Common parts | ||||
| 90080-17197 | ||||
| 90105-A0143 | ||||
| 90119-06355 | ||||
| 90119-A0111 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1308-1408)ECO,ECOSW,LE,S ; (1308- )STD
*213,W/O(RAER ARMREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02A20 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71017-02A20 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71017-02580 |
ZRE172..GEN |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02330 |
ZRE172..GEN |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02X20B0 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71075-02X30E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71075-02X30C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71075-02X30J0 |
ZRE172..S..GEN STEEL BLUE,TRIM8# |
1 | ||
| 71075-02X20A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71075-02X20E0 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02W30J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71077-02W30C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71077-02W30E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71077-02V60E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z340B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V60C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V60J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z340A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z340E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z341B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V61C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V61E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z341E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z411E1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 71077-02V61J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z341A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z411B1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 71077-0Z421J1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z421E1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z411B1 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 71077-0Z411E1 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 71077-0Z411A1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 71077-0Z421C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/BLACK,TRIM2# |
1 | ||
| 71077-0Z411A1 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02U30B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02N00J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71078-02U30A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02N00E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71078-02N00C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71078-02V00E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71078-02U30E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V00C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02V00J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02V01C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02U31B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02V01J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V01E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02230 |
ZRE172..CVT,MTM *213,*348 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02460 |
ZRE172..GEN |
1 | ||
| 71503-02461 |
ZRE172..GEN |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02720 |
ZRE172..GEN |
1 | ||
| 71651-02790 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71651-02790 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02660 |
ZRE172..GEN |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02B60E2 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 71960-02B60A2 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71960-02B70C2 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 71960-02B60B2 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02120 |
ZRE172 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02120 |
ZRE172 |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72646-33010B8 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72646-33010A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72646-33010C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN REAR ARMREST-WITH,BLACK,TRIM4# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-06020A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| Common parts | ||||
| 90080-17197 | ||||
| 90105-A0143 | ||||
| 90119-06355 | ||||
| 90119-A0111 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1308-1408)ECO,ECOSW,LE,S
*213,LEATHER SEAT,W/O(REAR ARMREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02A20 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71017-02A20 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71017-02580 |
ZRE172..GEN |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02330 |
ZRE172..GEN |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02X20B0 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71075-02X30E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71075-02X30C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71075-02X30J0 |
ZRE172..S..GEN STEEL BLUE,TRIM8# |
1 | ||
| 71075-02X20A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71075-02X20E0 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02W30J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71077-02W30C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71077-02W30E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71077-02V60E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z340B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V60C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V60J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z340A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z340E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z341B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V61C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V61E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z341E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z411E1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 71077-02V61J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z341A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z411B1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 71077-0Z421J1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z421E1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z411B1 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 71077-0Z411E1 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 71077-0Z411A1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 71077-0Z421C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/BLACK,TRIM2# |
1 | ||
| 71077-0Z411A1 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02U30B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02N00J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71078-02U30A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02N00E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71078-02N00C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71078-02V00E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71078-02U30E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V00C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02V00J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02V01C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02U31B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02V01J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V01E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02230 |
ZRE172..CVT,MTM *213,*348 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02460 |
ZRE172..GEN |
1 | ||
| 71503-02461 |
ZRE172..GEN |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02720 |
ZRE172..GEN |
1 | ||
| 71651-02790 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71651-02790 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02660 |
ZRE172..GEN |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02B60E2 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 71960-02B60A2 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71960-02B70C2 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 71960-02B60B2 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02120 |
ZRE172 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02120 |
ZRE172 |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72646-33010B8 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72646-33010A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72646-33010C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN REAR ARMREST-WITH,BLACK,TRIM4# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-06020A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| Common parts | ||||
| 90080-17197 | ||||
| 90105-A0143 | ||||
| 90119-06355 | ||||
| 90119-A0111 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1408- )ECO,ECOSW,LE,S
*348,LEATHER SEAT,W(REAR ARMREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02A20 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71017-02A20 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71017-02580 |
ZRE172..GEN |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02330 |
ZRE172..GEN |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02X20B0 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71075-02X30E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71075-02X30C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71075-02X30J0 |
ZRE172..S..GEN STEEL BLUE,TRIM8# |
1 | ||
| 71075-02X20A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71075-02X20E0 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02W30J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71077-02W30C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71077-02W30E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71077-02V60E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z340B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V60C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V60J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z340A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z340E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z341B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V61C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V61E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z341E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z411E1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 71077-02V61J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z341A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z411B1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 71077-0Z421J1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z421E1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z411B1 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 71077-0Z411E1 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 71077-0Z411A1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 71077-0Z421C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/BLACK,TRIM2# |
1 | ||
| 71077-0Z411A1 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02U30B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02N00J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71078-02U30A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02N00E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71078-02N00C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71078-02V00E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71078-02U30E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V00C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02V00J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02V01C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02U31B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02V01J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V01E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02230 |
ZRE172..CVT,MTM *213,*348 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02460 |
ZRE172..GEN |
1 | ||
| 71503-02461 |
ZRE172..GEN |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02720 |
ZRE172..GEN |
1 | ||
| 71651-02790 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71651-02790 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02660 |
ZRE172..GEN |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02B60E2 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 71960-02B60A2 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71960-02B70C2 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 71960-02B60B2 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02120 |
ZRE172 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02120 |
ZRE172 |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72646-33010B8 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72646-33010A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72646-33010C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN REAR ARMREST-WITH,BLACK,TRIM4# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-06020A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-02F90A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72830-02F90B0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72830-02F90E0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 72830-02F90B0 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72830-02G00C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK,TRIM2#,4#,8# |
1 | ||
| 72830-02F90A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72830-02F90E0 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 90386-08077 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| Common parts | ||||
| 90080-17197 | ||||
| 90105-A0143 | ||||
| 90109-06023 | ||||
| 90119-06355 | ||||
| 90119-A0111 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1408- )CVT..STD ; (1408- )ECO,ECOSW,LE,S
*213,W(RAER ARMREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02A20 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71017-02A20 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71017-02580 |
ZRE172..GEN |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02330 |
ZRE172..GEN |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02X20B0 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71075-02X30E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71075-02X30C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71075-02X30J0 |
ZRE172..S..GEN STEEL BLUE,TRIM8# |
1 | ||
| 71075-02X20A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71075-02X20E0 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02W30J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71077-02W30C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71077-02W30E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71077-02V60E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z340B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V60C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V60J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z340A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z340E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z341B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V61C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V61E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z341E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z411E1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 71077-02V61J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z341A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z411B1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 71077-0Z421J1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z421E1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z411B1 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 71077-0Z411E1 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 71077-0Z411A1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 71077-0Z421C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/BLACK,TRIM2# |
1 | ||
| 71077-0Z411A1 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02U30B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02N00J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71078-02U30A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02N00E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71078-02N00C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71078-02V00E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71078-02U30E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V00C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02V00J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02V01C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02U31B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02V01J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V01E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02230 |
ZRE172..CVT,MTM *213,*348 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02460 |
ZRE172..GEN |
1 | ||
| 71503-02461 |
ZRE172..GEN |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02720 |
ZRE172..GEN |
1 | ||
| 71651-02790 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71651-02790 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02660 |
ZRE172..GEN |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02B60E2 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 71960-02B60A2 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71960-02B70C2 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 71960-02B60B2 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02120 |
ZRE172 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02120 |
ZRE172 |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72646-33010B8 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72646-33010A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72646-33010C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN REAR ARMREST-WITH,BLACK,TRIM4# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-06020A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-02F90A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72830-02F90B0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72830-02F90E0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 72830-02F90B0 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72830-02G00C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK,TRIM2#,4#,8# |
1 | ||
| 72830-02F90A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72830-02F90E0 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 90386-08077 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| Common parts | ||||
| 90080-17197 | ||||
| 90105-A0143 | ||||
| 90109-06023 | ||||
| 90119-06355 | ||||
| 90119-A0111 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1408- )ECO,ECOSW,LE,S
*213,LEATHER SEAT,W(REAR ARMREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02A20 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71017-02A20 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71017-02580 |
ZRE172..GEN |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02330 |
ZRE172..GEN |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02X20A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71075-02X20B0 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71075-02X30E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71075-02X30C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71075-02X30J0 |
ZRE172..S..GEN STEEL BLUE,TRIM8# |
1 | ||
| 71075-02X20E0 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02W30J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71077-02W30C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71077-02W30E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71077-02V60E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z340B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V60C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V60J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z340A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z340E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z341B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71077-02V61C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71077-02V61E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z341E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71077-0Z411E1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 71077-02V61J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z341A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71077-0Z411B1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 71077-0Z421J1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71077-0Z421E1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/AMBER,TRIM4# |
1 | ||
| 71077-0Z411B1 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 71077-0Z411E1 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 71077-0Z411A1 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 71077-0Z421C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK/BLACK,TRIM2# |
1 | ||
| 71077-0Z411A1 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02U30B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02N00J5 |
ZRE172..S BLACK,TRIM8#,*348 |
1 | ||
| 71078-02U30A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02N00E5 |
ZRE172..S BLACK,TRIM4#,*348 |
1 | ||
| 71078-02N00C6 |
ZRE172..S BLACK,TRIM2#,*348 |
1 | ||
| 71078-02V00E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71078-02U30E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V00C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02V00J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31A1 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71078-02V01C0 |
ZRE172..S..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-02U31B1 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 71078-02V01J0 |
ZRE172..S..GEN BLACK/STEEL BLUE,TRIM8# |
1 | ||
| 71078-02U31E1 |
ZRE172..LE..GEN AMBER,TRIM4# |
1 | ||
| 71078-02V01E0 |
ZRE172..S..GEN BLACK/AMBER,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-02220 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02230 |
ZRE172..CVT,MTM *213,*348 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE172 BLACK,*213,*348 |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02460 |
ZRE172..GEN |
1 | ||
| 71503-02461 |
ZRE172..GEN |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02720 |
ZRE172..GEN |
1 | ||
| 71651-02790 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 71651-02790 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02660 |
ZRE172..GEN |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B2 |
ZRE172..LE..GEN W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020A0 |
ZRE172..LE..GEN W(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..LE..GEN W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010C0 |
ZRE172..LE..GEN W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47010P4 |
ZRE172..LE..GEN W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
ZRE172..LE..GEN W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71930-44020C0 |
ZRE172..S..GEN W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47010C0 |
ZRE172..S..GEN W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02B60E2 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 71960-02B60A2 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 71960-02B70C2 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 71960-02B60B2 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02120 |
ZRE172 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02120 |
ZRE172 |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72646-33010B8 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72646-33010A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72646-33010C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM4# |
1 | ||
| 72661-06020B3 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72661-06020A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN REAR ARMREST-WITH,BLACK,TRIM4# |
1 | ||
| 72661-06020A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-06020A0 |
ZRE172..LE..GEN IVORY,TRIM0# |
1 | ||
| 72661-06020B3 |
ZRE172..LE..GEN GRAY,TRIM1# |
1 | ||
| 72661-06020C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 72661-06020C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZRE172..CVT,MTM *213,*348 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-02F90A0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0# |
1 | ||
| 72830-02F90B0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1# |
1 | ||
| 72830-02F90E0 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4# |
1 | ||
| 72830-02F90B0 |
ZRE172..LE..GEN REAR ARMREST-WITH,GRAY,TRIM1# |
1 | ||
| 72830-02G00C1 |
ZRE172..S..GEN REAR ARMREST-WITH,BLACK,TRIM2#,4#,8# |
1 | ||
| 72830-02F90A0 |
ZRE172..LE..GEN REAR ARMREST-WITH,IVORY,TRIM0# |
1 | ||
| 72830-02F90E0 |
ZRE172..LE..GEN REAR ARMREST-WITH,AMBER,TRIM4# |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
ZRE172..CVT..LE..GEN REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 90386-08077 |
ZRE172..(LE,S)..GEN REAR ARMREST-WITH |
1 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02150 |
ZRE172..GEN *213,*348 |
2 | ||
| Common parts | ||||
| 90080-17197 | ||||
| 90105-A0143 | ||||
| 90109-06023 | ||||
| 90119-06355 | ||||
| 90119-A0111 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
