ZRE172L-DEXNK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

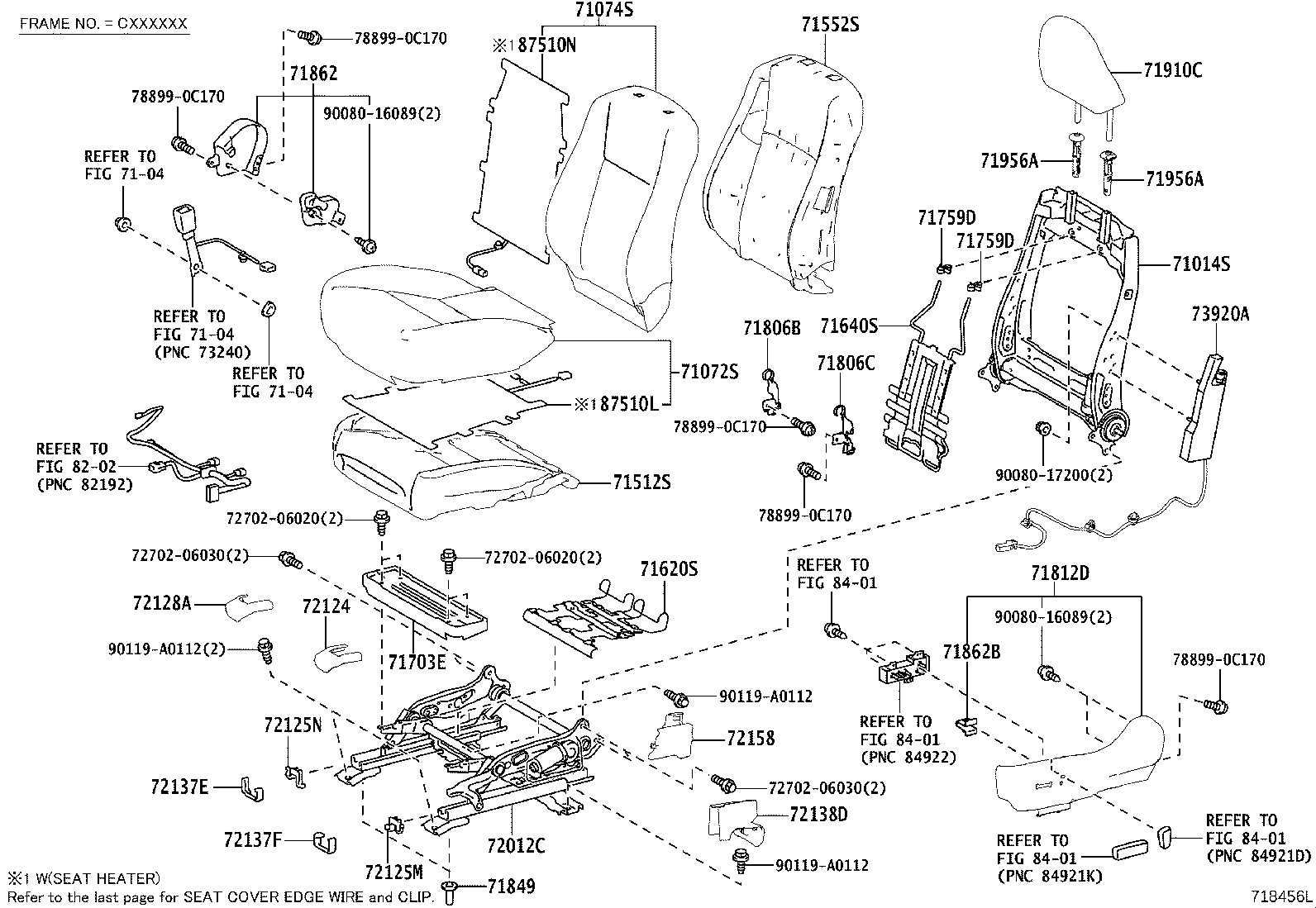

ILLUST NO. 1 OF 3(1308-1608)

Click highlighted areas on diagram

DRIVER, *348:W(POWER SEAT)

diagram 71014S 7104 7104 7104 71052A 71054S 71072S 71074S 71512S 71537H 71538B 71552S 71587B 71587B 71759D 71759D 71769C 71812D 71849 71862 71862B 71868A 71873A 71874 71910C 71956A 71956A 72020 72124 72128A 72138D 72158 73920A 8202 8202 8202 8401 8401 8401 8401 87510L 87510N 9008011132 9008011132 9008017200 90119A0112 90119A0112 90119A0112 9016740044 9016740044 90167A0013 90176A0002
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-0R030

ZRE172..(LE,S)..GEN

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-06090

ZRE172..4FC..STD;ZRE172..CVT..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)

 1
71053-06090

ZRE172..S..GEN

REAR ARMREST-WITH

 1
71053-06090

ZRE172..S..GEN

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0Z400C2

ZRE172..S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71072-0Z410C3

ZRE172..LE

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71072-0Z310A1

ZRE172..LE..GEN

IVORY,TRIM0#

 1
71072-0Z340J5

ZRE172..S..GEN

BLACK,TRIM8#

 1
71072-0Z310B1

ZRE172..LE..GEN

GRAY,TRIM1#

 1
71072-0Z310E2

ZRE172..LE..GEN

BLACK,TRIM4#

 1
71072-0Z340E5

ZRE172..S..GEN

BLACK,TRIM4#

 1
71072-0Z340C6

ZRE172..S..GEN

BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0ZA80C1

ZRE172..S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71074-0ZA90C1

ZRE172..LE

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71074-0ZA10E2

ZRE172..LE..GEN

AMBER,TRIM4#

 1
71074-0ZA10A1

ZRE172..LE..GEN

IVORY,TRIM0#

 1
71074-0ZA30C5

ZRE172..S..GEN

BLACK,TRIM2#

 1
71074-0ZA30E4

ZRE172..S..GEN

BLACK,TRIM4#

 1
71074-0ZA10B1

ZRE172..LE..GEN

GRAY,TRIM1#

 1
71074-0ZA30J4

ZRE172..S..GEN

BLACK,TRIM8#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-02450

ZRE172..(LE,STD)..GEN

 1
71512-02451

ZRE172..(LE,STD)..GEN

 1
71512-02471

ZRE172..S..GEN

 1
71512-02470

ZRE172..S..GEN

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0R020C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71537-0R020C0

ZRE172..(LE,STD)..GEN

BLACK,TRIM0#,1#,4#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0R020C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71538-0R020C0

ZRE172..(LE,STD)..GEN

BLACK,TRIM0#,1#,4#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-02890

ZRE172..S..GEN

 1
71552-02880

ZRE172..LE..GEN

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-52030

ZRE172..GEN

 2
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-52030

ZRE172..GEN

 2
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-47010

ZRE172..GEN

 2
71759-0E010

ZRE172..GEN

 2
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-47010

ZRE172..GEN

 2
71759-0E010

ZRE172..GEN

 2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02530C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71812-02530C0

ZRE172..LE..GEN

BLACK,TRIM0#,1#,4#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

ZRE172

*213,*348

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0R050C0

ZRE172..(LE,STD)..GEN

BLACK,TRIM0#,1#,4#

 1
71862-0R050C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
71769-47020

ZRE172..GEN

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-08010

ZRE172..GEN

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-08010

ZRE172..GEN

 1
71910C - HEADREST ASSY, FRONT SEAT
71910-02J80B2

ZRE172..LE..GEN

GRAY,TRIM1#

 1
71910-02J80E2

ZRE172..LE..GEN

AMBER,TRIM4#

 1
71910-02J80A2

ZRE172..LE..GEN

IVORY,TRIM0#

 1
71910-02J90C6

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71956A - SUPPORT, FRONT SEAT HEADREST
71930-47020B5

ZRE172..LE..GEN

W(LOCK),GRAY,TRIM1#

 1
71930-47020C0

ZRE172..LE..GEN

W(LOCK),BLACK,TRIM4#

 1
71930-47020C0

ZRE172..S..GEN

W(LOCK),BLACK,TRIM2#,4#,8#

 1
71931-47020B5

ZRE172..LE..GEN

W/O(LOCK),GRAY,TRIM1#

 1
71931-47020C0

ZRE172..LE..GEN

W/O(LOCK),BLACK,TRIM4#

 1
71931-47020C0

ZRE172..S..GEN

W/O(LOCK),BLACK,TRIM2#,4#,8#

 1
71930-47020A1

ZRE172..LE..GEN

W(LOCK),IVORY,TRIM0#

 1
71931-47020A1

ZRE172..LE..GEN

W/O(LOCK),IVORY,TRIM0#

 1
71956A - SUPPORT, FRONT SEAT HEADREST
71930-47020B5

ZRE172..LE..GEN

W(LOCK),GRAY,TRIM1#

 1
71930-47020C0

ZRE172..LE..GEN

W(LOCK),BLACK,TRIM4#

 1
71930-47020C0

ZRE172..S..GEN

W(LOCK),BLACK,TRIM2#,4#,8#

 1
71931-47020B5

ZRE172..LE..GEN

W/O(LOCK),GRAY,TRIM1#

 1
71931-47020C0

ZRE172..LE..GEN

W/O(LOCK),BLACK,TRIM4#

 1
71931-47020C0

ZRE172..S..GEN

W/O(LOCK),BLACK,TRIM2#,4#,8#

 1
71930-47020A1

ZRE172..LE..GEN

W(LOCK),IVORY,TRIM0#

 1
71931-47020A1

ZRE172..LE..GEN

W/O(LOCK),IVORY,TRIM0#

 1
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-02481

ZRE172..GEN

 1
72020-02480

ZRE172..GEN

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-02090C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72124-02090C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72128-02030C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
72128-02030C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72138D - COVER, SEAT TRACK, OUTER, LH
72138-02220C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
72138-02220C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-02210C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72158-02210C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-02190

ZRE172..(LE,S)..GEN

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-02290

ZRE172..LE,S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87530-02030

ZRE172..LE,S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213

 1
Common parts
90080-11132
90080-17200
90119-A0112
90167-40044
90167-A0013
90176-A0002
Linked diagrams
7104
8202
8401

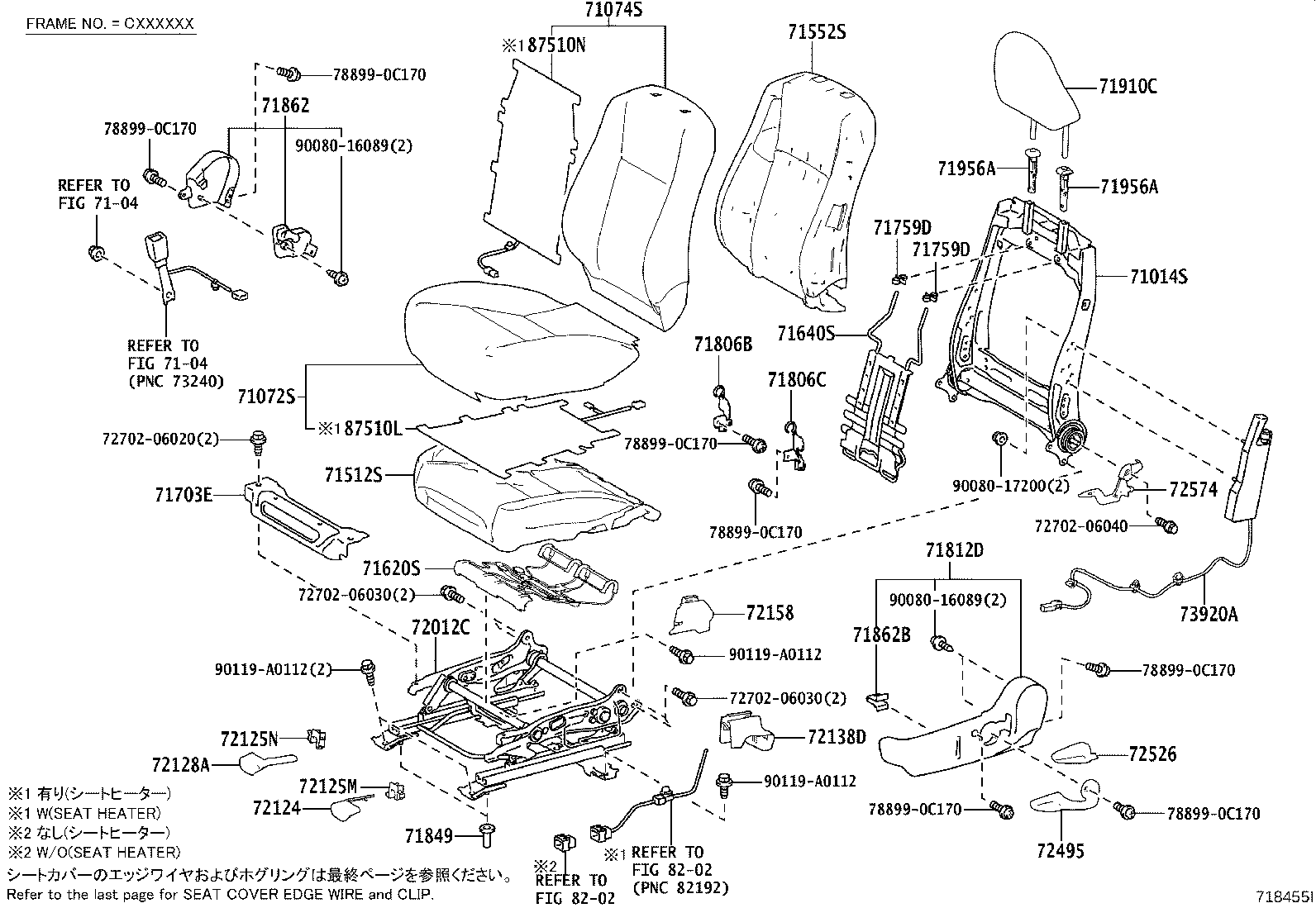

ILLUST NO. 1 OF 3(1308-1608)

Click highlighted areas on diagram

DRIVER SEAT,*213

diagram 71014S 7104 7104 71072S 71074S 71512S 71552S 71620S 71640S 71703E 71759D 71759D 71806B 71806C 71812D 71849 71862 71862B 71910C 71956A 71956A 72012C 72124 72125M 72125N 72128A 72138D 72158 72495 72526 72574 7270206020 7270206030 7270206030 7270206040 73920A 788990C170 788990C170 788990C170 788990C170 788990C170 788990C170 788990C170 8202 8202 87510L 87510N 9008016089 9008016089 9008017200 90119A0112 90119A0112 90119A0112
Part # Description Qty Price
Common parts
72702-06020
72702-06030
72702-06040
78899-0C170
90080-16089
90080-17200
90119-A0112
Linked diagrams
7104
8202

ILLUST NO. 1 OF 3(1308-1608)ECO,ECOSW,LE,S

Click highlighted areas on diagram

DRIVER SEAT W(POWER SEAT),*213

diagram 71014S 7104 7104 7104 71072S 71074S 71512S 71552S 71620S 71640S 71703E 71759D 71759D 71806B 71806C 71812D 71849 71862 71862B 71910C 71956A 71956A 72012C 72124 72125M 72125N 72128A 72137E 72137F 72138D 72158 7270206020 7270206020 7270206030 7270206030 73920A 788990C170 788990C170 788990C170 788990C170 788990C170 8202 8401 8401 8401 8401 87510L 87510N 9008016089 9008016089 9008017200 90119A0112 90119A0112 90119A0112
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-0R030

ZRE172..(LE,S)..GEN

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0Z400C2

ZRE172..S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71072-0Z410C3

ZRE172..LE

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71072-0Z310A1

ZRE172..LE..GEN

IVORY,TRIM0#

 1
71072-0Z340J5

ZRE172..S..GEN

BLACK,TRIM8#

 1
71072-0Z310B1

ZRE172..LE..GEN

GRAY,TRIM1#

 1
71072-0Z310E2

ZRE172..LE..GEN

BLACK,TRIM4#

 1
71072-0Z340E5

ZRE172..S..GEN

BLACK,TRIM4#

 1
71072-0Z340C6

ZRE172..S..GEN

BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0ZA80C1

ZRE172..S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71074-0ZA90C1

ZRE172..LE

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71074-0ZA10E2

ZRE172..LE..GEN

AMBER,TRIM4#

 1
71074-0ZA10A1

ZRE172..LE..GEN

IVORY,TRIM0#

 1
71074-0ZA30C5

ZRE172..S..GEN

BLACK,TRIM2#

 1
71074-0ZA30E4

ZRE172..S..GEN

BLACK,TRIM4#

 1
71074-0ZA10B1

ZRE172..LE..GEN

GRAY,TRIM1#

 1
71074-0ZA30J4

ZRE172..S..GEN

BLACK,TRIM8#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-02450

ZRE172..(LE,STD)..GEN

 1
71512-02451

ZRE172..(LE,STD)..GEN

 1
71512-02471

ZRE172..S..GEN

 1
71512-02470

ZRE172..S..GEN

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-02890

ZRE172..S..GEN

 1
71552-02880

ZRE172..LE..GEN

 1
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-47010

ZRE172..GEN

 2
71759-0E010

ZRE172..GEN

 2
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-47010

ZRE172..GEN

 2
71759-0E010

ZRE172..GEN

 2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02530C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71812-02530C0

ZRE172..LE..GEN

BLACK,TRIM0#,1#,4#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

ZRE172

*213,*348

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0R050C0

ZRE172..(LE,STD)..GEN

BLACK,TRIM0#,1#,4#

 1
71862-0R050C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
71769-47020

ZRE172..GEN

 1
71910C - HEADREST ASSY, FRONT SEAT
71910-02J80B2

ZRE172..LE..GEN

GRAY,TRIM1#

 1
71910-02J80E2

ZRE172..LE..GEN

AMBER,TRIM4#

 1
71910-02J80A2

ZRE172..LE..GEN

IVORY,TRIM0#

 1
71910-02J90C6

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71956A - SUPPORT, FRONT SEAT HEADREST
71930-47020B5

ZRE172..LE..GEN

W(LOCK),GRAY,TRIM1#

 1
71930-47020C0

ZRE172..LE..GEN

W(LOCK),BLACK,TRIM4#

 1
71930-47020C0

ZRE172..S..GEN

W(LOCK),BLACK,TRIM2#,4#,8#

 1
71931-47020B5

ZRE172..LE..GEN

W/O(LOCK),GRAY,TRIM1#

 1
71931-47020C0

ZRE172..LE..GEN

W/O(LOCK),BLACK,TRIM4#

 1
71931-47020C0

ZRE172..S..GEN

W/O(LOCK),BLACK,TRIM2#,4#,8#

 1
71930-47020A1

ZRE172..LE..GEN

W(LOCK),IVORY,TRIM0#

 1
71931-47020A1

ZRE172..LE..GEN

W/O(LOCK),IVORY,TRIM0#

 1
71956A - SUPPORT, FRONT SEAT HEADREST
71930-47020B5

ZRE172..LE..GEN

W(LOCK),GRAY,TRIM1#

 1
71930-47020C0

ZRE172..LE..GEN

W(LOCK),BLACK,TRIM4#

 1
71930-47020C0

ZRE172..S..GEN

W(LOCK),BLACK,TRIM2#,4#,8#

 1
71931-47020B5

ZRE172..LE..GEN

W/O(LOCK),GRAY,TRIM1#

 1
71931-47020C0

ZRE172..LE..GEN

W/O(LOCK),BLACK,TRIM4#

 1
71931-47020C0

ZRE172..S..GEN

W/O(LOCK),BLACK,TRIM2#,4#,8#

 1
71930-47020A1

ZRE172..LE..GEN

W(LOCK),IVORY,TRIM0#

 1
71931-47020A1

ZRE172..LE..GEN

W/O(LOCK),IVORY,TRIM0#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-02090C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72124-02090C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72128-02030C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
72128-02030C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72138D - COVER, SEAT TRACK, OUTER, LH
72138-02220C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
72138-02220C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-02210C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72158-02210C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-02190

ZRE172..(LE,S)..GEN

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-02290

ZRE172..LE,S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87530-02030

ZRE172..LE,S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213

 1
Common parts
72702-06020
72702-06030
78899-0C170
90080-16089
90080-17200
90119-A0112
Linked diagrams
7104
8202
8401

ILLUST NO. 1 OF 3(1308-1608)

Click highlighted areas on diagram

DRIVER, *348:W(POWER SEAT)

diagram 71014S 7104 7104 7104 71052A 71054S 71072S 71074S 71512S 71537H 71538B 71552S 71587B 71587B 71759D 71759D 71769C 71812D 71849 71862 71862B 71868A 71873A 71874 71910C 71956A 71956A 72020 72124 72128A 72138D 72158 73920A 8202 8202 8202 8401 8401 8401 8401 87510L 87510N 9008011132 9008011132 9008017200 90119A0112 90119A0112 90119A0112 9016740044 9016740044 90167A0013 90176A0002
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-0R030

ZRE172..(LE,S)..GEN

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-06090

ZRE172..4FC..STD;ZRE172..CVT..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)

 1
71053-06090

ZRE172..S..GEN

REAR ARMREST-WITH

 1
71053-06090

ZRE172..S..GEN

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0Z400C2

ZRE172..S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71072-0Z410C3

ZRE172..LE

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71072-0Z310A1

ZRE172..LE..GEN

IVORY,TRIM0#

 1
71072-0Z340J5

ZRE172..S..GEN

BLACK,TRIM8#

 1
71072-0Z310B1

ZRE172..LE..GEN

GRAY,TRIM1#

 1
71072-0Z310E2

ZRE172..LE..GEN

BLACK,TRIM4#

 1
71072-0Z340E5

ZRE172..S..GEN

BLACK,TRIM4#

 1
71072-0Z340C6

ZRE172..S..GEN

BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0ZA80C1

ZRE172..S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71074-0ZA90C1

ZRE172..LE

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213

 1
71074-0ZA10E2

ZRE172..LE..GEN

AMBER,TRIM4#

 1
71074-0ZA10A1

ZRE172..LE..GEN

IVORY,TRIM0#

 1
71074-0ZA30C5

ZRE172..S..GEN

BLACK,TRIM2#

 1
71074-0ZA30E4

ZRE172..S..GEN

BLACK,TRIM4#

 1
71074-0ZA10B1

ZRE172..LE..GEN

GRAY,TRIM1#

 1
71074-0ZA30J4

ZRE172..S..GEN

BLACK,TRIM8#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-02450

ZRE172..(LE,STD)..GEN

 1
71512-02451

ZRE172..(LE,STD)..GEN

 1
71512-02471

ZRE172..S..GEN

 1
71512-02470

ZRE172..S..GEN

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0R020C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71537-0R020C0

ZRE172..(LE,STD)..GEN

BLACK,TRIM0#,1#,4#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0R020C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71538-0R020C0

ZRE172..(LE,STD)..GEN

BLACK,TRIM0#,1#,4#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-02890

ZRE172..S..GEN

 1
71552-02880

ZRE172..LE..GEN

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-52030

ZRE172..GEN

 2
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-52030

ZRE172..GEN

 2
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-47010

ZRE172..GEN

 2
71759-0E010

ZRE172..GEN

 2
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-47010

ZRE172..GEN

 2
71759-0E010

ZRE172..GEN

 2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02530C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71812-02530C0

ZRE172..LE..GEN

BLACK,TRIM0#,1#,4#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

ZRE172

*213,*348

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0R050C0

ZRE172..(LE,STD)..GEN

BLACK,TRIM0#,1#,4#

 1
71862-0R050C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
71769-47020

ZRE172..GEN

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-08010

ZRE172..GEN

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-08010

ZRE172..GEN

 1
71910C - HEADREST ASSY, FRONT SEAT
71910-02J80B2

ZRE172..LE..GEN

GRAY,TRIM1#

 1
71910-02J80E2

ZRE172..LE..GEN

AMBER,TRIM4#

 1
71910-02J80A2

ZRE172..LE..GEN

IVORY,TRIM0#

 1
71910-02J90C6

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
71956A - SUPPORT, FRONT SEAT HEADREST
71930-47020B5

ZRE172..LE..GEN

W(LOCK),GRAY,TRIM1#

 1
71930-47020C0

ZRE172..LE..GEN

W(LOCK),BLACK,TRIM4#

 1
71930-47020C0

ZRE172..S..GEN

W(LOCK),BLACK,TRIM2#,4#,8#

 1
71931-47020B5

ZRE172..LE..GEN

W/O(LOCK),GRAY,TRIM1#

 1
71931-47020C0

ZRE172..LE..GEN

W/O(LOCK),BLACK,TRIM4#

 1
71931-47020C0

ZRE172..S..GEN

W/O(LOCK),BLACK,TRIM2#,4#,8#

 1
71930-47020A1

ZRE172..LE..GEN

W(LOCK),IVORY,TRIM0#

 1
71931-47020A1

ZRE172..LE..GEN

W/O(LOCK),IVORY,TRIM0#

 1
71956A - SUPPORT, FRONT SEAT HEADREST
71930-47020B5

ZRE172..LE..GEN

W(LOCK),GRAY,TRIM1#

 1
71930-47020C0

ZRE172..LE..GEN

W(LOCK),BLACK,TRIM4#

 1
71930-47020C0

ZRE172..S..GEN

W(LOCK),BLACK,TRIM2#,4#,8#

 1
71931-47020B5

ZRE172..LE..GEN

W/O(LOCK),GRAY,TRIM1#

 1
71931-47020C0

ZRE172..LE..GEN

W/O(LOCK),BLACK,TRIM4#

 1
71931-47020C0

ZRE172..S..GEN

W/O(LOCK),BLACK,TRIM2#,4#,8#

 1
71930-47020A1

ZRE172..LE..GEN

W(LOCK),IVORY,TRIM0#

 1
71931-47020A1

ZRE172..LE..GEN

W/O(LOCK),IVORY,TRIM0#

 1
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-02481

ZRE172..GEN

 1
72020-02480

ZRE172..GEN

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-02090C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72124-02090C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72128-02030C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
72128-02030C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72138D - COVER, SEAT TRACK, OUTER, LH
72138-02220C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
72138-02220C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-02210C0

ZRE172..S

BLACK,TRIM2#,4#,8#,*213,*348

 1
72158-02210C0

ZRE172..STD..GEN;ZRE172..(CVT,MTM)..LE

BLACK,TRIM0#,1#,4#,*213,*348

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-02190

ZRE172..(LE,S)..GEN

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-02290

ZRE172..LE,S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87530-02030

ZRE172..LE,S

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213

 1
Common parts
90080-11132
90080-17200
90119-A0112
90167-40044
90167-A0013
90176-A0002
Linked diagrams
7104
8202
8401

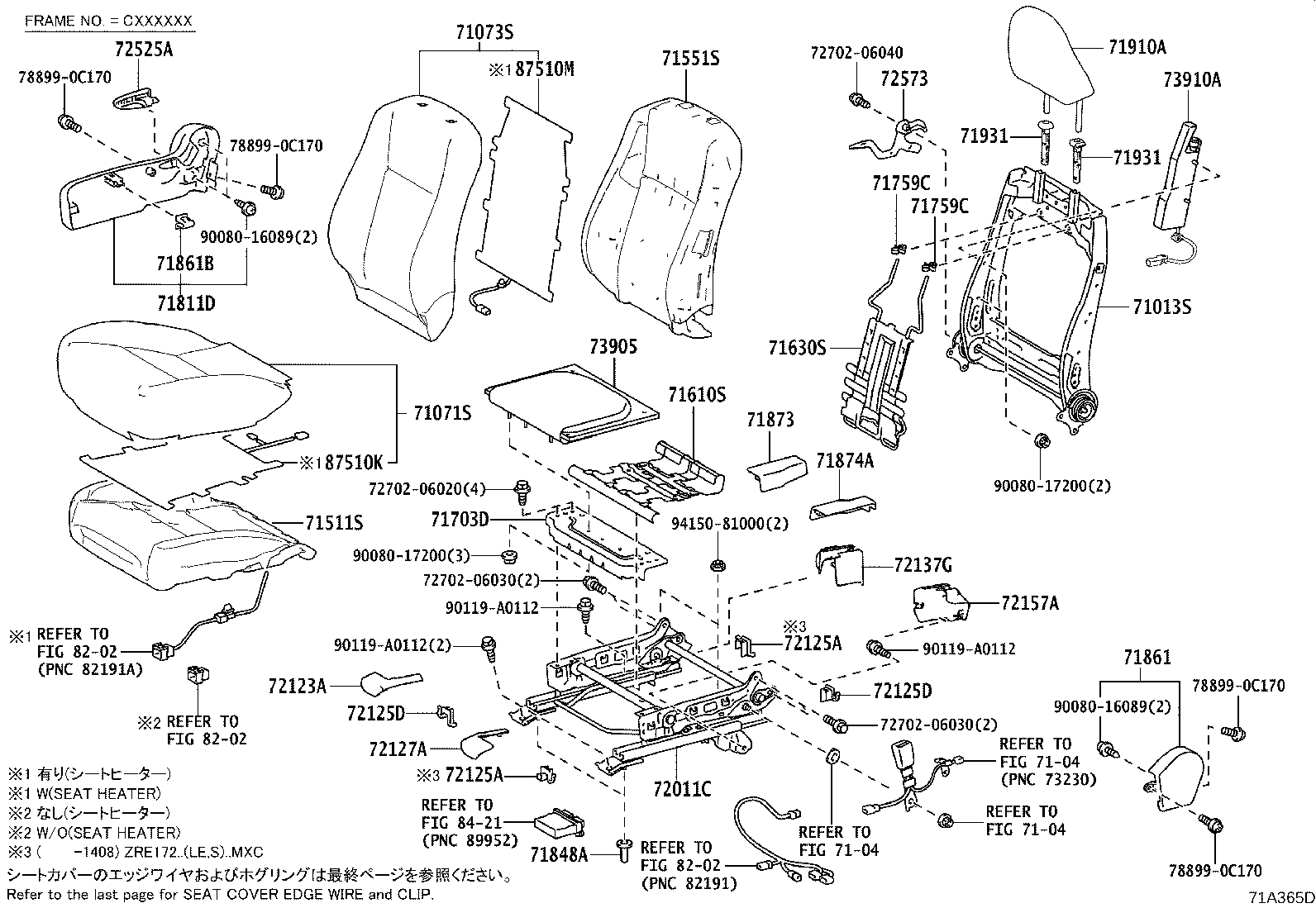

ILLUST NO. 2 OF 3(1308-1608)

Click highlighted areas on diagram

PASSENGER SEAT,*213

diagram 71013S 7104 7104 7104 71071S 71073S 71511S 71551S 71610S 71630S 71703D 71759C 71759C 71811D 71848A 71861 71861B 71873 71874A 71910A 71931 71931 72011C 72123A 72125A 72125A 72125D 72125D 72127A 72137G 72157A 72525A 72573 7270206020 7270206030 7270206030 7270206040 73905 73905 73910A 788990C170 788990C170 788990C170 788990C170 8202 8202 8202 8421 87510K 87510M 9008016089 9008016089 9008017200 9008017200 90119A0112 90119A0112 90119A0112 9415081000
Part # Description Qty Price
Common parts
72702-06020
72702-06030
72702-06040
78899-0C170
90080-16089
90080-17200
90119-A0112
94150-81000
Linked diagrams
7104
8202
8421
