ZRE172L-DEXNK (2014)
Toyota Corolla

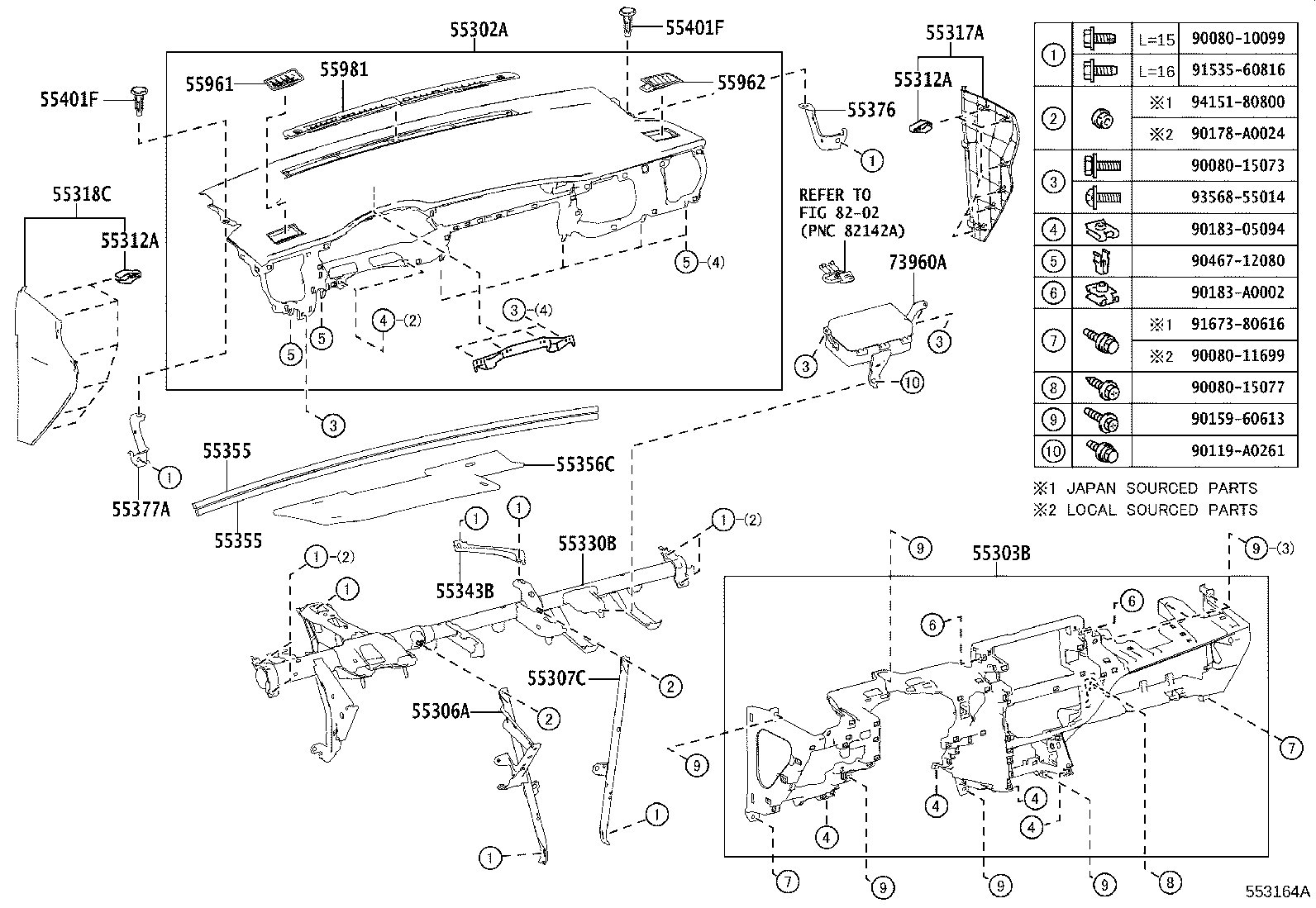

ILLUST NO. 1 OF 2(1308-1608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02540C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55302-02540C0 |
ZRE172..(LE,STD)..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02170C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55303-02170C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55303-02171C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55303-02171C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02590 |
ZRE172..GEN |
1 | ||
| 55306-02450 |
ZRE172..CVT..LE SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 55306-02450 |
ZRE172..GEN |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02240 |
ZRE172..CVT,MTM |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ZRE172 MELLOW WHITE |
12 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ZRE172 MELLOW WHITE |
12 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02100C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 55317-02290C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 55317-02100C0 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM0#,1#,4# |
1 | ||
| 55317-02640C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 55317-02100C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55317-02290C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55317-02640C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02150C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55318-02150C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02580 |
ZRE172..CVT..LE SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| 55330-02770 |
ZRE172..GEN |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02130 |
ZRE172..CVT,MTM |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02270 |
ZRE172..CVT,MTM |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02270 |
ZRE172..CVT,MTM |
2 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02220 |
ZRE172..CVT,MTM |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-02080 |
ZRE172..CVT,MTM |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-02060 |
ZRE172..CVT,MTM |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02020 |
ZRE172..CVT,MTM |
2 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02020 |
ZRE172..CVT,MTM |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02150C0 |
ZRE172..(LE,STD)..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55961-02150C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02110C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55962-02110C0 |
ZRE172..(LE,STD)..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-02300C0 |
ZRE172..(LE,STD)..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55981-02300C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02230 |
ZRE172..GEN |
1 | ||
| 73960-02231 |
ZRE172..GEN |
1 | ||
| 73960-02170 |
ZRE172..CVT..LE..GEN SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P) |
1 | ||
| Common parts | ||||
| 90080-10099 | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-15077 | ||||
| 90119-A0261 | ||||
| 90159-60613 | ||||
| 90178-A0024 | ||||
| 90183-05094 | ||||
| 90183-A0002 | ||||
| 90467-12080 | ||||
| 91535-60816 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

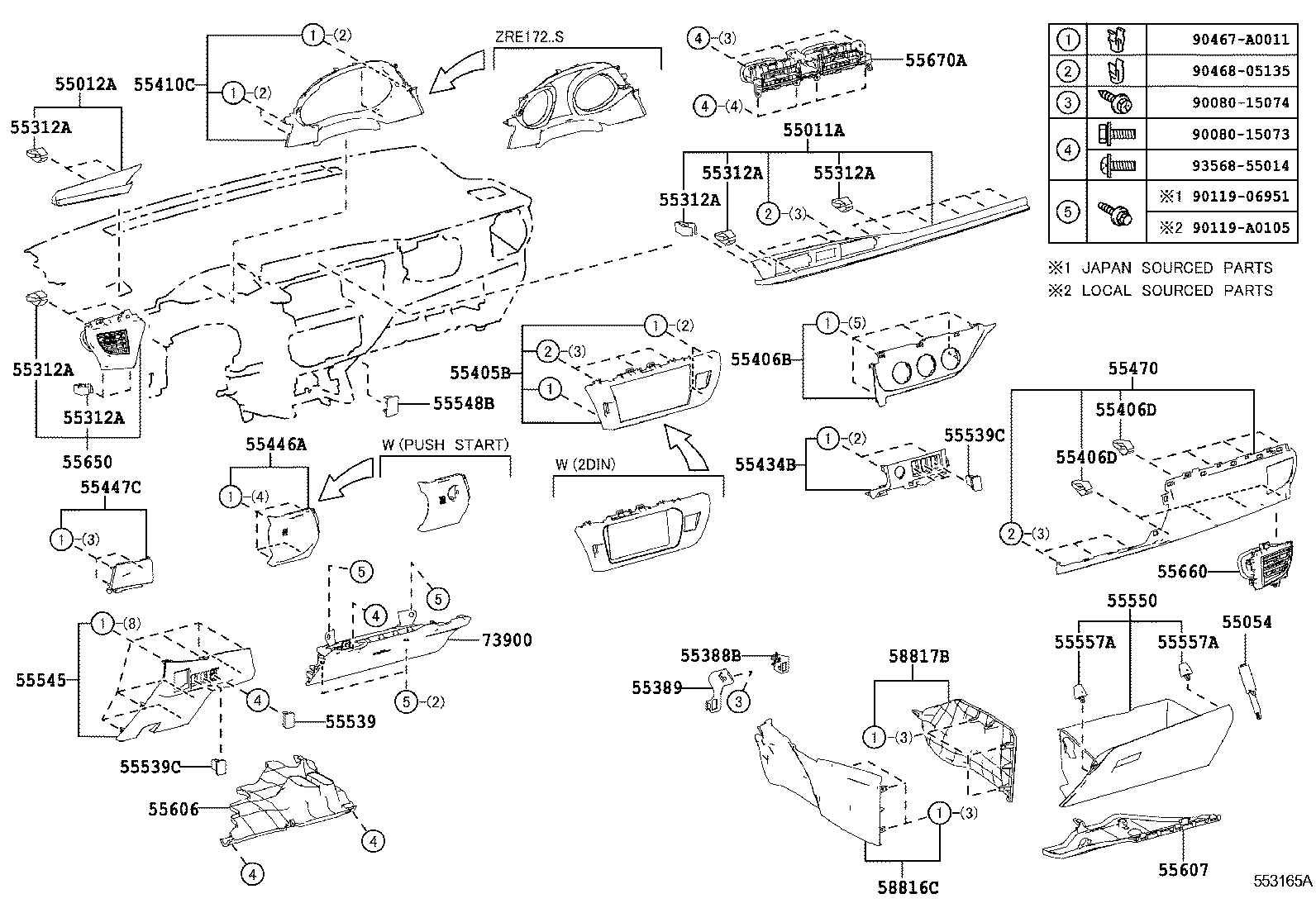

ILLUST NO. 2 OF 2(1308-1608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02030B1 |
ZRE172..S AMBER,TRIM4# |
1 | ||
| 55011-02030B0 |
ZRE172..S BLUE,TRIM2#,8# |
1 | ||
| 55011-02010B1 |
ZRE172..LE..GEN BLUE,TRIM1# |
1 | ||
| 55011-02010B2 |
ZRE172..LE AMBER,TRIM0#,4# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-02030B1 |
ZRE172..S AMBER,TRIM4# |
1 | ||
| 55012-02010B2 |
ZRE172..LE AMBER,TRIM0#,4# |
1 | ||
| 55012-02030B0 |
ZRE172..S BLUE,TRIM2#,8# |
1 | ||
| 55012-02010B1 |
ZRE172..LE..GEN BLUE,TRIM1# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02410C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 55045-02410C0 |
ZRE172..(LE,STD)..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
ZRE172..CVT,MTM |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ZRE172 MELLOW WHITE |
12 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ZRE172 MELLOW WHITE |
12 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ZRE172 MELLOW WHITE |
12 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ZRE172 MELLOW WHITE |
12 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ZRE172 MELLOW WHITE |
12 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ZRE172 MELLOW WHITE |
12 | ||
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-02040 |
ZRE172..CVT,MTM |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-02040 |
ZRE172..CVT,MTM |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02520C1 |
ZRE172..S BLACK METALLC,TRIM2#,4#,8# |
1 | ||
| 55405-02520C1 |
ZRE172..LE..GEN BLACK METALLC,TRIM0#,1#,4# |
1 | ||
| 55405-02510C1 |
ZRE172..LE..GEN AUDIO-RADIO LESS & 6SPEAKER,BLACK METALLC,TRIM0#,1#,4# |
1 | ||
| 55405-02510C1 |
ZRE172..S..GEN AUDIO-RADIO LESS & 6SPEAKER,BLACK METALLC,TRIM2#,4#,8# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02470C1 |
ZRE172..LE..GEN AIR CONDITIONER-AUTO(SINGLE MODE),BLACK,TRIM0#,1#,4# |
1 | ||
| 55406-02470C1 |
ZRE172..(LE,STD)..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172 MELLOW WHITE |
8 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172 MELLOW WHITE |
8 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02290C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55410-02280C0 |
ZRE172..(LE,STD)..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02220C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55434-02220C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02120C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 55446-02120C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02100C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55447-02100C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02190B0 |
ZRE172..LE GRAY,TRIM1# |
1 | ||
| 55470-02190C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55470-02190C0 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 55470-02190A0 |
ZRE172..LE;ZRE172..STD..GEN IVORY,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55539-52070C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-02130C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55539-02130C0 |
ZRE172..(LE,STD)..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-02130C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55539-02130C0 |
ZRE172..(LE,STD)..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-02101C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55545-02100C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55545-02100C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55545-02101C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55548B - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-02630C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 55548-02630C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02400C0 |
ZRE172..(LE,STD)..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 55550-02400C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE172..CVT,MTM |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE172..CVT,MTM |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02230 |
ZRE172..CVT,MTM |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02130 |
ZRE172..(LE,S)..GEN |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02260C4 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 55650-02260B2 |
ZRE172..LE GRAY,TRIM1# |
1 | ||
| 55650-02260A2 |
ZRE172..LE IVORY,TRIM0# |
1 | ||
| 55650-02260C4 |
ZRE172..LE..GEN BLACK,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02200B1 |
ZRE172..S MD.SILVER,TRIM2#,4#,8# |
1 | ||
| 55660-02200B1 |
ZRE172..LE..GEN MD.SILVER,TRIM0#,1#,4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02380 |
ZRE172..STD..GEN;ZRE172..(CVT,MTM)..(LE,S) |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02130C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 58816-02130C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02130C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| 58817-02130C0 |
ZRE172..S BLACK,TRIM2#,4#,8# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02070C0 |
ZRE172..CVT..LE SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),BLACK,TRIM0#,1#,4# |
1 | ||
| 73900-02070C0 |
ZRE172..S..GEN BLACK,TRIM2#,4#,8# |
1 | ||
| 73900-02070C0 |
ZRE172..LE..GEN BLACK,TRIM0#,1#,4# |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90080-15074 | ||||
| 90119-06951 | ||||
| 90119-A0105 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 2(1308-1608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-10099 | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-15077 | ||||
| 90119-A0261 | ||||
| 90159-60613 | ||||
| 90178-A0024 | ||||
| 90183-05094 | ||||
| 90183-A0002 | ||||
| 90467-12080 | ||||
| 91535-60816 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1308-1608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-15073 | ||||
| 90080-15074 | ||||
| 90119-06951 | ||||
| 90119-A0105 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
