ZRE172L-DEXNK (2014)
Toyota Corolla

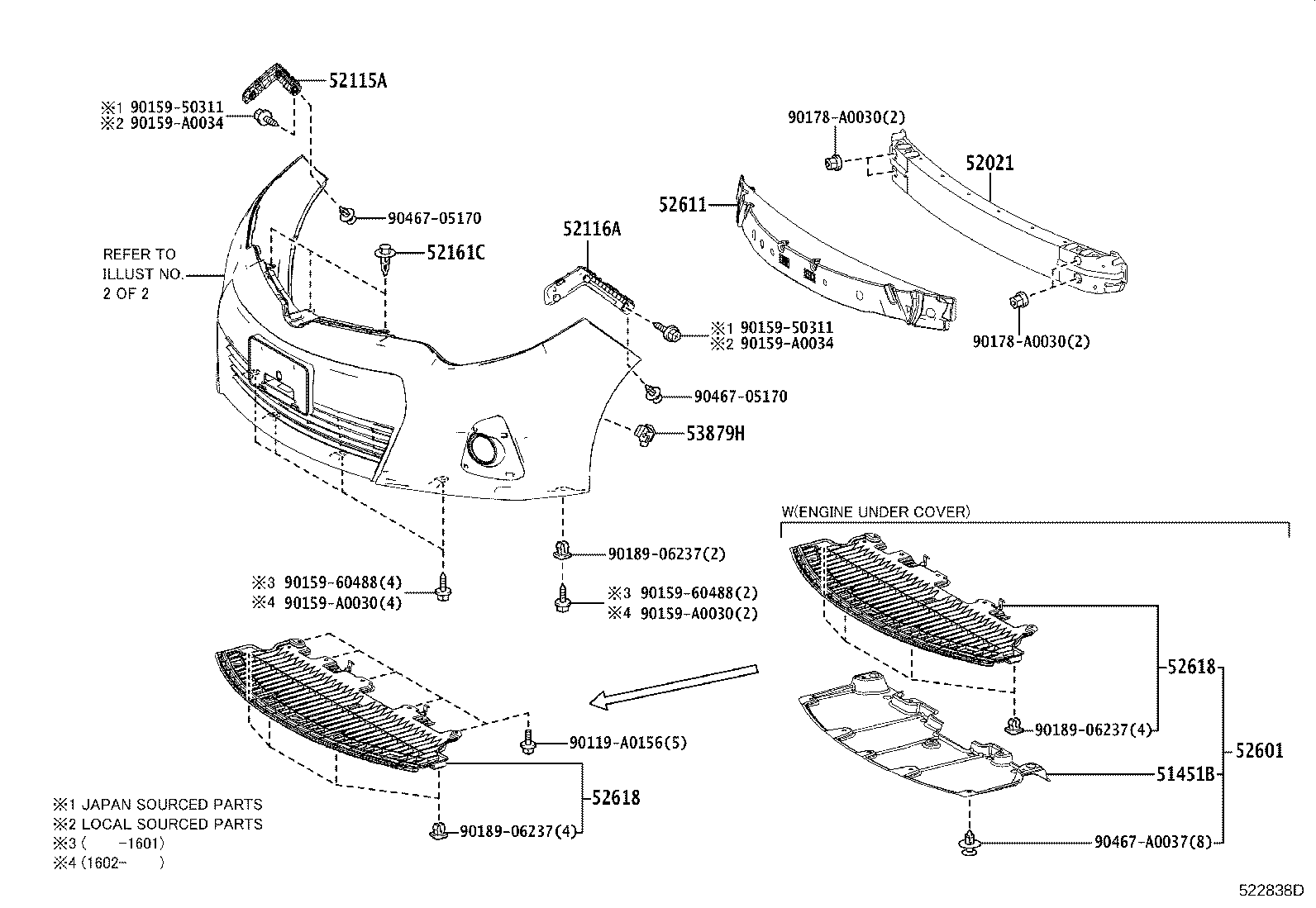

ILLUST NO. 1 OF 2(1308-1608)LE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-02300 |
ZRE172..CVT,MTM |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02240 |
ZRE172..CVT,MTM |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02240 |
ZRE172..CVT,MTM |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ZRE172..CVT,MTM |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02280 |
ZRE172..CVT,MTM |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02060 |
ZRE172..CVT,MTM |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-02070 |
ZRE172..CVT,MTM |
2 | ||
| 53879-58010 |
ZRE172 |
2 | ||
| Common parts | ||||
| 90119-A0156 | ||||
| 90159-50311 | ||||
| 90159-60488 | ||||
| 90159-A0030 | ||||
| 90159-A0034 | ||||
| 90178-A0030 | ||||
| 90189-06237 | ||||
| 90467-05170 | ||||

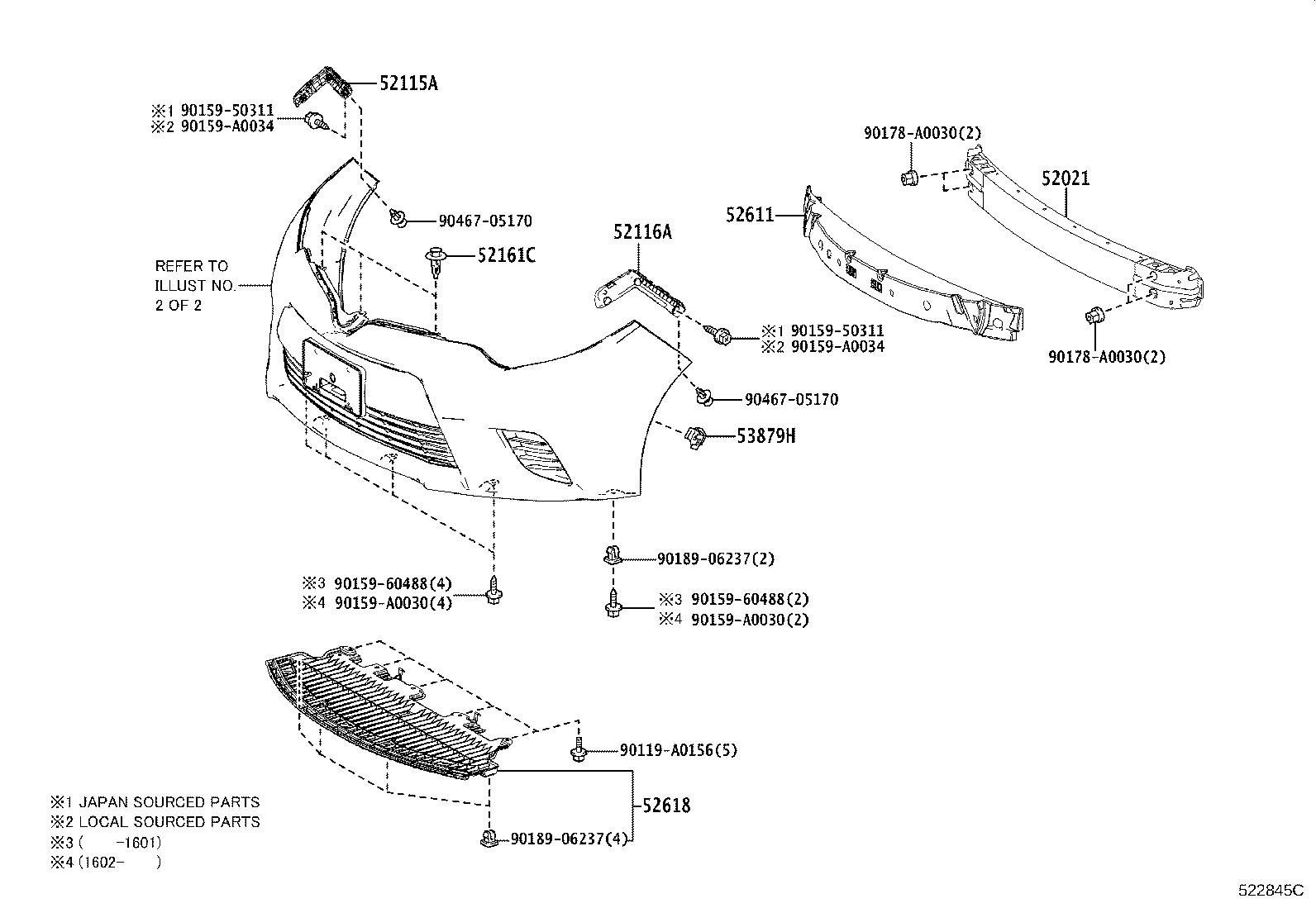

ILLUST NO. 1 OF 2(1308-1608)S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-02300 |
ZRE172..CVT,MTM |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02240 |
ZRE172..CVT,MTM |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02240 |
ZRE172..CVT,MTM |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ZRE172..CVT,MTM |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02280 |
ZRE172..CVT,MTM |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02060 |
ZRE172..CVT,MTM |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-02070 |
ZRE172..CVT,MTM |
2 | ||
| 53879-58010 |
ZRE172 |
2 | ||
| Common parts | ||||
| 90119-A0156 | ||||
| 90159-50311 | ||||
| 90159-60488 | ||||
| 90159-A0030 | ||||
| 90159-A0034 | ||||
| 90178-A0030 | ||||
| 90189-06237 | ||||
| 90467-05170 | ||||

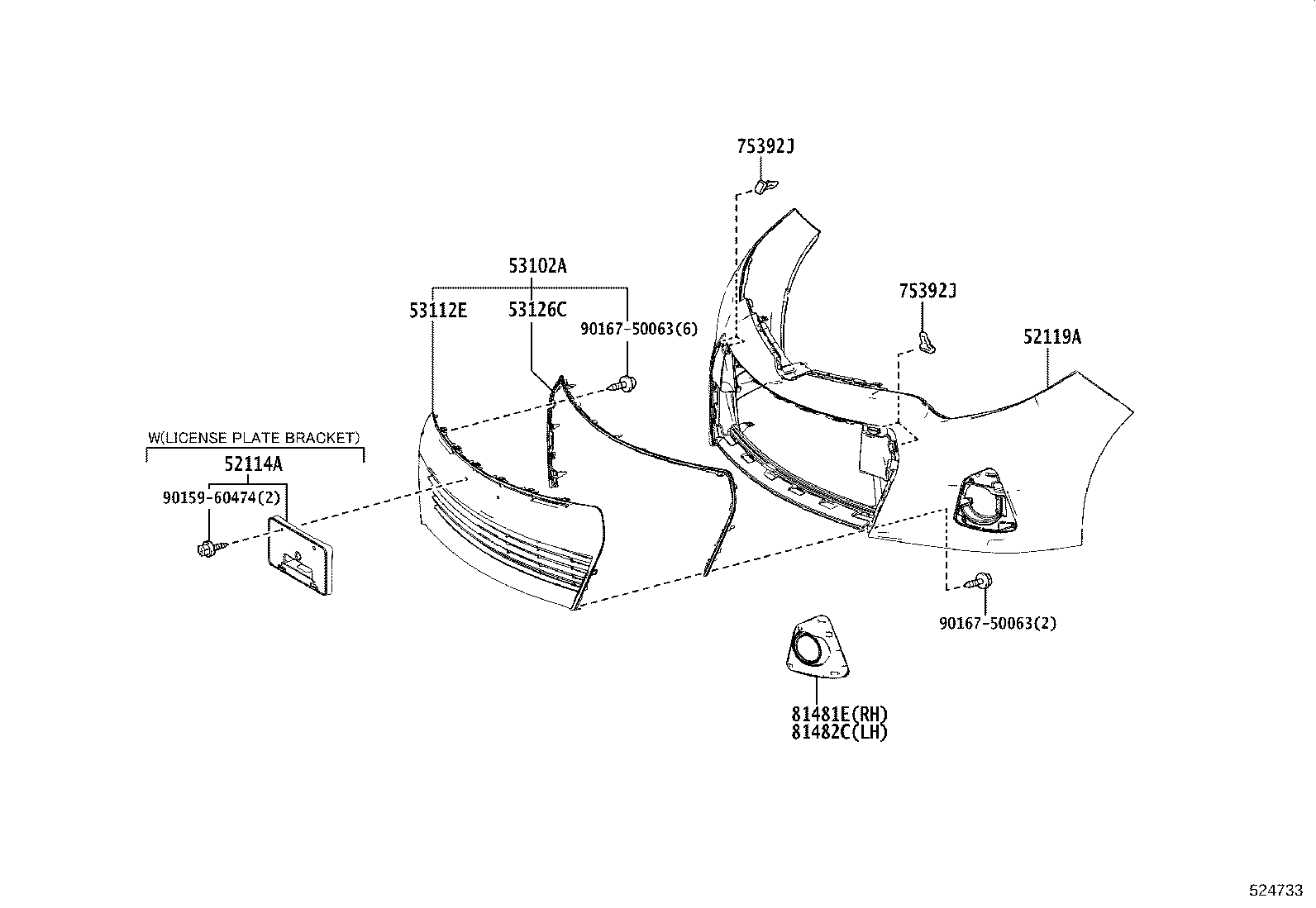

ILLUST NO. 2 OF 2(1308-1608)S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-02090 |
ZRE172..S LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR) |
1 | ||
| 52114-02080 |
ZRE172..CVT..(LE,STD);ZRE172..6F..(LE,STD)..GEN LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR) |
1 | ||
| 52114-02090 |
ZRE172..CVT..S;ZRE172..6F..S..GEN LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR) |
1 | ||
| 52114-02080 |
ZRE172..LE,STD LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-03906 |
ZRE172..(CVT,MTM)..S PAINT REQ. |
1 | ||
| 52119-03904 |
ZRE172..(CVT,MTM)..(LE,STD) PAINT REQ. |
1 | ||
| 53102A - GRILLE SUB-ASSY, RADIATOR, LWR | ||||
| 53102-02210 |
ZRE172..(CVT,MTM)..S |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-02510 |
ZRE172..(CVT,MTM)..S NO PAINT REQ. |
1 | ||
| 53112-02450 |
ZRE172..(LE,STD)..GEN;ZRE172..(CVT,MTM)..STD..MXC NO PAINT REQ. |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-02090 |
ZRE172..(CVT,MTM)..S |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZRE172..(CVT,MTM)..S |
4 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZRE172..(CVT,MTM)..S |
4 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-02340 |
ZRE172..LE..GEN |
1 | ||
| 81481-02480 |
ZRE172..(CVT,MTM)..S |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-02330 |
ZRE172..LE..GEN |
1 | ||
| 81482-02470 |
ZRE172..(CVT,MTM)..S |
1 | ||
| Common parts | ||||
| 90159-60474 | ||||
| 90167-50063 | ||||

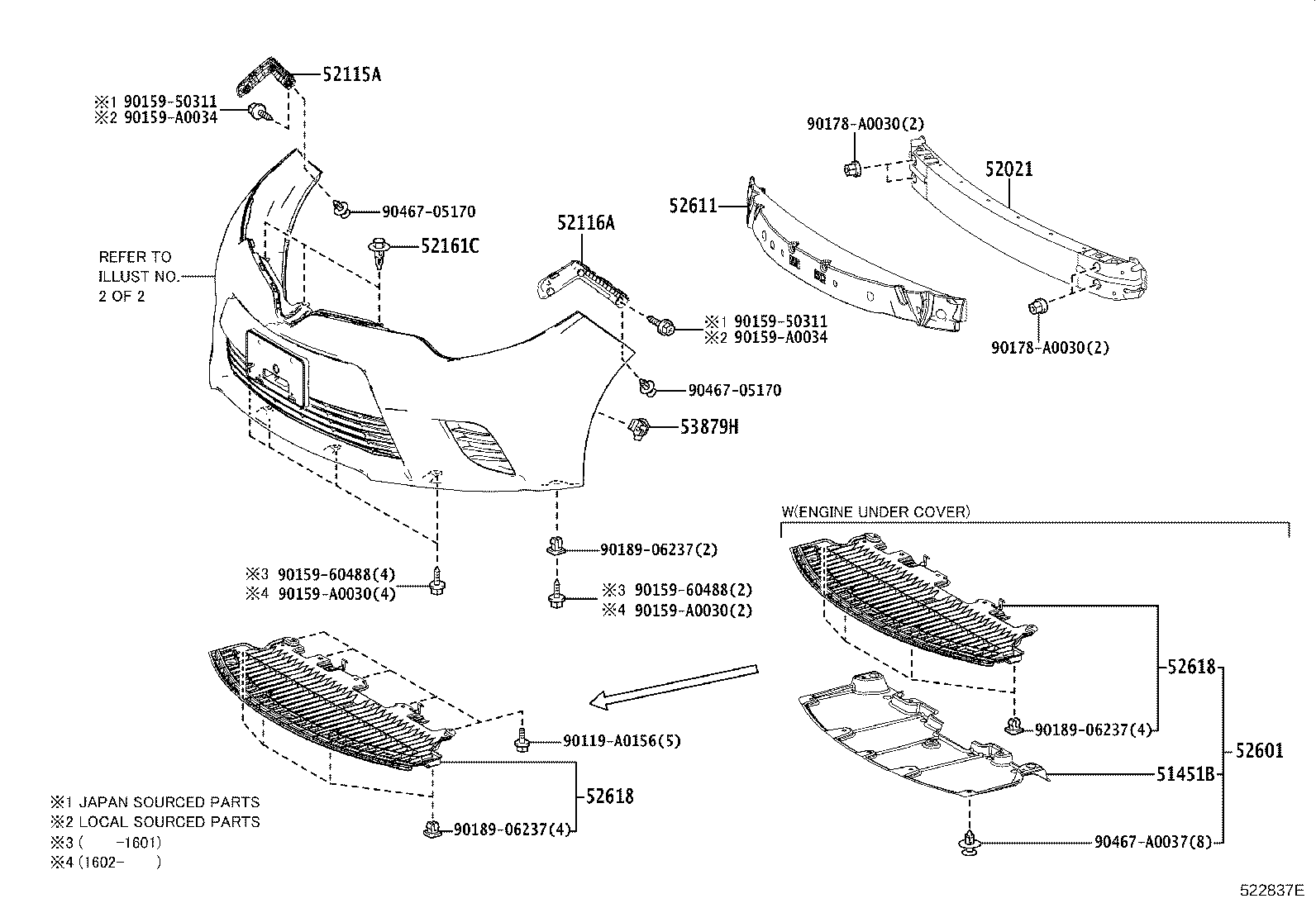

ILLUST NO. 1 OF 2(1308-1608)ECO,ECOSW,LE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-A0156 | ||||
| 90159-50311 | ||||
| 90159-60488 | ||||
| 90159-A0030 | ||||
| 90159-A0034 | ||||
| 90178-A0030 | ||||
| 90189-06237 | ||||
| 90467-05170 | ||||
| 90467-A0037 | ||||
ILLUST NO. 1 OF 2(1308-1608)S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-A0156 | ||||
| 90159-50311 | ||||
| 90159-60488 | ||||
| 90159-A0030 | ||||
| 90159-A0034 | ||||
| 90178-A0030 | ||||
| 90189-06237 | ||||
| 90467-05170 | ||||
| 90467-A0037 | ||||

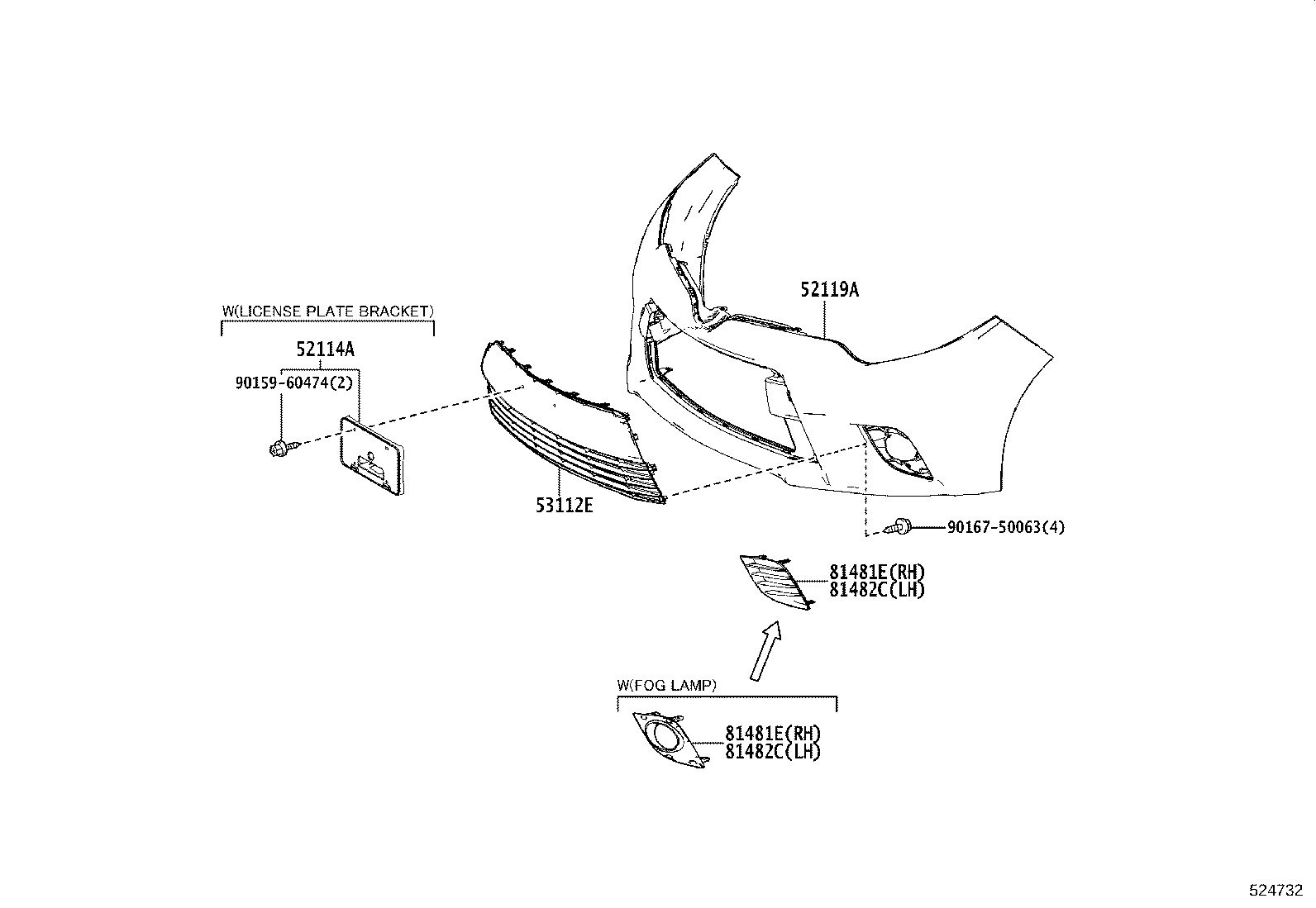

ILLUST NO. 2 OF 2(1308-1608)ECO,ECOSW,LE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60474 | ||||
| 90167-50063 | ||||
ILLUST NO. 2 OF 2(1308-1608)S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60474 | ||||
| 90167-50063 | ||||
