ZRE172L-DEXNK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1404- )2ZRFAE ; (1404- )2ZRFE..CVT..LE,STD..GEN

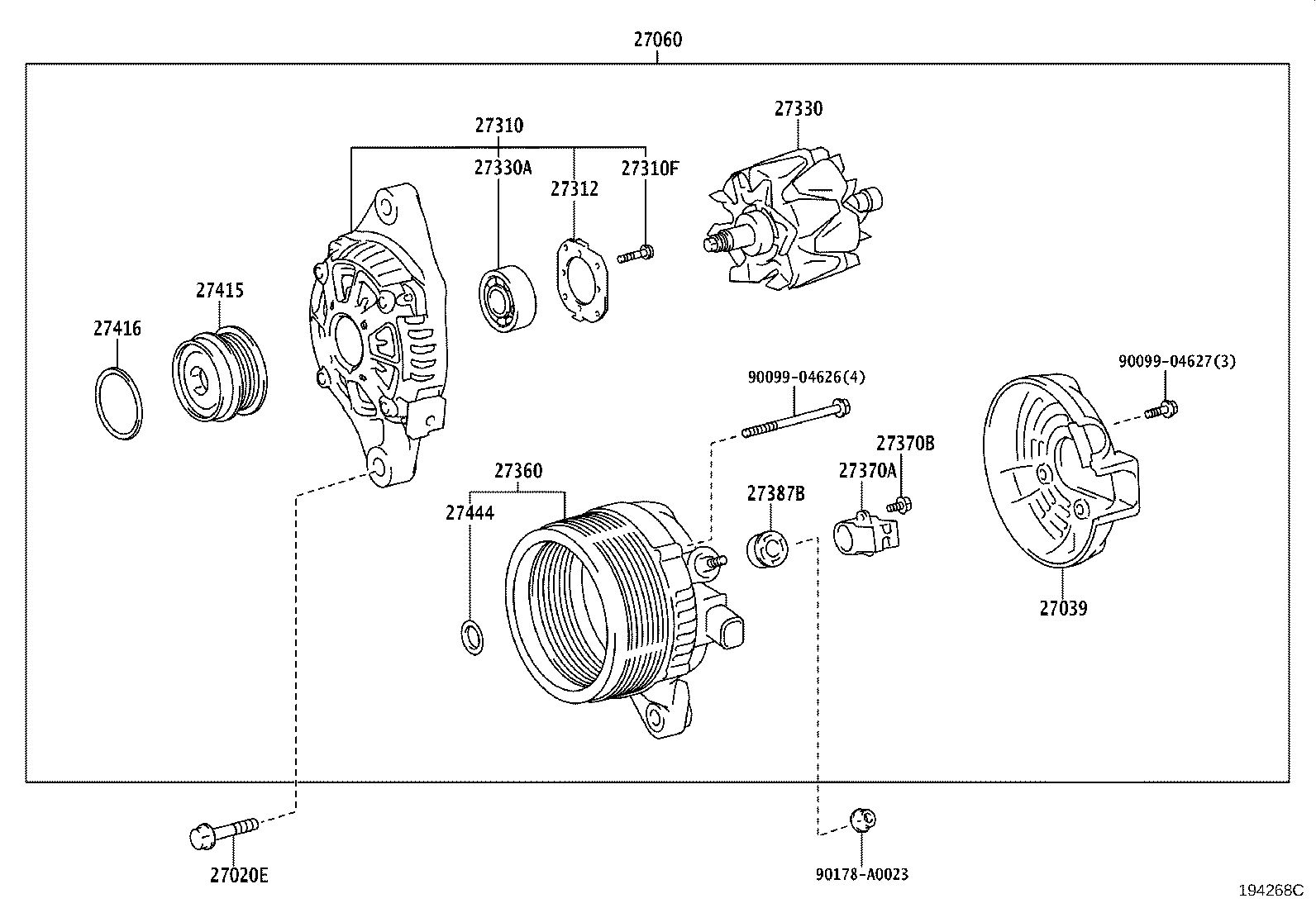

Click highlighted areas on diagram

12V 100A DENSO

diagram 27020E 27039 27060 27310 27310F 27312 27330 27330A 27360 27370A 27370B 27387B 27415 27416 27444 9009904626 9009904627 90178A0023
Part # Description Qty Price
27020E - BOLT(FOR ALTERNATOR)
90105-10307

2ZRFE..ZRE172..CVT,MTM

(J)

 1
90105-A0267

2ZRFE..ZRE172..CVT,MTM

(L)

 1
27039 - COVER, ALTERNATOR REAR END
27039-37220

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27039-47330

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27039-0T210

2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN

 1
27060 - ALTERNATOR ASSY, W/REGULATOR
27060-0T240

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27060-0T230

2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-37130

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27310F - SCREW(FOR ALTERNATOR DRIVE END FRAME)
90099-00268

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 4
27312 - PLATE, RETAINER
27312-72100

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-47330

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10223

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27360 - COIL ASSY, ALTERNATOR
27360-0T221

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27370B - SCREW(FOR ALTERNATOR BRUSH HOLDER)
90099-00197

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 2
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0T031

2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN

 1
27415-0T060

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2ZRFE..ZRE172

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-21190

2ZRFE..ZRE172..CVT..(LE,STD)..GEN

 1
Common parts
90099-04626
90099-04627
90178-A0023
