ZRE172L-DEPSKJ (2013)
Toyota Corolla
Production
Aug 2013
-
Aug 2014
Engine
2ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1308- )4FC

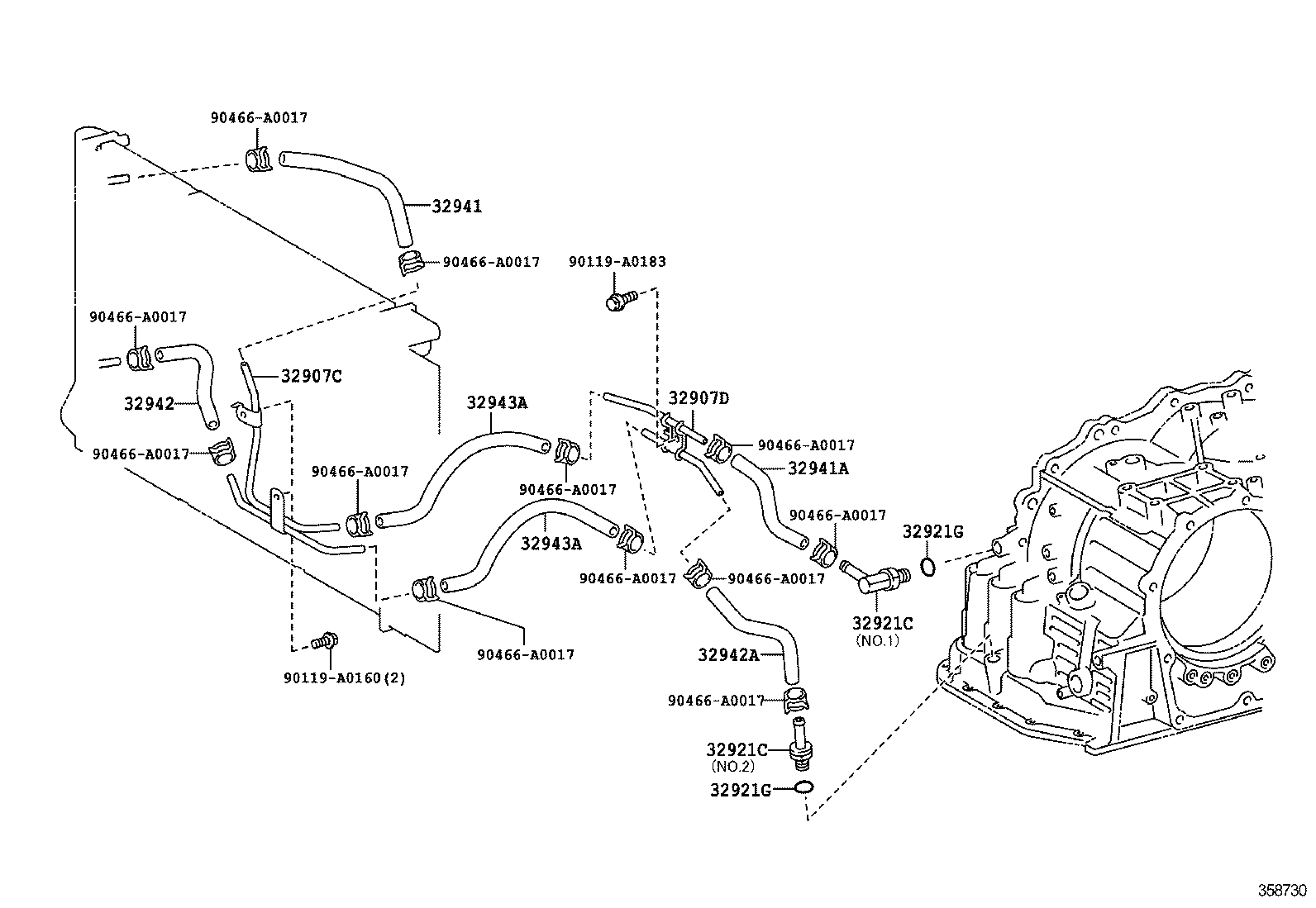

Click highlighted areas on diagram
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 | ||||
| 32907-02290 |
ZRE172..4FC |
1 | ||
| 32907D - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2 | ||||
| 32907-02050 |
ZRE172..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13007 |
ZRE172..4FC NO.2 |
1 | ||
| 90404-13005 |
ZRE172..4FC NO.1 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13007 |
ZRE172..4FC NO.2 |
1 | ||
| 90404-13005 |
ZRE172..4FC NO.1 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10018 |
ZRE172..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10018 |
ZRE172..4FC |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32943-02490 |
ZRE172..4FC |
1 | ||
| 32941A - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32943-02030 |
ZRE172..4FC |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32943-02020 |
ZRE172..4FC |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 32943-02040 |
ZRE172..4FC |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 90080-44037 |
ZRE172..4FC |
2 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 90080-44037 |
ZRE172..4FC |
2 | ||
| Common parts | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90466-A0017 | ||||
(1308- )4FC
Click highlighted areas on diagram
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 | ||||
| 32907-02290 |
ZRE172..4FC |
1 | ||
| 32907D - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2 | ||||
| 32907-02050 |
ZRE172..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13007 |
ZRE172..4FC NO.2 |
1 | ||
| 90404-13005 |
ZRE172..4FC NO.1 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13007 |
ZRE172..4FC NO.2 |
1 | ||
| 90404-13005 |
ZRE172..4FC NO.1 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10018 |
ZRE172..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10018 |
ZRE172..4FC |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32943-02490 |
ZRE172..4FC |
1 | ||
| 32941A - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32943-02030 |
ZRE172..4FC |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32943-02020 |
ZRE172..4FC |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 32943-02040 |
ZRE172..4FC |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 90080-44037 |
ZRE172..4FC |
2 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 90080-44037 |
ZRE172..4FC |
2 | ||
| Common parts | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90466-A0017 | ||||
