ZRE172L-DEPDKJ (2013)
Toyota Corolla
Production
Aug 2013
-
Aug 2014
Engine
2ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1308- )

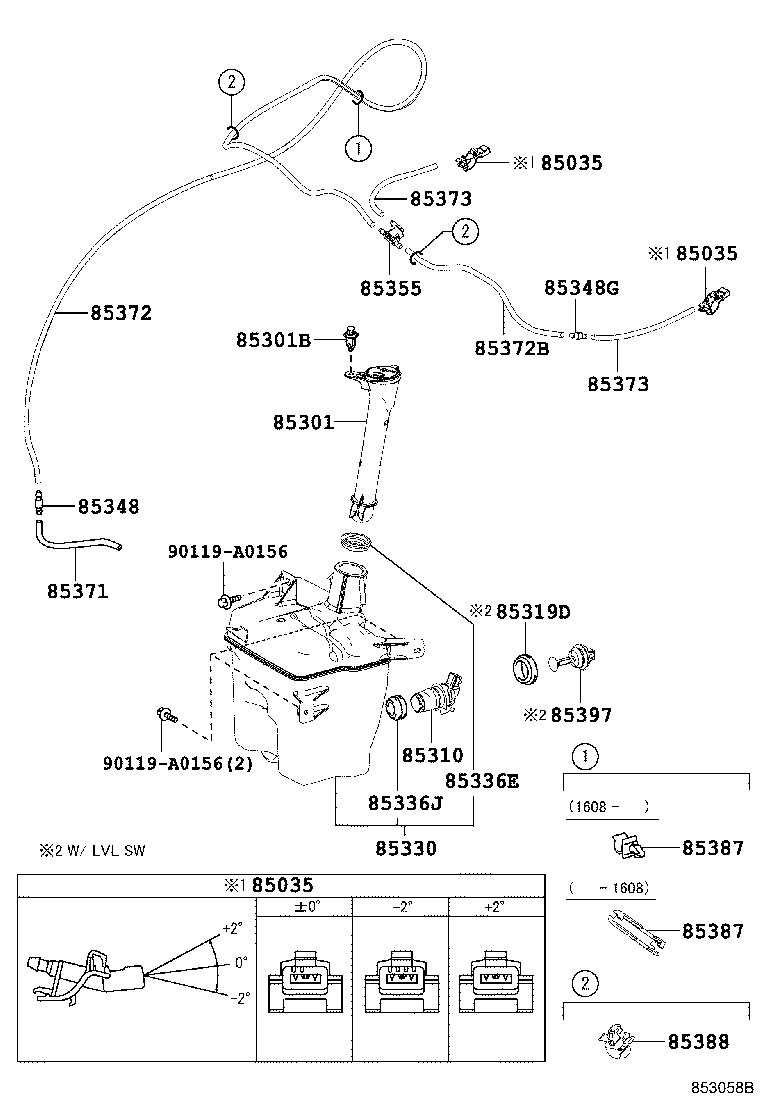

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12430 |
ZRE172..4FC ANGLE -2 |
2 | ||
| 85381-12400 |
ZRE172..4FC ANGLE 0 |
2 | ||
| 85381-12420 |
ZRE172..4FC ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12430 |
ZRE172..4FC ANGLE -2 |
2 | ||
| 85381-12400 |
ZRE172..4FC ANGLE 0 |
2 | ||
| 85381-12420 |
ZRE172..4FC ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12430 |
ZRE172..4FC ANGLE -2 |
2 | ||
| 85381-12400 |
ZRE172..4FC ANGLE 0 |
2 | ||
| 85381-12420 |
ZRE172..4FC ANGLE +2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-02050 |
ZRE172..4FC |
1 | ||
| 85301B - CLIP, WASHER | ||||
| 90467-A0016C0 |
ZRE172 BLACK |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-60190 |
ZRE172..4FC |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-02520 |
ZRE172..4FC |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-30160 |
ZRE172..4FC |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85336-60300 |
ZRE172..4FC |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85317-02300 |
ZRE172..4FC |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-02300 |
ZRE172..4FC |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ZRE172..4FC |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-33104 |
ZRE172..4FC L=140 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33186 |
ZRE172..4FC L=1920 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-33065 |
ZRE172..4FC L=390 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33187 |
ZRE172..4FC L=170 |
6 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33187 |
ZRE172..4FC L=170 |
6 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-02260 |
ZRE172..4FC |
1 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-02260 |
ZRE172..4FC |
1 | ||
| 85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER) | ||||
| 85371-12040 |
ZRE172..4FC |
2 | ||
| Common parts | ||||
| 90119-A0156 | ||||
(1308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-A0156 | ||||
