ZRE172L-DEPDKJ (2013)
Toyota Corolla

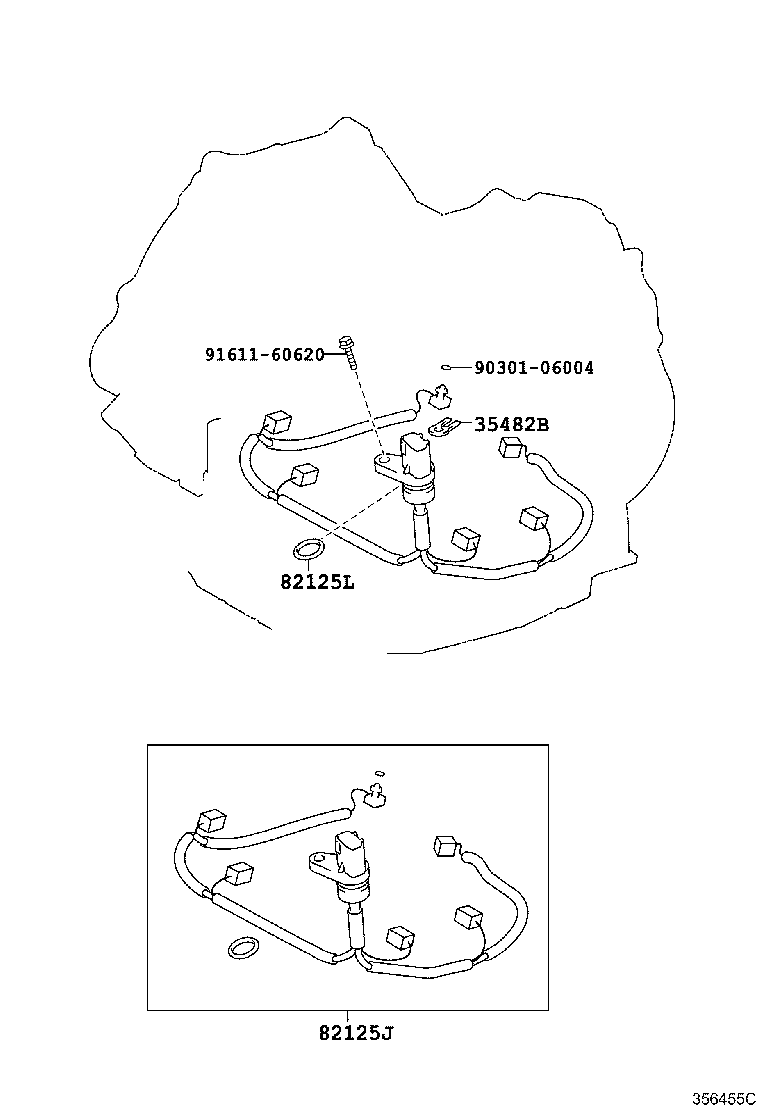

ILLUST NO. 2 OF 2(1308- )4FC
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-52020 |
ZRE172..4FC |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-52070 |
ZRE172..4FC |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ZRE172..4FC |
1 | ||
| Common parts | ||||
| 90301-06004 | ||||
| 91611-60620 | ||||

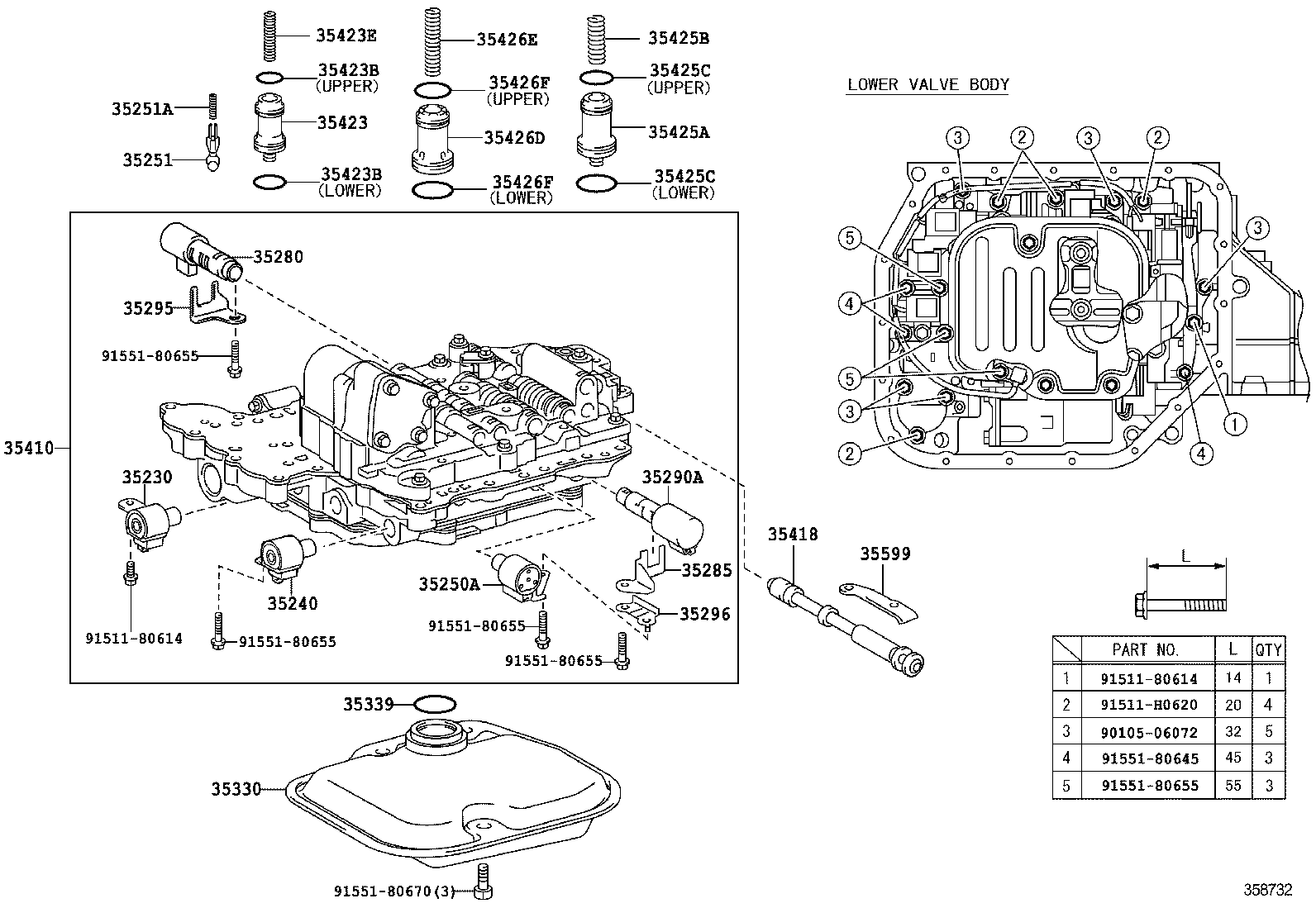

ILLUST NO. 1 OF 2(1308- )4FC
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-52021 |
ZRE172..4FC |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-52051 |
ZRE172..4FC |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-52080 |
ZRE172..4FC |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
ZRE172..4FC |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
ZRE172..4FC |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-52040 |
ZRE172..4FC |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-52030 |
ZRE172..4FC |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-52040 |
ZRE172..4FC |
1 | ||
| 35295 - PLATE, SOLENOID LOCK, NO.2 | ||||
| 35295-52020 |
ZRE172..4FC |
1 | ||
| 35296 - PLATE, SOLENOID LOCK, NO.3 | ||||
| 35296-12010 |
ZRE172..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-0W021 |
ZRE172..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32015 |
ZRE172..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-12791 |
ZRE172..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-52020 |
ZRE172..4FC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-52020 |
ZRE172..4FC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-20010 |
ZRE172..4FC UPPER |
1 | ||
| 90301-29011 |
ZRE172..4FC LOWER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-20010 |
ZRE172..4FC UPPER |
1 | ||
| 90301-29011 |
ZRE172..4FC LOWER |
1 | ||
| 35423E - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON) | ||||
| 90501-18119 |
ZRE172..4FC |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-52020 |
ZRE172..4FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-24036 |
ZRE172..4FC |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-35004 |
ZRE172..4FC LOWER |
1 | ||
| 90301-22010 |
ZRE172..4FC UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-35004 |
ZRE172..4FC LOWER |
1 | ||
| 90301-22010 |
ZRE172..4FC UPPER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-52020 |
ZRE172..4FC |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-23149 |
ZRE172..4FC |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
ZRE172..4FC UPPER |
1 | ||
| 90301-29011 |
ZRE172..4FC LOWER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
ZRE172..4FC UPPER |
1 | ||
| 90301-29011 |
ZRE172..4FC LOWER |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-52010 |
ZRE172..4FC |
1 | ||
| Common parts | ||||
| 90105-06072 | ||||
| 91511-80614 | ||||
| 91511-H0620 | ||||
| 91551-80645 | ||||
| 91551-80655 | ||||
| 91551-80670 | ||||
ILLUST NO. 2 OF 2(1308- )4FC
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-52020 |
ZRE172..4FC |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-52070 |
ZRE172..4FC |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ZRE172..4FC |
1 | ||
| Common parts | ||||
| 90301-06004 | ||||
| 91611-60620 | ||||
ILLUST NO. 1 OF 2(1308- )4FC
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-52021 |
ZRE172..4FC |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-52051 |
ZRE172..4FC |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-52080 |
ZRE172..4FC |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
ZRE172..4FC |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
ZRE172..4FC |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-52040 |
ZRE172..4FC |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-52030 |
ZRE172..4FC |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-52040 |
ZRE172..4FC |
1 | ||
| 35295 - PLATE, SOLENOID LOCK, NO.2 | ||||
| 35295-52020 |
ZRE172..4FC |
1 | ||
| 35296 - PLATE, SOLENOID LOCK, NO.3 | ||||
| 35296-12010 |
ZRE172..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-0W021 |
ZRE172..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32015 |
ZRE172..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-12791 |
ZRE172..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-52020 |
ZRE172..4FC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-52020 |
ZRE172..4FC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-20010 |
ZRE172..4FC UPPER |
1 | ||
| 90301-29011 |
ZRE172..4FC LOWER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-20010 |
ZRE172..4FC UPPER |
1 | ||
| 90301-29011 |
ZRE172..4FC LOWER |
1 | ||
| 35423E - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON) | ||||
| 90501-18119 |
ZRE172..4FC |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-52020 |
ZRE172..4FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-24036 |
ZRE172..4FC |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-35004 |
ZRE172..4FC LOWER |
1 | ||
| 90301-22010 |
ZRE172..4FC UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-35004 |
ZRE172..4FC LOWER |
1 | ||
| 90301-22010 |
ZRE172..4FC UPPER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-52020 |
ZRE172..4FC |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-23149 |
ZRE172..4FC |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
ZRE172..4FC UPPER |
1 | ||
| 90301-29011 |
ZRE172..4FC LOWER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
ZRE172..4FC UPPER |
1 | ||
| 90301-29011 |
ZRE172..4FC LOWER |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-52010 |
ZRE172..4FC |
1 | ||
| Common parts | ||||
| 90105-06072 | ||||
| 91511-80614 | ||||
| 91511-H0620 | ||||
| 91551-80645 | ||||
| 91551-80655 | ||||
| 91551-80670 | ||||
