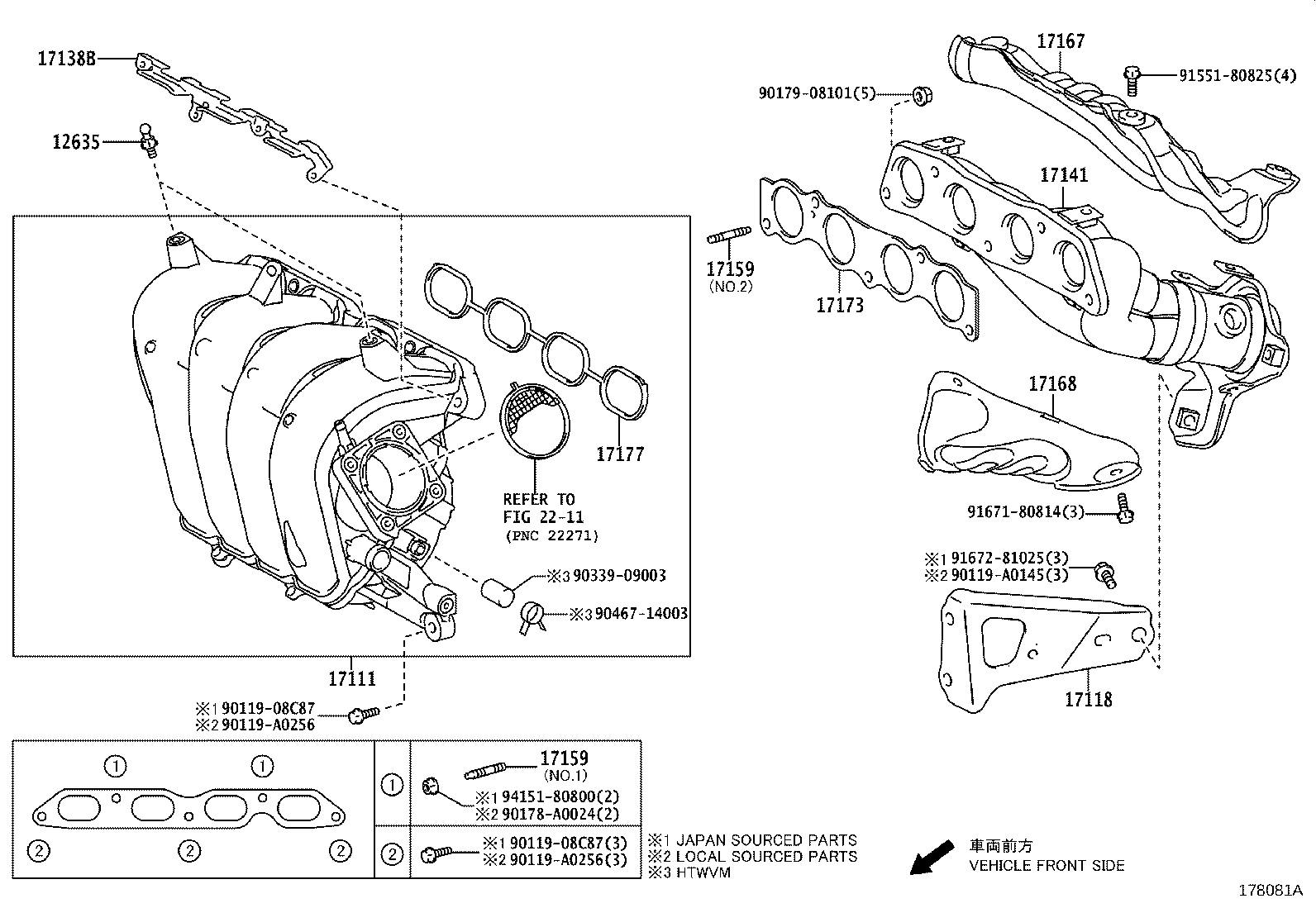

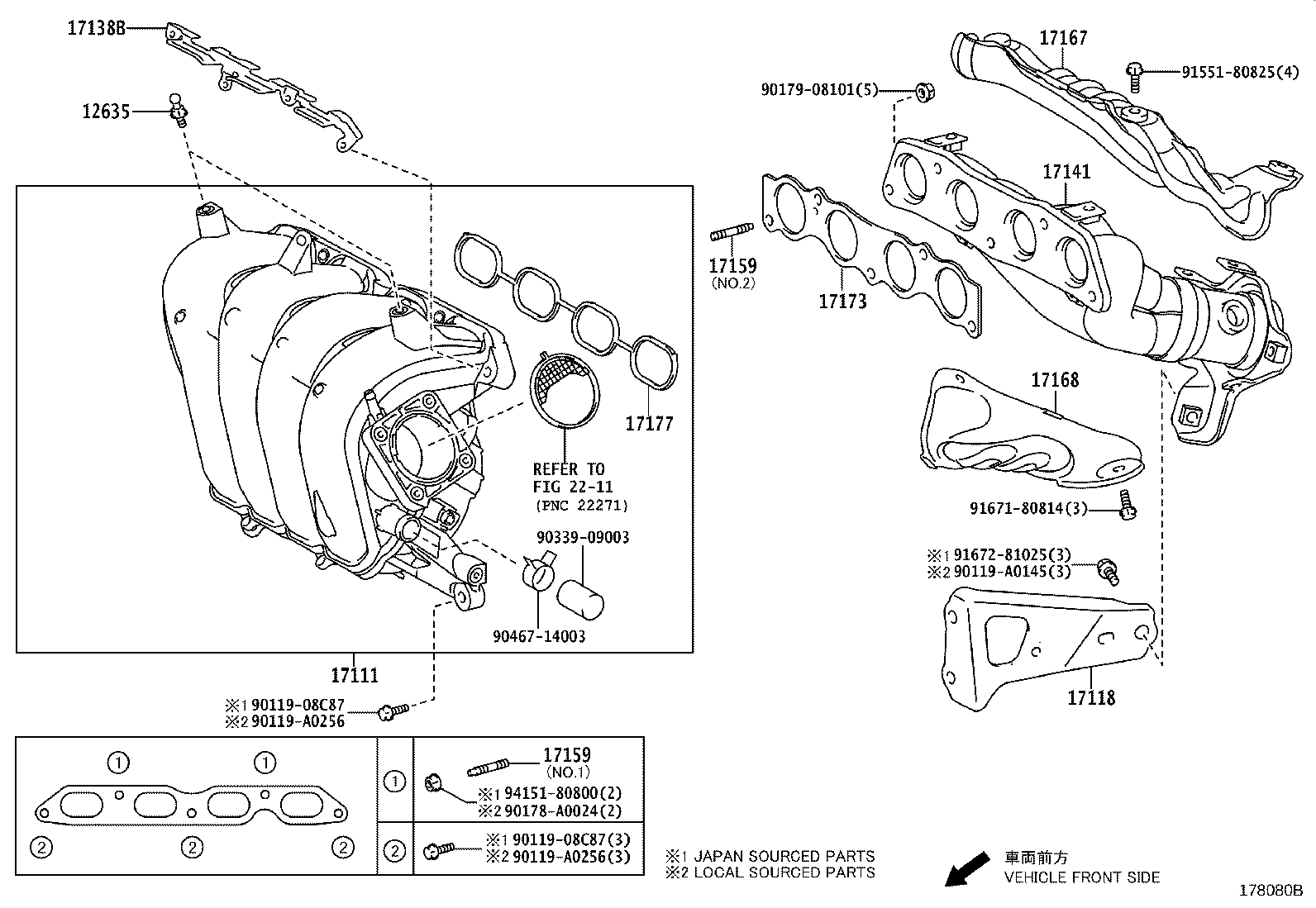

ZRE172L-DEPDKJ (2013)
Toyota Corolla
(1308- )2ZR#..MXC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12635 - JOINT, ENGINE COVER | ||||
| 90109-06385 |
2ZRFE..ZRE172..4FC |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-37022 |
2ZRFE..ZRE172..4FC (J) |
1 | ||
| 17120-0T012 |
2ZRFE..ZRE172..4FC (L) |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-37010 |
2ZRFE..ZRE172..4FC (J) |
1 | ||
| 17118-0T060 |
2ZRFE..ZRE172..4FC (L) |
1 | ||
| 17138B - STAY, INTAKE MANIFOLD | ||||
| 17138-0T010 |
2ZRFE..ZRE172 (L) |
1 | ||
| 17138-0T011 |
2ZRFE..ZRE172..4FC (L) |
1 | ||
| 17138-37011 |
2ZRFE..ZRE172..4FC (J) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-37130 |
2ZRFE..ZRE172..4FC (J) |
1 | ||
| 17141-0T080 |
2ZRFE..ZRE172..4FC (L) |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 |
2ZRFE..ZRE172..4FC (J),NO.1 |
2 | ||
| 90126-A0019 |
2ZRFE..ZRE172..4FC (L),NO.2 |
5 | ||
| 90126-A0006 |
2ZRFE..ZRE172..4FC (L),NO.1 |
2 | ||
| 90126-08052 |
2ZRFE..ZRE172..4FC (J),NO.2 |
5 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 |
2ZRFE..ZRE172..4FC (J),NO.1 |
2 | ||
| 90126-A0019 |
2ZRFE..ZRE172..4FC (L),NO.2 |
5 | ||
| 90126-A0006 |
2ZRFE..ZRE172..4FC (L),NO.1 |
2 | ||
| 90126-08052 |
2ZRFE..ZRE172..4FC (J),NO.2 |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-37110 |
2ZRFE..ZRE172..4FC (J) |
1 | ||
| 17167-0T060 |
2ZRFE..ZRE172..4FC (L) |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-37100 |
2ZRFE..ZRE172..4FC (J) |
1 | ||
| 17168-0T090 |
2ZRFE..ZRE172..4FC (L) |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0T030 |
2ZRFE..ZRE172..4FC (L) |
1 | ||
| 17173-37010 |
2ZRFE..ZRE172..4FC (J) |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0T020 |
2ZRFE..ZRE172..4FC (L) |
1 | ||
| 17177-37030 |
2ZRFE..ZRE172..4FC (J) |
1 | ||
| Common parts | ||||
| 90119-08C87 | ||||
| 90119-A0145 | ||||
| 90119-A0256 | ||||
| 90178-A0024 | ||||
| 90179-08101 | ||||
| 90339-09003 | ||||
| 90467-14003 | ||||
| 91551-80825 | ||||
| 91671-80814 | ||||
| 91672-81025 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 2211 | ||||
(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08C87 | ||||
| 90119-A0145 | ||||
| 90119-A0256 | ||||
| 90178-A0024 | ||||
| 90179-08101 | ||||
| 90339-09003 | ||||
| 90467-14003 | ||||
| 91551-80825 | ||||
| 91671-80814 | ||||
| 91672-81025 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 2211 | ||||
