ZRE172L-DEFSPJ (2016)
Toyota Corolla
Production
Aug 2016
-
Mar 2019
Engine
2ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1608- )6F

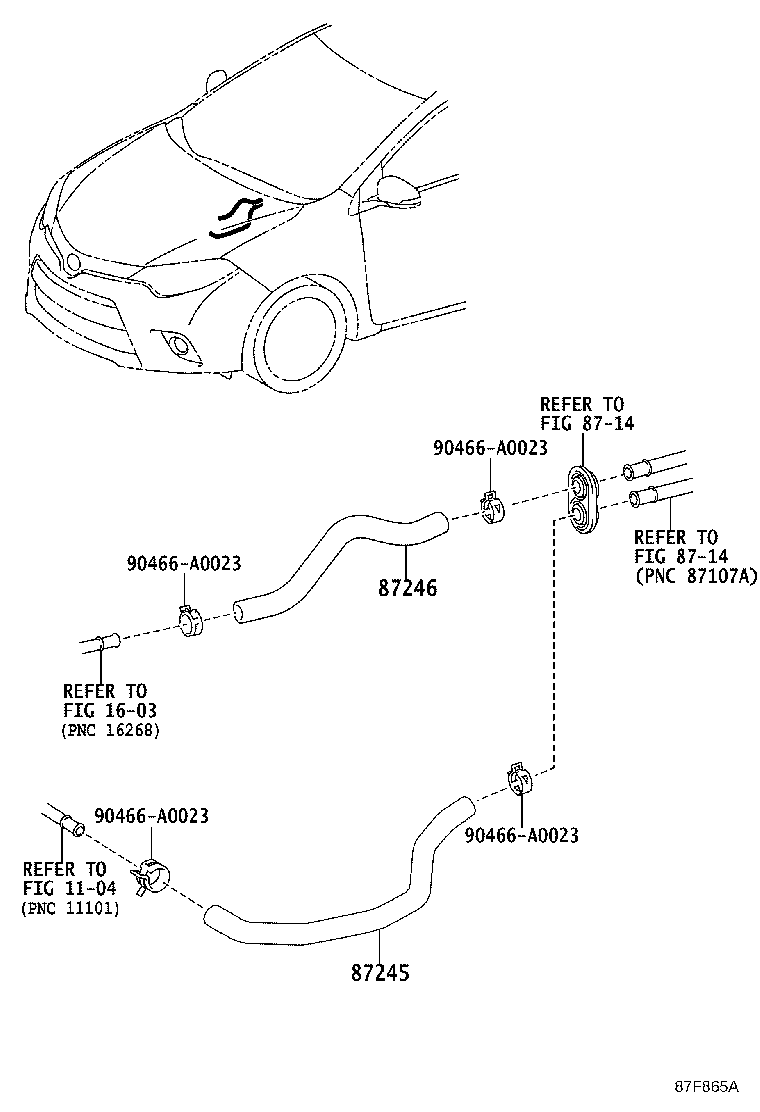

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-02C61 |
ZRE172 |
1 | ||
| 87245-02C60 |
ZRE172..CVT,MTM |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-02C70 |
ZRE172..6F |
1 | ||
| 87245-02C70 |
ZRE172..6F |
1 | ||
| Common parts | ||||
| 90466-A0023 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
(1608- )6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-02C61 |
ZRE172 |
1 | ||
| 87245-02C60 |
ZRE172..CVT,MTM |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-02C70 |
ZRE172..6F |
1 | ||
| 87245-02C70 |
ZRE172..6F |
1 | ||
| Common parts | ||||
| 90466-A0023 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
