ZRE172L-DEFSKJ (2013)
Toyota Corolla

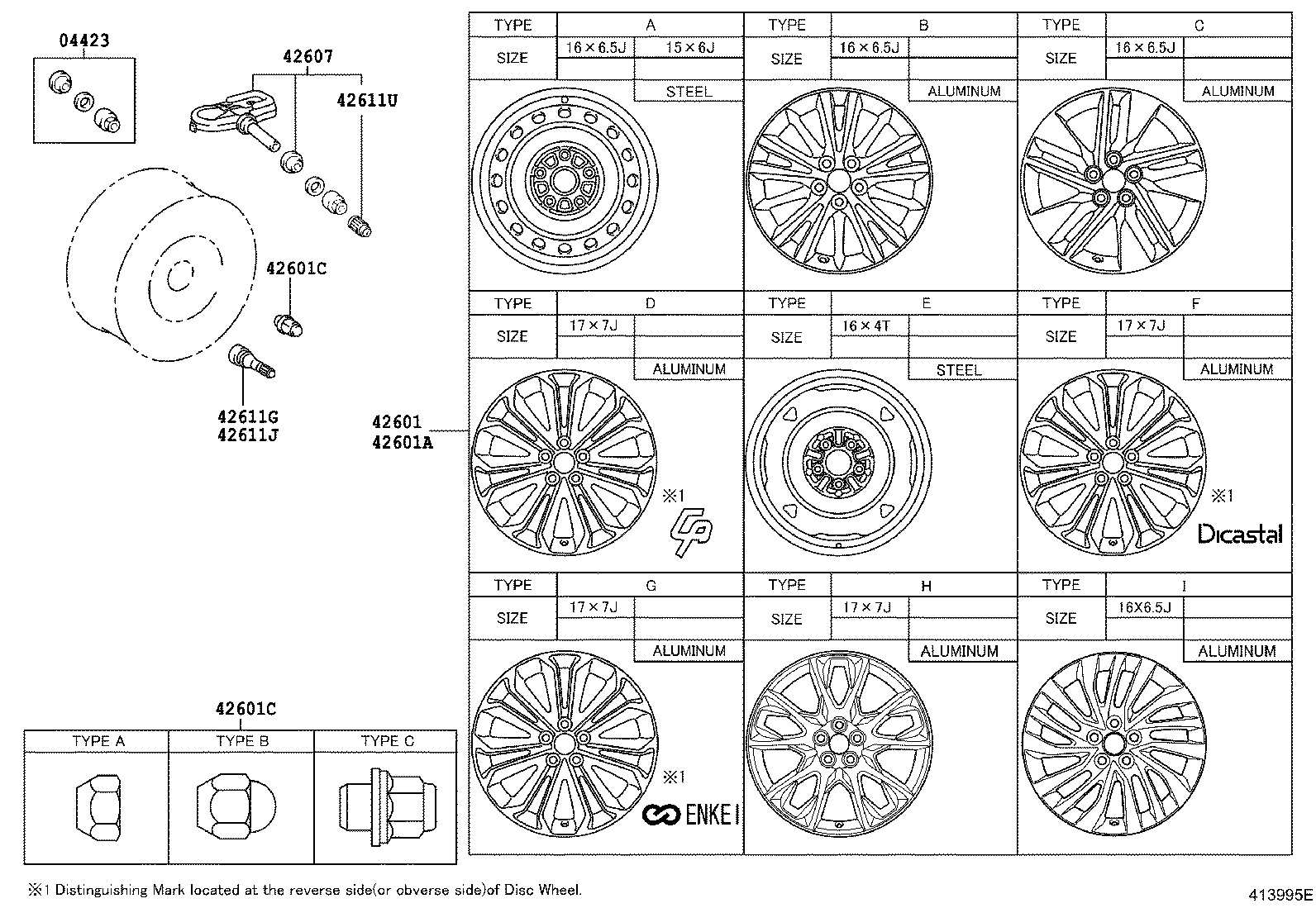

ILLUST NO. 1 OF 2(1308- )MXC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-0E010 |
ZRE172..(CVT,MTM)..MXC |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-02F70 |
ZRE172..S..MXC;ZRE172..STD..GEN 16X6.5J,#,TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE B:REFER ILLUST. |
4 | ||
| 42611-02A00 |
ZRE172..MXC;ZRE172..STD..GEN 16X6.5J,#,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02M50 |
ZRE172..S..MXC;ZRE172..STD..GEN 16X6.5J,#,TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE B:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-02480 |
ZRE172..MXC 16X4T,TYPE E:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01082 |
ZRE172..MXC TYPE B:REFER ILLUST. |
20 | ||
| 90084-94001 |
ZRE172..S..MXC;ZRE172..STD..GEN TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE C:REFER ILLUST. |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01082 |
ZRE172..MXC TYPE B:REFER ILLUST. |
20 | ||
| 90084-94001 |
ZRE172..S..MXC;ZRE172..STD..GEN TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE C:REFER ILLUST. |
20 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-06020 |
ZRE172..(CVT,MTM)..MXC |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45006 |
ZRE172..STD..GEN;ZRE172..(CVT,MTM)..MXC |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-A5002 |
ZRE172..(CVT,MTM)..MXC |
4 | ||

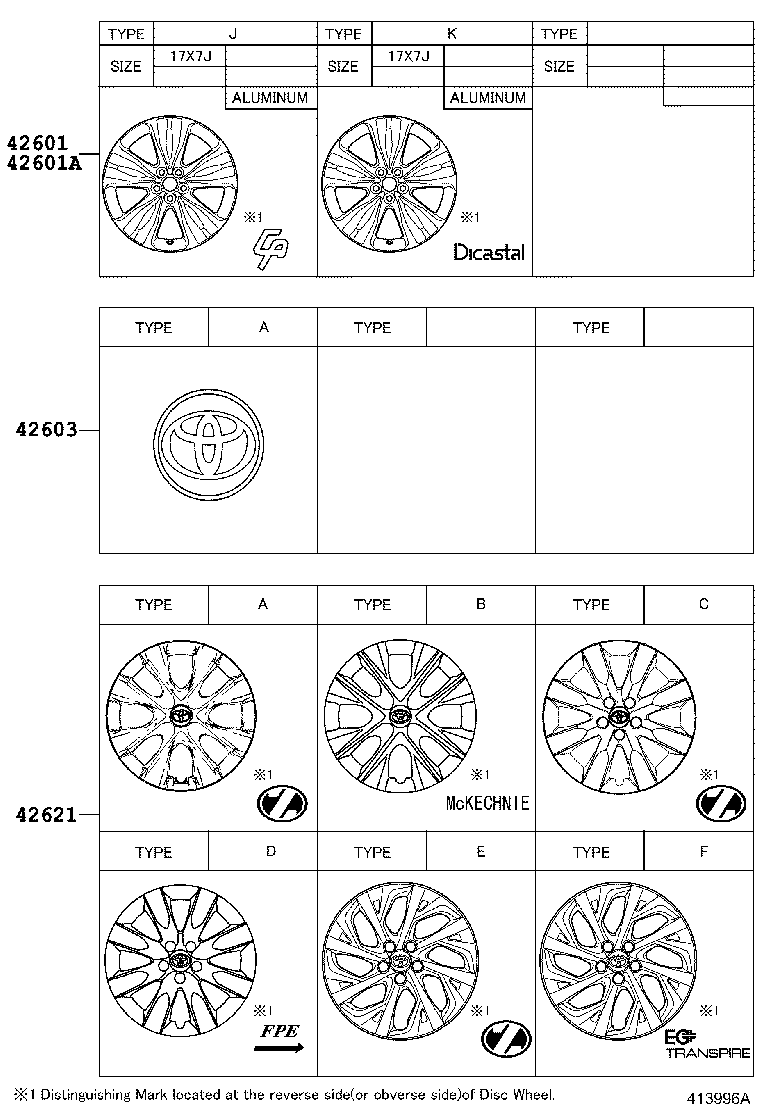

ILLUST NO. 2 OF 2(1308- )MXC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-02220 |
ZRE172..STD..GEN;ZRE172..(CVT,MTM)..S..MXC *CHR,TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE A:REFER ILLUST. |
4 | ||

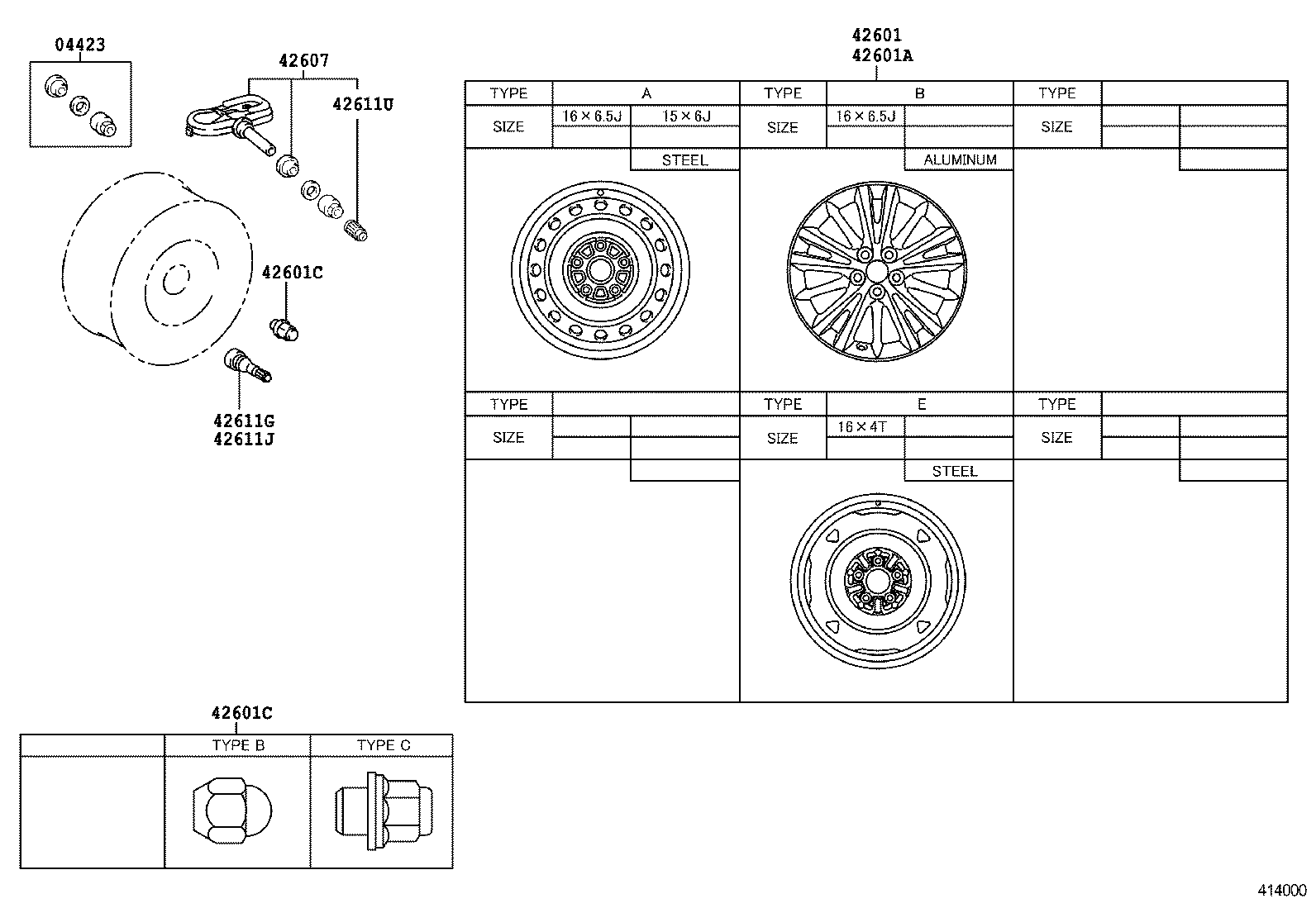

ILLUST NO. 1 OF 2(1308- )
| Part # | Description | Qty | Price |
|---|

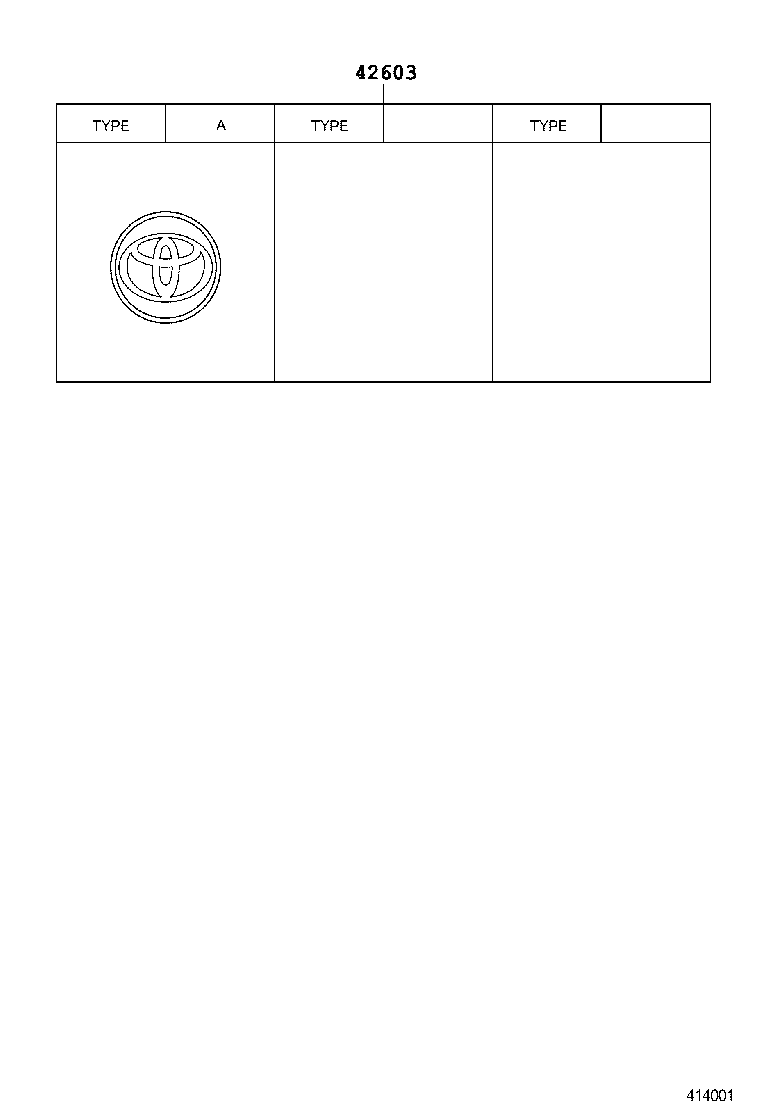

ILLUST NO. 2 OF 2(1308- )
| Part # | Description | Qty | Price |
|---|
