ZRE172L-DEFSKJ (2013)

Toyota Corolla

Production Aug 2013 - Aug 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

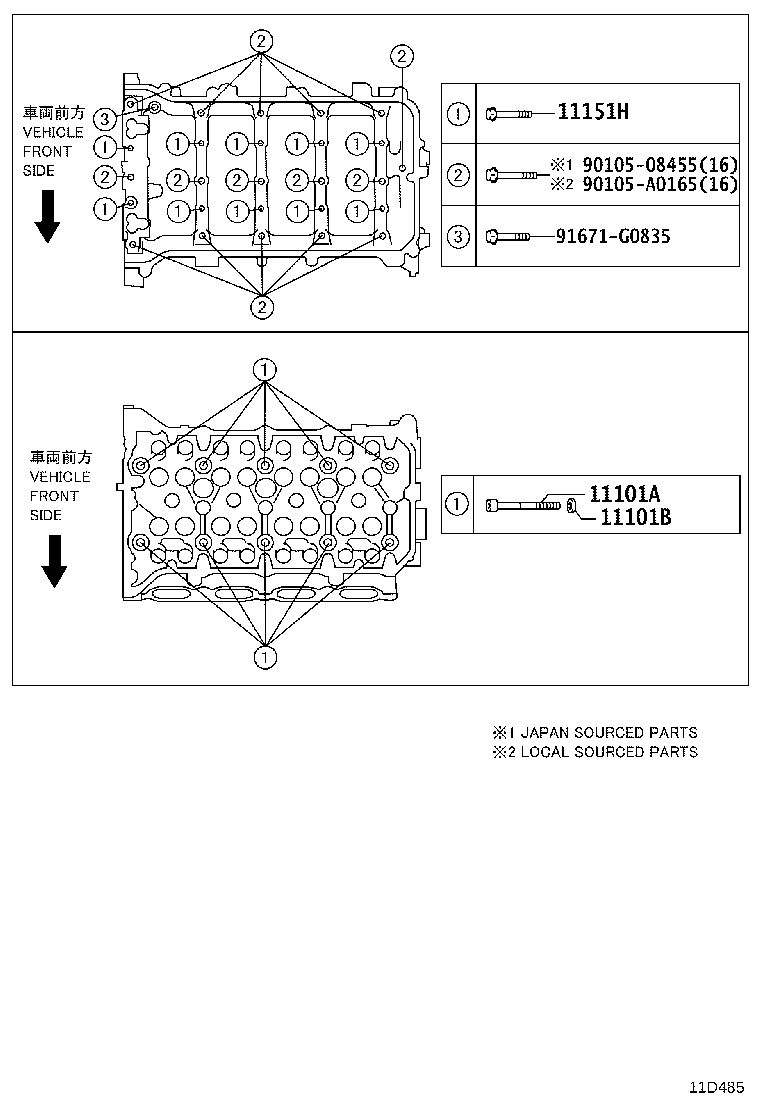

ILLUST NO. 2 OF 2(1308- )

Click highlighted areas on diagram

diagram 11101A 11101B 11151H 9010508455 90105A0165 91671G0835
Part # Description Qty Price
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02166

2ZRFE..ZRE172..CVT,MTM

(J)

 10
90910-A2011

2ZRFE..ZRE172..CVT,MTM

(L)

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

2ZRFE..ZRE172..CVT,MTM

 10
11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
90119-07009

2ZRFE..ZRE172..CVT,MTM

(J)

 20
90119-A0302

2ZRFE..ZRE172..CVT,MTM

(L)

 10
Common parts
90105-08455
90105-A0165
91671-G0835
